The IC693MDL655 is a single‑slot 32‑channel discrete input module from GE Fanuc (now part of Schneider Electric) for the Series 90‑30 PLC platform, designed to interface 24VDC field devices with positive/negative logic compatibility. It features four isolated groups of 8 channels each, with independent commons for flexible wiring, and 1500V field‑to‑logic isolation via optocouplers plus 250V group‑to‑group isolation for noise immunity. The module operates from 11.5–30VDC (ON) and 0–5VDC (OFF), with 7mA typical ON current at 24VDC, 2ms max on/off response times, and 195mA max 5V backplane draw. It integrates with all Series 90‑30 CPUs, baseplates, and power supplies, serving as a high‑density, reliable input interface for industrial sensors, switches, and digital devices.

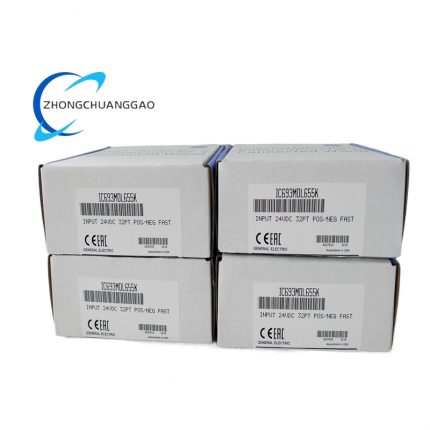

The IC693MDL655K is a high-density discrete input module tailored for the GE Fanuc Series 90-30 PLC system, engineered to collect 24VDC discrete input signals from industrial field devices. It features 32 input points split into four isolated groups of eight, each with an independent common terminal, supporting both positive and negative logic for versatile device integration. The module provides 1500 VDC isolation between the field and logic sides, plus 250 VAC isolation between groups, ensuring operational safety in harsh industrial environments. It incorporates individual LED indicators for each input point, a 32-screw removable terminal block for secure wiring, and optocoupler-based isolation for noise immunity. It draws 195 mA max from the 5 VDC backplane and 224 mA typical from the 24 VDC isolated bus, and fits any I/O slot of Series 90-30 baseplates, making it ideal for large-scale signal acquisition with high isolation and flexible grouping.

The IC693MDL742 is a single‑slot 16‑channel discrete output module from GE Fanuc (now part of Emerson Automation) for the Series 90‑30 PLC platform, featuring two 8‑channel groups with individual commons and Electronic Short Circuit Protection (ESCP). It uses positive logic (sourcing) to drive 12/24VDC loads, with 1500V field‑to‑logic and 500V group‑to‑group isolation, plus 1A per‑channel and 3–4A per‑group current ratings (temperature‑dependent). The module delivers 5.2A inrush for 10 ms, 1.2V max voltage drop, 1 mA max off‑state leakage, and 2 ms max on/off response times, with 130 mA max 5V backplane draw. It integrates with all Series 90‑30 CPUs, baseplates, and power supplies, serving as a protected, high‑density output interface for industrial solenoids, indicators, and motor starters.

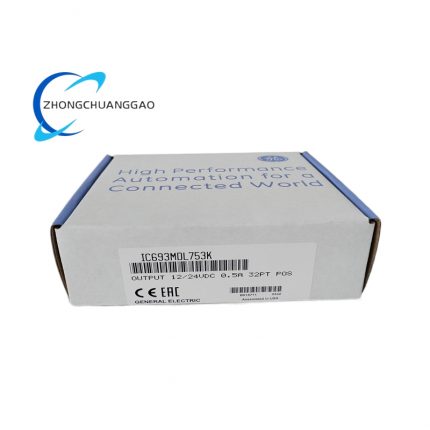

The IC693MDL753 is a 32-point discrete output module dedicated to the GE Fanuc Series 90-30 PLC system, designed to drive 12/24VDC loads through positive (sourcing) logic. It has 32 output points divided into four isolated groups of eight, each with an independent common terminal that can bear up to 3A current per pin. The module can provide 0.5A current per channel and 4A current per group, supporting an inrush current of 5.4A for 10ms to meet the operation of inductive loads. It is equipped with optocouplers that provide 1500VDC isolation between the field side and the logic side to ensure the safety and stability of the system. Each output point is equipped with an individual green LED indicator for real-time monitoring, and it is installed with a 26-screw removable terminal block for easy wiring. It draws 260mA from the 5VDC backplane and can be inserted into any I/O slot of the Series 90-30 baseplate, making it an ideal choice for high-density and high-reliability load control applications.

The IC693MDL940H is a single‑slot 16‑channel relay output module from GE Fanuc (now Emerson Automation) for the Series 90‑30 PLC platform, configured as 4 groups of 4 channels with independent commons. It provides 1500VAC field‑to‑logic and 500V group‑to‑group isolation, handling 5–30VDC/5–250VAC loads at 2A per channel. The module draws 7 mA from the 5V backplane and 135 mA from the 24V backplane (all outputs ON), with green LEDs per channel for output status. It integrates with all Series 90‑30 CPUs, baseplates, and power supplies, serving as a robust, isolated interface for industrial motor starters, solenoids, and indicators.

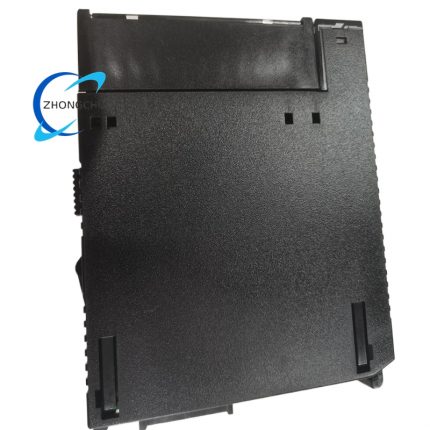

The IC693MDL940L is a 16-point normally-open (NO) relay output module belonging to the GE Fanuc Series 90-30 PLC system, tailored to switch both AC and DC loads with 2A per channel and 4A per group common. It is structured into four isolated groups of four output points each, each group having an independent common terminal. The module supports 5-30VDC and 5-250VAC (50/60Hz) field voltages, and provides 1500VDC isolation between the field and logic sides, as well as 500VAC isolation between groups. It is fitted with individual green LED indicators for each output point, uses a 20-pin removable terminal block, and draws 7mA from the 5VDC backplane and 135mA from the 24VDC backplane when all outputs are on. It can be installed in any I/O slot of Series 90-30 baseplates, providing a reliable solution for controlling heavy industrial loads in various automation applications.
