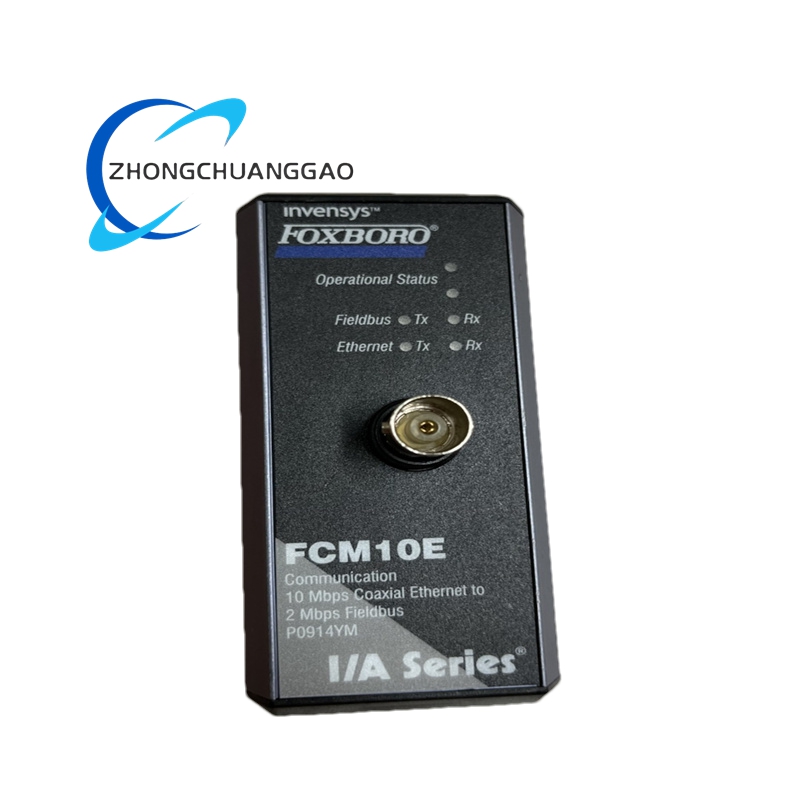

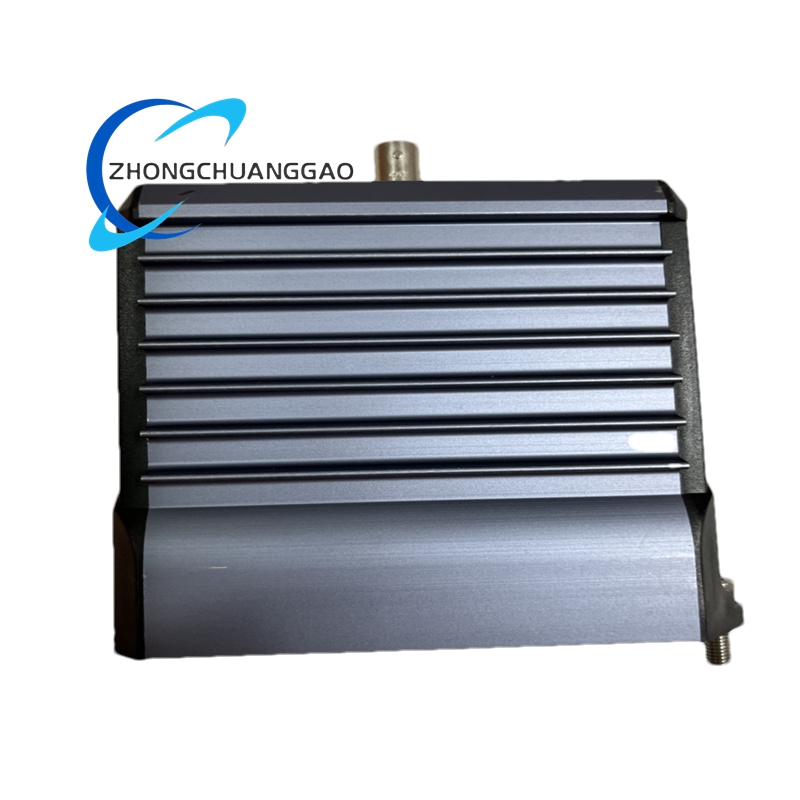

Foxboro FCM10E Fieldbus Interface Module
Foxboro FCM10E Fieldbus Interface Module - Image 2
Foxboro FBMSVH
Foxboro FBMSVH
Back to products

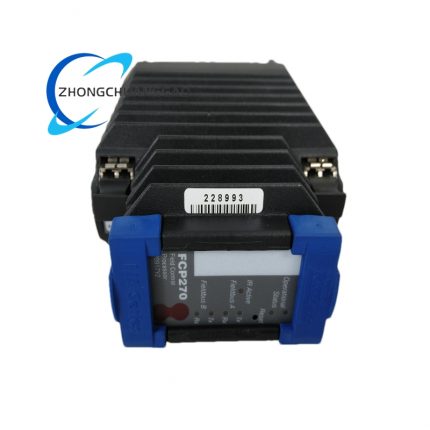

Foxboro FCP270 Field Control Processor
Foxboro FCP270 Field Control Processor

Foxboro FCM10E Fieldbus Interface Module

Technical Specifications
  • Supported Protocols: Foundation Fieldbus H1, Profibus DP
  • Communication Rate: Foundation Fieldbus H1 (31.25 kbps); Profibus DP (up to 12 Mbps)
  • Number of Ports: 2 independent fieldbus ports (for redundant or dual-bus configuration)
  • Power Supply: 24 VDC ±10%
  • Power Consumption: 5 W (typical), 8 W (maximum)
  • Operating Temperature Range: -40°C to +70°C
  • Storage Temperature Range: -40°C to +85°C
  • Relative Humidity: 5% to 95% (non-condensing)
  • Isolation: 1500 V AC galvanic isolation between fieldbus ports and power supply
  • Dimensions: 10.4 cm (W) × 4.5 cm (H) × 11.4 cm (D)
  • Weight: 0.3 kg
Category:
Description
Functional Characteristics
  • Multi-Protocol Support: Compatible with Foundation Fieldbus H1 and Profibus DP, adapting to different field device communication requirements.
  • Redundant Configuration: Supports dual-port redundant fieldbus setup, ensuring uninterrupted communication if one bus fails.
  • Real-Time Data Transmission: Enables high-speed, real-time exchange of process data and control signals between the DCS and field devices.
  • Built-In Diagnostics: Features comprehensive self-diagnostic functions, including bus fault detection and device status monitoring, facilitating quick troubleshooting.
  • Easy Integration: Seamlessly integrates with the Foxboro I/A Series DCS, requiring minimal configuration for fast deployment.
Application Scenarios
  • Petrochemical Industry: Connects field devices such as flow meters, pressure transmitters, and control valves in oil refining and chemical processes, enabling centralized monitoring and control.
  • Power Industry: Integrates sensors and actuators in power generation (e.g., thermal power, hydropower) and transmission systems to monitor parameters like steam pressure and turbine speed.
  • Chemical Industry: Links intelligent instruments in chemical reaction processes to the DCS, ensuring precise control of temperature, pH, and reactant flow.
  • Water Treatment: Connects water quality analyzers, pumps, and valves in sewage or drinking water treatment plants, supporting automated process control and quality monitoring.
  • Pharmaceutical Industry: Integrates sanitized field devices in drug production lines to meet strict process control and data traceability requirements.
