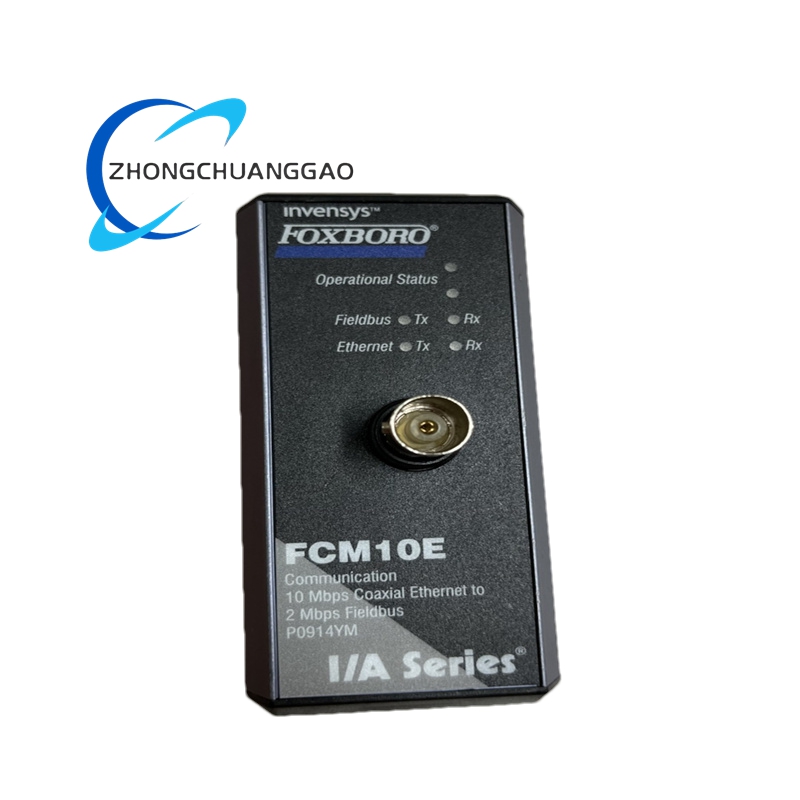

FOXBORO FCM10E Fieldbus Communication Module
Technical Specifications
- Communication Protocols: Supports 10 Mbps Ethernet backbone and 2 Mbps fieldbus signals.
- Redundancy: Modules operate in pairs for fault tolerance; one pair supports up to 30 FBMs.
- Power Requirements: Input voltage range of 24 V DC (±5%, -10%); maximum power consumption of 7 W at 24 V DC.
- Environmental Tolerance:
- Operating Temperature: -20°C to +70°C (-4°F to +158°F).
- Storage Temperature: -40°C to +70°C (-40°F to +158°F).
- Humidity: 5%–95% RH (non-condensing).
- Altitude: -300 to +3,000 m (-1,000 to +10,000 ft) for operation; -300 to +12,000 m (-1,000 to +40,000 ft) for storage.
Description
- Mechanical Specifications:
- Dimensions: Height 102–114 mm (4–4.5 inches), width 45 mm (1.75 inches), depth 104 mm (4.11 inches).
- Weight: Approximately 284 g (10 oz).

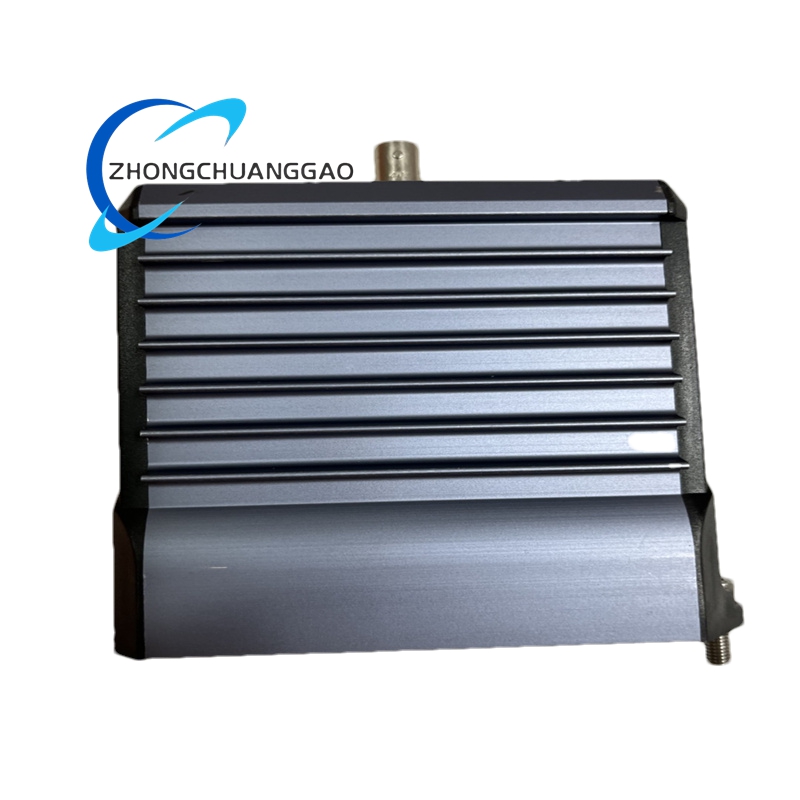

- Material: Extruded aluminum housing for physical protection.
- Certifications: Complies with CE, UL, CSA, and IEC 61000-4 standards for EMC and safety.
Key Features
- High Reliability: Redundant design ensures uninterrupted operation even if one module fails.
- Scalability: Supports up to 30 FBMs per pair, enabling flexible system expansion.
- Robust Construction: Durable aluminum casing and DIN-rail/rack-mountable base for harsh environments.
- Hot-Swappable: Modules can be replaced without powering down the system, minimizing downtime.
- Diagnostic Capabilities: LED indicators for network activity, read/write status, and operational health.
- Industrial Protocol Support: Compatible with Modbus, PROFIBUS DP, and Foundation Fieldbus for seamless integration with diverse automation equipment.
Applications
The FOXBORO FCM10E is widely used in industries requiring high-speed, reliable communication between control systems and field devices, including:
- Power Generation: Manages turbine control systems and grid synchronization in power plants.
- Oil and Gas: Facilitates real-time monitoring of pipeline pressure and flow control valves.
- Water Treatment: Connects pump stations to central SCADA systems for efficient water distribution.
- Chemical Processing: Regulates temperature and pressure in reactor vessels for safe operations.
- Manufacturing Automation: Integrates PLCs with sensors and actuators for precision control in assembly lines.
Additional Notes
- The FCM10E’s compact design allows up to 30 pairs to be connected to an Ethernet backbone, making it suitable for large-scale industrial networks.
- Its compliance with IEC 61131-2 and ATEX directives ensures suitability for explosive atmospheres and hazardous locations.
- The module’s modular architecture simplifies maintenance and upgrades, reducing long-term operational costs.
- FOXBORO’s global service network provides technical support and spare parts to ensure continuous system performance.
