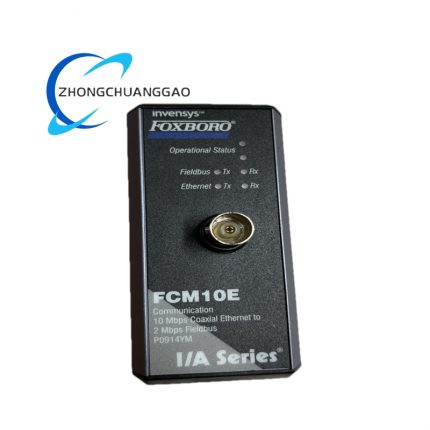

Foxboro FCM10E Fieldbus Interface Module
Foxboro FCM10E Fieldbus Interface Module

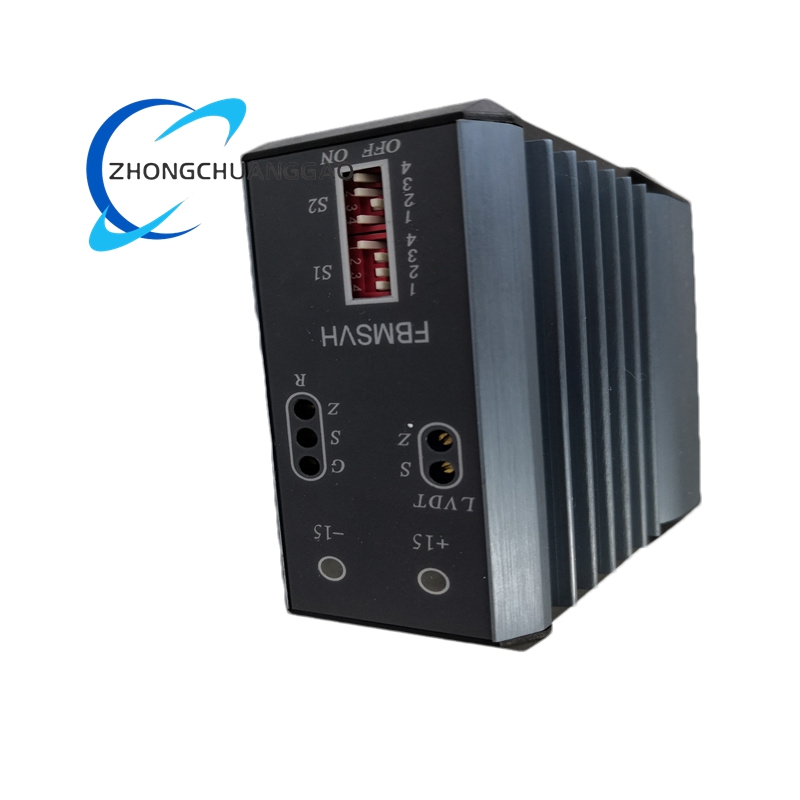

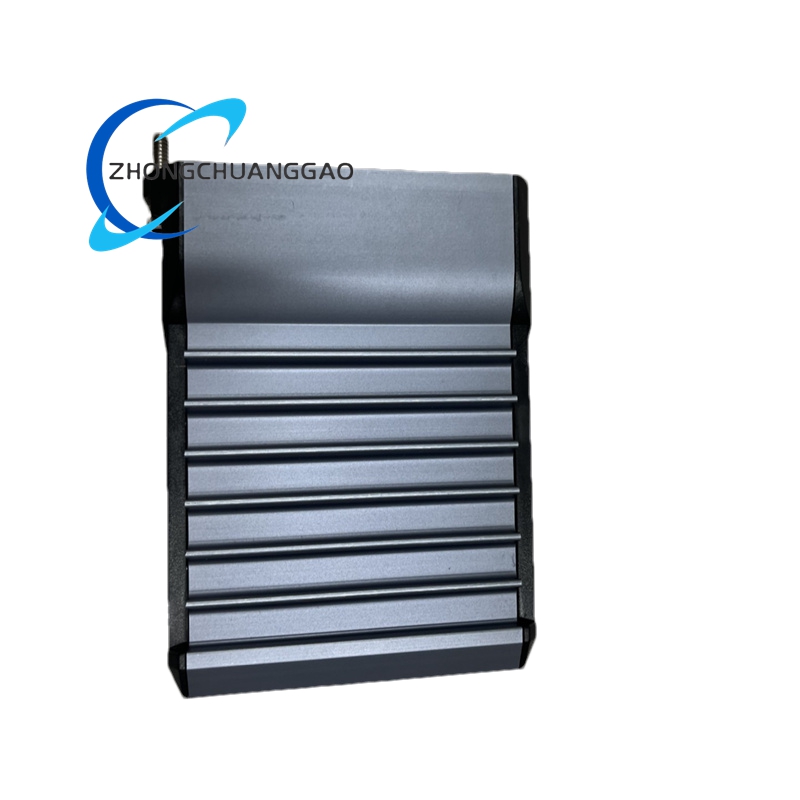

Foxboro FBMSVH

Technical Specifications
  • Input Voltage: 12V DC to 45V DC
  • Output Voltage: 4 to 20 mA DC
  • Operating Temperature Range: -40°C to 85°C
  • Storage Temperature Range: -55°C to 90°C
  • Precision: ±0.1% of the full scale
  • Dimensions: 89 mm x 31 mm x 23 mm
  • Weight: Approximately 0.5 kg
  • Protection Level: IP65 or higher
  • Communication Interface: Supports Foundation Fieldbus, Profibus, etc.
Category:
Description
Functional Characteristics
  • High – precision: The measurement accuracy can reach ±0.1% or ±0.25%FS.
  • High – reliability: It adopts redundant design and fault detection mechanism to ensure stable operation of the system.
  • Flexible Configuration: Supports a variety of input and output types and communication protocols to adapt to the needs of different industrial environments.
  • Real – time Monitoring: It can real – time acquire the temperature data of the thermocouple sensor and transmit it to the control system for real – time monitoring and display.
  • Alarm Function: When the temperature is abnormal, the FBMSVH module will trigger the alarm function to send an alarm signal to remind the operator to take timely measures.
Application ScenariosThe FBMSVH module is widely used in many industrial fields, including but not limited to petrochemical, power, water treatment, pharmaceutical, food and beverage industries. In the petrochemical industry, it is used for process control and safety interlocking; in the power industry, it is used in power plants and substations; in the water treatment industry, it is used in sewage treatment plants; in the pharmaceutical and food and beverage industries, it is used for production process control.
