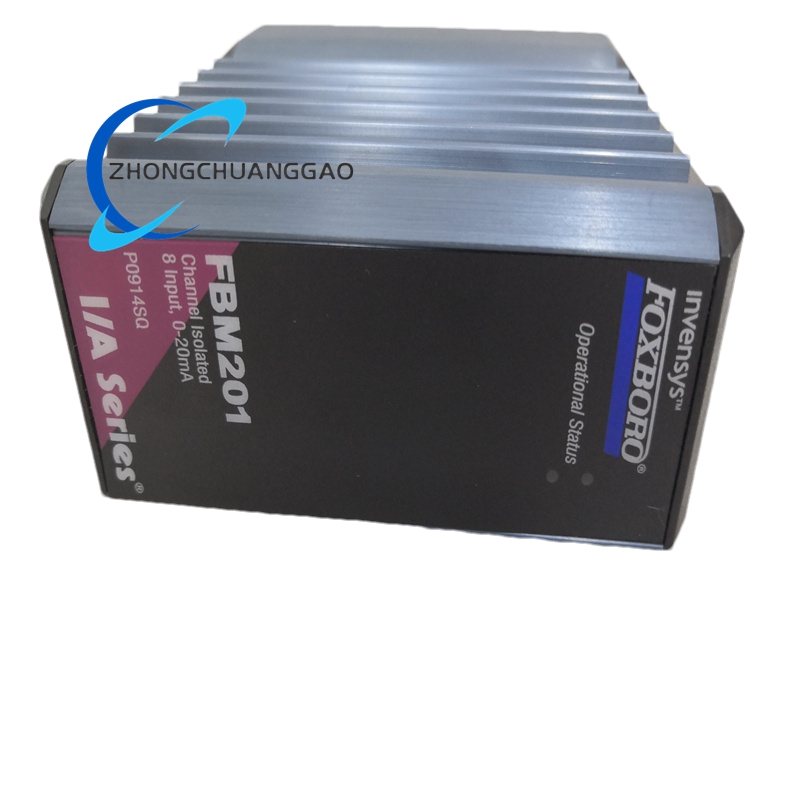

FOXBORO FBM201 Analog Input Module
Technical Specifications
- Input Channels: 8 independent analog input channels.
- Input Types:
- 0–20 mA DC (two-wire transmitters).
- 0–100 mV DC.
- 0–5 V DC.
- 0–10 V DC.
- Accuracy: ±0.03% of full scale (including linearity).
- Temperature Coefficient: ±50 ppm/°C.
- Isolation: Each channel is electrically isolated from others and ground, withstanding 600 V AC for 1 minute.
- A/D Conversion: Sigma-delta conversion per channel, sampling rate of 25 ms per channel.
- Integral Time: Software-configurable to filter process noise and power line frequency interference.
Description
- Common-Mode Rejection: >100 dB at 50/60 Hz.
- Loop Power Protection: Current limiting and voltage regulation per channel (limit <40 mA; short-circuit current ~100 mA).
- Operating Conditions:
- Temperature: -40°C to +70°C (-40°F to +158°F).
- Humidity: 5%–95% (non-condensing).
- Altitude: -300 m to +12,000 m (-1,000 ft to +40,000 ft).
- Physical Dimensions: 10.4 cm (L) × 4.5 cm (W) × 11.4 cm (H).
- Weight: 0.284 kg.
Key Features
- High Precision: Sigma-delta conversion ensures accurate signal acquisition.
- Channel Isolation: Each channel is independently isolated, preventing interference and enhancing safety.
- Compact Design: Rugged ABS or aluminum housing for protection against vibration, dust, and moisture.
- Configurable Filters: Adjustable integral time to suppress noise and improve signal stability.
- Hot-Swappable: Modules can be replaced without disconnecting field wiring or power/communication cables.
- LED Indicators: Front-panel LEDs display operational status (power, communication, faults).
- HART Compatibility: Supports HART protocol for smart transmitters.
Applications
- Process Control: Monitoring temperature, pressure, flow, and level in petrochemical plants, refineries, and chemical reactors.
- Power Generation: Acquiring generator winding temperature, boiler parameters, and turbine signals.
- Water Treatment: Measuring pH, turbidity, and chlorine levels in municipal or industrial water systems.
- Manufacturing: Controlling equipment status and environmental parameters in automotive or food processing lines.
Additional Notes
- The FBM201 is part of FOXBORO’s I/A Series DCS ecosystem, ensuring seamless integration with other modules (e.g., FBM202 for thermocouple input, FBM237 for analog output).
- Its modular design simplifies maintenance and reduces downtime during upgrades.
- The module complies with industrial standards such as CE and IEC for safety and reliability.
