ABB RLM01

Technical Specifications

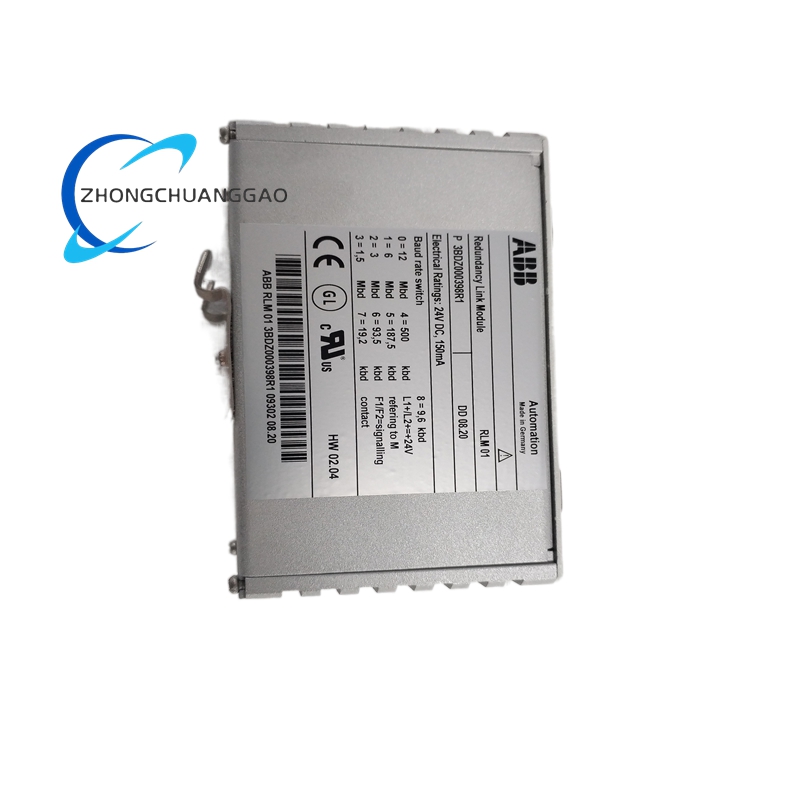

The specifications below define the operational parameters and physical characteristics of the standard RLM01 redundant link module:

• Communication Protocol:
  • Primary: PROFIBUS DP (V0 and V1 compatible).
  • Transmission Rates: Supports a wide range from 9.6 Kbps to 12 Mbps, adaptable to different network requirements.
  • Topology: Supports line, star, and tree topologies with redundant ring capabilities.
• Network Capacity:
  • Maximum Devices: Supports connection of up to 31 PROFIBUS clients (slaves) on a single segment without a repeater.
  • Expansion: Network size can be expanded significantly using optical-electrical repeaters to cover larger distances and connect more devices.
• Hardware and Environmental Parameters:

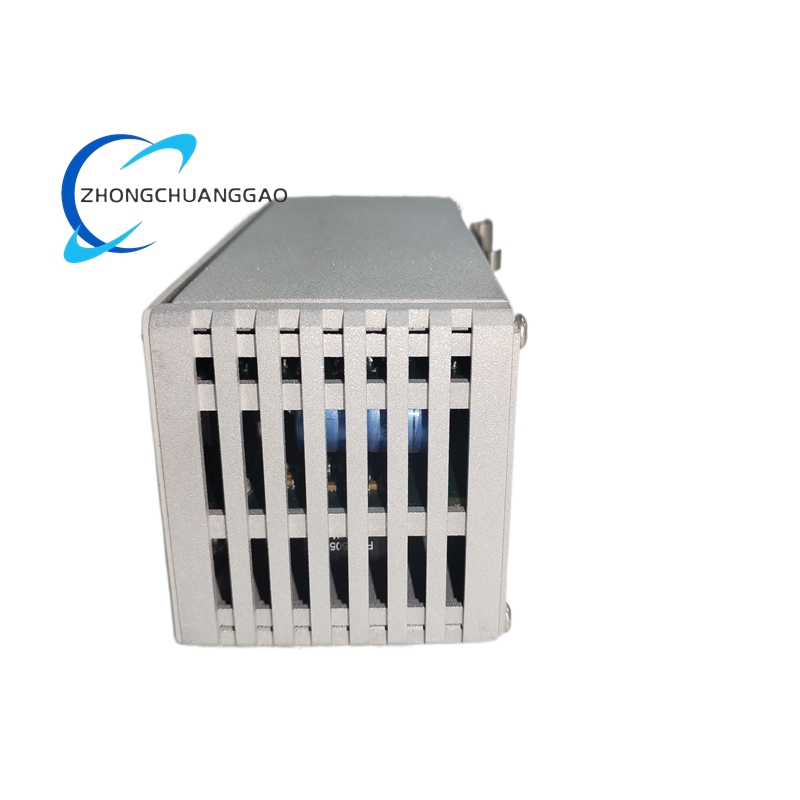

  • Dimensions: Approximately 175.5 mm (Length) x 90 mm (Width) x 103.5 mm (Height).
  • Weight: Typically around 0.2 kg to 0.5 kg depending on configuration.
  • Power Supply: Standard 24 VDC industrial supply.
  • Operating Temperature: -25°C to +70°C, suitable for harsh industrial environments.
  • Protection Class: Designed for panel mounting (IP20), requiring installation within a control cabinet.
• Signal Characteristics:
  • Signal Type: RS-485 compliant differential signals.
  • Termination: Includes terminals for bus termination and biasing.

Functional Features

• High-Availability Redundancy:
  • The core feature is the ability to convert a single non-redundant link into two redundant links or integrate two existing links into a single fault-tolerant channel.
  • It supports fast switching mechanisms (typically <1ms) to ensure seamless data continuity if the primary cable is cut or a device fails.
• Advanced Signal Conditioning:
  • Amplification and Shaping: The module actively amplifies and reshapes incoming data signals to combat attenuation and noise over long cable runs, ensuring high signal integrity.
  • Isolation: Provides electrical isolation to protect the controller from ground loops and voltage spikes originating in the field.
• Comprehensive Diagnostics and Monitoring:
  • Real-Time Status: Continuously monitors the activity and health of up to three communication links (Primary, Secondary, and Internal).
  • Visual Indicators: Equipped with LED indicators for power, run/stop status, and communication activity/errors on each channel.
  • Alarm Output: Provides relay or transistor outputs to signal communication failures to the central control system or HMI.
• Seamless Integration:
  • Transparent Configuration: Features a “transparent” PROFIBUS design that often eliminates the need for complex slave address configuration, simplifying the engineering process.
  • Compatibility: Designed to interoperate with PROFIBUS devices from various manufacturers, not limited to ABB products.
• Fiber Optic Support:
  • Can be paired with media converters to utilize fiber optic cables, allowing for long-distance communication (up to several kilometers) and immunity to electromagnetic interference (EMI).

Application Scenarios

The ABB RLM01 is deployed in environments where communication failure is not an option:

• Process Industry:
  • Oil and Gas: Monitoring pipelines, refineries, and offshore platforms where a communication loss could lead to safety hazards.
  • Chemical and Pharmaceutical: Ensuring precise control of batch processes and reactor monitoring.
  • Power and Water: Substation automation, turbine control, and water treatment plant SCADA systems.
• Discrete Manufacturing:
  • Automotive: Assembly line control where a network stop would halt the entire production line.
  • Semiconductor: Cleanroom automation requiring high reliability for wafer handling equipment.
• Infrastructure and Transportation:
  • Railway Signaling: Interlocking systems and train control networks.
  • Airport Baggage Handling: High-speed sorting systems relying on continuous data exchange.
• Robotics and Heavy Machinery:
  • Used in robotic cells where multiple controllers and I/O blocks need to communicate reliably over a PROFIBUS network.
