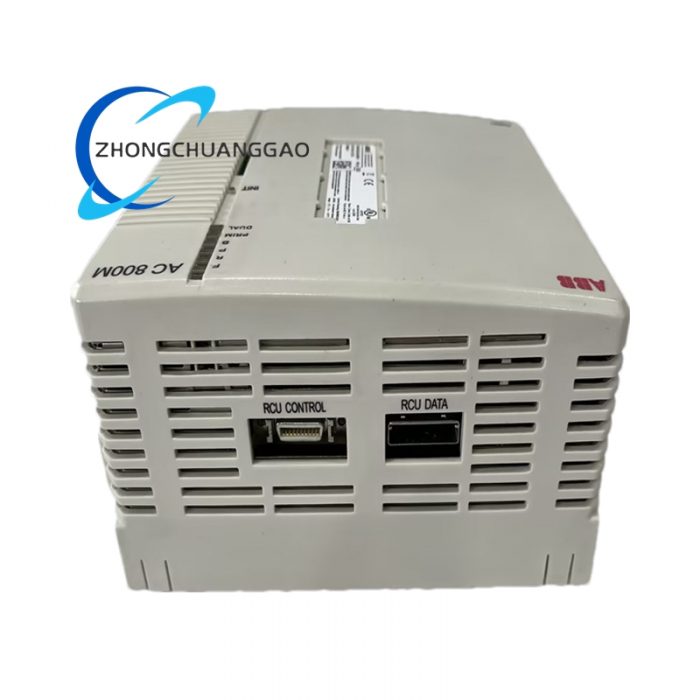

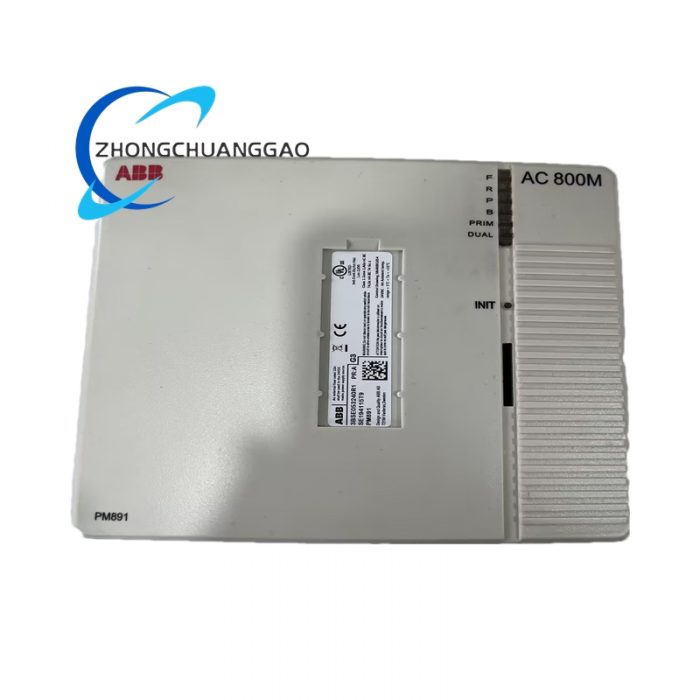

ABB PM891 3BSE053240R1

• Power Supply:
  • Input Voltage: 24 V DC (redundant power inputs; 19.2 V DC to 30 V DC tolerance)
  • Power Consumption: 12 W (typical); 15 W (maximum, under full load)
  • Power Backup: Supercapacitor backup (maintains NVRAM data and completes shutdown procedures during power loss)
• Environmental Parameters:
  • Operating Temperature Range: -25°C to +70°C
  • Storage Temperature Range: -40°C to +85°C
  • Humidity Tolerance: 5% to 95% (non-condensing, up to 40°C)
  • Vibration Resistance: 5 g peak (10 Hz to 2000 Hz, per IEC 60068-2-6)
  • Shock Resistance: 20 g peak (11 ms duration, per IEC 60068-2-27)
• Mechanical Specifications:
  • Dimensions (W × H × D): 119 mm × 186 mm × 135 mm (compatible with standard AC 800M racks)
  • Mounting: DIN rail (35 mm, per EN 60715) or rack mounting (via AC 800M system racks)
  • Weight: 1.8 kg
• Certifications:
  • Functional Safety: IEC 61508 (SIL 3), EN ISO 13849-1 (PL e)
  • EMC: IEC 61000-6-2 (immunity), IEC 61000-6-4 (emissions)
  • Industrial Standards: IEC 61131-3 (programming), UL 508 (North America), CE marking

Function Features

• 1+1 Redundant Architecture: Eliminates single points of failure with hot standby operation and ≤100 ms automatic failover. Ensures uninterrupted process control in critical applications (e.g., nuclear power, chemical reactors).
• High-Speed Processing: Dual-core 1.2 GHz CPU and 2 GB ECC RAM enable fast execution of complex control logic (e.g., multi-loop PID, batch sequencing) and real-time processing of thousands of I/O points.
• Multi-Protocol Communication: Supports PROFINET IRT, Modbus TCP, Ethernet/IP, and IEC 61850—enabling seamless integration with third-party PLCs, HMIs, SCADA systems, and smart field devices (e.g., IoT sensors).
• ECC Memory & Data Backup: ECC RAM corrects single-bit errors and detects multi-bit errors to prevent data corruption. NVRAM with supercapacitor backup retains critical configuration and process data for 72 hours without power.
• Advanced Diagnostics: Monitors hardware health (CPU temperature, power supply status, communication links) and software performance (control cycle time, I/O error rates). Generates detailed fault logs with time stamps for rapid troubleshooting via 800xA HMI.
• Scalable I/O Integration: Connects to up to 32 S800 I/O modules via CEX-Bus, supporting digital, analog, and specialty I/O (e.g., temperature, vibration). Enables flexible expansion for large-scale industrial systems.
• IEC 61131-3 Compliance: Supports all standard programming languages (ladder logic, function block diagram, structured text, sequential function chart)—simplifying logic development and reducing engineering time.
• Rugged Industrial Design: Withstands -25°C to +70°C temperatures, vibration, and electromagnetic interference. Robust enclosure and thermal management ensure reliable operation in harsh settings (e.g., mines, refineries).

Application Scenarios

• Power Industry:
  • Nuclear/Hydro/Thermal Power Plants: Controls turbine generators, boiler systems, and safety shutdown circuits. Redundancy ensures uninterrupted power generation; IEC 61850 compliance integrates with smart grid systems.
  • Renewable Energy (Wind/Solar): Manages wind turbine pitch control and solar inverter synchronization. High-speed processing optimizes energy capture and grid integration.
• Process Industry:
  • Chemical & Pharmaceutical Plants: Controls batch reactors, distillation columns, and chemical dosing systems. Redundancy prevents costly downtime; advanced PID ensures precise temperature/pressure regulation.
  • Oil & Gas Refineries: Manages pipeline pumping stations, crude oil distillation, and gas processing units. Withstands hazardous environments and supports Modbus RTU for communication with remote field devices.
• Manufacturing Industry:
  • Automotive Assembly: Controls robotic workcells, conveyor systems, and paint booths. PROFINET IRT enables synchronized motion control of multiple robots; redundancy minimizes production line stoppages.
  • Semiconductor Manufacturing: Regulates cleanroom temperature, pressure, and wafer processing equipment. High precision and data integrity prevent defects in microchip production.
• Critical Infrastructure:
  • Water & Wastewater Treatment: Controls sewage pumps, chemical disinfection systems, and reservoir level monitoring. Redundancy ensures continuous operation to avoid environmental contamination.
  • Urban Transit (Metro/Rail): Manages traction power systems, platform screen doors, and signal control. Withstands vibration and temperature fluctuations in underground/outdoor rail environments.
