ICS Triplex T9882 8‑Channel Duplex Isolated Analogue Output Termination Assembly

Technical Specifications

  1. Mechanical Specifications
    • Form Factor: AADvance standard termination assembly (compatible with T9300 3‑slot backplanes)
    • Dimensions: 112 mm (width) × 70 mm (depth) × 123 mm (height) (4.41 in × 2.76 in × 4.84 in)
    • Weight: 1.0 kg (2.2 lb)
    • Mounting: Plug‑in to T9300 backplanes; tool‑free installation
    • Protection Rating: IP20 (dust and finger contact protection)
    • Housing Material: Powder‑coated metal alloy with flame‑retardant polymer insulators
    • Color: Black (matches AADvance controller chassis)
    • Connector Type: Locking screw‑type terminal blocks (2.5 mm² wire capacity)
    • Fuse Access: Front‑panel accessible without removing module or termination assembly
Read more
Quick view

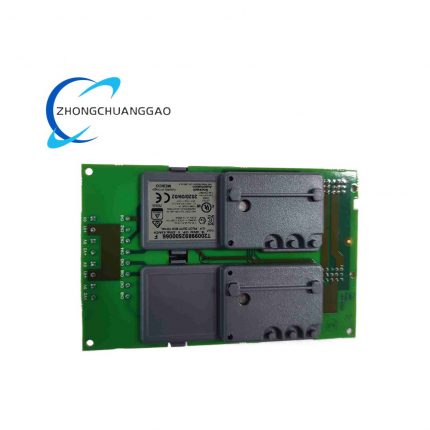

ICS Triplex T9892

产品名称：安全数字输入模块（三模块冗余）
产品介绍：一款高度可靠、经 TÜV 认证的安全输入模块，设计用于 ICS 三重可信 TMR（三重模块化冗余）安全仪表系统 (SIS)。
技术规格： 16 个通道；可接受 24 VDC 干接点或有源信号；通过 TÜV 认证，符合 IEC 61508 SIL 3 标准；每个通道均采用三重冗余处理器和投票逻辑。
Read more
Quick view

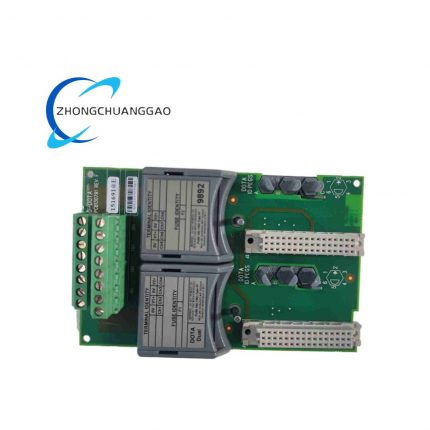

ICS Triplex T9892 8‑Channel Duplex Digital Output Termination Assembly

Technical Specifications

  1. Mechanical Specifications
    • Form Factor: AADvance standard termination assembly (compatible with T9300 3‑slot backplanes)
    • Dimensions: 112 mm (width) × 70 mm (depth) × 123 mm (height) (4.41 in × 2.76 in × 4.84 in)
    • Weight: 1.0 kg (2.2 lb)
    • Mounting: Plug‑in to T9300 backplanes; tool‑free installation
    • Protection Rating: IP20 (dust and finger contact protection)
    • Housing Material: Powder‑coated metal alloy with flame‑retardant polymer insulators
    • Color: Black (matches AADvance controller chassis)
    • Connector Type: Locking screw‑type terminal blocks (2.5 mm² wire capacity)
    • Field Power Access: Front‑panel dedicated connectors for dual commoned field power inputs
Read more
Quick view

ICS Triplex T9901 50 mA Fast‑Acting Replacement Input Fuse

Technical Specifications

  1. Electrical Specifications
    • Current Rating: 50 mA (fast‑acting)
    • Voltage Rating: 250 VAC/DC (continuous)
    • Breaking Capacity: 100 A at 250 VAC/DC (interrupts fault currents safely)
    • Fuse Type: Fast‑acting (class F) for rapid overcurrent response
    • Resistance: 0.5 ohms (typical) at 25°C for minimal voltage drop
    • Temperature Coefficient: ±0.01 ohms/°C (25°C to 100°C) for stable performance across operating temperatures
    • Insulation Material: Ceramic body (high thermal resistance and arc suppression)
    • Contact Material: Silver‑plated copper end caps for low‑resistance connections
Read more
Quick view

ICS Triplex T9902 10A Fast‑Acting Replacement Output Fuse

Technical Specifications

    1. Electrical Specifications
      • Current Rating: 10A (fast‑acting)
      • Voltage Rating: 125 VAC/DC (continuous)
      • Breaking Capacity: 100 A at 125 VAC/DC (interrupts fault currents safely)
      • Fuse Type: Fast‑acting (class F) for rapid overcurrent response
      • Resistance: 0.05 ohms (typical) at 25°C for minimal voltage drop
      • Temperature Coefficient: ±0.005 ohms/°C (25°C to 100°C) for stable performance across operating temperatures
      • Insulation Material: Ceramic body (high thermal resistance and arc suppression)
      • Contact Material: Silver‑plated copper end caps for low‑resistance connections
Read more
Quick view

ICS Triplex TB8110B Trusted TMR Processor Module

Technical Specifications

  1. Processor & Memory
    • Processor Clock: 100 MHz RISC (reduced instruction set computing) core
    • DRAM: 16 MB EDO with 60 ns access time for real‑time data processing
    • EPROM: 512 KB for bootloader and firmware storage
    • Flash Memory: 2 MB for application program and OS kernel storage
    • NVRAM: 128 KB for maintained variable storage (retained during power loss)
    • Variable Storage Allocation: 1 byte per discrete, 4 bytes per analog, 5 bytes per timer
    • SOE Buffer: 1000 local events, transfers to CI module buffer (4000 events total)
  2. Electrical Specifications
    • Power Input: 20–32 VDC (redundant power inputs for fault tolerance)
    • Power Consumption: 80 W (heat dissipation: 80 W typical)
    • Power Protection: Reverse polarity protection, overvoltage clamping, and current limiting
    • I/O Interface: Triple redundant Inter‑Module Bus (IMB) for I/O module communication
    • Communication Ports: 2x RS422/485 (2/4‑wire), 1x RS485 (2‑wire), IRIG‑B 002 time sync input
Read more
Quick view

ICS Triplex TC-304-01-5M0 Trusted 5-Meter Maintenance & Diagnostic Cable

Technical Specifications

  1. Electrical & Signal Specifications
    • Cable Type: 6-core shielded twisted-pair (Belden 9536 equivalent)
    • Wire Gauge: 24 AWG (stranded copper conductors for flexibility)
    • Impedance: 100 ohms (matched for RS232 signal integrity)
    • Voltage Rating: 300 V AC/DC (continuous operation)
    • Current Rating: 1 A per conductor (max)
    • Insulation Resistance: ≥100 MΩ (at 500 V DC)
    • Capacitance: 20 pF per meter (conductor-to-conductor)
    • Attenuation: ≤1 dB per meter at 1 MHz
    • Shielding Effectiveness: ≥90 dB (at 100 kHz to 1 GHz)
    • Communication Protocol: RS232 (asynchronous serial, up to 115.2 kbps).
Read more
Quick view

ICS Triplex TC-505-02-4M5 4.5-Meter Trusted I/O SmartSlot Cable

Technical Specifications

  1. Electrical & Signal Specifications
    • Cable Type: 34-core shielded multi-conductor (24 AWG stranded copper)
    • Voltage Rating: 300 V AC/DC (continuous operation)
    • Current Rating: 2 A per conductor (max load)
    • Insulation Resistance: ≥100 MΩ (at 500 V DC)
    • Shielding: Foil + braid dual shielding (shielding effectiveness ≥90 dB at 100 kHz–1 GHz)
    • Impedance: 120 ohms (signal pairs)
    • Capacitance: ≤25 pF per meter (conductor-to-conductor)
    • Attenuation: ≤1 dB per meter at 1 MHz
    • Signal Isolation: 2500 Vrms (module-to-FTA, 1 minute)
Read more
Quick view

ICS Triplex TC‑303‑02‑4M0 4‑Meter Trusted Local Expansion Fiber Optic Cable

Technical Specifications

  1. Optical Specifications
    • Fiber Type: 62.5/125 μm duplex multimode (OM1)
    • Core/Cladding Diameter: 62.5 μm core, 125 μm cladding
    • Numerical Aperture (NA): 0.275
    • Attenuation: ≤3.5 dB/km at 850 nm; ≤1.5 dB/km at 1300 nm
    • Insertion Loss: ≤0.3 dB per LC connector (typical: 0.2 dB)
    • Return Loss: ≥35 dB (typical: 40 dB)
    • Bandwidth: 160 MHz·km at 850 nm; 500 MHz·km at 1300 nm
    • Operating Wavelength: 850 nm / 1300 nm (dual‑window compatibility)
  2. Electrical & Mechanical Specifications
    • Connector Type: LC/LC keyed industrial fiber optic connectors (dust‑cap protected)
    • Jacket Material: LSZH (Low Smoke Zero Halogen)
    • Strain Relief: Molded black polyurethane strain relief at both ends
    • Cable Diameter: 5 mm (0.2 inches)
    • Minimum Bend Radius: 25 mm (dynamic); 15 mm (static)
    • Tensile Strength: 100 N (22.5 lbf) for short‑term installation; 50 N (11.2 lbf) for long‑term operation
    • Length: 4 meters (13.1 feet) ± 0.1 meters (factory‑calibrated)
    • Weight: 0.25 kg (0.55 lbs)
Read more
Quick view

IICS Triplex T8231

Product Name:​ Trusted® TMR System Power / Expander Module (Power Supply Interface for I/O Rack)
Introduction:​ The T8231 is a TMR power and system interface module that supplies regulated power to the Trusted I/O rack and interfaces with the Trusted controller (usually T8110B/T9100 series processor). It ensures clean, redundant 24 V DC distribution to all I/O modules in the rack and participates in system health monitoring.
