GE

• Function Type: This module serves as a processor or input/output (I/O) interface component within the turbine control system, responsible for signal processing, data acquisition, and command execution.
• Processor and Memory: Equipped with a high-speed digital signal processor (DSP) and sufficient onboard memory to support real-time control algorithms, diagnostics, and firmware operations.
• Communication Interface: Supports high-speed communication via Ethernet or fiber optic links, enabling integration with the central control system and other field devices using protocols such as Profibus, Modbus, or proprietary GE control networks.
• I/O Support: Designed to interface with analog and digital signals from sensors and actuators, including temperature, pressure, speed, and valve position feedback.

Technical Specifications:

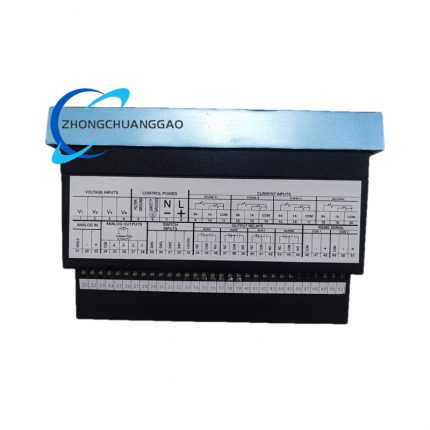

• Measurement Standards: IEC 61000-4-30 Class A compliant for power quality monitoring
• Voltage Inputs: 3-phase or single-phase configurations, typical ranges up to 690 V AC
• Current Inputs: Compatible with Rogowski coils, CTs (current transformers), or clamp sensors
• Sampling Rate: High-speed sampling for transient and waveform capture
• Frequency Range: 45 Hz to 65 Hz (extendable for special applications)
• Voltage Accuracy: ±0.1% of reading
• Current Accuracy: ±0.5% of reading
• Harmonic Analysis: Up to 63rd harmonic for voltage and current

Technical Specifications:

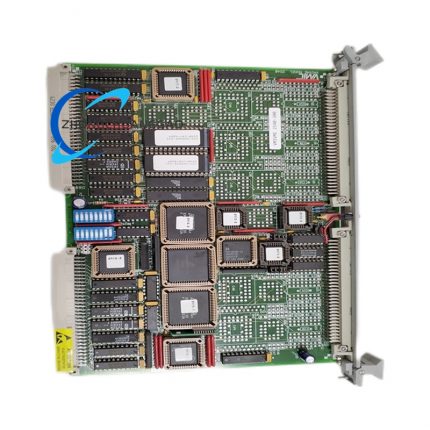

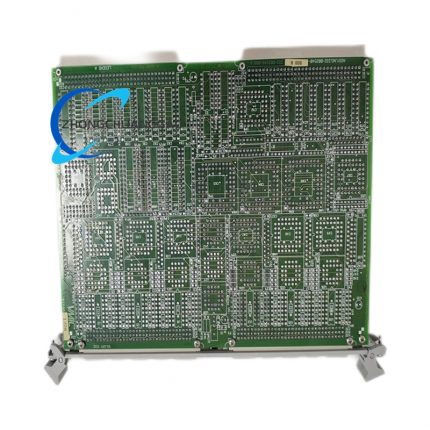

• Module Type: 16-channel analog-to-digital input module for VMEbus systems.
• Input Resolution: 16-bit resolution ensures high accuracy and fine signal discrimination across the measurement range.
• Input Voltage Ranges: Supports multiple selectable input ranges including ±10 V, ±5 V, 0–10 V, and 0–5 V, accommodating a wide variety of sensor and transducer outputs.
• Sampling Rate: Capable of high-speed data acquisition with a per-channel sampling rate up to 100 kHz, enabling real-time monitoring of fast-changing signals.
• Analog Inputs: Features 16 single-ended or 8 differential input channels, providing flexibility in signal connection and noise rejection.

Technical Specifications:

• Processor: Equipped with a powerful processor that supports high-speed operation suitable for compute-intensive tasks. Depending on the specific configuration, it can feature processors like PowerPC or Intel architectures.
• Memory: Offers significant RAM capacity, essential for running complex applications and multitasking efficiently. It also includes options for non-volatile memory for data retention without power.
• Storage: Supports various storage options such as CompactFlash or SSD for storing operating systems, applications, and data.
• I/O Interfaces: Comes with multiple I/O interfaces including USB ports, serial ports, Ethernet, and digital I/O, allowing connectivity to a wide range of peripherals and networks.
