Bently Nevada 3500/22-01-01-00 Transient Data Interface (TDI) Module
Technical Specifications
– Input channels : 8 vibration/speed/process channels, software-configurable
– Sampling rate : 8 kHz max per dynamic channel, synchronous across the rack
– Resolution : 16-bit ADC, <0.02 % non-linearity
– Frequency range : 0.5 Hz – 4 kHz (–3 dB) with programmable high-pass, low-pass and notch filters
– On-board memory : 512 MB for transient buffer, event log and firmware
– Communication ports :
– 10/100 Mb copper Ethernet (Modbus TCP, proprietary Bently protocol)
– RS-232 / RS-485 (38.4 kbaud, Modbus RTU)
– Power draw : 7.7 W typical, supplied directly from 3500 rack 24 Vdc back-plane
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– MTBF : >200 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C full performance
– Storage temperature : –55 °C to +125 °C
– Humidity : 5 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 2 g 5–500 Hz operational
– Dimensions : 115 mm × 124 mm × 45 mm (4.5" × 4.9" × 1.8")
– Weight : 0.45 kg (1 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS

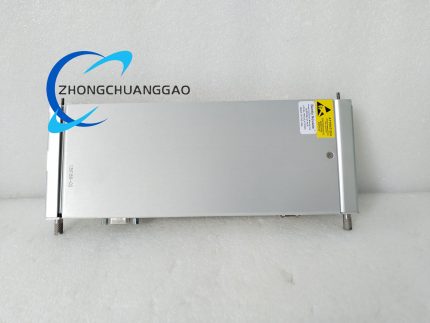

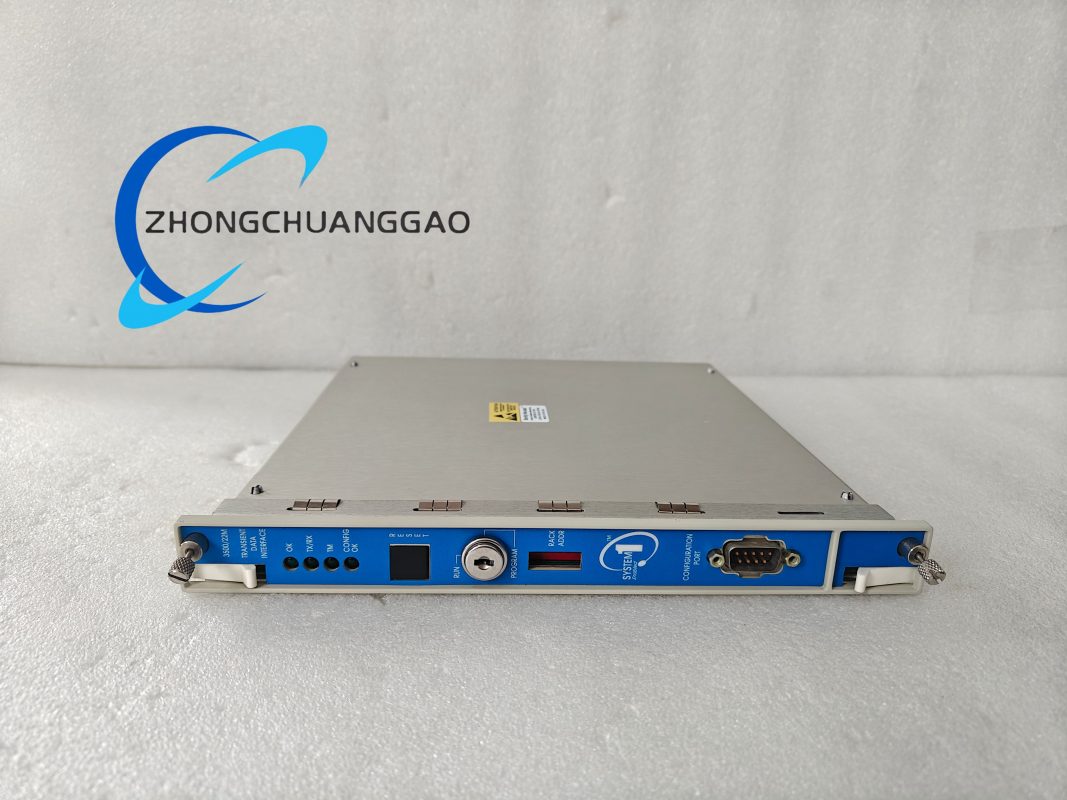

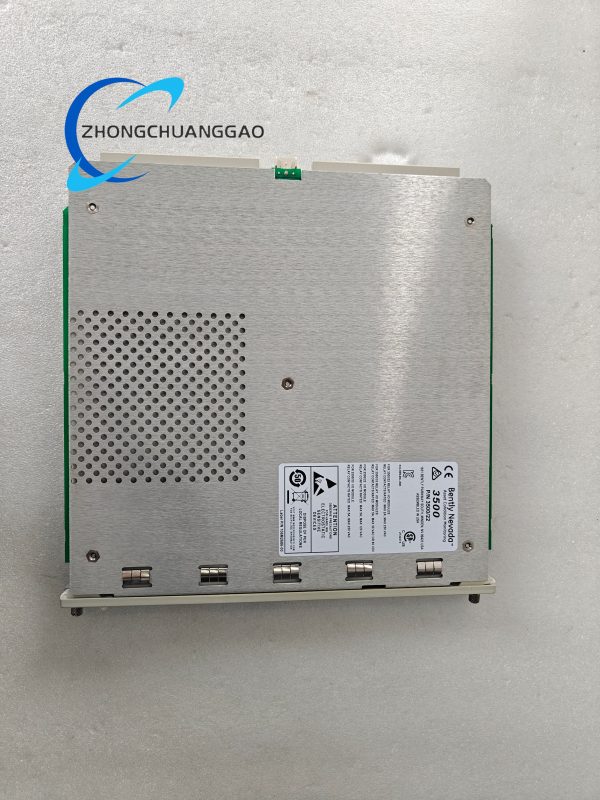

Bently Nevada 3500/22M 138607-01 Transient Data Interface (TDI) Module
Technical Specifications
– Data acquisition : 22 dynamic channels, 24 static/process channels
– Sampling rate : 102.4 kHz per dynamic channel, synchronous across the rack
– Resolution : 16-bit ADC, <0.02 % non-linearity, 30 ppm/°C drift
– Frequency range : 0.3 Hz – 40 kHz (–3 dB) with programmable filters
– On-board memory : 2 GB for transient buffer, event log and firmware
– Communication ports :
– 10/100BASE-TX auto-sensing copper Ethernet
– 100BASE-FX fiber-optic Ethernet (optional)
– USB-B service port (38.4 kbaud)
– RS-232/RS-485 (Modbus RTU)
– Protocols : Modbus TCP/RTU, proprietary Bently protocol, OPC UA tunnel
– Power supply : 24 Vdc from rack back-plane, 10.5 W typical, <15 W max
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +70 °C full performance
– Storage temperature : –55 °C to +125 °C
– Humidity : 5 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 5 g 5–500 Hz operational
– Dimensions : 229 mm × 140 mm × 48 mm (9.0" × 5.5" × 1.9")
– Weight : 1.0 kg (2.2 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine

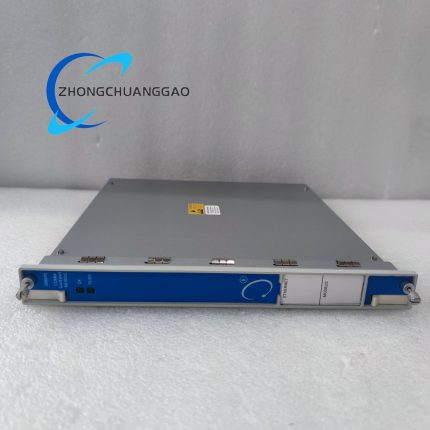

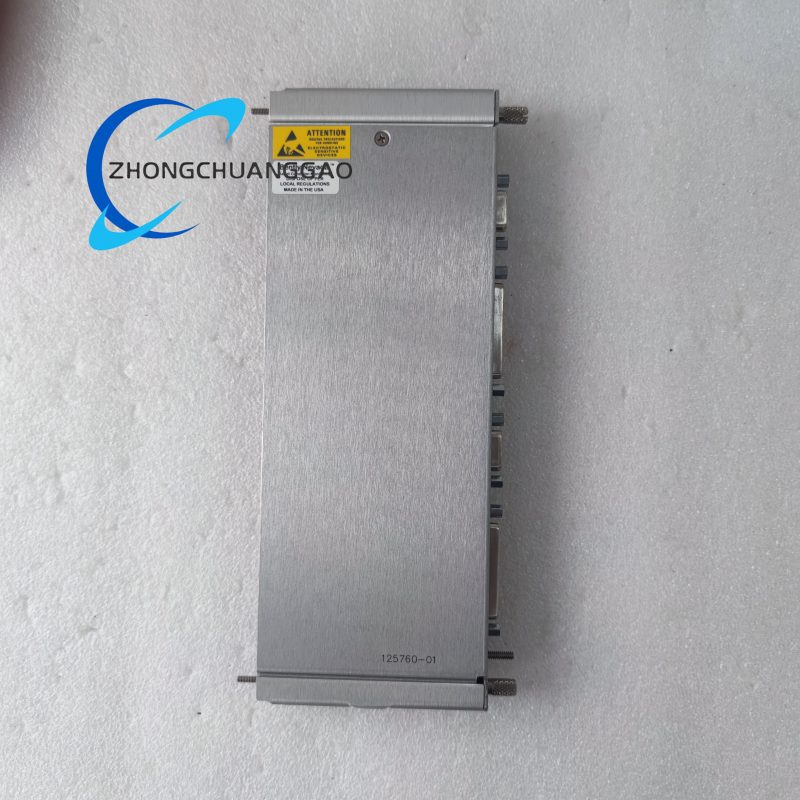

Bently Nevada 3500/20 125760-01 Rack Interface Module (RIM) – Data Manager I/O Card
Technical Specifications
– Processor & memory : 1 GHz ARM dual-core, 2 GB DDR3 RAM, 1 GB flash for firmware & event buffer
– Input channels : 4 independent digital/analog ports, software-configurable for eddy-current, accelerometer, velocity or TTL speed probes
– Measurable parameters : vibration velocity, acceleration, displacement, shaft position, phase, speed
– Frequency range : 0.5 Hz – 10 kHz (–3 dB) with selectable high-pass, low-pass and 50/60 Hz notch filters
– Sampling rate : 24 kHz max per channel, synchronous across all 3500 monitors
– Resolution : 16-bit ADC, <0.02 % linearity, <30 ppm/°C drift
– Data storage : >1 000 000 measurement points or 1 000 alarm transients with time stamp
– Communication ports :
– 10/100 Mb copper Ethernet (Modbus TCP, proprietary Bently protocol)
– RS-232 / RS-485 (38.4 kbaud, Modbus RTU, DDE)
– Optional fiber-optic Ethernet for Zone-2 hazardous areas
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– Power draw : 5 W typical, supplied directly from 3500 rack 24 Vdc back-plane
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C (no fan required)
– Storage temperature : –55 °C to +125 °C
– Humidity : 5 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 5 g 5–500 Hz sinusoidal operational
– Dimensions : 120 mm × 75 mm × 25 mm (4.75" × 2.95" × 0.98")
– Weight : 0.2 kg (0.44 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX Zone 2, IECEx, RoHS

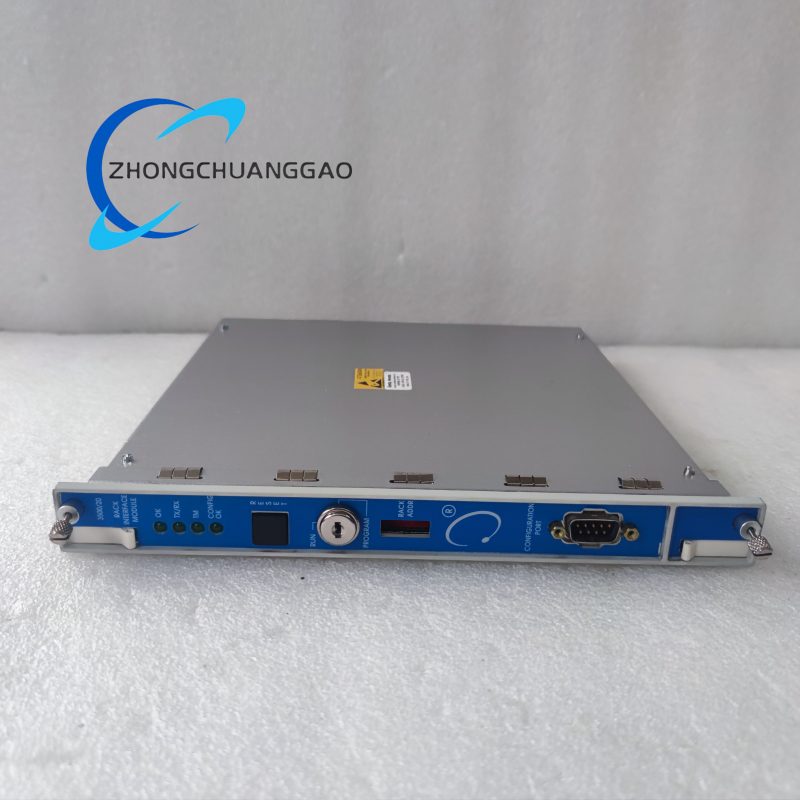

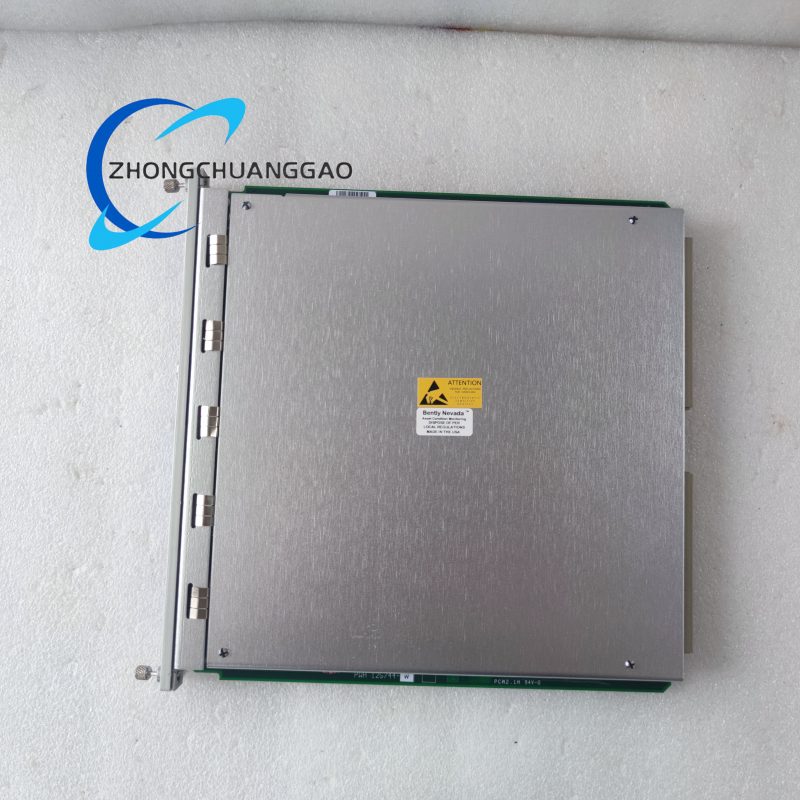

Bently Nevada 3500/20 125744-02 Rack Interface Module (RIM)
Technical Specifications
– Input channels : 4 digital communication ports (Ethernet + serial)
– Sampling / update rate : 1 000 Hz per channel for real-time data streaming
– Resolution : 16 bits for configuration and event tagging
– On-board storage : 1 GB for event log, waveform buffer and firmware
– Communication protocols : Modbus/TCP, proprietary Bently protocol, RS-232/RS-485 @ 38.4 kbaud
– Power consumption : 4.75 W typical, powered directly from 3500 rack 24 Vdc back-plane
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– Cable length : 2.1 m (7 ft) max for serial service lead
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –20 °C to +70 °C full performance
– Storage temperature : –40 °C to +85 °C
– Humidity : 5 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 2 g 5–500 Hz operational
– Dimensions : 75 mm × 95 mm × 25 mm (2.95" × 3.74" × 0.98")
– Weight : 0.2 kg (0.44 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX Zone 2, RoHS

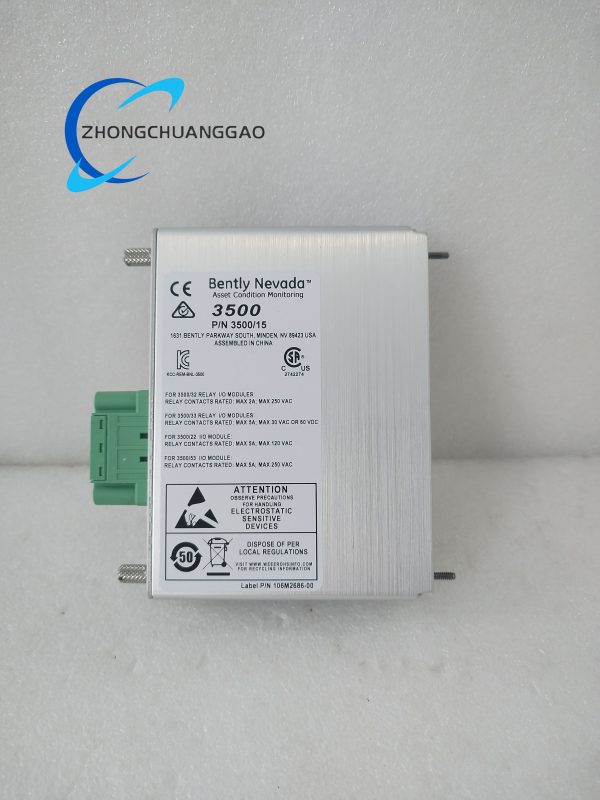

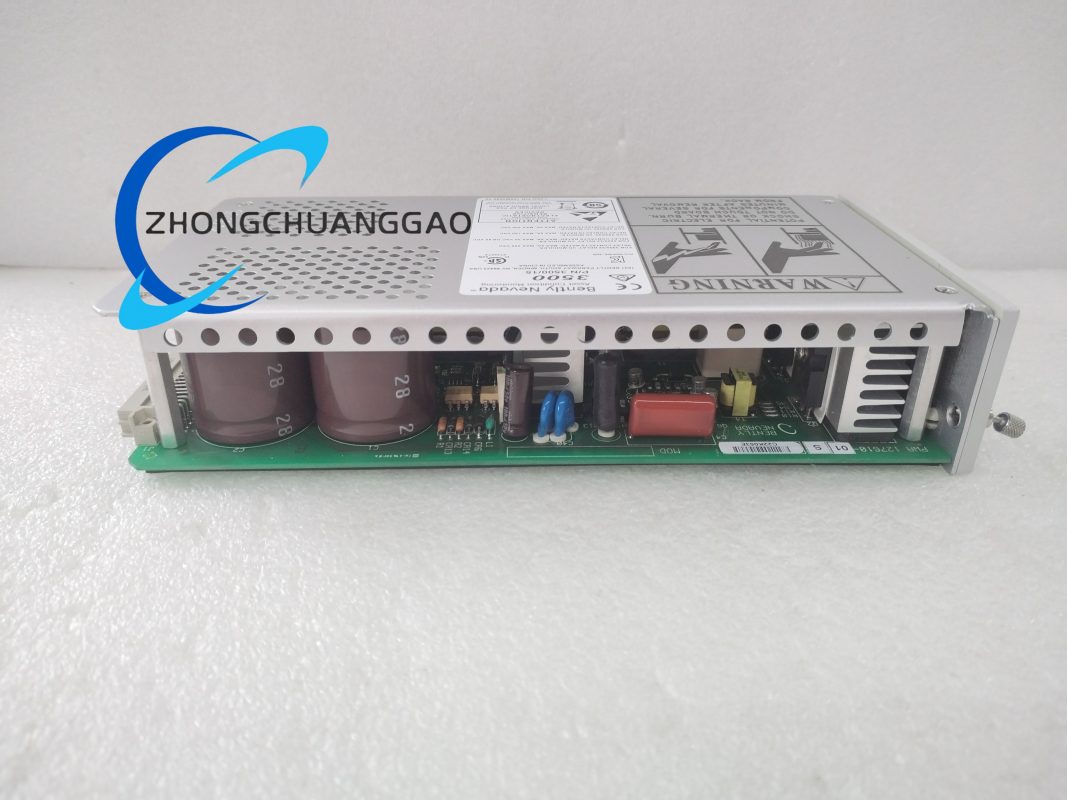

Bently Nevada 3500/15-05-05-R0 Universal AC Power Supply Module
Technical Specifications
– Input range : 85–264 Vac rms, 47–63 Hz; also 120–340 Vdc
– Nominal output : 24 Vdc ±1 %, 5 A, 120 W
– Hold-up time : >20 ms at 115 Vac / full load
– Efficiency : >85 % @ 230 Vac, typical
– Power factor : >0.98 (active PFC)
– Inrush current : <20 A peak cold start
– Ripple & noise : <50 mV pp (20 MHz BW)
– Isolation : 1 500 Vac input-to-output, 1 500 Vac input-to-ground
– Protection : overload, short-circuit, over-voltage, thermal shutdown with auto-recovery
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +70 °C full power
– Storage temperature : –40 °C to +85 °C
– Humidity : 5 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 2 g sinusoidal 5–500 Hz operational
– Enclosure : IP20 front, UL 94 V-0 polycarbonate, flame-retardant
– Dimensions : 120.7 mm × 50.8 mm × 251.5 mm (4.75" × 2.0" × 9.9")
– Weight : 1.39 kg (3.06 lb)
– Agency approvals : CE, UL/cUL Listed (UL 508), RoHS
Bently Nevada 3500/15-05-05-CN Universal AC Power Supply Module
Technical Specifications
– Input range : 90–265 Vac rms, 47–63 Hz; also 120–340 Vdc
– Nominal output : 24 Vdc ±1 %, 5 A, 120 W
– Hold-up time : >20 ms at 115 Vac / full load
– Efficiency : >82 % @ 230 Vac, typical
– Power factor : >0.98 (active PFC)
– Inrush current : <20 A peak cold start
– Ripple & noise : <50 mV pp (20 MHz BW)
– Isolation : 1 500 Vac input-to-output, 1 500 Vac input-to-ground
– Protection : overload, short-circuit, over-voltage, thermal shutdown with auto-recovery
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +70 °C full power
– Storage temperature : –40 °C to +85 °C
– Humidity : 5 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 2 g sinusoidal 5–500 Hz operational
– Enclosure : IP20 front, UL 94 V-0 polycarbonate, flame-retardant
– Dimensions : 120.7 mm × 50.8 mm × 251.5 mm (4.75" × 2.0" × 9.9")
– Weight : 1.39 kg (3.06 lb)
– Agency approvals : CE, UL/cUL Listed (UL 508), CN Ex Zone 2, RoHS

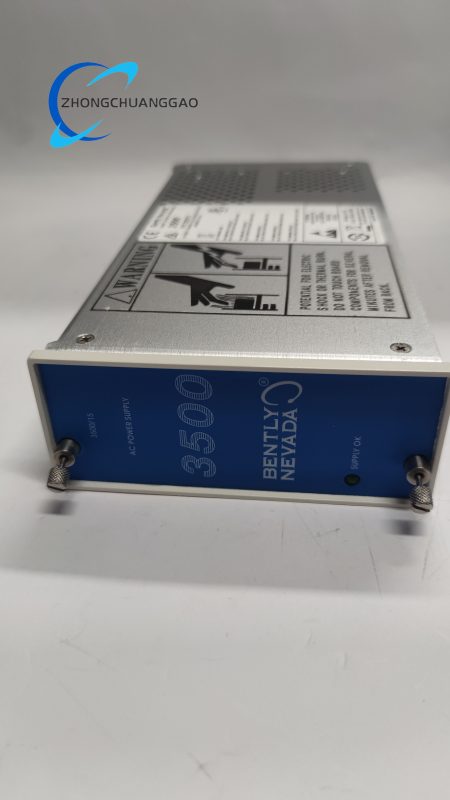

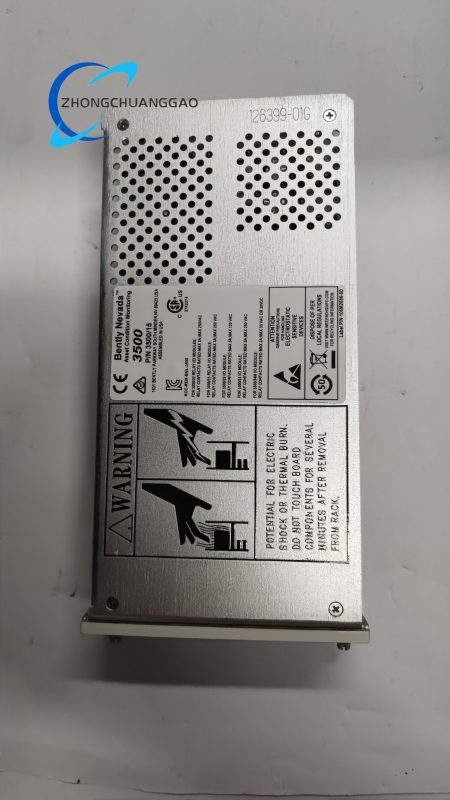

Bently Nevada 3500/15-05-05-00 Universal AC Power Supply Module
Technical Specifications
– Input range : 85–264 Vac rms or 120–340 Vdc
– Nominal output : 24 Vdc ±1 %, 15 A, 360 W
– Hold-up time : >20 ms at 115 Vac / full load
– Efficiency : >85 % @ 230 Vac, typical
– Power factor : >0.95 (active PFC)
– Inrush current : <20 A peak cold start
– Ripple & noise : <50 mV pp (20 MHz BW)
– Isolation : 1 500 Vac input-to-output, 1 500 Vac input-to-ground
– Protection : overload, short-circuit, over-voltage, thermal shutdown with auto-recovery
– MTBF : >200 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +70 °C full power, derated to 50 % at +85 °C
– Storage temperature : –55 °C to +125 °C
– Humidity : 5 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 2 g sinusoidal 5–500 Hz operational
– Enclosure : IP20 front, UL 94 V-0 polycarbonate, flame-retardant
– Dimensions : 241 mm × 128 mm × 51 mm (9.5" × 5.0" × 2.0")
– Weight : 1.39 kg (3.06 lb)
– Agency approvals : CE, UL/cUL Listed (UL 508), IECEx & ATEX Zone 2, ABS marine, RoHS

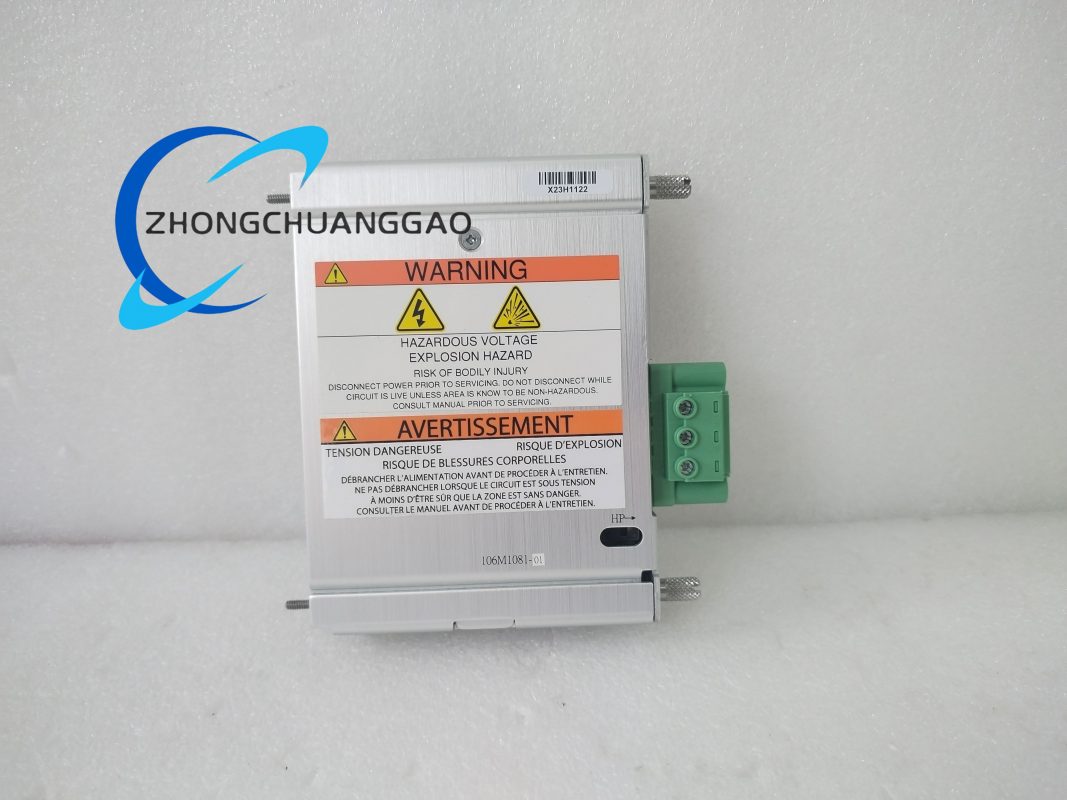

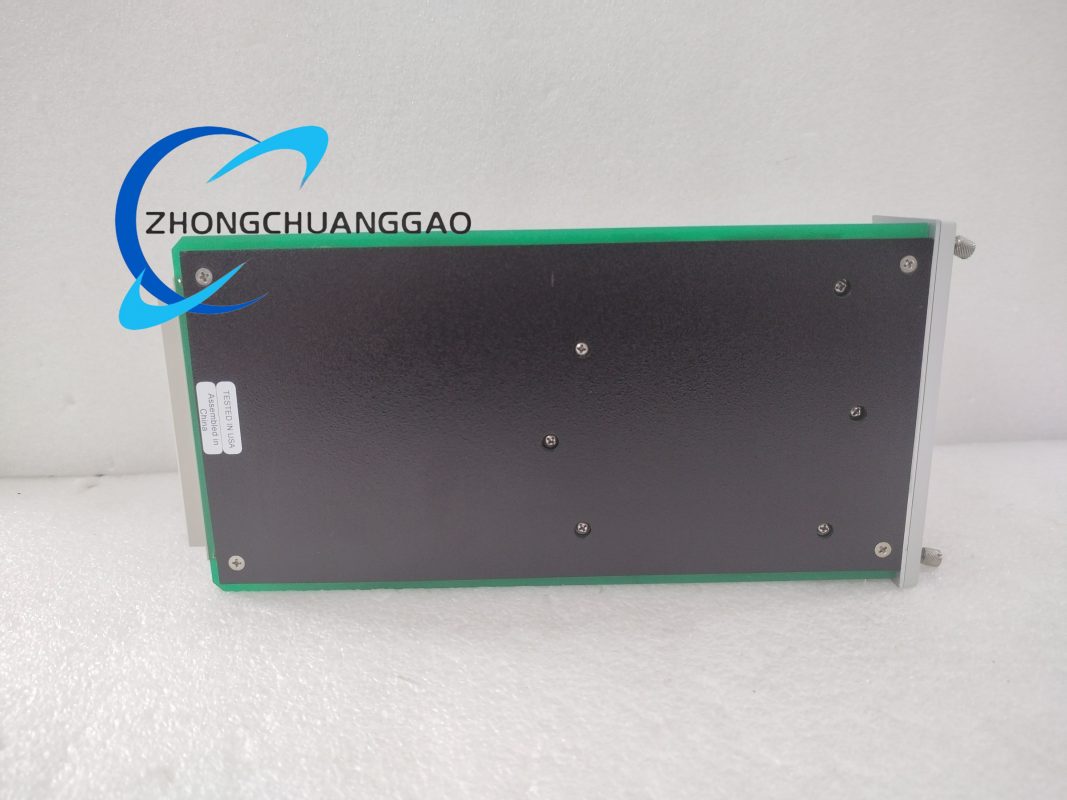

Bently Nevada 3500/15-05-00-01 Universal AC Power Supply Module
Technical Specifications
-
Input Voltage: 85–264 Vac rms, 47–63 Hz
-
Output Voltage / Current: 24 Vdc, 15 A (360 W continuous)
-
Load Regulation: ±1 % from 0 A to 15 A
-
Ripple & Noise: <50 mV p-p, 20 MHz bandwidth
-
Efficiency: 87 % typical @ 230 Vac, full load
-
Hold-up Time: 20 ms @ 115 Vac, full load
-
Protection: Over-current 120 % (auto-recover), over-voltage 28 Vdc (hiccup), short-circuit (fold-back), over-temp 105 °C (shutdown)
-
Isolation: Input-to-output 3 kVac, input-to-earth 1.5 kVac
-
Temperature Range: –40 °C to +70 °C operational, –55 °C to +125 °C storage
-
Dimensions: 221 mm × 50.8 mm × 120.7 mm (L × W × H)
-
Weight: 2.5 kg (5.5 lb)
-
Cooling: Internal fan, temperature controlled
-
Indicators: Green “AC OK”, red “Fault” LEDs on front bezel
-
Connector: IEC C14 inlet, crimp fork terminals for DC output
-
Agency Marks: CE, UL 508, ATEX, IECEx, CSA, TR CU, RoHS, REACH

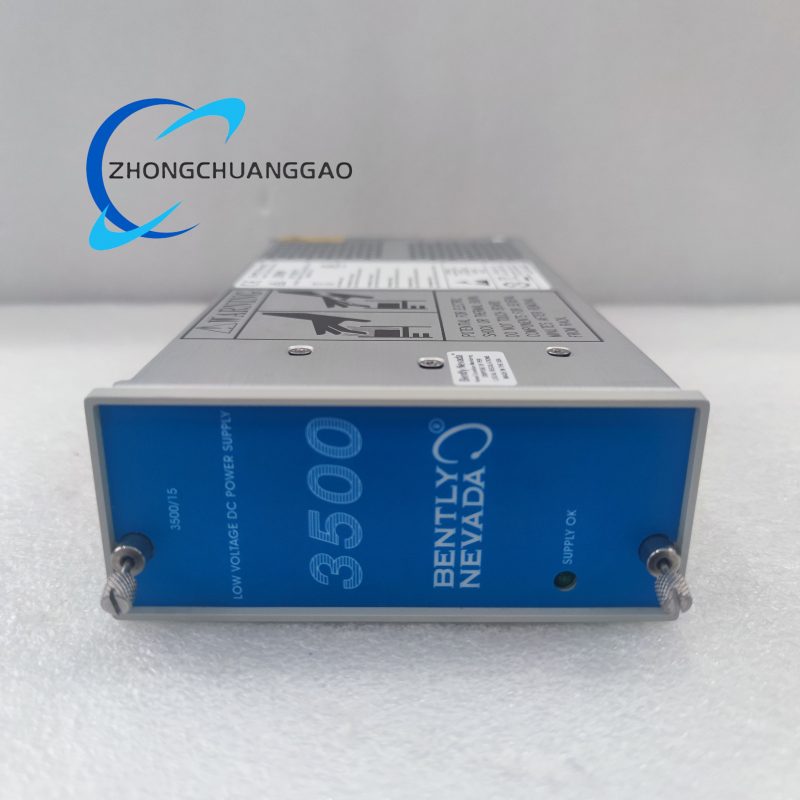

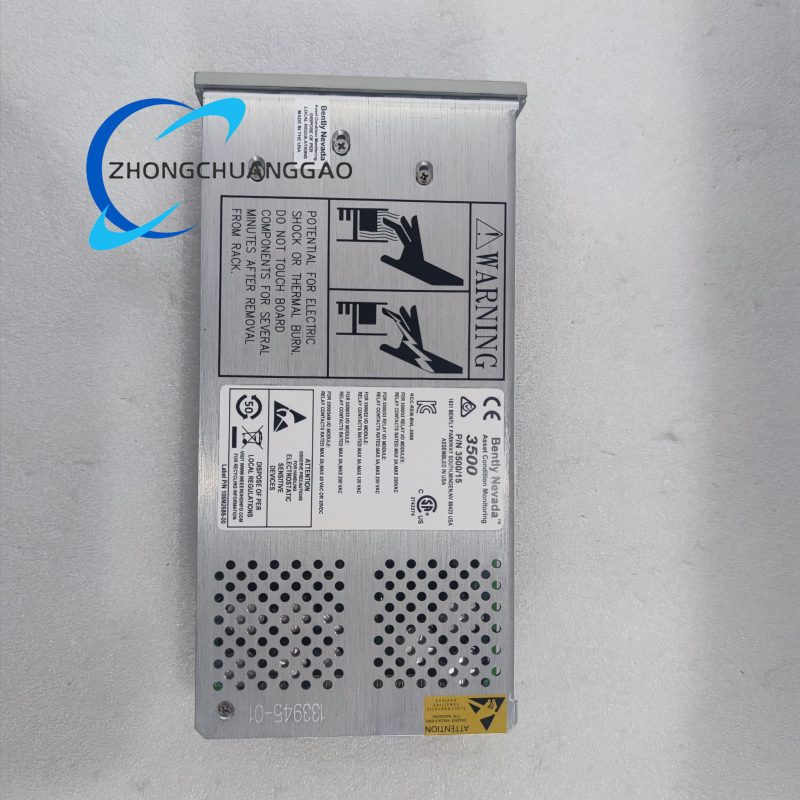

Bently Nevada 3500/15 133292-01 Dual AC/DC Power Supply Module
Technical Specifications
-
Input Voltage: 88–264 Vac rms, 47–63 Hz or 100–250 Vdc
-
Output Voltage / Current: +24 Vdc @ 2.5 A, –24 Vdc @ 2.5 A (120 W total)
-
Load Regulation: ±1 % from 0 A to 2.5 A per rail
-
Ripple & Noise: <50 mV p-p, 20 MHz bandwidth
-
Efficiency: 85 % typical @ 230 Vac, full load
-
Hold-up Time: 20 ms @ 115 Vac, full load
-
Protection: Over-current 120 % (auto-recover), over-voltage 30 Vdc (hiccup), short-circuit (fold-back), over-temp 105 °C (shutdown)
-
Isolation: Input-to-output 3 kVac, input-to-earth 1.5 kVac
-
Temperature Range: –40 °C to +85 °C operational, –51 °C to +105 °C storage
-
Dimensions: 244 mm × 242 mm × 99 mm (H × W × D)
-
Weight: 1.7 kg (3.7 lb)
-
Cooling: Internal fan, temperature controlled
-
Indicators: Green “AC OK”, red “Fault” LEDs on front bezel
-
Connector: IEC C14 inlet, crimp fork terminals for DC output
-
Agency Marks: CE, UL 508, ATEX, IECEx, CSA, TR CU, RoHS, REACH

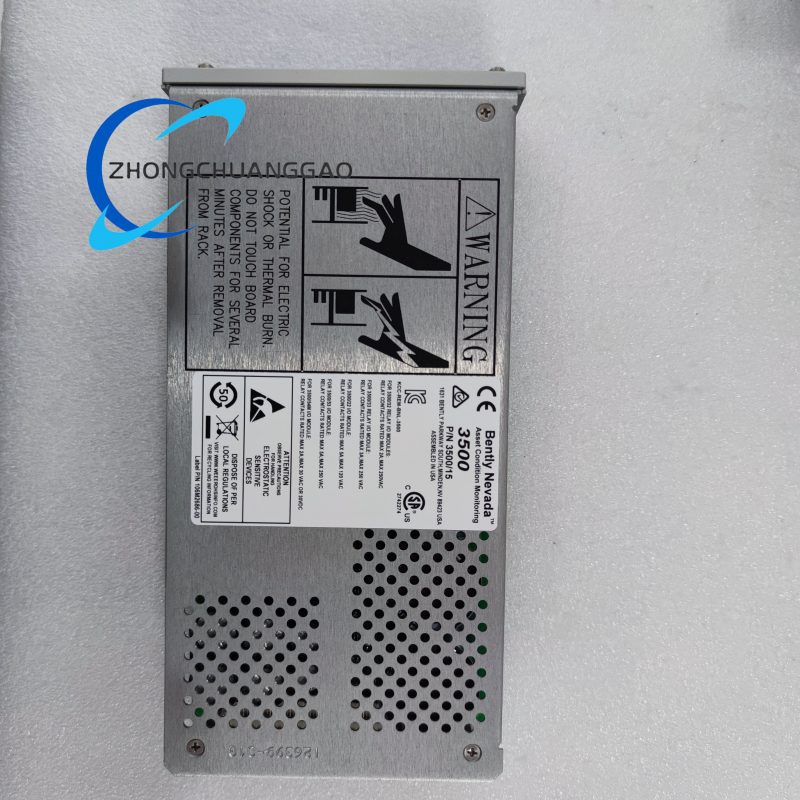

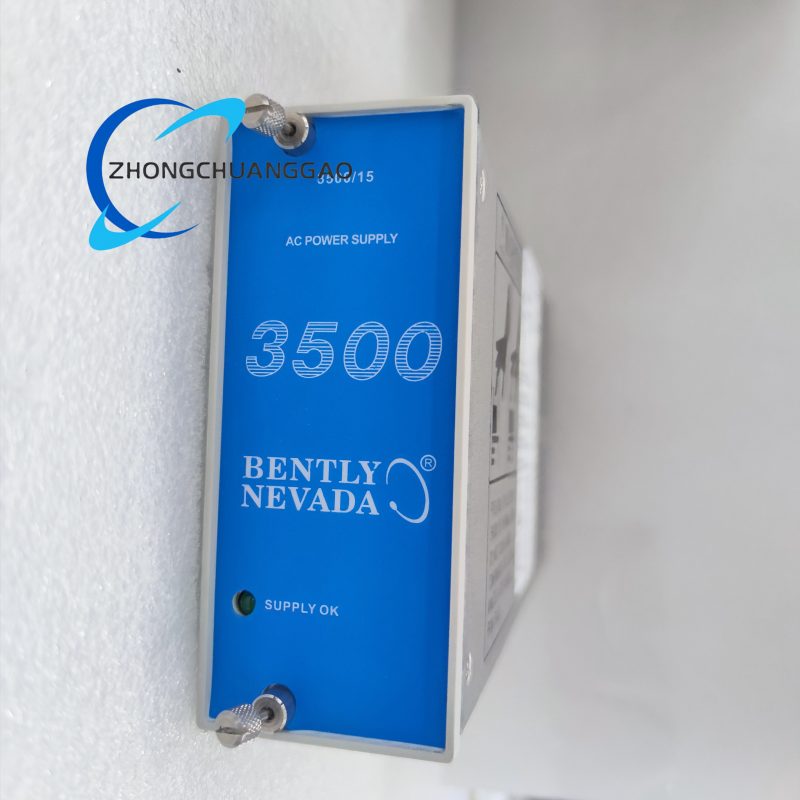

Bently Nevada 3500/15 127610-01 AC Power Supply Module
Technical Specifications
-
Input Voltage: 85–264 Vac rms, 47–63 Hz
-
Output Voltage / Current: 24 Vdc, 5.5 A (133 W continuous, 150 W peak)
-
Load Regulation: ±1 % from 0 A to 5.5 A
-
Ripple & Noise: <50 mV p-p, 20 MHz bandwidth
-
Efficiency: 87 % typical @ 230 Vac, full load
-
Hold-up Time: 20 ms @ 115 Vac, full load
-
Protection: Over-current 120 % (auto-recover), over-voltage 28 Vdc (hiccup), short-circuit (fold-back), over-temp 105 °C (shutdown)
-
Isolation: Input-to-output 3 kVac, input-to-earth 1.5 kVac
-
Temperature Range: –30 °C to +65 °C operational, –40 °C to +85 °C storage
-
Dimensions: 120.7 mm × 50.8 mm × 251.5 mm (H × W × D)
-
Weight: 1.39 kg (3.06 lb)
-
Cooling: Internal fan, temperature controlled
-
Indicators: Green “AC OK”, red “Fault” LEDs on front bezel
-
Connector: IEC C14 inlet, crimp fork terminals for DC output
-
Agency Marks: CE, UL 508, ATEX, IECEx, CSA, TR CU, RoHS, REACH

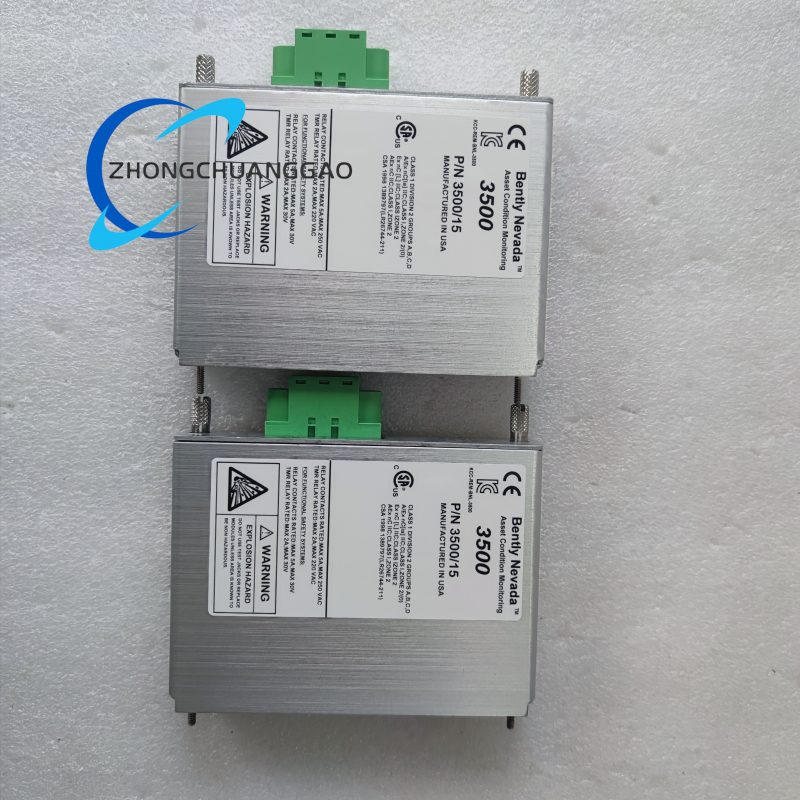

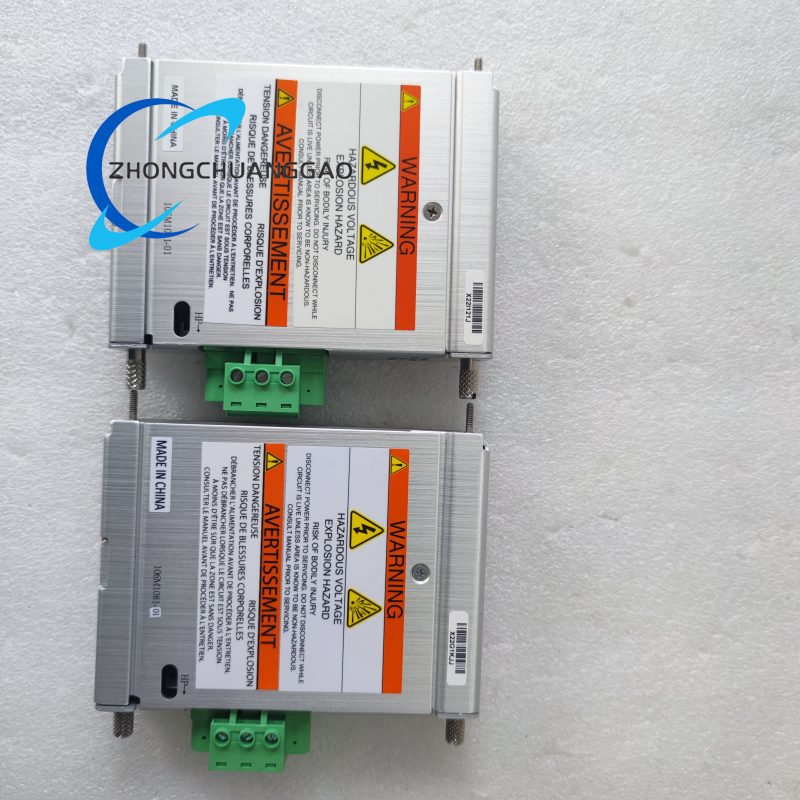

Bently Nevada 3500/15 106M1081-01 Universal AC Power Input Module (PIM)
Technical Specifications
-
Input Voltage: 85–264 Vac rms, 47–63 Hz
-
Peak Voltage Withstand: 120–373 Vac pk
-
Maximum Rack Current: 2.8 A rms @ 240 Vac
-
Inrush Current: <25 A peak, <5 ms
-
Filtering: Differential-mode choke plus metal-oxide varistor
-
Isolation: Input-to-earth 1.5 kVac, input-to-output 500 Vdc
-
Temperature Range: –30 °C to +65 °C operational, –40 °C to +85 °C storage
-
Dimensions: 120.7 mm × 25.4 mm × 114.3 mm (H × W × D)
-
Weight: 0.34 kg (0.75 lb)
-
Connector: IEC C14 inlet, crimp fork terminals for rack back-plane
-
Agency Marks: CE, UL 508, ATEX, IECEx, CSA, TR CU, RoHS, REACH

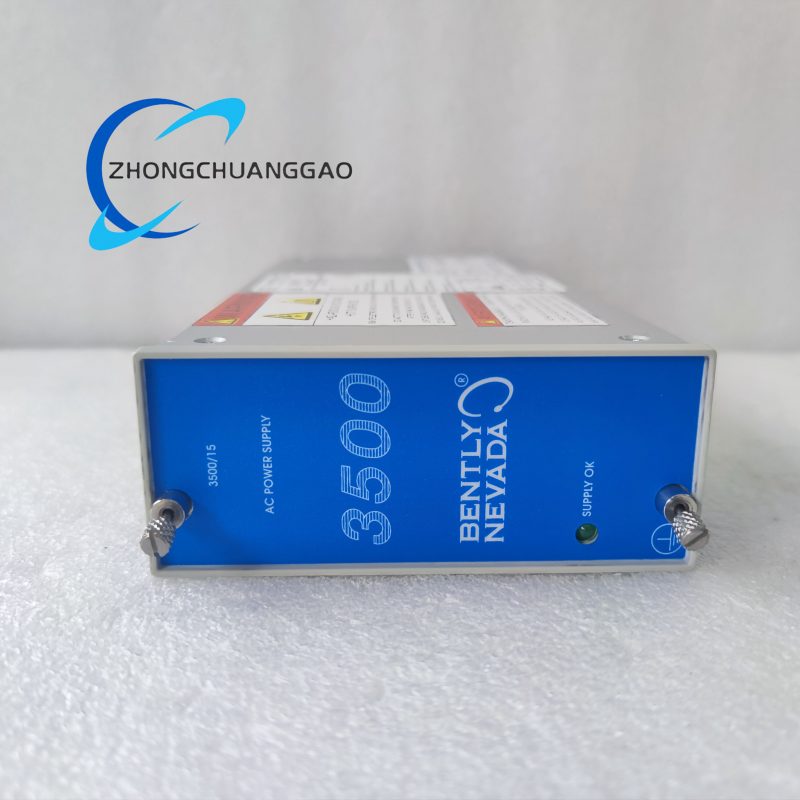

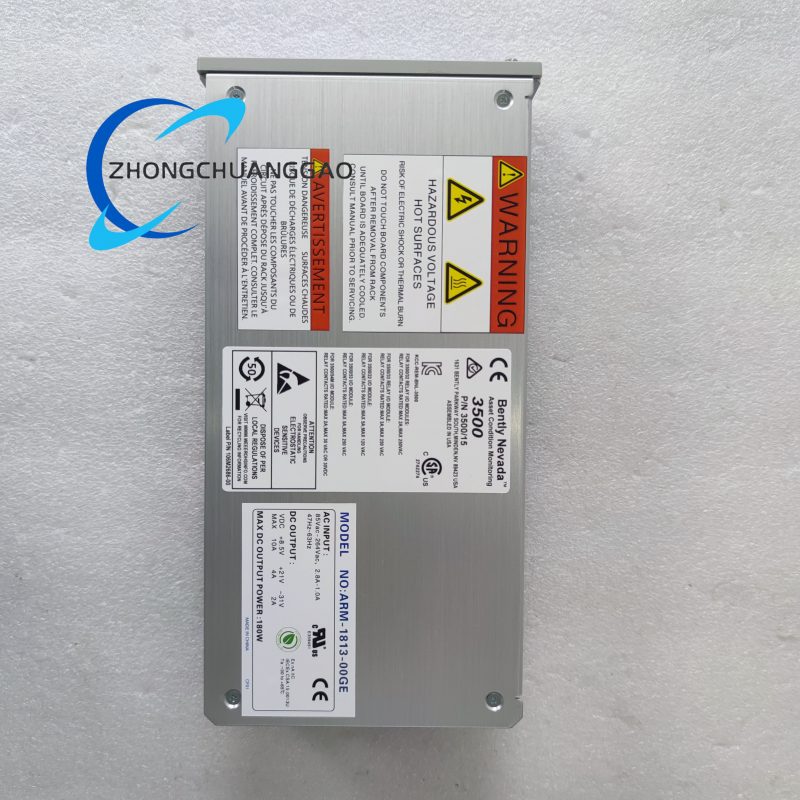

Bently Nevada 3500/15 106M1079-01 AC Power Supply Module
Technical Specifications
-
Input Voltage: 100–240 Vac, 50/60 Hz, 2 A max
-
Output Voltage / Current: 24 Vdc, 5.5 A (133 W continuous, 150 W peak)
-
Load Regulation: ±1 % from 0 A to 5.5 A
-
Ripple & Noise: <50 mV p-p, 20 MHz bandwidth
-
Efficiency: 87 % typical @ 230 Vac, full load
-
Hold-up Time: 20 ms @ 115 Vac, full load
-
Protection: Over-current 120 % (auto-recover), over-voltage 28 Vdc (hiccup), short-circuit (fold-back), over-temp 105 °C (shutdown)
-
Isolation: Input-to-output 3 kVac, input-to-earth 1.5 kVac
-
Temperature Range: –20 °C to +65 °C operational, –40 °C to +85 °C storage
-
Dimensions: 120.7 mm × 50.8 mm × 251.5 mm (H × W × D)
-
Weight: 1.39 kg (3.1 lb)
-
Cooling: Internal fan, temperature controlled
-
Indicators: Green “AC OK”, red “Fault” LEDs on front bezel
-
Connector: IEC C14 inlet, crimp fork terminals for DC output
-
Agency Marks: CE, UL 508, ATEX, IECEx, CSA, TR CU, RoHS, REACH
