Bently Nevada 3500/33 149986-01 16-Channel Relay Output Module
Technical Specifications
– Module format : full-height, single-slot, front plug-in
– Relay channels : 16 × SPDT (Form C)
– Contact rating : 5 A @ 24 Vdc / 120 Vac (resistive)
– Maximum switching voltage : 250 Vac / 30 Vdc
– Operate time : ≤ 10 ms (typical)
– Isolation : 1 500 Vrms coil-to-contact & channel-to-ground
– Power draw : 24 Vdc from rack back-plane, 5.8 W max
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +82 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5-500 Hz operational
– Dimensions : 120 mm × 240 mm × 55 mm
– Weight : 0.5 kg (1.1 lb)
– Connector : M12 circular (IP67)
– Housing : die-cast aluminium alloy
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS
Bently Nevada 3500/32-A01-B01 4-Channel Relay Module (Full-Height Front Card)
Technical Specifications
– Module format : full-height, single-slot, front plug-in
– Relay channels : 4 × SPDT (Form C)
– Contact rating : 5 A @ 24 Vdc / 120 Vac (resistive)
– Maximum switching voltage : 250 Vac / 30 Vdc
– Operate time : ≤ 10 ms (typical)
– Isolation : 1 500 Vrms coil-to-contact & channel-to-ground
– Power draw : 5 W max (24 Vdc from rack back-plane)
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 5 % – 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5-500 Hz operational
– Dimensions : 15.5 cm × 10.2 cm × 2.5 cm
– Weight : 0.5 kg
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS

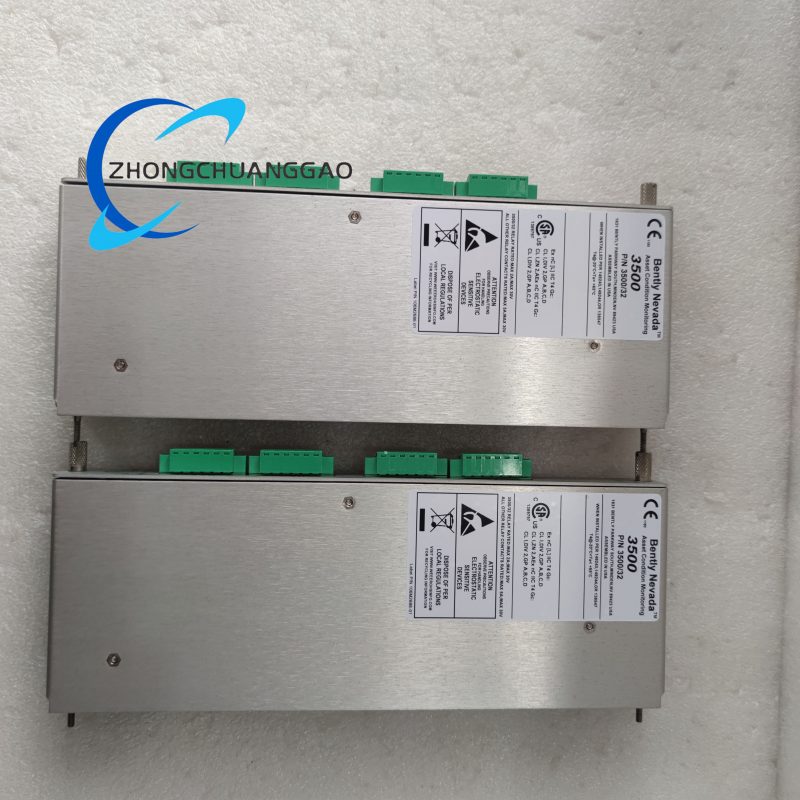

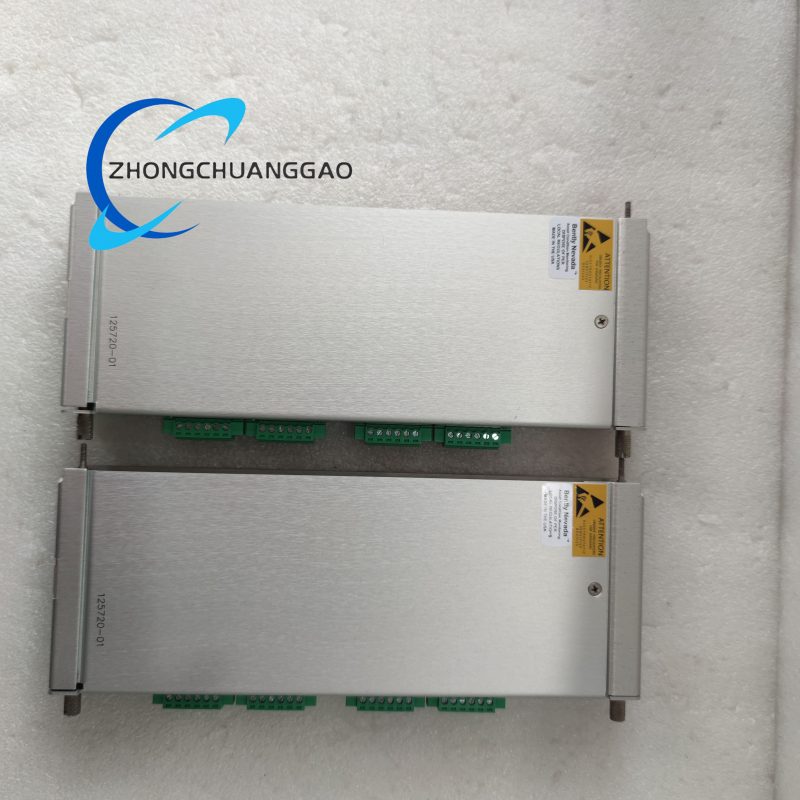

Bently Nevada 3500/32 125720-01 4-Channel Relay Output (Small Card)
Technical Specifications
– Module format : half-height rear I/O card (plugs behind 3500/32 main card)
– Relay channels : 4 × SPDT (Form C)
– Contact rating : 5 A @ 24 Vdc / 240 Vac (resistive)
– Max switching voltage : 250 Vac / 30 Vdc
– Operate time : ≤ 10 ms (typical)
– Isolation : 1 500 Vrms coil-to-contact & channel-to-ground
– Power draw : 5.8 W max (24 Vdc from rack back-plane)
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –30 °C to +65 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5-500 Hz operational
– Dimensions : 105 mm × 230 mm × 55 mm (4.1" × 9.1" × 2.2")
– Weight : 1.5 kg
– Agency approvals : CE, CSA, ATEX, IECEx, GOST, RoHS
Bently Nevada 3500/32 125712-01 4-Channel Relay Module
Technical Specifications
– Module size : full-height, single-slot, front plug-in
– Relay channels : 4, each DPDT (2 × SPDT)
– Contact rating : 5 A @ 24 Vdc / 120 Vac (resistive)
– Max switching voltage : 250 Vac / 30 Vdc
– Operate time : ≤ 10 ms (typical)
– Isolation : 1 500 Vrms coil-to-contact & channel-to-ground
– Power draw : 5 W max (24 Vdc from rack back-plane)
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C
– Storage temperature : –55 °C to +100 °C
– Humidity : 5 % – 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5-500 Hz operational
– Dimensions : 177 mm × 127 mm × 70 mm (7" × 5" × 2.8")
– Weight : 1.1 kg
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine

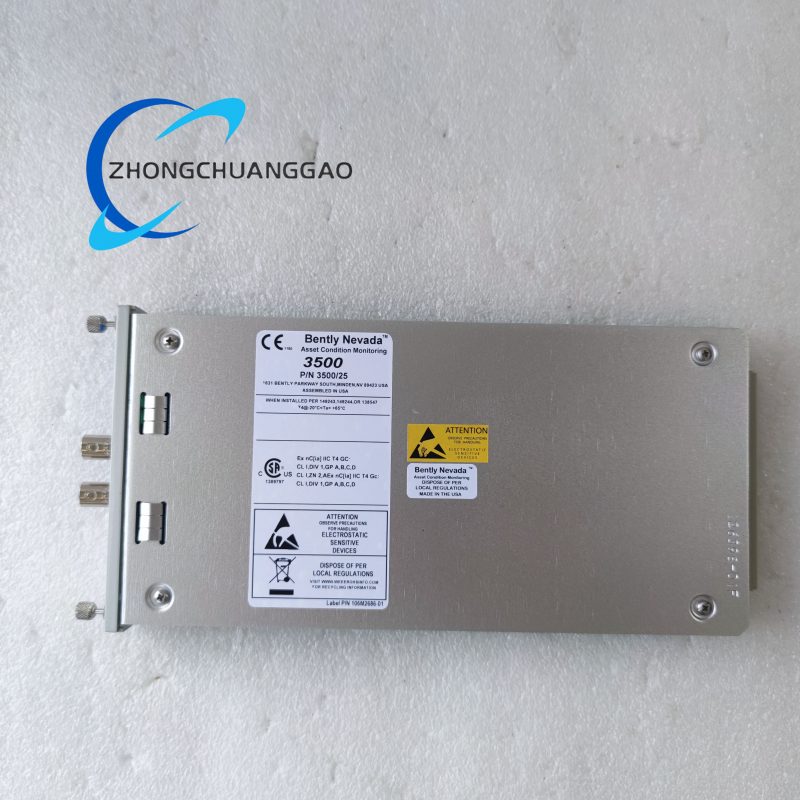

Bently Nevada 3500/25-01-01-00 Enhanced Keyphasor Module
Technical Specifications
– Module type : half-height, dual-channel, occupies one front slot
– Input signal : proximity probe or magnetic pickup
– Non-isolated I/O : +0.8 V to –21 V
– Isolated I/O : +5 V to –11 V
– Input impedance : ≥ 21.8 kΩ
– Output signal : digital keyphasor pulse, buffered coax on front & Euro connector on rear
– Speed range : 0 – 99 999 RPM (passive mag pickup requires >200 RPM)
– Accuracy : ±0.05 %
– Resolution : 0.1 RPM
– Sampling rate : 1 kHz per channel
– Phase shift : <1° typical (non-isolated), <3° isolated
– Output impedance : ≤504 Ω
– Power supply : –24 Vdc from rack back-plane, 40 mA max per channel
– Power consumption : 3.2 W typical
– On-board memory : 32-bit RISC processor, flash for firmware & event log
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature :
– Non-isolated : –30 °C to +65 °C
– Isolated : 0 °C to +65 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g 11 ms; 2 g 5 – 500 Hz operational
– Dimensions : 119.9 mm × 24.4 mm × 256.5 mm
– Weight : 0.34 kg (0.76 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine

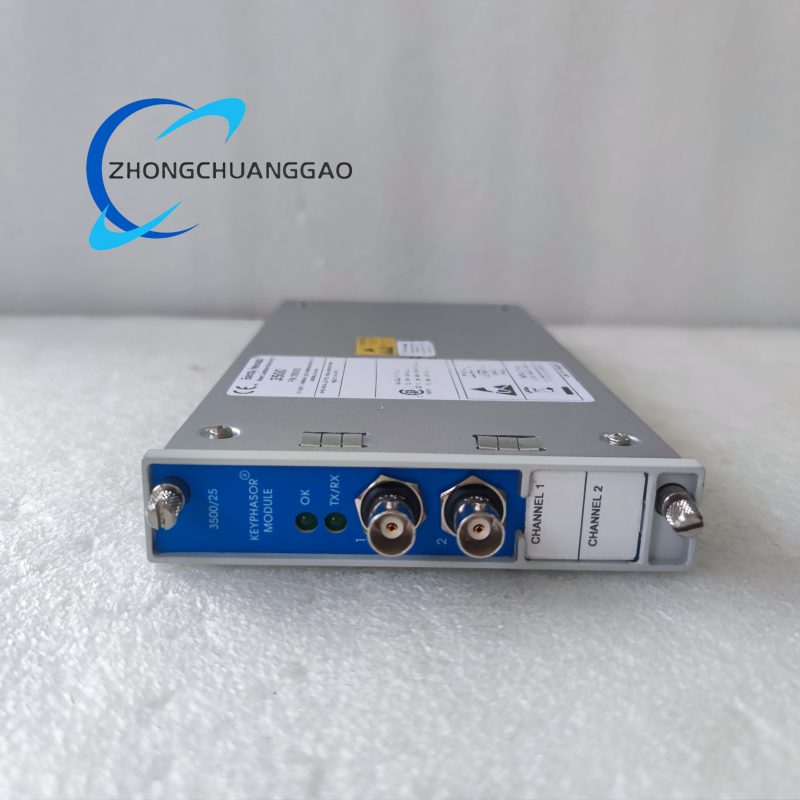

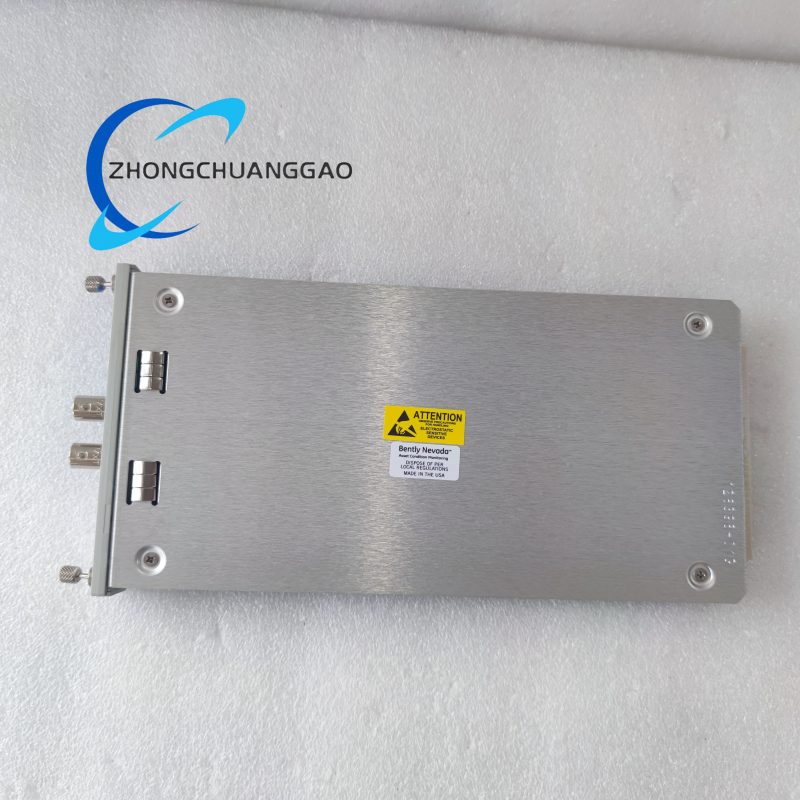

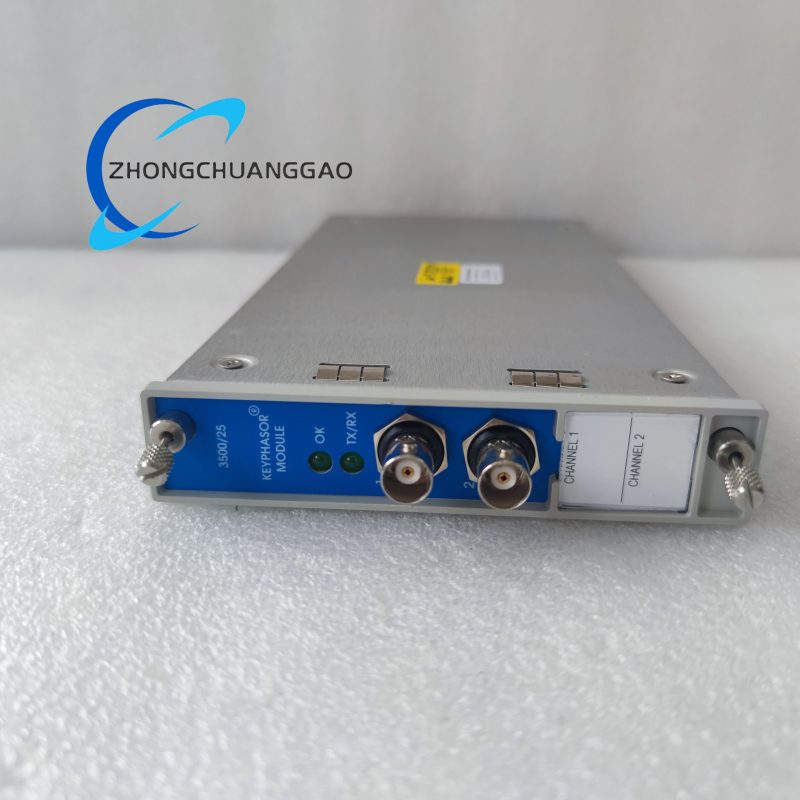

Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module
Technical Specifications
– Module type : half-height, dual-channel, occupies one front slot
– Input signal : proximity probe or magnetic pickup
– Non-isolated I/O : +0.8 V to –21 V
– Isolated I/O : +5 V to –11 V
– Input impedance : ≥ 21.8 kΩ
– Output signal : digital keyphasor pulse, buffered coax on front & Euro connector on rear
– Speed range : 0 – 99 999 RPM (passive mag pickup requires >200 RPM)
– Accuracy : ±0.05 %
– Resolution : 0.1 RPM
– Sampling rate : 1 kHz per channel
– Phase shift : <1° typical (non-isolated), <3° isolated
– Output impedance : ≤504 Ω
– Power supply : –24 Vdc from rack back-plane, 40 mA max per channel
– Power consumption : 3.2 W typical
– On-board memory : 32-bit RISC processor, flash for firmware & event log
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature :
– Non-isolated : –30 °C to +65 °C
– Isolated : 0 °C to +65 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g 11 ms; 2 g 5 – 500 Hz operational
– Dimensions : 119.9 mm × 24.4 mm × 256.5 mm
– Weight : 0.34 kg (0.76 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine

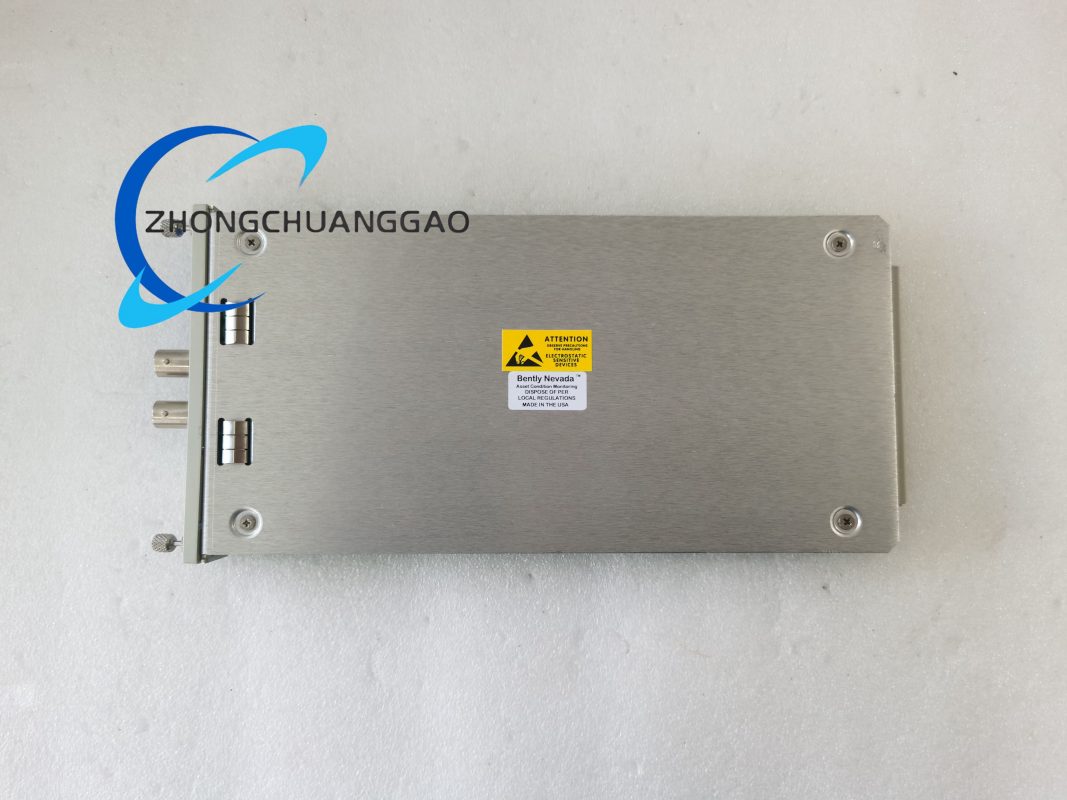

Bently Nevada 3500/25 125792-01 Enhanced Keyphasor Module
Technical Specifications
– Module type : half-height, dual-channel, occupies one front slot
– Input signal : proximity probe or magnetic pickup
– Non-isolated I/O : +0.8 V to +21 V
– Isolated I/O : +5 V to –11 V
– Output signal : digital keyphasor pulse, buffered coax on front & Euro connector on rear
– Speed range : 0 – 99 999 RPM (passive mag pickup requires >200 RPM)
– Accuracy : ±0.05 %
– Resolution : 0.1 RPM
– Sampling rate : 1 kHz per channel
– Phase shift : <1° typical (non-isolated), <3° isolated
– Output impedance : ≤504 Ω
– Power supply : –24 Vdc from rack back-plane, 40 mA max per channel
– Power consumption : 3.2 W typical
– On-board memory : 32-bit RISC processor, flash for firmware & event log
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature :
– Non-isolated : –30 °C to +65 °C
– Isolated : 0 °C to +65 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g 11 ms; 2 g 5 – 500 Hz operational
– Dimensions : 170 mm × 105 mm × 32 mm
– Weight : 120 g
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine
Bently Nevada 3500/22M-01-01-01 Transient Data Interface (TDI) Module
Technical Specifications
– Host position : slot 1 (full-height), mandatory in every 3500 rack
– Input channels : 22 dynamic + 24 static/process channels
– Sampling rate : 25.6 kHz / 51.2 kHz / 102.4 kHz selectable per dynamic channel
– Resolution : 16-bit ADC, <0.02 % non-linearity, 30 ppm/°C drift
– Frequency range : 0.3 Hz – 40 kHz (–3 dB) with programmable high-pass, low-pass and notch filters
– On-board memory : 2 GB for transient buffer, event log and firmware
– Communication ports :
– 10/100BASE-TX auto-negotiating copper Ethernet (RJ-45)
– 100BASE-FX fiber-optic Ethernet (optional)
– USB-B front service port (38.4 kbaud)
– RS-232 / RS-485 (38.4 kbaud, Modbus RTU)
– Protocols : Modbus TCP/RTU, proprietary Bently protocol, OPC UA tunnel
– Power draw : 24 Vdc from rack back-plane, 10.5 W typical, <15 W max
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C full performance
– Storage temperature : –55 °C to +125 °C
– Humidity : 5 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 5 g 5–500 Hz operational
– Dimensions : 241 mm × 58 mm × 28 mm (9.5" × 2.3" × 1.1")
– Weight : 0.91 kg (2.0 lb) for TDI module; 0.2 kg for I/O card
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine

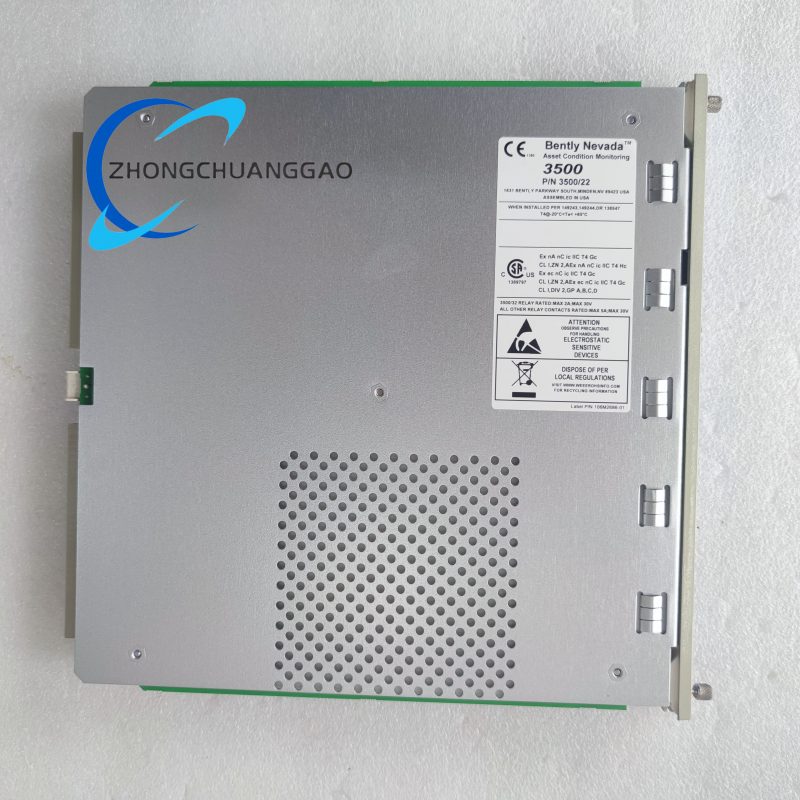

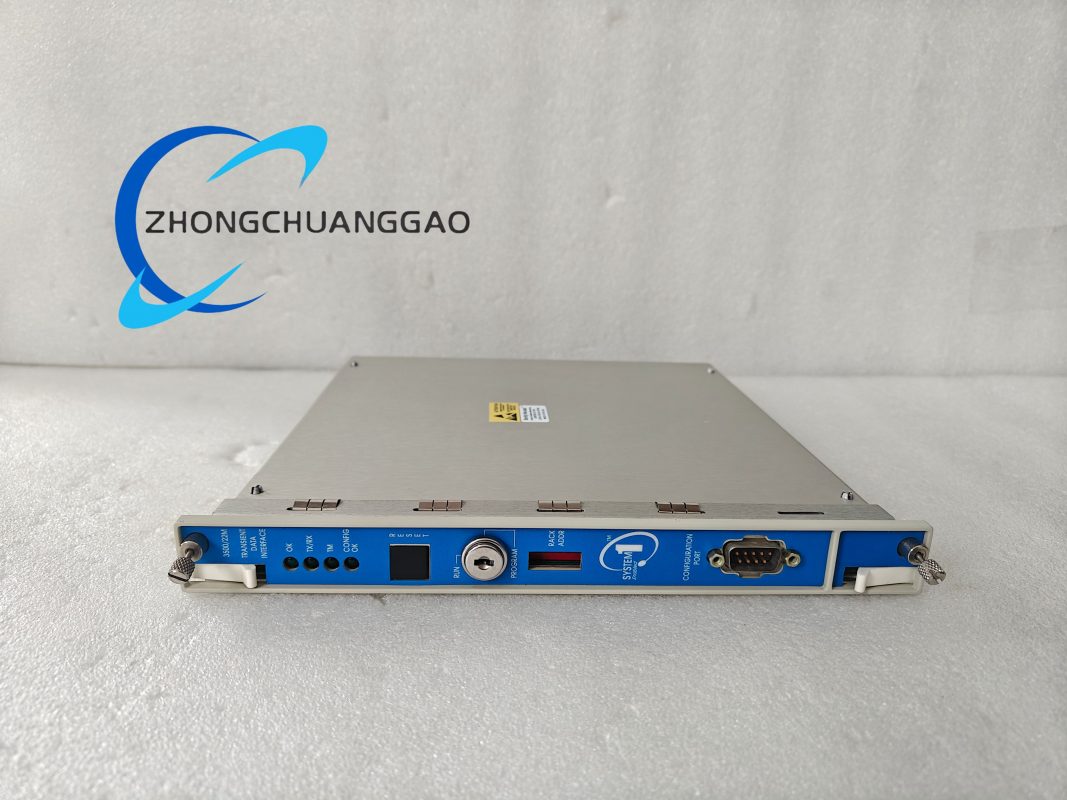

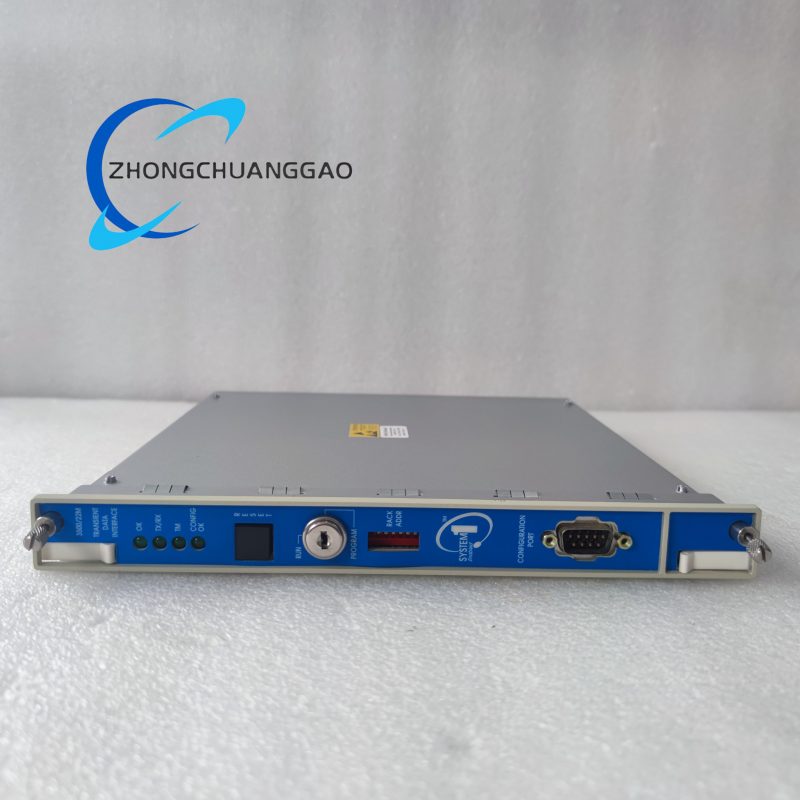

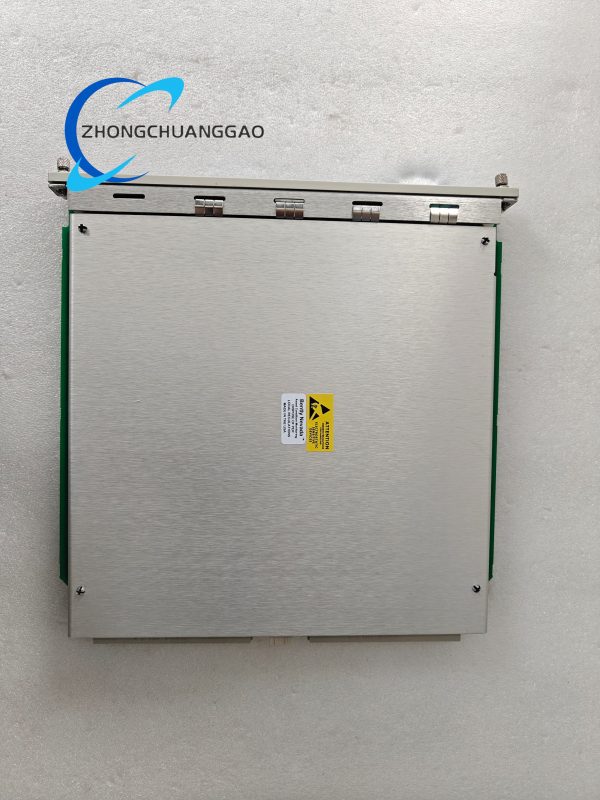

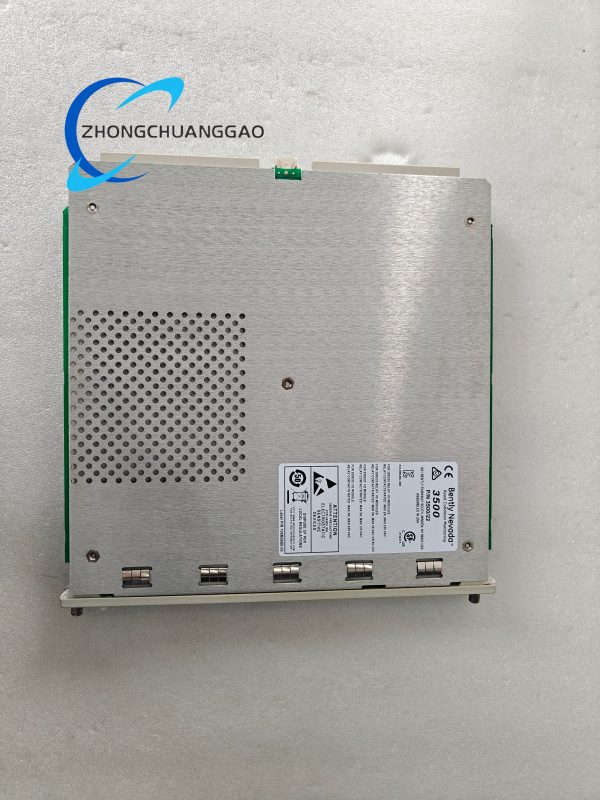

Bently Nevada 3500/22M 138607-01 Transient Data Interface (TDI) Module
Technical Specifications
– Host position : slot 1 (full-height), mandatory in every 3500 rack
– Input channels : 22 dynamic + 24 static/process channels
– Sampling rate : 102.4 kHz per dynamic channel, synchronous across the rack
– Resolution : 16-bit ADC, <0.02 % non-linearity, 30 ppm/°C drift
– Frequency range : 0.3 Hz – 40 kHz (–3 dB) with programmable high-pass, low-pass and notch filters
– On-board memory : 2 GB for transient buffer, event log and firmware
– Communication ports :
– 10/100BASE-TX auto-negotiating copper Ethernet (RJ-45)
– 100BASE-FX fiber-optic Ethernet (optional)
– USB-B front service port (38.4 kbaud)
– RS-232 / RS-485 (38.4 kbaud, Modbus RTU)
– Protocols : Modbus TCP/RTU, proprietary Bently protocol, OPC UA tunnel
– Power draw : 24 Vdc from rack back-plane, 10.5 W typical, <15 W max
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +70 °C full performance
– Storage temperature : –40 °C to +85 °C
– Humidity : 5 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 5 g 5–500 Hz operational
– Dimensions : 229 mm × 140 mm × 48 mm (9.0" × 5.5" × 1.9")
– Weight : 1.0 kg (2.2 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine

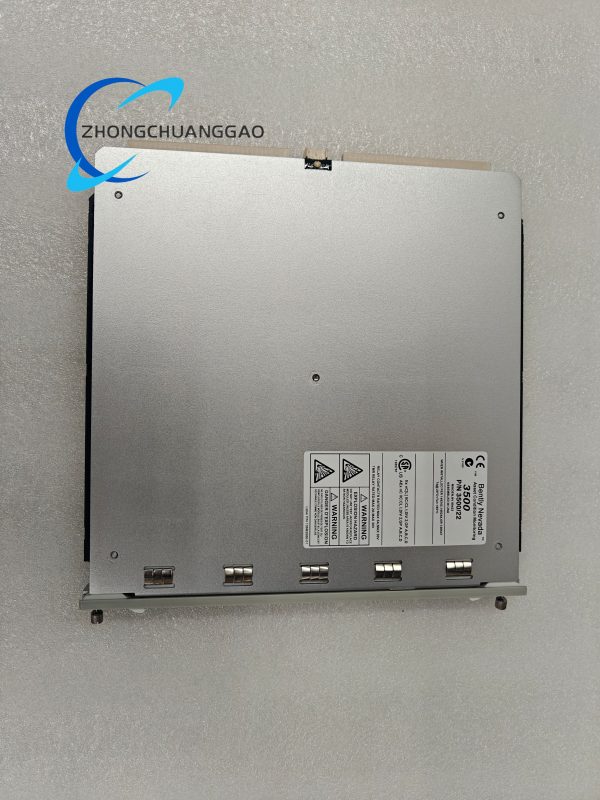

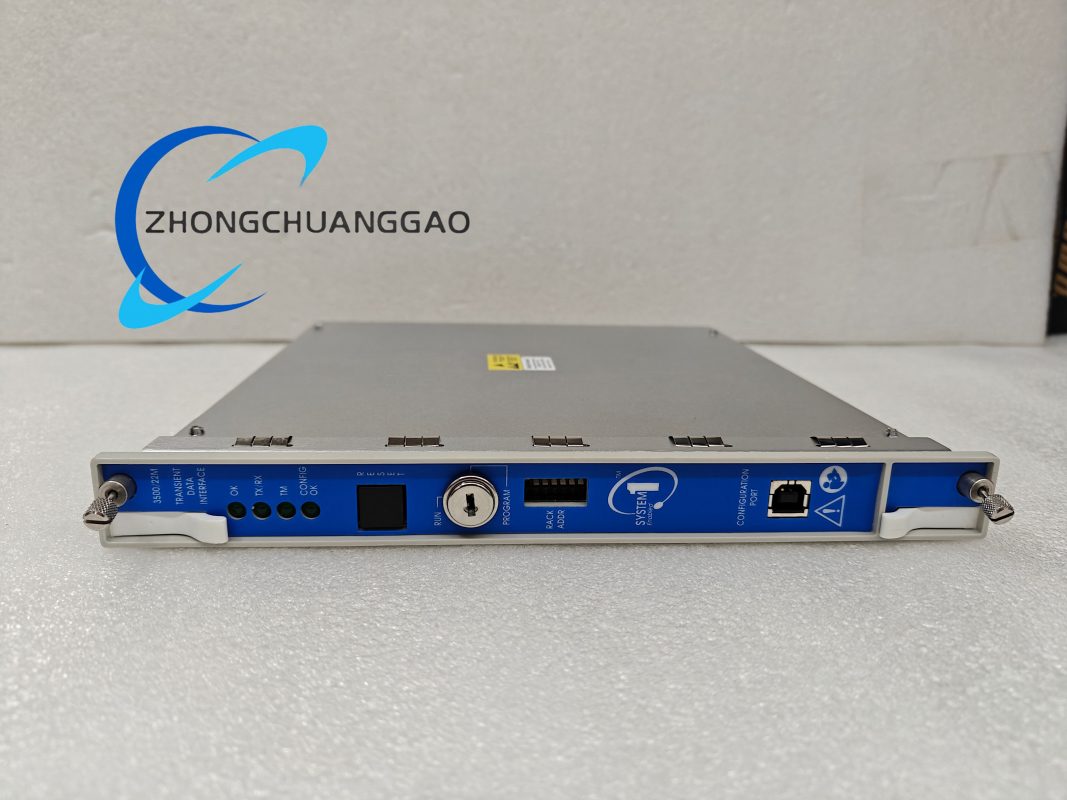

Bently Nevada 3500/22M 288055-01 Transient Data Interface (TDI) Module
Technical Specifications
– Input channels : 22 dynamic + 24 static/process channels
– Sampling rate : 250 kHz max per dynamic channel, synchronous across the rack
– Resolution : 16-bit ADC, <0.02 % non-linearity, 30 ppm/°C drift
– Frequency range : 0.3 Hz – 100 kHz (–3 dB) with programmable high-pass, low-pass and notch filters
– On-board memory : 2 GB for transient buffer, event log and firmware
– Communication ports :
– 10/100BASE-TX auto-negotiating copper Ethernet (RJ-45)
– 100BASE-FX fiber-optic Ethernet (optional)
– USB-B front service port (38.4 kbaud)
– RS-232 / RS-485 (38.4 kbaud, Modbus RTU)
– Protocols : Modbus TCP/RTU, proprietary Bently protocol, OPC UA tunnel
– Power supply : 24 Vdc from rack back-plane, 10.5 W typical, <25 W max
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C full performance
– Storage temperature : –55 °C to +125 °C
– Humidity : 0 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 5 g 5–500 Hz operational
– Dimensions : 241 mm × 58 mm × 28 mm (9.5" × 2.3" × 1.1")
– Weight : 0.91 kg (2.0 lb) for TDI module; 0.2 kg for I/O card
– Enclosure / PCB : conformal-coated, IP65 gasket on Ethernet ports
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine

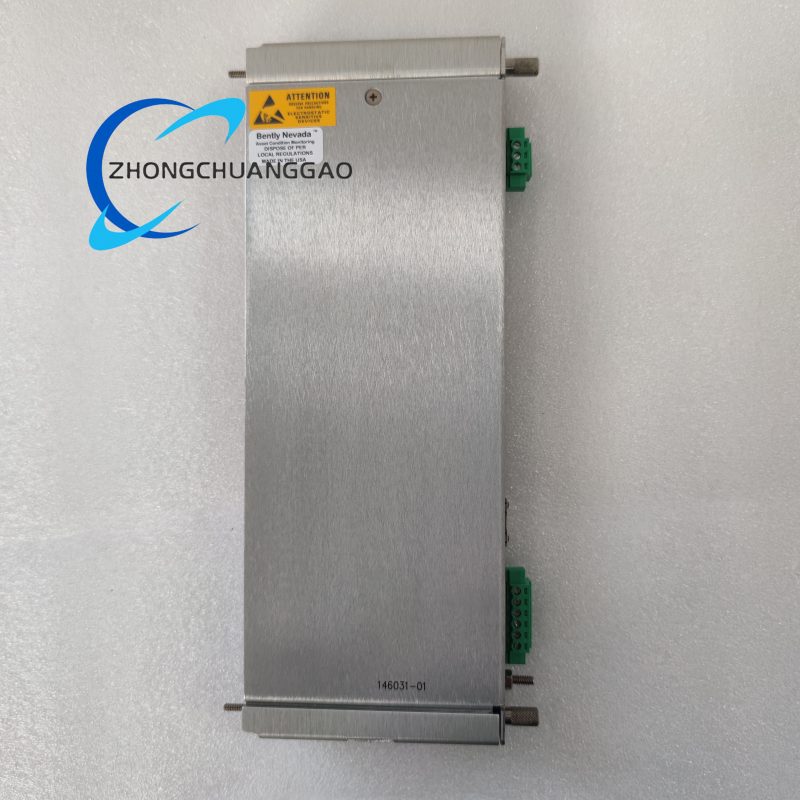

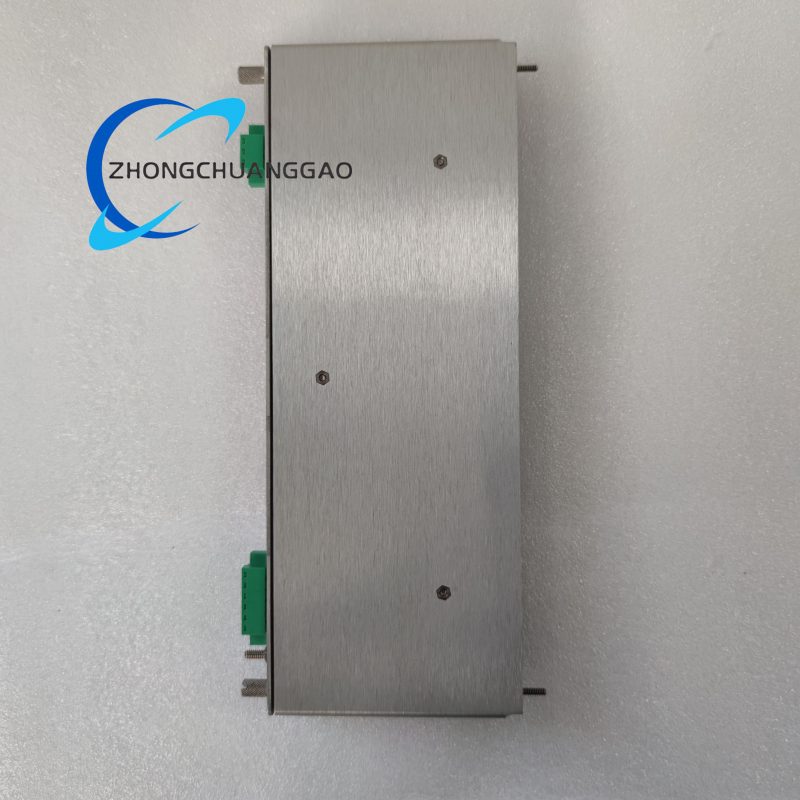

Bently Nevada 3500/22M 146031-01 Transient Data Interface I/O Module
Technical Specifications
– Host module : 3500/22M Transient Data Interface (slot-1, full-height)
– I/O channels : 22 dynamic + 24 static/process channels via TDI back-plane
– Sampling rate : 25.6 kHz / 51.2 kHz / 102.4 kHz selectable per dynamic channel
– Resolution : 16-bit ADC, <0.02 % non-linearity, 30 ppm/°C drift
– Frequency range : 0.3 Hz – 40 kHz (–3 dB) with programmable filters
– On-board memory : 2 GB for transient buffer, event log and firmware
– Communication ports :
– 2 × 10/100BASE-TX copper Ethernet (RJ-45)
– 1 × RS-232 / RS-485 (38.4 kbaud, Modbus RTU)
– Protocols : Modbus TCP/RTU, proprietary Bently protocol, OPC UA tunnel
– Power supply : 24 Vdc from rack back-plane, 10.5 W typical, <15 W max
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C full performance
– Storage temperature : –55 °C to +125 °C
– Humidity : 5 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 5 g 5–500 Hz operational
– Dimensions : 101.6 mm × 76.2 mm × 25.4 mm (4" × 3" × 1")
– Weight : 0.2 kg (0.44 lb)
– Enclosure / PCB : conformal-coated, IP65 bulkhead seal on RJ-45 ports
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS
Bently Nevada 3500/22M 138607-01 Transient Data Interface (TDI) Module
Technical Specifications
– Input channels : 22 dynamic + 24 static/process channels
– Sampling rate : 102.4 kHz per dynamic channel, synchronous across the rack
– Resolution : 16-bit ADC, <0.02 % non-linearity, 30 ppm/°C drift
– Frequency range : 0.3 Hz – 40 kHz (–3 dB) with programmable filters
– On-board memory : 2 GB for transient buffer, event log and firmware
– Communication ports :
– 10/100BASE-TX copper Ethernet
– 100BASE-FX fiber-optic Ethernet (optional)
– USB-B service port
– RS-232 / RS-485 Modbus RTU
– Protocols : Modbus TCP/RTU, proprietary Bently protocol, OPC UA tunnel
– Power draw : 24 Vdc from rack back-plane, 10.5 W typical, <15 W max
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C full performance
– Storage temperature : –55 °C to +125 °C
– Humidity : 5 %–95 % non-condensing
– Shock / vibration : 15 g half-sine 11 ms; 5 g 5–500 Hz operational
– Dimensions : 229 mm × 140 mm × 48 mm (9.0" × 5.5" × 1.9")
– Weight : 1.0 kg (2.2 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine
