Triconex 3504E High-Density Triple Modular Redundancy Digital Input Module

  • Technical Specifications
    • Input and Signal Parameters
      • It is configured with 64 commoned, DC-coupled input channels. It offers software-selectable voltage options of 24 VDC or 48 VDC, adapting to different industrial field requirements.
      • The voltage range for 24 VDC is 15 - 30 VDC with a maximum voltage of 36 VDC; for 48 VDC, the range is 20 - 72 VDC. The turn-on voltage threshold exceeds 15 VDC for 24 VDC and 32 VDC for 48 VDC, while the turn-off threshold is below 6 VDC for 24 VDC and 11 VDC for 48 VDC.
      • The nominal turn-on current is 2 - 3 mA. The input delay is less than 2 ms for 24 VDC and less than 10 ms for 48 VDC, and the minimum point isolation voltage reaches 1500 VDC.
    • Physical and Weight Parameters
      • There are conflicting data on its physical dimensions from different sources, but it is designed for integration into standard Triconex system racks. One source lists its weight as 5000 grams, while another cites approximately 0.5 kilograms, and these discrepancies may stem from differences in whether accessories are included in the weighing.
    • Environmental Parameters
      • It maintains stable operation within an operating temperature range of -40°C to 70°C, which allows it to adapt to extreme temperature conditions in various industrial sites.
      • It has a protection level of IP65, enabling it to resist the impact of dust and water in harsh industrial environments and ensuring long-term reliable operation.
Read more
Quick view

Triconex 3511 High-Precision Triple Redundant Pulse Input Module

Technical Specifications
  • Input and Signal Parameters
    • It is equipped with 8 independent non-common-ground input channels. The typical input voltage is 24 VDC, and the typical input current per channel is 10 mA.
    • The input signal frequency range is 1 Hz to 100 kHz, and the precision reaches ±0.01% when measuring frequencies between 1000 Hz and 20000 Hz.
    • It has a 16-bit resolution and a pulse counting resolution of 1 microsecond, and the pulse width resolution ranges from 100 microseconds to 10 milliseconds, which can capture pulse signal changes accurately.
  • Power and Physical Parameters
    • It relies on 24 VDC power supply to operate stably, matching the power supply configuration of most industrial control systems.
    • There are differences in dimension and weight data from different sources. One source states its dimensions as 80mm x 110mm x 40mm and weight of approximately 200 grams, while another source records dimensions as 120mm x 80mm x 30mm and weight of about 3.3 kilograms, which may be due to whether the measurement includes accessories.
Read more
Quick view

Triconex 3601E Opto-Isolated Triple Modular Redundancy Digital Output Module

  • Technical Specifications
    • Electrical and Signal Parameters
      • It is equipped with 16 opto - isolated, non - commoned digital output channels. The nominal output voltage is 115 VAC, with a voltage range of 80 - 155 VAC and a frequency range of 47 - 63 Hz.
      • The relay rating of the module reaches 5 A at 250 VAC or 30 VDC, and the signal response time is no more than 2 ms, which can realize rapid execution of control commands.
    • Physical and Weight Parameters
      • The shell is made of aluminum alloy, with dimensions of 200mm × 150mm × 50mm and a weight of 2 kilograms, which is convenient for installation in standard industrial control cabinets.
    • Environmental Parameters
      • The operating temperature range is - 40 °C to 70 °C, and the storage temperature can reach - 40 °C to 85 °C. It can operate normally in an environment with a relative humidity of 0% - 95% (non - condensing).
      • It has an IP65 environmental protection rating, which can effectively prevent dust and water from entering the module and ensure stable operation in humid and dusty industrial environments.
Read more
Quick view

Triconex 3604E 24VDC 16-Point Triple Modular Redundancy Digital Output Module

  • Technical Specifications
    • Electrical and Signal Parameters
      • It is equipped with 16 non-commoned independent output channels, with a nominal output voltage of 24 VDC and a voltage adaptation range of 22 - 45 VDC.
      • Each channel can carry a current of 2A, and the signal response time is less than 1ms, enabling rapid execution of control commands.
      • It adopts optical isolation technology, with a point-to-point isolation voltage of 1500 VDC, which can effectively prevent electrical interference between channels and external circuits.
    • Physical and Weight Parameters
      • Its dimensions are 49cm × 45.3cm × 6.8cm, and it is designed for 19-inch rack mounting, which is consistent with standard industrial control cabinet installation specifications.
      • The weight of the module is 3.65 kg, and its solid structure ensures stability during long-term operation.
    • Environmental Parameters
      • The operating temperature range is -40°C to 85°C, which allows it to adapt to the extreme temperature fluctuations of various outdoor and indoor industrial sites.
      • It can work normally in an environment with a relative humidity of 0% - 95% (non-condensing), resisting the impact of humid air on internal components.
Read more
Quick view

Triconex 3623T 16-Point Triple Modular Redundancy Supervised Digital Output Module

Technical Specifications
    • Electrical Parameters
      • The nominal output voltage is 120 VDC, with a voltage range of 90 - 150 VDC and a maximum withstand voltage of 160 VDC. The typical voltage drop of the module is less than 1.5 V, and the power module load is less than 10 watts.
      • Each output point has a maximum current of 0.8 A, a surge current of 4 A within 10 milliseconds, a minimum required load current of 30 mA, and a maximum load leakage current of 4 mA.
      • The field terminal is equipped with a 1 A fast - acting fuse, and the point isolation voltage can reach 1500 VDC / 2500 VDC, which can effectively isolate electrical interference.
    • Physical and Indicator Parameters
      • The module weighs 5000 grams, and its shell adopts a steel - blue robust structure, which can adapt to the installation and use of various industrial control cabinets.
      • It is equipped with multiple diagnostic indicators, including pass, fault, active and power indicators for overall module status, as well as an independent load indicator for each output point, which can directly reflect the working state of the module and each output point.
Read more
Quick view

Triconex 3625 32-Point Triple Modular Redundancy Supervised

Technical Specifications
  • Electrical Parameters
    • It provides 32 commoned output channels with a nominal voltage of 24 VDC and a voltage adaptation range of 16 - 32 VDC, and can withstand a maximum voltage of 36 VDC.
    • Each output point has a maximum current of 1.7 A, a surge current of 7 A within 10 milliseconds, a minimum required load current of 10 mA, and a maximum load leakage current of 4 mA.
    • The typical voltage drop is less than 2.8 VDC at 1.7 A, the power module load is less than 13 watts, and the point isolation voltage reaches 1500 VDC to avoid electrical interference between circuits.
  • Physical Parameters
    • The module weighs 0.8 kg and has dimensions of 16cm × 16cm × 12cm, featuring a compact and lightweight design that facilitates installation in various industrial control cabinets.
    • It adopts an IP20-rated enclosure and is equipped with dedicated LED indicators for each output point to show on/off states, as well as module status indicators for pass, fault, load, and active conditions.
Read more
Quick view

Triconex 3625A 32-Point Triple Modular Redundancy Digital Output Module

Technical Specifications
  • Electrical Parameters
    • It is equipped with 32 output channels, the nominal output voltage is 24 VDC, and the adaptive voltage range is 16 - 32 VDC, with a maximum withstand voltage of 36 VDC.
    • Each output channel has a maximum output current of 1.7 A, a surge current of 7 A that can last for 10 milliseconds, a minimum load current of 10 mA, and a maximum load leakage current of 4 mA.
    • The isolation voltage between channels reaches 1500 VDC to effectively prevent electrical interference between different channels, and the overall power consumption of the module is less than 13 watts.
  • Physical Parameters
    • The module has dimensions of 160 x 160 x 125 mm and a weight of approximately 2.5 kg, which is suitable for installation in the slot of the Triconex system rack.
    • It adopts a corrosion-resistant metal shell, and is equipped with LED indicators for each output channel and overall status, which can directly display the working state of the module and each channel.
Read more
Quick view

Triconex 3625C1 32-Point Triple Modular Redundancy Digital Output Module

Technical Specifications
  • Electrical Parameters
    • It is configured with 32 commoned digital output channels, the nominal output voltage is 24 VDC, and the adaptive voltage range is 16 - 32 VDC, with a maximum withstand voltage of 36 VDC.
    • Each output channel can provide a maximum current of 1.7 A, the overall power consumption of the module is less than 13 watts, and some data shows that its output power can reach 15 watts.
    • It adopts a dual-power design, which further improves the stability of power supply and avoids system operation interruption caused by single power failure.
  • Processing and Memory Parameters
    • It is equipped with a dual-core PowerPC processor with a clock frequency of 800 MHz, which can efficiently support complex control algorithms and logic operations.
    • The module provides a memory range of 1 GB - 8 GB, which can store a large number of control logic programs and real-time operating data to meet the needs of complex industrial control scenarios.
Read more
Quick view

Triconex 3664 Dual Digital Output Module

Technical Specifications
  • Electrical Parameters
    • It is equipped with 32 commoned digital output channels, the nominal output voltage is 24 VDC, and the adaptive voltage range is 16 - 30 VDC.
    • Each output point has a current rating of 2 A, and can withstand a 10 A surge current for 10 milliseconds. The typical voltage drop of the module is less than 1.5 VDC, and the maximum load leakage current is 2 mA.
    • The minimum isolation voltage between points reaches 1500 VDC, which effectively isolates electrical interference between different channels, and the overall power consumption of the module is less than 10 watts.
  • Physical and Environmental Parameters
    • The module weighs 4 kg and has dimensions of 120 mm x 80 mm x 30 mm. It adopts a modular structure design to facilitate installation in standard control cabinets.
    • The operating temperature range is -40°C to 70°C, and it can work normally in an environment with 0 - 95% non-condensing humidity. The enclosure has an IP66 protection rating, which can effectively prevent dust and water from entering and adapt to harsh on-site industrial conditions.
Read more
Quick view

Triconex 3700A Triple Modular Redundancy Analog Input Module

Technical Specifications
    • Electrical Parameters
      • It is configured with 32 differential input points, and each channel can be configured to support 4 - 20 mA, 0 - 20 mA, or 0 - 5 V DC signals.
      • It is equipped with a 16 - bit ADC, and the typical accuracy for the 4 - 20 mA signal is ±0.1% of full scale. The minimum input resistance is 30 MΩ (DC), and the typical power - off resistance is 30 kΩ (DC).
      • It obtains a +5 V DC operating voltage from the Tricon backplane, with a typical power consumption of about 2 W, and has 1500 V AC/DC isolation to enhance noise immunity.
    • Response and Detection Parameters
      • The update rate is 10 ms per channel, enabling fast response to safety system requirements, and the response time is less than 500 μs.
      • It is capable of open and short - circuit detection for each channel, and can conduct comprehensive hardware and software fault detection through self - testing.
Read more
Quick view

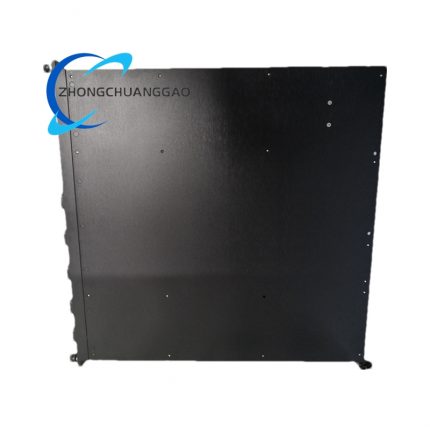

Triconex 4351B Tricon Communication Module

Technical Specifications
  • Communication Parameters
    • It is equipped with 2 RJ - 45 copper Ethernet ports and 4 DB - 9 serial ports that support RS - 232/RS - 485. The Ethernet ports support 10/100 Mbps adaptive speed, and the serial ports can reach a maximum communication rate of 115.2 Kbps.
    • It supports a variety of protocols including Modbus, TCP/IP, ICMP, SNTP, TSAA, Tristation, Trimble GPS and peer - to - peer UDP/IP, which can meet diverse industrial communication needs.
  • Electrical Parameters
    • The module operates with a 24 VDC power supply with a ±10% voltage tolerance, and its maximum power consumption is no more than 5 W.
    • The isolation voltage of the module is 500 VDC, which can effectively prevent electrical interference and protect the integrity of data transmission.
Read more
Quick view

Triconex 4355X

Technical Specifications
  • Architecture: Triple Modular Redundancy (TMR) for fault tolerance.
  • Processor: High-performance CPU with sufficient memory for complex control tasks.
  • Communication Protocols:
    • Modbus (RTU/TCP) for integration with PLCs and SCADA systems.
    • Profibus DP for real-time control of sensors and actuators in factory automation.
    • Ethernet for high-speed data exchange and remote monitoring.
  • Input/Output (I/O):
    • Digital Inputs/Outputs: 16 isolated digital inputs and 8 relay outputs (potential-free contacts).
    • Analog Support: Optional integration with analog modules for temperature, pressure, and flow monitoring.
Read more
