Bently Nevada 3500/40-01-00 Proximitor Monitor (TMR version)
Technical Specifications
– Channels : 12 total (3 × 4-channel sets) voted to 4 TMR outputs
– Input types : eddy-current, velocity, accelerometer
– Full-scale range : 0 – 10 mm pk-pk or 0 – 50 g (software selectable)
– Frequency response : 0.5 Hz – 10 kHz (–3 dB)
– Resolution : 16-bit ADC, <0.02 % non-linearity
– Accuracy : ±0.33 % of full scale @ 25 °C
– Update rate : 1 kHz per channel
– Voting logic : 2-out-of-3 for amplitude, phase, OK status and alarms
– Alarm relays : 2 per voted channel (Warning & Danger), latched or unlatched
– Analog outputs : 4 – 20 mA isolated, proportional to voted value
– Power draw : 24 Vdc from rack back-plane, 4.8 W max
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C
– Storage temperature : –55 °C to +125 °C
– Humidity : 5 % – 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5 – 500 Hz operational
– Dimensions : 241 mm × 24.4 mm × 99 mm (9.5" × 0.96" × 3.9")
– Weight : 0.34 kg (0.75 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS

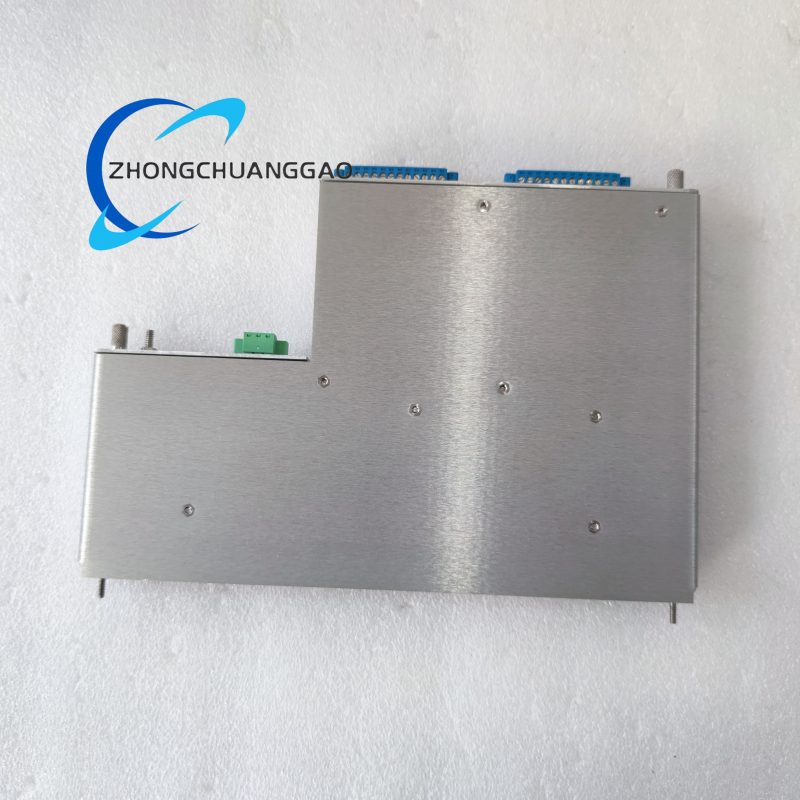

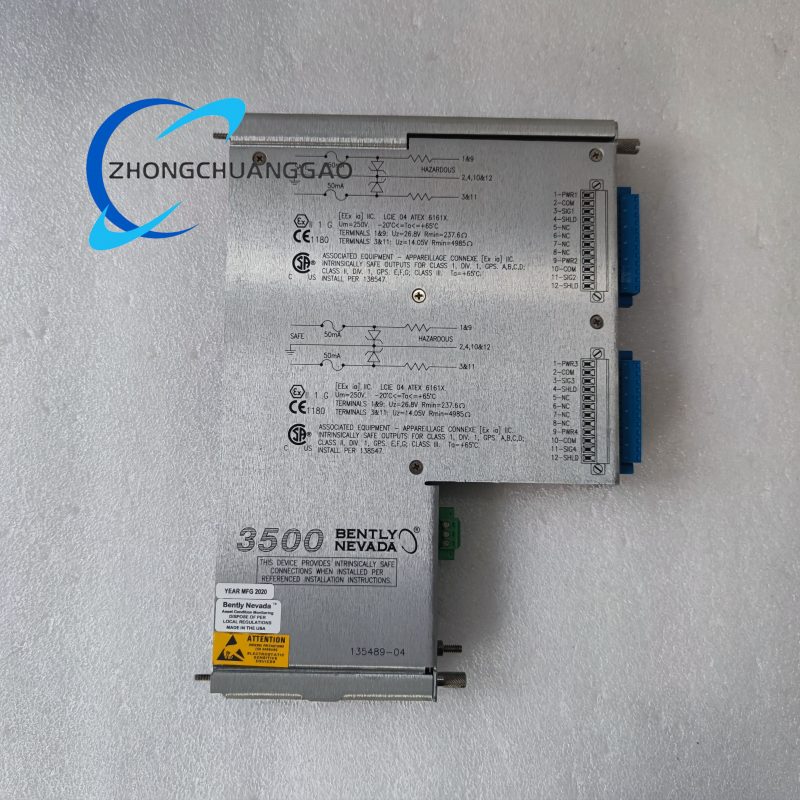

Bently Nevada 3500/40 135489-04 Proximitor I/O Module (3500/40M-03-00)
Technical Specifications
– Channels : 4, fully isolated, independent configuration
– Input type : eddy-current or seismic (accelerometer / velocity)
– Input impedance : 10 kΩ minimum
– Full-scale range : 0 – 10 mm pk-pk or 0 – 50 g (software selectable)
– Frequency response : 0.5 Hz – 10 kHz (–3 dB)
– Resolution : 16-bit ADC, <0.02 % non-linearity
– Accuracy : ±0.33 % of full scale @ 25 °C
– Internal barriers : 91 Ω series resistance, 50 V clamp per channel; meets Entity parameters for Zone 0/1 sensor circuits
– Terminations : rising-clamp screw terminals accept 0.2 – 2.5 mm² wire
– Power draw : 24 Vdc from rack back-plane, 40 mA typical per channel
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C
– Storage temperature : –55 °C to +125 °C
– Humidity : 5 % – 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5 – 500 Hz operational
– Dimensions : 24 cm × 2.4 cm × 16 cm (9.5" × 0.96" × 6.3")
– Weight : 0.46 kg (1.0 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine
Bently Nevada 3500/40 176449-01 4-Channel Vibration Monitor
Technical Specifications
– Channels : 4 independent, fully isolated
– Input types : eddy-current, velocity, accelerometer, piezo-velocity
– Measurement modes : radial vibration, thrust position, acceleration, shaft absolute
– Full-scale range : 0 – 10 mm pk-pk or 0 – 50 g (software selectable)
– Frequency response : 0.5 Hz – 10 kHz (–3 dB)
– Resolution : 16-bit ADC, <0.02 % non-linearity
– Accuracy : ±1 % of full scale @ 25 °C
– Update rate : 1 kHz per channel
– Alarm relays : 2 per channel (Warning & Danger), latched or unlatched
– Analog outputs : 4 – 20 mA isolated, proportional to measured value
– Power draw : 24 Vdc from rack back-plane, 4.8 W max
– Isolation : 1 500 Vac channel-to-ground, 500 V channel-to-channel
– MTBF : >250 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C
– Storage temperature : –55 °C to +125 °C
– Humidity : 5 % – 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5 – 500 Hz operational
– Dimensions : 241 mm × 24.4 mm × 99 mm (9.5" × 0.96" × 3.9")
– Weight : 0.34 kg (0.75 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS
Bently Nevada 3500/33-01-00 16-Channel Relay Output Module
Technical Specifications
– Module format : full-height, single-slot, front plug-in
– Relay channels : 16 × SPDT (Form C)
– Contact rating : 2 A @ 240 Vac (resistive)
– Maximum switching voltage : 240 Vac / 30 Vdc
– Operate time : ≤ 10 ms (typical)
– Isolation : 1 500 Vrms coil-to-contact & channel-to-ground
– Power draw : 24 Vdc from rack back-plane, 5.8 W max
– Output frequency : 50 – 60 Hz
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –20 °C to +70 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5-500 Hz operational
– Dimensions : 26 mm × 252 mm × 241 mm
– Weight : 0.7 kg
– Connector : M12 circular (IP67)
– Housing : die-cast aluminium alloy
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS
Bently Nevada 3500/33-01 16-Channel Relay Output Module
Technical Specifications
– Module format : full-height, single-slot, front plug-in
– Relay channels : 16 × SPDT (Form C)
– Contact rating : 5 A @ 24 Vdc / 120 Vac (resistive)
– Maximum switching voltage : 250 Vac / 30 Vdc
– Operate time : ≤ 10 ms (typical)
– Isolation : 1 500 Vrms coil-to-contact & channel-to-ground
– Power draw : 24 Vdc from rack back-plane, 5.8 W max
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5-500 Hz operational
– Dimensions : 24.2 cm × 2.44 cm × 24.1 cm
– Weight : 0.74 kg (1.6 lb)
– Connector : Euro-style or M12 circular (IP67)
– Housing : die-cast aluminium alloy
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS

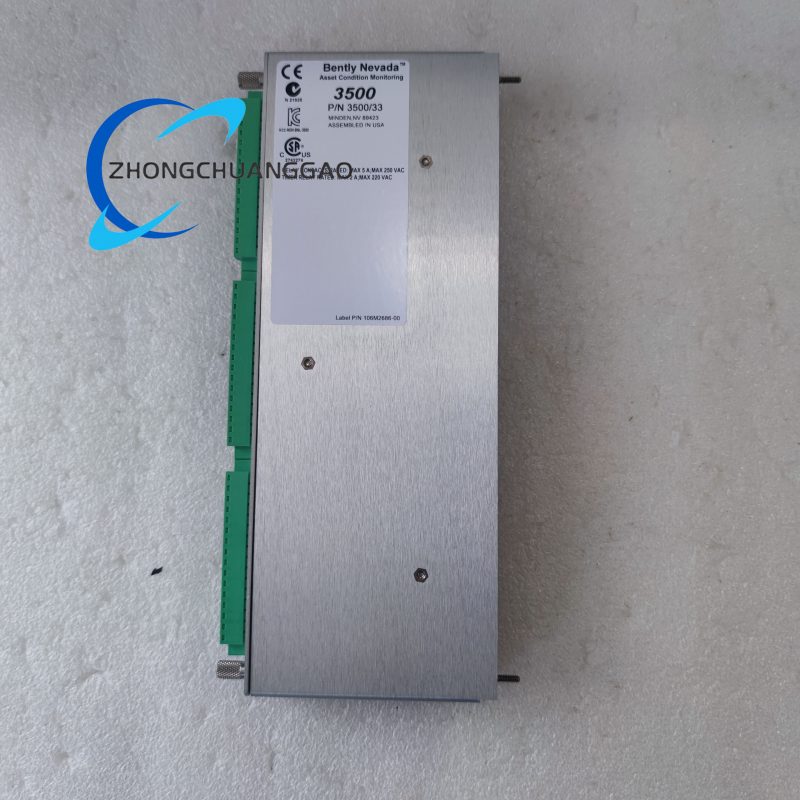

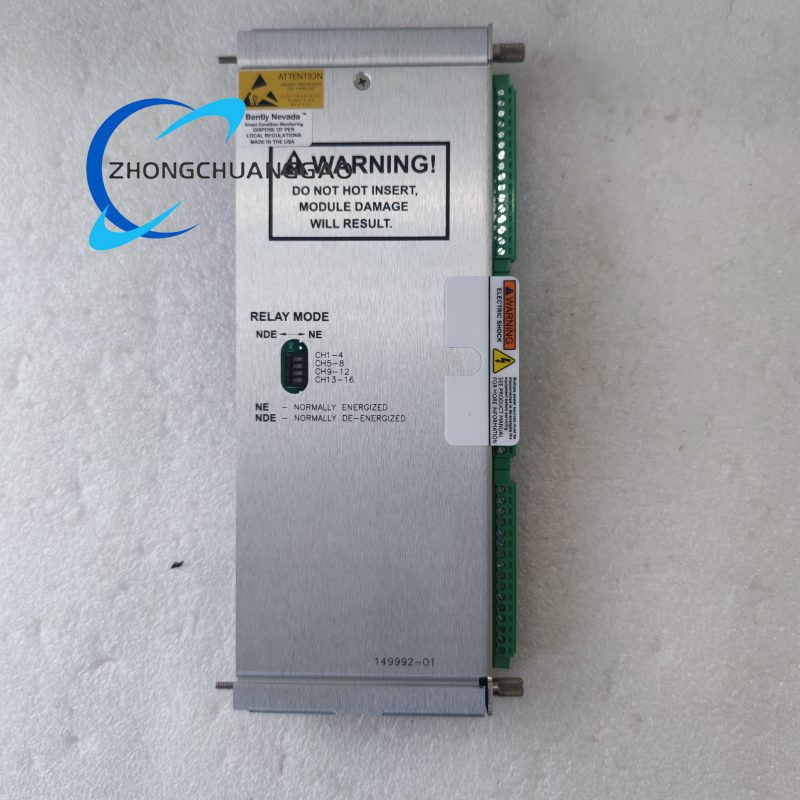

Bently Nevada 3500/33 149992-01 16-Channel Relay Output Module
Technical Specifications
– Module format : full-height, single-slot, front plug-in
– Relay channels : 16 × SPDT (Form C)
– Contact rating : 5 A @ 24 Vdc / 120 Vac (resistive)
– Maximum switching voltage : 250 Vac / 30 Vdc
– Operate time : ≤ 10 ms (typical)
– Isolation : 1 500 Vrms coil-to-contact & channel-to-ground
– Power draw : 24 Vdc from rack back-plane, 5.8 W max
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5-500 Hz operational
– Dimensions : 120 mm × 240 mm × 55 mm
– Weight : 0.5 kg (1.1 lb)
– Connector : M12 circular (IP67)
– Housing : die-cast aluminium alloy
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS
Bently Nevada 3500/33 149986-01 16-Channel Relay Output Module
Technical Specifications
– Module format : full-height, single-slot, front plug-in
– Relay channels : 16 × SPDT (Form C)
– Contact rating : 5 A @ 24 Vdc / 120 Vac (resistive)
– Maximum switching voltage : 250 Vac / 30 Vdc
– Operate time : ≤ 10 ms (typical)
– Isolation : 1 500 Vrms coil-to-contact & channel-to-ground
– Power draw : 24 Vdc from rack back-plane, 5.8 W max
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +82 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5-500 Hz operational
– Dimensions : 120 mm × 240 mm × 55 mm
– Weight : 0.5 kg (1.1 lb)
– Connector : M12 circular (IP67)
– Housing : die-cast aluminium alloy
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS
Bently Nevada 3500/32-A01-B01 4-Channel Relay Module (Full-Height Front Card)
Technical Specifications
– Module format : full-height, single-slot, front plug-in
– Relay channels : 4 × SPDT (Form C)
– Contact rating : 5 A @ 24 Vdc / 120 Vac (resistive)
– Maximum switching voltage : 250 Vac / 30 Vdc
– Operate time : ≤ 10 ms (typical)
– Isolation : 1 500 Vrms coil-to-contact & channel-to-ground
– Power draw : 5 W max (24 Vdc from rack back-plane)
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 5 % – 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5-500 Hz operational
– Dimensions : 15.5 cm × 10.2 cm × 2.5 cm
– Weight : 0.5 kg
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS
Bently Nevada 3500/32 125720-01 4-Channel Relay Output (Small Card)
Technical Specifications
– Module format : half-height rear I/O card (plugs behind 3500/32 main card)
– Relay channels : 4 × SPDT (Form C)
– Contact rating : 5 A @ 24 Vdc / 240 Vac (resistive)
– Max switching voltage : 250 Vac / 30 Vdc
– Operate time : ≤ 10 ms (typical)
– Isolation : 1 500 Vrms coil-to-contact & channel-to-ground
– Power draw : 5.8 W max (24 Vdc from rack back-plane)
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –30 °C to +65 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5-500 Hz operational
– Dimensions : 105 mm × 230 mm × 55 mm (4.1" × 9.1" × 2.2")
– Weight : 1.5 kg
– Agency approvals : CE, CSA, ATEX, IECEx, GOST, RoHS
Bently Nevada 3500/32 125712-01 4-Channel Relay Module
Technical Specifications
– Module size : full-height, single-slot, front plug-in
– Relay channels : 4, each DPDT (2 × SPDT)
– Contact rating : 5 A @ 24 Vdc / 120 Vac (resistive)
– Max switching voltage : 250 Vac / 30 Vdc
– Operate time : ≤ 10 ms (typical)
– Isolation : 1 500 Vrms coil-to-contact & channel-to-ground
– Power draw : 5 W max (24 Vdc from rack back-plane)
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature : –40 °C to +85 °C
– Storage temperature : –55 °C to +100 °C
– Humidity : 5 % – 95 % RH non-condensing
– Shock / vibration : 15 g ½-sine 11 ms; 2 g 5-500 Hz operational
– Dimensions : 177 mm × 127 mm × 70 mm (7" × 5" × 2.8")
– Weight : 1.1 kg
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine
Bently Nevada 3500/25-01-01-00 Enhanced Keyphasor Module
Technical Specifications
– Module type : half-height, dual-channel, occupies one front slot
– Input signal : proximity probe or magnetic pickup
– Non-isolated I/O : +0.8 V to –21 V
– Isolated I/O : +5 V to –11 V
– Input impedance : ≥ 21.8 kΩ
– Output signal : digital keyphasor pulse, buffered coax on front & Euro connector on rear
– Speed range : 0 – 99 999 RPM (passive mag pickup requires >200 RPM)
– Accuracy : ±0.05 %
– Resolution : 0.1 RPM
– Sampling rate : 1 kHz per channel
– Phase shift : <1° typical (non-isolated), <3° isolated
– Output impedance : ≤504 Ω
– Power supply : –24 Vdc from rack back-plane, 40 mA max per channel
– Power consumption : 3.2 W typical
– On-board memory : 32-bit RISC processor, flash for firmware & event log
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature :
– Non-isolated : –30 °C to +65 °C
– Isolated : 0 °C to +65 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g 11 ms; 2 g 5 – 500 Hz operational
– Dimensions : 119.9 mm × 24.4 mm × 256.5 mm
– Weight : 0.34 kg (0.76 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine
Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module
Technical Specifications
– Module type : half-height, dual-channel, occupies one front slot
– Input signal : proximity probe or magnetic pickup
– Non-isolated I/O : +0.8 V to –21 V
– Isolated I/O : +5 V to –11 V
– Input impedance : ≥ 21.8 kΩ
– Output signal : digital keyphasor pulse, buffered coax on front & Euro connector on rear
– Speed range : 0 – 99 999 RPM (passive mag pickup requires >200 RPM)
– Accuracy : ±0.05 %
– Resolution : 0.1 RPM
– Sampling rate : 1 kHz per channel
– Phase shift : <1° typical (non-isolated), <3° isolated
– Output impedance : ≤504 Ω
– Power supply : –24 Vdc from rack back-plane, 40 mA max per channel
– Power consumption : 3.2 W typical
– On-board memory : 32-bit RISC processor, flash for firmware & event log
– MTBF : >300 000 h @ 45 °C per MIL-HDBK-217F
– Operating temperature :
– Non-isolated : –30 °C to +65 °C
– Isolated : 0 °C to +65 °C
– Storage temperature : –40 °C to +85 °C
– Humidity : 95 % RH non-condensing
– Shock / vibration : 15 g 11 ms; 2 g 5 – 500 Hz operational
– Dimensions : 119.9 mm × 24.4 mm × 256.5 mm
– Weight : 0.34 kg (0.76 lb)
– Agency approvals : CE, UL/cUL Class I Div 2, ATEX/IECEx Zone 2, RoHS, ABS marine
