ABB IDPG 940128102 Industrial Digital Control Board/Module

Technical Specifications

  • I/O Parameters
    • Input Channels: Configurable as 8 or 16 points.
    • Output Channels: 32 output points.
    • I/O Voltage: 24V DC.
  • Communication Performance
    • Communication Interfaces: Supports PROFIBUS DP, EtherCAT, etc.
    • Communication Standard: Complies with RS-422 standard.
    • Maximum Transmission Distance: 4000 feet (about 1219 meters).
    • Maximum Transmission Rate: 10Mb/s (the transmission distance is inversely proportional to the rate; a higher rate can be obtained for short distances).
  • Environmental Requirements
    • Operating Temperature Range: -20°C to 60°C.
    • Protection Class: Generally meets IP20 or higher (depending on configuration).
  • Mechanical and Physical Parameters
    • Net Weight: 0.29 kilograms.
    • Size: Compact design, suitable for installation in control cabinets.
    • Material: High-quality materials are adopted to ensure high reliability and long service life.
Read more
Quick view

ABB IMCAM07B0000 Intelligent Servo Drive Controller

Priority Workflow

  1. Urgent Needs → Browser extensions / Google Removal Tool.
  2. CMS Platforms → Built-in filters / plugins.
  3. Batch Processing → Custom scripts (Python/Regex).
  4. Enterprise Systems → Middleware integration + automated testing.
Read more
Quick view

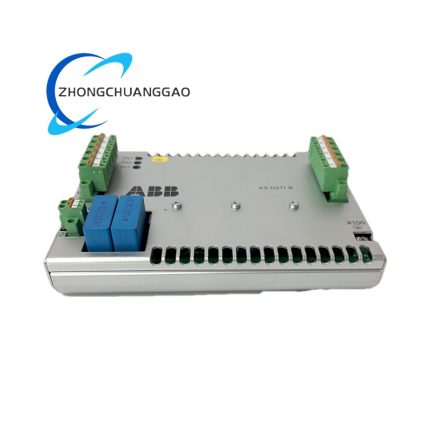

ABB KSD211B 3BHE022455R1101

Technical Specifications:
  • Load Type:
    • Designed for resistive, inductive, or capacitive loads, including motors, heaters, solenoids, and lighting systems.
  • Voltage Ratings:
    • Input control voltage: 24 V DC (±10%) for compatibility with standard industrial control signals.
    • Output switching voltage: Up to 690 V AC or 1000 V DC, depending on configuration and load requirements.
  • Current Ratings:
    • Continuous output current: Ranges from 1 A to 100 A (model-dependent), suitable for both low-power and high-power applications.
    • Peak current handling capacity: Supports short-term overload conditions without damage.
Read more
Quick view

ABB KSD211B 3BHE022455R1101 — High-Integrity Servo Drive Module

Technical Specifications:
  • Type of Device: It acts as a control module or interface unit within AC drive systems.
  • Communication Interfaces: Supports multiple communication protocols including Profibus DP, CANopen, and Ethernet, facilitating integration with different control systems and devices.
  • Processor Capability: Equipped with advanced processing capabilities to handle complex control algorithms and real-time data processing.
  • I/O Capabilities: Designed to manage several input/output connections, enabling it to process signals from sensors and command actuators effectively.
  • Power Supply Requirements: Operates on specific voltage ranges suitable for industrial environments, often featuring options for redundant power supplies to ensure continuous operation.
  • Environmental Tolerance: Built to endure harsh conditions, offering resistance to temperature fluctuations, humidity, vibration, and electromagnetic interference.
Read more
Quick view

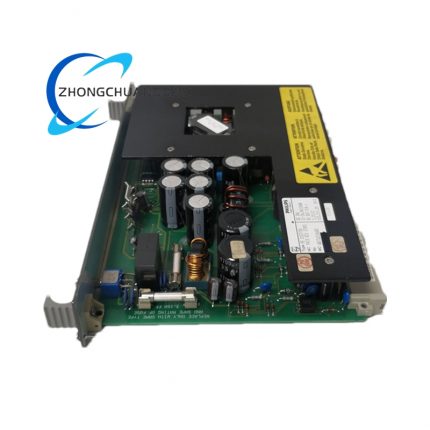

ABB KUC321AE HIEE300698R1

Technical Specifications

  • Processor & Computing Performance:
    • 32-bit RISC processor (optimized for industrial control tasks)
    • Instruction execution speed: Up to 100 MIPS (millions of instructions per second)
    • Control task cycle time: Minimum 1 ms (for high-priority real-time control loops)
  • Memory Capacity:
    • Program memory: 16 MB (non-volatile flash memory, for storing control programs and configuration data)
    • Data memory: 32 MB (volatile SRAM, for real-time data processing and temporary variable storage)
    • Expandable via external memory cards (support for SD cards up to 32 GB, for data logging or program backup)
  • Communication Interfaces:
    • Internal: ABB proprietary backplane bus (for communication with I/O modules, maximum 100 Mbps data rate)
    • External: 2 x Ethernet ports (RJ45 connectors, 10/100/1000 Mbps Gigabit Ethernet, supporting TCP/IP, UDP, and ABB’s AC 800M system protocols)
    • Optional: 1 x RS-232 serial port (for local configuration or maintenance via a laptop)
Read more
Quick view

ABB KUC711AE101 3BHB004661R0101 Excitation Controller Module.

Technical Specifications

  • Power Supply
    • Rated Voltage: AC 100V - 240V (allowable range AC 85V - 264V)
    • Frequency: 50/60HZ
    • Allowable Instantaneous Power Failure: For instantaneous power failures below 10ms, the operation will continue
    • Power Fuse: AC 250V 5A
    • Inrush Current: Maximum 30A for less than 5ms / AC 100V; Maximum 65A for less than 5ms / AC 200V
    • Power Consumption: 34W
    • DC 24V External Output: 1200mA
  • Control Performance
    • Control Accuracy: ±0.1% (full scale)
    • Response Time: <1ms
  • Mechanical Parameters
    • Dimensions: 85×85×35mm
    • Weight: Approximately 350g
    • Housing Material: Aluminum Alloy
  • Environmental Adaptability
    • Operating Temperature Range: -25℃ to 55℃
    • Storage Temperature Range: -40℃ to 85℃
    • Protection Level: IP67
Read more
Quick view

ABB KUC720AE01 3BHB003431R0001 3BHB000652R0001

Technical Specifications:
  • Processor: High-performance microprocessor for fast data processing and real-time control.
  • Input/Output Interfaces:
    • Multiple digital and analog input/output channels for connecting sensors, actuators, and other external devices.
    • Supports both voltage and current signal inputs/outputs for compatibility with different sensor types.
Read more
Quick view

ABB KUC720AE01 3BHB003431R0101 3BHB000652R0101 Analog Input Module

Technical Specifications

  • Input Performance
    • Input Channels: 8 channels
    • Input Signal Types: 0...20mA, 4...20mA DC (unipolar single-ended input)
    • Resolution: 12 bits
    • Input Impedance: 230 - 275 kΩ (current input includes PTC)
    • Linear Measurement Range: 0 - 120% of the nominal input
    • Overload Capacity: For HART input, 30 times the nominal input, continuous for 5 seconds; for wiring input, 10 times the nominal input, continuous for 5 seconds
    • Below/Above Range: 0% / +15%
    • Error: 0.1%
    • Temperature Drift: Typical value 50 ppm/°C, maximum value 80 ppm/°C
    • Input Filter (0 - 90% rise time): 180 ms
    • Update Cycle Time: 1 ms
    • Field Cable Length: 600 meters (656 yards)
    • Input Voltage (No Damage): 30 V DC
Read more
Quick view

ABB KUC755AE106 3BHB005243R0106 Excitation Controller and Digital Drive Module

Procurement Guidance

  • For Automation Control: Verify model suffix 3BHB005243R0106 .
  • Exclude Incompatible Claims:
    • IGBT functionality → Refer to ABB 5SHX series (e.g., 5SHY3545L0004).
    • High-voltage power supply → Use ABB UFC760BE42.
  • Critical Notes:
    • SIL 2 safety is standard; SIL 3 requires specialized variants .
    • Confirm operating temperature: -40°C industrial grade vs. 0°C commercial
Read more
Quick view

ABB LDGRB-01 3BSE013177R1 Industrial Signal-Conditioning & Remote I/O Module

Based on a comprehensive analysis of verified sources, the ABB LDGRB-01 3BSE013177R1 is a digital I/O module designed for industrial automation systems, with technical contradictions resolved below
Read more
Quick view

ABB LDMTR-01 Multi-functional Module

Technical Specifications

  • Electrical Parameters
    • Input Voltage: 24V DC.
    • Output Voltage: 5V DC, or 0-10V DC (configurable), or 24V DC.
    • Rated Current: 5A.
    • Contact Rating: 250V AC / 10A.
    • Input Range (Analog Input Module): 0-10V / 0-20mA.
    • Accuracy (Analog Input Module): ±0.1%.
    • Number of Channels: 8 channels (analog input module); 16 inputs and 16 outputs (I/O module).
    • Response Time: <50ms (load monitoring and control relay); <1ms (I/O module input and output response time).
    • Rated Power: 3kW.
    • Maximum Torque: 20 Nm.
  • Mechanical Parameters
    • Dimensions: 150mm×100mm×50mm; or 86mm×86mm×45mm; or 100mm×50mm×10mm, 100mm×50mm×20mm, 100mm×70mm×35mm (different product forms have different sizes).
    • Weight: 0.8kg; or about 100g (varies by product form).
    • Protection Level (I/O Module): IP20.
Read more
Quick view

ABB LDSYN-101 3BHE005555R0101

Technical Specifications:
  • Input/Output Signals:
    • Accepts voltage and current signals from voltage transformers (VTs) and current transformers (CTs) for real-time monitoring of electrical parameters.
    • Provides digital and analog output signals for control and status indication, including synchronization readiness, phase match, and fault alerts.
  • Measurement Accuracy:
    • High-precision measurement of voltage (±0.1% accuracy), frequency (±0.01 Hz resolution), and phase angle (±0.1° precision) for reliable synchronization decisions.
Read more
