GE 8851-LC-MT Input/Output Module
Technical Specifications
- Power Input: Accepts standard alternating current (AC) or direct current (DC) power input, ensuring compatibility with different power sources.
- Output Channels: Features multiple output channels to supply required power to other modules and devices, with stable performance and high efficiency.
- Programmable Functionality: Supports user programming for implementing different control logic and algorithms, allowing customization according to specific application needs.
- Transmission Rate: Up to 1000Mbps (for network transmission modules only), facilitating high-speed data exchange and control.
- Redundancy Design: Ensures system reliability and fault tolerance by enabling power backup and automatic switching, minimizing downtime.
- Diagnostic Capabilities: Monitors power status and health, providing fault diagnosis and alarm functionality for timely issue detection and resolution.
GE 8750-CA-NS Controller Carrier
Technical Specifications
- Model: 8750-CA-NS
- Manufacturer: GE (General Electric)
- Type: Controller Carrier
- Mounting: Designed to mount on flat plates or T-shaped or G-shaped cross-section DIN rails.
- I/O Functionality: Provides a variety of I/O functions through its open architecture, allowing communication with various field buses by selecting the appropriate type of BIM or controller.
- Field Terminals: Each I/O module has a field terminal that snaps into the rack, accepting field wiring without the need for additional terminals or connections. If damaged on-site, these terminals can be easily replaced.
- Mechanical Keying System: A comprehensive system ensures the safety of maintenance equipment by preventing incorrect connections.
GE 8810-HI-TX Safety Analog Input Module
Technical Specifications
- Model: 8810-HI-TX
- Manufacturer: GE (General Electric)
- Type: Safety Analog Input Module
- Input Signals: Analog current signals (4-20mA)
- Output Signals: HART digital signals
- Accuracy: ±0.1%
- Resolution: 0.001mA
- Response Time: <10ms
- Isolation Voltage: 2500V
- Operating Temperature: -40°C to 85°C
- Protection Class: IP65
- Dimensions: 150mm x 100mm x 60mm
GE 8521-HC-MT Controller Module
Technical Specifications
- Brand: GE (General Electric)
- Model: 8521-HC-MT
- Type: Controller Module
- Voltage: Typically operates at 24V DC, ensuring compatibility with standard industrial power supplies.
- Frequency: Output frequency can reach up to 50kHz, facilitating fast and precise control responses.
- Series: Belongs to the 1746/1756 series, indicating its integration with GE's broader automation platform.
- Memory and Processing: Equipped with sufficient memory and processing power to handle complex control algorithms and data storage requirements.
GE 8521-EB-MT Controller Module
Technical Specifications
- Brand: GE (General Electric)
- Model: 8521-EB-MT
- Type: Controller Module
- Application: PLC/DCS Systems
- Processing Capability: Equipped with a high-performance microprocessor for fast and accurate data processing.
- Memory: Sufficient memory capacity to store control programs and data.
- Communication Interfaces: Multiple communication ports for seamless integration with other devices and systems. Supports various industrial communication protocols.
- Input/Output (I/O) Capacity: Can support a significant number of I/O modules, enabling flexible system expansion.

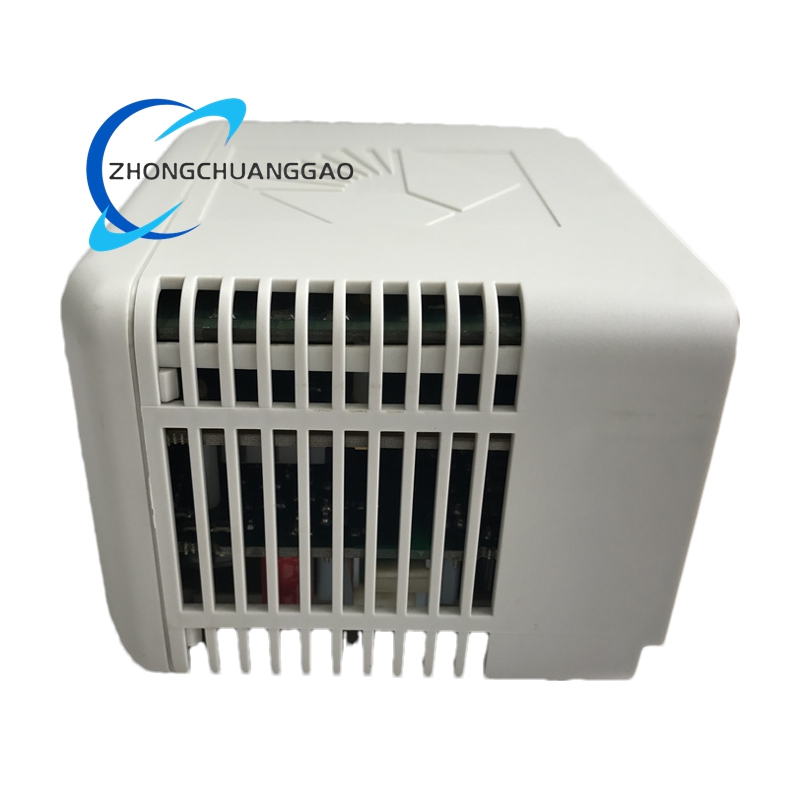

GE 8502-BI-DP Bus Interface Module
Technical Specifications
- Bus Protocol Support: The module supports the PROFIBUS DP protocol, enabling it to communicate with a wide range of devices and systems that utilize this standard.
- Data Transmission Speed: It operates at speeds up to 6 Mbaud on the PROFIBUS DP network, ensuring fast and efficient data exchange.
- I/O Module Capacity: The GE 8502-BI-DP can support up to 24 I/O modules, allowing for extensive system expansion and flexibility.
- Diagnostic Capabilities: It provides extended diagnostics for module and channel status, enabling users to quickly identify and resolve issues.
- Configuration: The module features non-volatile memory for configuration settings, ensuring that settings are retained even during power cycles. Configuration can be performed through a local port or via PROFIBUS master configuration software.
- Physical Characteristics: The module is compact and lightweight, with a weight of approximately 0.350 kilograms (shipping weight of 2 kilograms).
GE 04240FD11234A RXi Distributed I/O Controller
Technical Specifications
- Processor: Dual-core CPU for enhanced processing power and speed.
- Memory: 10MB user memory for storing application programs and data.
- Communication Interfaces:
- 2x Gigabit ProfiNet ports with built-in MRP (Media Redundancy Protocol) redundancy for reliable network communication.
- 1x Ethernet port (10, 100, 1000 Mbit) for additional connectivity options.
- 2x USB 2.0 ports for connecting peripheral devices.
- Optional SD card slot (on smart display module or smart panel) for expanded storage.
- Power Supply: Input voltage of 24V DC (±25%) with protection features to ensure stable operation.
- Environmental Conditions:
- Operating temperature range: -25°C to +55°C (standard).
- Storage temperature range: -40°C to +125°C.
- Operating humidity: 10% to 90% (non-condensing).
GE 04220FL11232A RXI Controller
Technical Specifications
- Processor: High-speed industrial-grade CPU (dual-core or quad-core options available)
- Memory: Large-capacity RAM with persistent storage
- Power Supply: 24V DC / 48V DC (optional)
- Power Consumption: ≤ 25W
- Color: Industrial gray
- Dimensions: Approximately 300mm × 200mm × 120mm
- Mounting Options: DIN rail mounting in cabinets or 19" rack mounting
- Protection Class: IP20 (optional extended housing for IP54 rating)
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95%, non-condensing
- Communication Interfaces: Ethernet, serial ports, Modbus, Profibus (optional)
- I/O Expansion: Supports local and remote I/O module expansion
- Redundancy: CPU redundancy, power supply redundancy, network redundancy
GE 750-P5-G5-D5-HI-A20-R Feeder Management Relay
Technical Specifications
- Power Supply: The relay operates with a wide range of power supply voltages, typically supporting both AC and DC inputs (e.g., 88-300 VDC or 70-265 VAC, 48-62 Hz), ensuring compatibility with various electrical systems.
- Input/Output:
- Digital Input: Multiple digital inputs for connecting external devices such as switches and sensors.
- Analog Input: Several analog inputs for measuring parameters like voltage and current (e.g., 5A for phase current, zero-sequence current, and sensitive ground current inputs).
- Output Relays: Multiple programmable output relays for controlling circuit breakers or signaling alarms.
- Analog Output: Typically includes several 4-20mA analog outputs for transmitting measured values to other devices or systems.
GE 605-110914-004 Semiconductor Controller
Technical Specifications
- Brand: GE (General Electric)
- Product Type: Semiconductor Controller or Module Circuit Board
- Input/Output: Equipped with multiple analog outputs (e.g., eight 4-20mA analog outputs in some configurations), facilitating precise control and monitoring of semiconductor manufacturing equipment.
- Communication: Supports various communication protocols for seamless integration with other devices and systems, enabling remote monitoring and control.
- Power Supply: Designed to operate within a standard voltage range, ensuring compatibility with a wide range of industrial power systems.
- Environmental Resistance: Built to withstand harsh industrial environments, with resistance to electromagnetic interference (EMI) and radio frequency interference (RFI).
GE 469-P5-LO-A20-E Motor Management Relay
Technical Specifications
- Power Supply: 90-300 VDC, 70-265 VAC, 48-62 Hz
- Control Power: Designed to operate with a wide range of power supplies, ensuring compatibility with different electrical systems.
- Display: Enhanced display with a 40-character vacuum fluorescent display (VFD) for clear and detailed information.
- Communication Interfaces: Includes RS-232 and RS-485 ports for easy integration with SCADA systems or PLC control systems. Supports Modbus RTU and DNP 3.0 protocols for seamless data exchange.
- Input/Output:
- Digital Input: 9 digital input terminals for various control and monitoring functions.
- Analog Input: 4 analog inputs (4-20 mA, 0-20 mA, or 0-1 mA settings) for precise measurement and control.
- Output Relays: 6 form C output relays (10A/30-250 VAC or DC, 30A for 0.2 seconds) for reliable switching operations.
- Analog Output: 4 programmable analog outputs (4-20 mA or 0-1 mA) for continuous monitoring and control.
GE 469-P1-HI-A20-E Motor Management Relay
Technical Specifications
- Product Model: GE 469-P1-HI-A20-E
- Manufacturer: GE Energy (General Electric Energy)
- Product Type: Digital Motor Protection Relay
- Power Supply: 85–265V AC/DC
- Power Consumption: <20W
- Input Signal Types: Voltage, current, frequency, switch quantity
- Output Type: Dry contact output
- Communication Interfaces: RS485 (Modbus RTU), Ethernet (IEC 61850/DNP3/Ethernet/IP)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +95°C
- Protection Class: IP54
- Installation Method: Panel mounting
- Certification Standards: IEEE C37.118, IEC 60255, UL 508A
