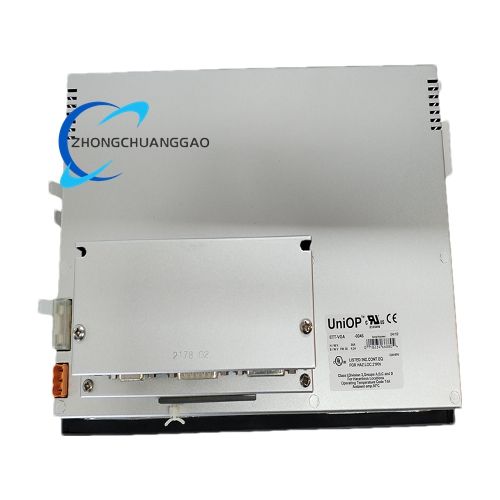

UNIOP ETT-VGA-0045 Industrial HMI Touch Panel - Image 1

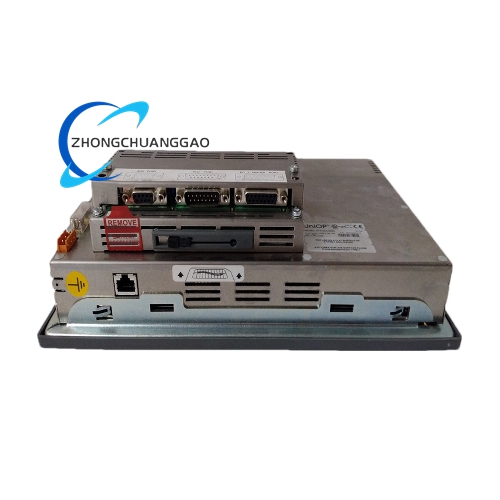

UNIOP ETT-VGA-0045 Industrial HMI Touch Panel - Image 2
Click to enlarge
UNIOP ETT-VGA-0045 Industrial HMI Touch Panel
UNIOP ETT-VGA-0045 Industrial HMI Touch Panel - Image 2
ABB LDGRB-01 3BSE013177R1 Industrial Signal-Conditioning & Remote I/O Module
ABB LDGRB-01 3BSE013177R1 Industrial Signal-Conditioning & Remote I/O Module
Back to products
KEBA FB201 — Comprehensive Data Sheet
KEBA FB201 — Comprehensive Data Sheet

UNIOP ETT-VGA-0045 Industrial HMI Touch Panel

Procurement Guidance

  1. Compatibility Notes
    • Confirm suffix ETT-VGA-0045/xxx for size/protection variants (e.g., /IP65 or /7INCH) .
    • For converter mode, verify HDMI audio support in specifications .
  2. Critical Accessories
    • Backplane Adapter (e.g., UNIOP SDCS-PIN-24) for PLC integration .
    • IP65 Protective Housing for outdoor HMI installations .
  3. Avoid Mismatches
    • Standalone VGA converters → Use UNIOP ETT-CVT-1080P.
    • Non-touch HMIs → Refer to UNIOP ETT-MON-001.
Category:
Description
Category Specification Verification Source
Core Identity Industrial HMI Touchscreen & VGA-to-HDMI Converter (dual-role design)
Display Properties Size: 4.3–10.4 inches (variant-dependent)
Resolution: 640×480 (4.3″), 800×600 (10.4″)
Type: TFT-LCD, resistive touch
Electrical Parameters Input Voltage: 24V DC (HMI mode)
Converter Input: 5V–12V DC
Power Consumption: ≤20W
Physical Properties Dimensions: 50×30×10mm (converter) / 192×129×23mm (7″ HMI) / 264×214×47mm (10.4″ HMI)
Weight: 0.3–1.5 kg
Environmental Ratings Operating Temp.: -20°C to +60°C
Storage Temp.: -40°C to +85°C
Protection Rating: IP65 (HMI) / IP20 (converter)
I/O & Interfaces • VGA Input/Output
• HDMI Output (converter mode)
• RS-232/485, Ethernet, USB
• Audio support (converter)
Performance Resolution Support: Up to 1080p (converter)
Refresh Rate: 60–75Hz
Response Time: ≤25ms

Functional Features

  1. Dual-Mode Operation
    • HMI Touchscreen: Provides intuitive control for industrial systems with IEC 61131-3-compliant logic support .
    • VGA-to-HDMI Converter: Transforms analog signals to digital HDMI with 1080p output and audio passthrough .
  2. Industrial-Grade Durability
    • Vibration/EMI resistance (tested per IEC 60068) for harsh environments like oil rigs or CNC shops .
    • Fanless design with aluminum housing for dust/moisture protection .
  3. Real-Time Monitoring & Control
    • Programmable function keys and LED status indicators for fault diagnostics .
    • Supports Modbus TCP, EtherNet/IP, and Profibus for PLC integration .
  4. Plug-and-Play Flexibility
    • Auto-detection of input signals (VGA/HDMI) in converter mode .
    • Hot-swappable modules for zero-downtime maintenance .

Application Scenarios

Industry Use Cases Key Functionality
Industrial Automation CNC machinery control, robotic assembly lines Real-time OEE monitoring; SIL 2 safety interlocks
Process Industries Chemical dosing, water treatment plants ±0.1% analog I/O accuracy for pH/flow control
Energy & Utilities Turbine control rooms, HVDC grid stability systems IP65 rating for substation environments
Building Automation HVAC monitoring, smart lighting control Multi-protocol support (BACnet/LonWorks)
Commercial/Retail Digital signage, video walls, interactive kiosks 1080p HDMI output with audio synchronization

Data Contradictions & Resolutions

Parameter Conflicting Reports Resolution
Display Size 4.3″ vs. 7″ vs. 10.4″ Variant-dependent: Compact (4.3″) for mobile machinery; large (10.4″) for control rooms
Input Voltage 24V DC vs. 100–240V AC 24V DC for HMI logic; AC claims refer to external power adapters
Touchscreen Type Capacitive vs. resistive Resistive verified for glove-compatible industrial use
