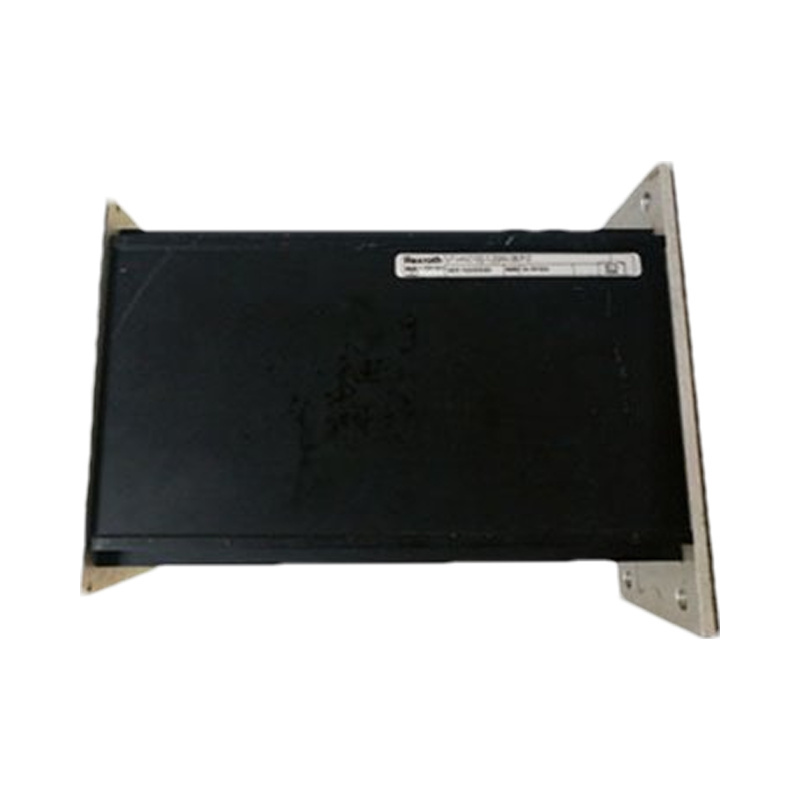

REXROTH VT-HNC100-1-23W-08-P-0 - Image 1

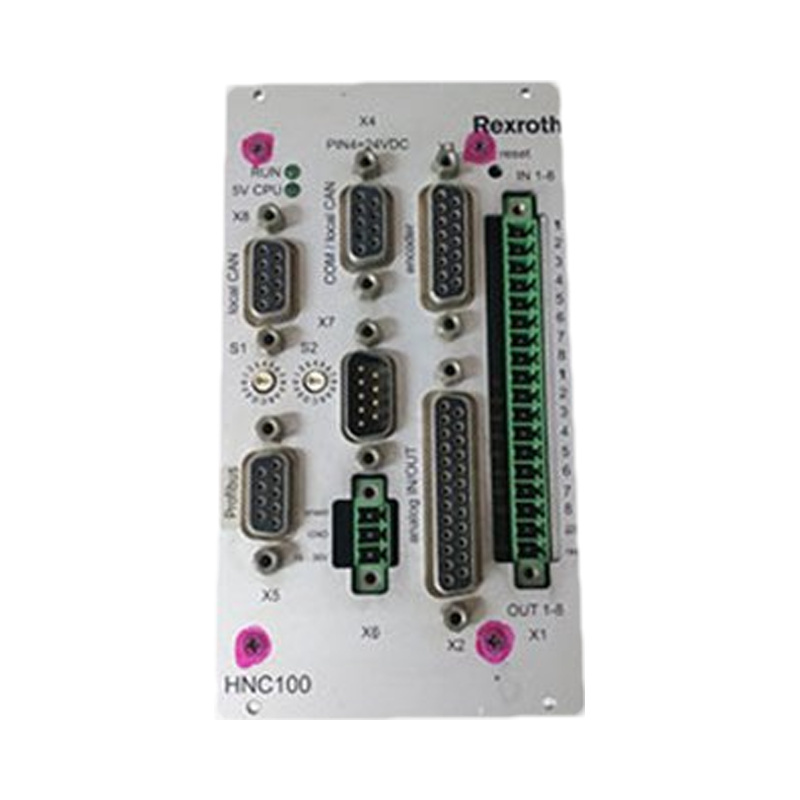

REXROTH VT-HNC100-1-23W-08-P-0 - Image 2

REXROTH VT-HNC100-1-23W-08-P-0

Hydraulic Variant: 1 hydraulic axis.
Installation Type: Wall – mounting housing.
Inputs/Outputs: 8 digital inputs/outputs.
Bus Connection: PROFIBUS DP.
Processor: 16/32 – bit MC 68376.
Memory: 1 MB flash eprom, 8 KB eeprom, 256 KB ram.
Operating Voltage Range: 18 – 36 VDC.
Power Consumption: 8 W.
Operating Temperature Range: 0 – 50 °C.
Storage Temperature Range: – 20 – 70 °C.
Dimensions: 71 x 155 x 204 mm.
Weight: 1 kg.

Category: Uncategorized

Description

Functional Features

Precise Control: It can achieve precise open – loop and closed – loop control of position, velocity, and pressure for electro – hydraulic axes, using advanced control algorithms such as the PIDT1 controller.
Flexible Configuration: It has a variety of measurable input signals, including incremental or absolute (SSI) sensors, analog 0 to ±10 V and 4 to 20 mA, and a reference voltage of ±10 V. It also has voltage or current – controlled variable outputs and freely configurable controller variants, such as position controllers, pressure/force controllers, position – dependent braking, and alternate control (position/pressure).
Rich Communication Interfaces: In addition to the standard RS – 232 interface (with a data transfer rate of 9.6 kbaud), it also optionally supports interfaces such as PROFIBUS DP, CANopen, and Interbus – S, which is convenient for communication and integration with other devices.
Convenient Data Management: Data can be comfortably managed on a PC, and it has a user – friendly field – bus interface configuration with the help of the WIN – PED 5 bus manager.

Application Scenarios

Machine Tools: Such as lathes, milling machines, etc., for precise control of the movement of machine tool axes.
Plastic Processing Machines: Used in injection molding machines, extruders, etc., to control the pressure and position of hydraulic components.
Presses: Including mechanical presses and hydraulic presses, for controlling the pressing force and stroke.
Transfer Lines: In automated production transfer lines, for the coordinated control of each transfer station.
Rail – bound Vehicles: Such as trains, subways, etc., for the control of hydraulic – driven components such as brakes and door systems.
