ProSoft MVI56-MNETR Modbus TCP

  • Technical Specifications
    • Mechanical and Power Parameters
      • It adopts a single-slot design compatible with the Controllogix 1756 backplane, enabling easy installation into Controllogix chassis without occupying excessive space.
      • The backplane current load reaches 800 mA under 5 VDC and 3 mA under 24 VDC, matching the power supply requirements of Controllogix systems for stable operation.
    • Communication Parameters
      • It is equipped with a 10/100 Mbps Ethernet interface with auto-crossover detection, using an RJ45 connector suitable for Cat5 cables, and it supports Ethernet/IP pass-through communication.
      • It supports storage and transfer of up to 5000 16-bit registers with the Controllogix processor through block transfer or side-connect interface. Client parameters are configurable, including a minimum response delay ranging from 0 to 65535 milliseconds, and it also supports floating-point data types.
    • Environmental and Display Parameters
      • The operating temperature ranges from 0 °C to 60 °C, and the storage temperature ranges from -40 °C to 85 °C. It can operate normally in 5% to 95% relative humidity environments without condensation.
      • It is equipped with a 4-character scrolling alphanumeric LED display that shows module version, IP address, application port settings and error information, along with LED indicators for module status, application status and error status.
Category:
Description
  • Functional Features
    • Optimized for Remote Rack Implementations
      • It features a reduced I/O image size that is specifically designed to optimize remote rack applications. This design minimizes latency during data transmission in distributed control systems and maximizes overall communication performance in remote rack setups.
      • It works perfectly in both local and remote rack applications, and its compatibility with ControlNet and Ethernet networks allows it to fit into various distributed industrial control architectures.
    • Flexible Data Management and Configuration
      • The user can define the module’s memory usage, and the 5000 16-bit register space provides sufficient capacity for large-volume data interaction between the processor and the Modbus TCP/IP network.
      • Configuration is completed through ProSoft Configuration Builder software. The module can be located via UDP broadcast messages, and it supports tight integration with RSLogix5000, simplifying the overall system configuration process.
    • Powerful Diagnostic and Monitoring Capabilities
      • It supports CIP Connect, enabling network configuration and diagnostic monitoring with Controllogix 1756-E NXT and 1756-CNB modules. This allows for real-time monitoring of the module’s operating status and network communication conditions.
      • Special block transfer codes in ladder logic support retrieving module status and executing special functions such as command control and event commands, which helps quickly identify and resolve communication faults.
    • Strong Compatibility and Smooth System Transition
      • It is backward compatible with previous MVI56-MNET versions, ensuring seamless integration with existing related systems. This compatibility reduces downtime during system upgrades or expansions and lowers the cost of system transformation.
      • It can interface with various Modbus TCP/IP-compatible devices, including Modicon processors and numerous other client and server devices, covering a wide range of industrial equipment communication needs.
  • Application Scenarios
    • Petrochemical Industry
      • In large petrochemical plants with scattered equipment layouts, the module is installed in remote racks to connect on-site flow meters, pressure sensors and temperature transmitters with the central Controllogix control system. It realizes real-time data transmission of key process parameters, supporting the central system to issue precise control commands to on-site equipment.
    • Food Processing Industry
      • In automated food production lines with distributed processing areas, the module connects Controllogix processors with Modbus TCP/IP-compatible weighing machines, packaging equipment and conveyor systems. It ensures timely data exchange between the central control system and each production unit, maintaining consistent production standards and efficiency.
    • Pulp and Paper Industry
      • In pulp and paper mills, it links remote paper quality detection equipment, roller speed controllers and chemical dosage devices to the central control system. It transmits data such as paper thickness and moisture content to the controller in real time and conveys the controller’s dosage adjustment instructions to chemical supply equipment, ensuring stable paper product quality.
    • Automobile Manufacturing Industry
      • In automobile assembly workshops with multiple distributed workstations, the module connects Controllogix systems with robotic arms, welding equipment and parts transportation devices that support Modbus TCP/IP. It achieves synchronous data transmission between the central control platform and each workstation, ensuring the coordination and accuracy of each assembly step in the production line.
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “ProSoft MVI56-MNETR Modbus TCP”

Your email address will not be published. Required fields are marked *

Shipping and Delivery
wd-ship-1
wd-ship-2

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Related products

ProSoft 6104-WA-PDPM Wireless PROFIBUS DP Gateway Master Module

Technical Specifications
  • Wireless Communication Parameters
    • It operates in the 2.4 GHz frequency band ranging from 2400 MHz to 2483.5 MHz and complies with the IEEE 802.11 b wireless standard.
    • The wireless data rate can reach up to 11 Mbps, with an output power of 32 mW (15 dBm) and a maximum open-air transmission distance of 400 meters.
    • It is equipped with two RP-SMA connectors that support antenna diversity, which enhances the stability of wireless signal reception and transmission.
  • PROFIBUS DP Related Parameters
    • It is equipped with an RS-485 PROFIBUS DP interface and supports PROFIBUS DP and DP-V1 protocols.
    • The communication baud rate of PROFIBUS DP ranges from 9.6 kbps to 12 Mbps, and it can support up to 125 PROFIBUS DP slave devices.
  • Power and Mechanical Parameters
    • It has a power supply requirement of 10 - 36 VDC, adapting to different industrial power supply environments.
    • It adopts a DIN rail mounting design with an IP20 protection rating, which fits the standard installation specifications of industrial control cabinets and prevents dust intrusion effectively.
Read more
Quick view

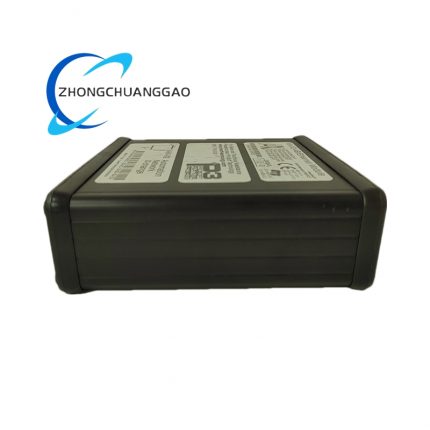

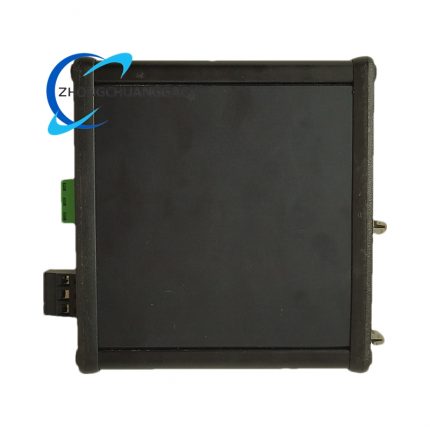

ProSoft AN-X2-AB-DHRIO EtherNet

  • Technical Specifications
    • Power Supply Parameters
      • The typical power consumption is 200mA at 12V DC or 100mA at 24V DC, with a maximum power consumption of 2.4W. It adapts to the common low - voltage DC power supply environment in industrial sites and has low overall energy consumption.
    • Communication Parameters
      • It is equipped with one RJ45 10/100 Mbps Ethernet port and one DH+/Remote I/O port. It supports DH+, Remote I/O and EtherNet/IP protocols and now supports DH+ migrations on SLC networks.
      • It supports all DH+ and Remote I/O baud rates, which are 57.6k baud, 115.2k baud and 230.4k baud, and Remote I/O addressing ranges from 0 to 76 octal.
    • Environmental and Physical Parameters
      • The operating temperature ranges from 0°C to 50°C, and the storage temperature ranges from -40°C to 85°C. It can withstand extreme temperature changes in both indoor and outdoor industrial environments.
      • The relative humidity tolerance is 5% to 95% non - condensing. Its dimensions are 107mm x 126mm x 34mm excluding connectors, and it weighs approximately 310 grams. It supports DIN rail mounting for convenient integration into industrial control cabinets.
Read more
Quick view

ProSoft MVI56-MDA4 MDA Scientific CM4 Gas Analyzer Master Module

Technical Specifications
  • Mechanical and Backplane Specifications
    • It is compatible with the 1756 backplane, adopts a single - slot design, and can be installed in both local and remote racks of ControlLogix chassis. It is recognized as a standard input and output module by the ControlLogix system and can access the processor memory smoothly.
  • Electrical Parameters
    • The input voltage ranges from 110V AC to 240V AC, and the operating frequency is 50Hz or 60Hz. The maximum power consumption does not exceed 5W, which shows low energy consumption and has little impact on the overall power load of the industrial control system.
  • Communication and Measurement Parameters
    • It supports Modbus RTU and Modbus ASCII communication protocols, is equipped with two RS - 232 communication ports for connecting to CM4 gas analyzers, and an RJ45 serial port for configuration operations.
    • The sampling rate can reach up to 10Hz. For common gases, the measurement range includes 0 - 25% volume for oxygen and 0 - 20000 ppm for carbon monoxide, with a measurement accuracy of ±0.5%.
Read more
Quick view

ProSoft MVI56-PDPS PROFIBUS DP Slave Communication Module for ControlLogix

Technical Specifications
  • Mechanical and Power Parameters
    • It adopts a single-slot design compatible with the ControlLogix 1756 backplane, supporting installation in both local and remote ControlLogix racks.
    • The power consumption parameters match ControlLogix chassis requirements: 5 VDC backplane current draw is 800 mA, and 24 VDC current draw is 3 mA, ensuring stable operation without overloading the chassis power supply.
  • PROFIBUS DP Communication Parameters
    • It complies with PROFIBUS DP V0 and V1 standards, supporting baud rates ranging from 9.6 kbps to 12 Mbps for flexible network configuration.
    • The module supports up to 244 bytes of input data and 244 bytes of output data for cyclic communication. For acyclic communication, it supports PROFIBUS DP V1 services, including parameterization, diagnosis and alarm handling.
    • It is equipped with a standard DB9 male PROFIBUS DP connector, compatible with standard PROFIBUS DP cables and connectors, and supports PROFIBUS DP slave addressing from 0 to 125.
Read more
Quick view

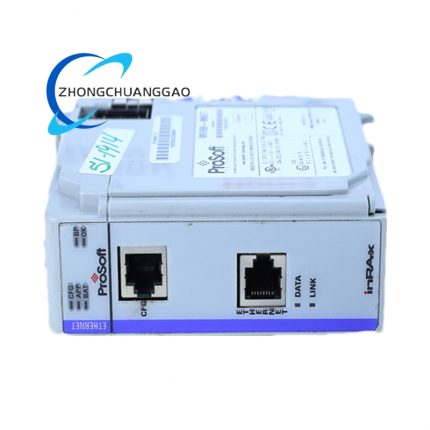

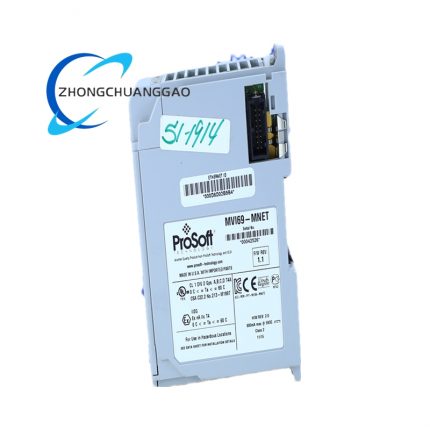

ProSoft MVI69-MNET Modbus TCP
