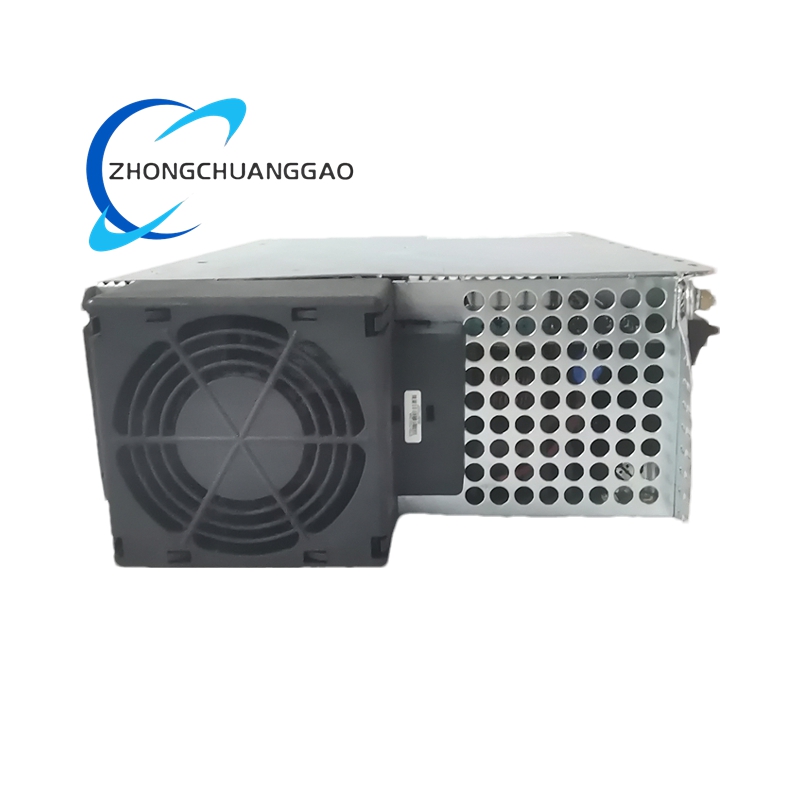

Kollmorgen S72402-NANANA High-Performance Servo Drive

Key Features

• High Precision Control:
  • Advanced motor control algorithms enable micron-level positioning accuracy and smooth motion.
  • Independent position, speed, and torque control loops support high-precision synchronous motion.
• Dynamic Performance:
  • Speed response frequency of 1 kHz (typical) ensures rapid acceleration/deceleration.
  • Short-term overload capacity handles dynamic load changes effectively.
• Robust Design:
  • Wide temperature range (0°C to 40°C) and humidity tolerance (≤85% RH) for stable operation in harsh conditions.
  • IEC 3M1 vibration rating and 65 dB(A) noise emission for reliable performance in noisy environments.
• Safety and Reliability:
  • Built-in STO (Safe Torque Off) function complies with IEC 61800-5-2 for emergency stops.
  • Optional SIL2/SIL3-certified safety function cards enhance operational safety.
• Easy Integration and Maintenance:
  • Plug-and-play commissioning with automatic motor parameter recognition.
  • Intuitive user interface and IEC 61131 macro programming language simplify setup and debugging.
  • Storage card slot for parameter backup and firmware upgrades.

Functionality

• Motor Control: Precisely regulates torque, velocity, and position for servo motors.
• Signal Conversion: Converts low-level feedback signals into digital data for the main controller.
• Real-Time Communication: Supports EtherCAT and CANopen for distributed control architectures.
• Protection Mechanisms: Includes overcurrent, overvoltage, and overtemperature protection to safeguard the drive and motor.
• Diagnostic Tools: Auto-fault diagnosis and remote monitoring reduce downtime and maintenance costs.

Application Scenarios

• Robotics: Controls joints and actuators in industrial and service robots for enhanced precision and flexibility.
• CNC Machinery: Powers high-dynamic-response control of feed axes and spindles in machining centers.
• Packaging Machinery: Synchronizes motion in labeling, filling, and conveying systems for high-speed packaging.
• Printing Machinery: Coordinates tension and speed in printing and labeling machines for consistent output.
• Semiconductor Manufacturing: Enables nanometer-level positioning in wafer handling and testing equipment.
• Medical Devices: Powers surgical robots and imaging systems for stable, precise motion.
• Aerospace: Controls flight simulators and satellite positioning systems with ultra-stable motion.
• Elevators and Lifts: Provides smooth motion and precise floor positioning in building applications.
