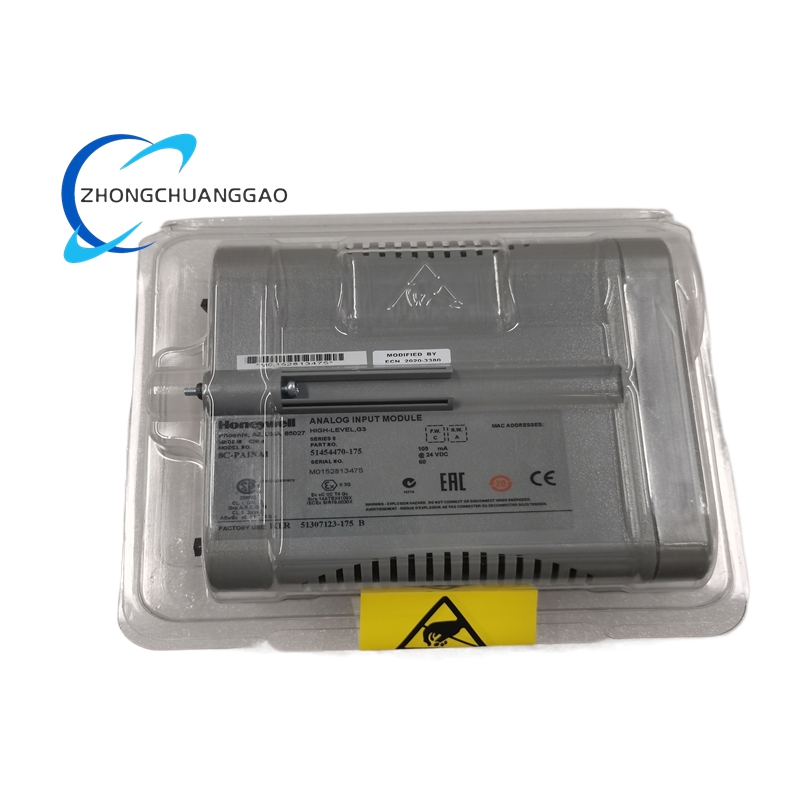

Honeywell 8C-PAINA1 Analog Input Module

Technical Specifications

• Input Channels: 16 single-ended analog input channels
• Signal Range: Supports 4-20 mA current signals, compatible with standard industrial instrumentation
• Resolution: 16-bit resolution for accurate signal representation
• Communication Protocol: HART protocol support for enhanced device diagnostics and configuration
• Response Time: Optimized for rapid data acquisition with minimal latency
• Accuracy: High precision with a specified accuracy of 0.1%
• Physical Dimensions: Compact form factor measuring 2 x 19 x 12.8 cm
• Weight: Lightweight design for easy installation and integration
• Operating Environment: Designed to operate reliably in harsh industrial environments with appropriate temperature and humidity controls

Functional Characteristics

• High Precision: Provides accurate analog-to-digital conversion, ensuring reliable data for process control decisions.
• HART Communication: Enables advanced diagnostics, configuration, and calibration of connected field devices directly through the module.
• Robust Design: Built to withstand industrial conditions, including vibration, temperature fluctuations, and electrical noise.
• Easy Integration: Seamlessly interfaces with Honeywell PKS and other compatible control systems, simplifying system upgrades and expansions.
• Modular Architecture: Supports hot-swapping and easy replacement, minimizing downtime during maintenance.

Application Scenarios

• Process Industries: Widely used in chemical, petrochemical, and refining industries for monitoring and controlling critical process parameters such as temperature, pressure, and flow.
• Power Generation: Essential for power plants, including fossil-fueled and renewable energy facilities, for real-time monitoring of generator performance and grid stability.
• Oil & Gas: Deployed in upstream, midstream, and downstream operations for remote monitoring and control of pipelines, wells, and processing units.
• Water Treatment: Utilized in municipal and industrial water treatment plants for monitoring water quality, flow rates, and chemical dosing.
• Pharmaceuticals: Supports stringent process control requirements in pharmaceutical manufacturing, ensuring product quality and compliance with regulatory standards.

Additional Features

• Global Support: Backed by Honeywell’s extensive global service network, providing technical assistance, spare parts availability, and maintenance services worldwide.
• Long Service Life: Designed for extended operation in demanding industrial environments with minimal maintenance requirements.
• Customization Options: Available with optional features such as enhanced signal filtering and additional communication interfaces to meet specific application needs.
