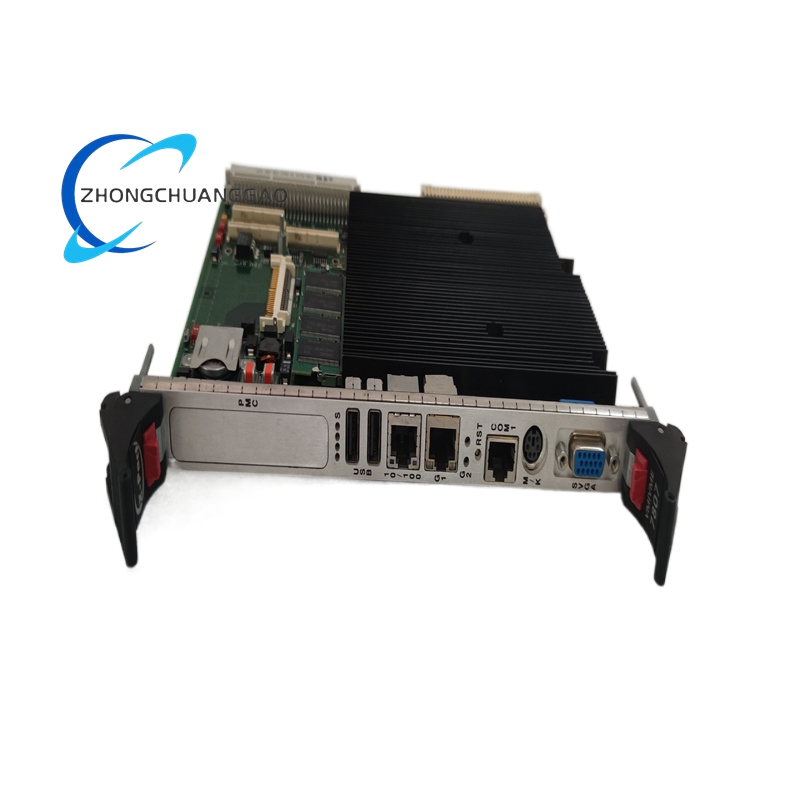

GE VMIVME-7807 High-Performance VME Single-Board Computer (SBC) - Image 1
GE VMIVME-7807 High-Performance VME Single-Board Computer (SBC) - Image 2
GE VMIVME-7807 High-Performance VME Single-Board Computer (SBC) - Image 3
Click to enlarge
GE VMIVME-7807 High-Performance VME Single-Board Computer (SBC)
GE VMIVME-7807 High-Performance VME Single-Board Computer (SBC) - Image 2
GE VMIVME-7807 High-Performance VME Single-Board Computer (SBC) - Image 3
GE VMIVME-7459 Multi-Function Mass Storage Module
GE VMIVME-7459 Multi-Function Mass Storage Module
Back to products
ABB 5SHY4045L0006 3BHB030310R0001 IGCT module
ABB 5SHY4045L0006 3BHB030310R0001 IGCT module

GE VMIVME-7807 High-Performance VME Single-Board Computer (SBC)

Product Overview
The GE VMIVME-7807 is a 6U VMEbus single-board computer designed for industrial automation, aerospace, military, and defense applications. It integrates an Intel Pentium M processor, up to 1.5 GB DDR SDRAM, and dual Gigabit Ethernet interfaces, delivering high-performance computing and reliable real-time data processing. Its compact design and rugged construction ensure stability in harsh environments.

Technical Specifications

  • Processor: Intel Pentium M (1.1 GHz, 1.6 GHz, or 1.8 GHz options) with 1 MB or 2 MB L2 cache
  • Memory: Up to 1.5 GB DDR SDRAM (1 GB standard, expandable via SODIMM slot)
Category:
Description
  • Storage: Optional 2 GB CompactFlash for bootable storage
  • Network: Dual Gigabit Ethernet (10/100/1000BaseT) with configurable front/rear panel routing
  • Interfaces:
    • VME64x bus (supports 64-bit addressing and 80 MB/s data transfer)
    • PCI-X 66 MHz PMC expansion slot
    • 4x USB 2.0 (2 front, 2 rear)
    • 4x asynchronous serial ports (RS-232/RS-422/RS-485)
    • SVGA (front panel) and DVI-D (rear) video outputs
    • PS/2 keyboard/mouse port
    • Serial ATA (SATA) support
  • Dimensions: 6U VME Eurocard form factor (185 mm x 122 mm)
  • Power: +5 VDC (typical <12 A at 1.1 GHz with 1 GB RAM)
  • Operating Temperature: 0°C to 60°C (450 LFM airflow required)

Functional Characteristics

  • High-Performance Computing: The Pentium M processor provides efficient processing for I/O-intensive tasks, with low power consumption (25 W max).
  • Dual Gigabit Ethernet: Enables isolated control and enterprise network traffic, supporting OPC-UA tag publishing or data streaming without congestion.
  • Flexible Storage: CompactFlash supports bootable operating systems (e.g., VxWorks, QNX, Linux, Windows Embedded) and secure data logging.
  • Redundancy Support: Software-selectable watchdog timer and NMI/SYSFAIL monitoring enhance system reliability.
  • Expansion Capabilities: PCI-X PMC slot allows customization with FPGA, MIL-1553, or FireWire modules.
  • Rugged Design: Withstands shock, vibration, and extended temperatures (-25°C to 80°C storage rating for military variants).

Application Scenarios

  • Industrial Automation: Modernizes legacy VME systems in turbine control, batch processing, and motion control without rewiring.
  • Aerospace: Used in flight control, navigation, and communication systems for commercial and military aircraft.
  • Military & Defense: Supports radar signal processing, image analysis, and command-and-control platforms in harsh environments.
  • Power Generation: Manages grid stability and monitoring in combined-cycle power plants, replacing aging Motorola MVME2600 boards.
  • Test & Measurement: Enables high-speed data acquisition in radar tracking trailers and laboratory equipment.

Key Advantages

  • Legacy Compatibility: Reuses existing VME chassis, saving costs on UL/TÜV recertification and reducing downtime.
  • Modern Connectivity: USB 2.0 and SATA interfaces simplify integration with contemporary peripherals.
  • Low Maintenance: Front-panel LEDs provide quick diagnostics, while remote firmware updates minimize service visits.
  • Scalability: Configurable memory and storage options adapt to diverse workload requirements.

The GE VMIVME-7807 bridges legacy VME infrastructure with modern computing, offering a cost-effective upgrade path for critical industrial and defense systems.
