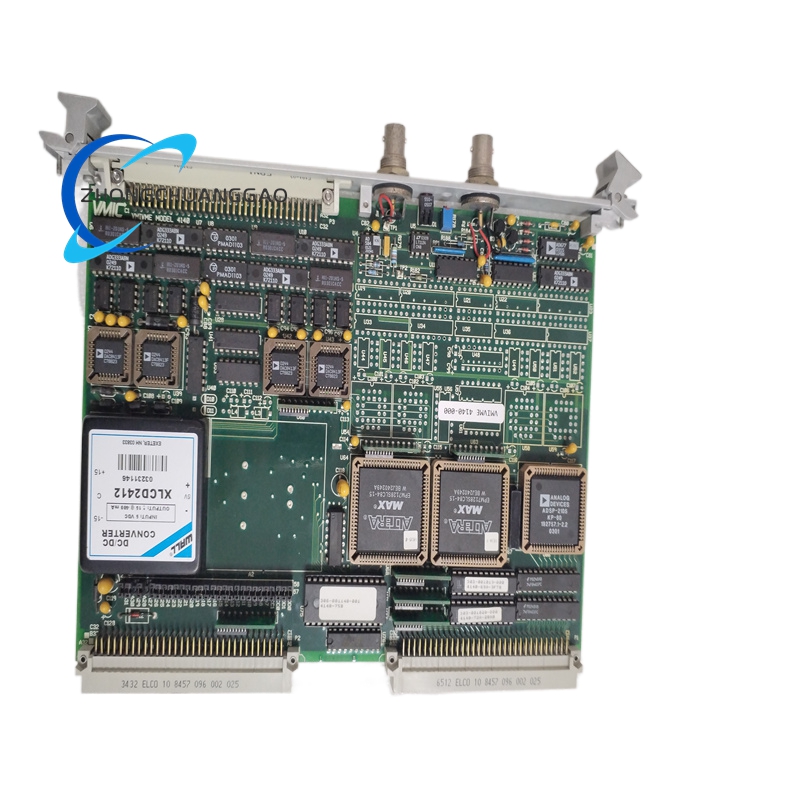

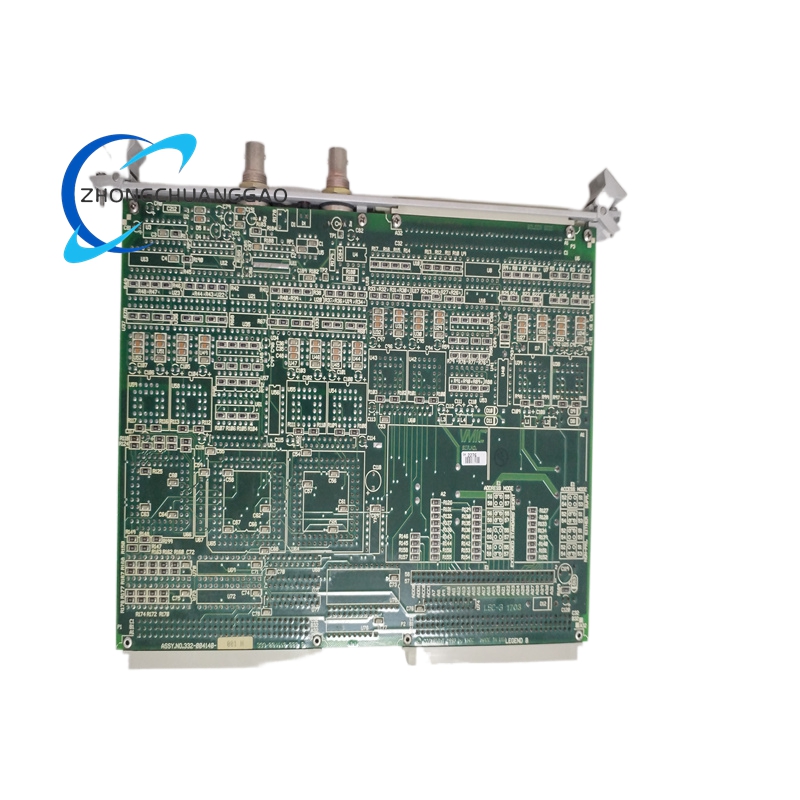

GE VMIVME-4140 High-Performance Analog Output Module

• Output Range:
  • Unipolar: 0 to +10 V, 0 to +5 V, 0 to +2.5 V
  • Bipolar: ±2.5 V, ±5 V, ±10 V
• Maximum Output Current: 10 mA per channel (source or sink)
• Output Impedance: 0.8 Ω
• D/A Converters: Dedicated 12-bit DAC per channel
• Update Mechanism: Random (non-scanning) or synchronous dual-buffered updates via software or external trigger
• Calibration: Automatic calibration via system reset or software command, with calibration tables stored in RAM
• Diagnostics: Comprehensive onboard diagnostic tests, including self-test and fault isolation
• Connectivity: Discrete line or bulk termination cables, front-panel analog output connectors, and reference voltage access
• Form Factor: 6U VMEbus single-slot Eurocard
• Power Supply: +5 V (logic), ±12 V/±15 V (analog) from VME backplane
• Operating Temperature: 0°C to +55°C (typical; forced air cooling recommended for dense racks)
• Weight: Approximately 0.6–0.8 kg

Functional Characteristics

• High Precision: Each channel features a dedicated 12-bit DAC, eliminating update skew and ensuring smooth valve positioning, tight PID loop control, and precise analog playback.
• Low Latency: Supports flexible addressing (A16/A24/A32 space) and low-latency VME transfers for tight integration with real-time processors.
• High Reliability: Robust buffering and reference stability ensure consistent output over temperature and time, minimizing recalibration needs and drift-related downtime.
• Easy Maintenance: Direct access to VME registers for diagnostics (readback setpoints, fault status flags), quick verification of front-panel wiring, and modular swapping during downtime.
• Dual-Buffered Outputs: All channels can be updated simultaneously via software or external trigger, making it ideal for phased or synchronous driving applications.
• Isolation: 1,000 V analog-to-digital ground isolation enhances system safety and reduces noise interference.

Application Scenarios

• Power Generation and Turbine Control: Used to output setpoints for fuel valves, inlet guide vanes, or exhaust controls in gas/steam turbines, handling rapid transients and continuous operation in high-vibration environments.
• Aerospace and Defense: Deployed in simulation and hardware-in-the-loop (HIL) test benches to drive hydraulic actuators, motor drives, or sensor simulations, ensuring true dynamic response under variable loads.
• Manufacturing Automation: Supports precise speed/torque reference or position command generation for drive systems and welders in electrically noisy environments, ensuring critical system uptime and process consistency.
• Data Acquisition Systems: Provides high-precision analog output for stimulus generation in ATE (Automatic Test Equipment) and other data acquisition applications.
• Process Control: Enables precise control of analog signals in chemical processing, oil and gas, and other industries where accurate process monitoring and control are essential.
• Robotics: Used for precise motion control in robotic systems, ensuring smooth and accurate movement of robotic arms and end-effectors.
