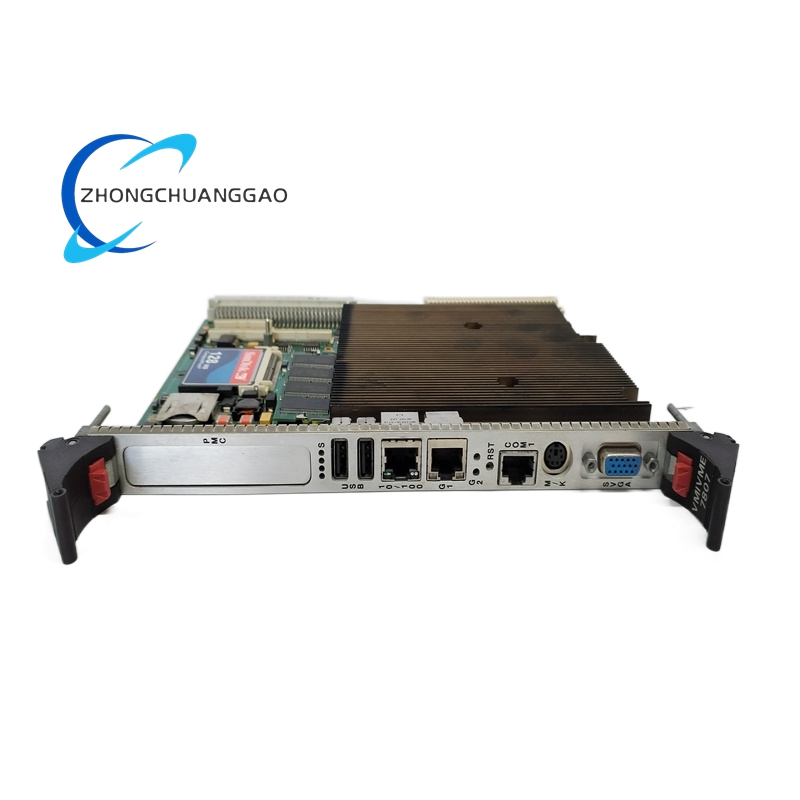

GE VME-7807RC VMEbus Single-Board Computer (SBC) - Image 1

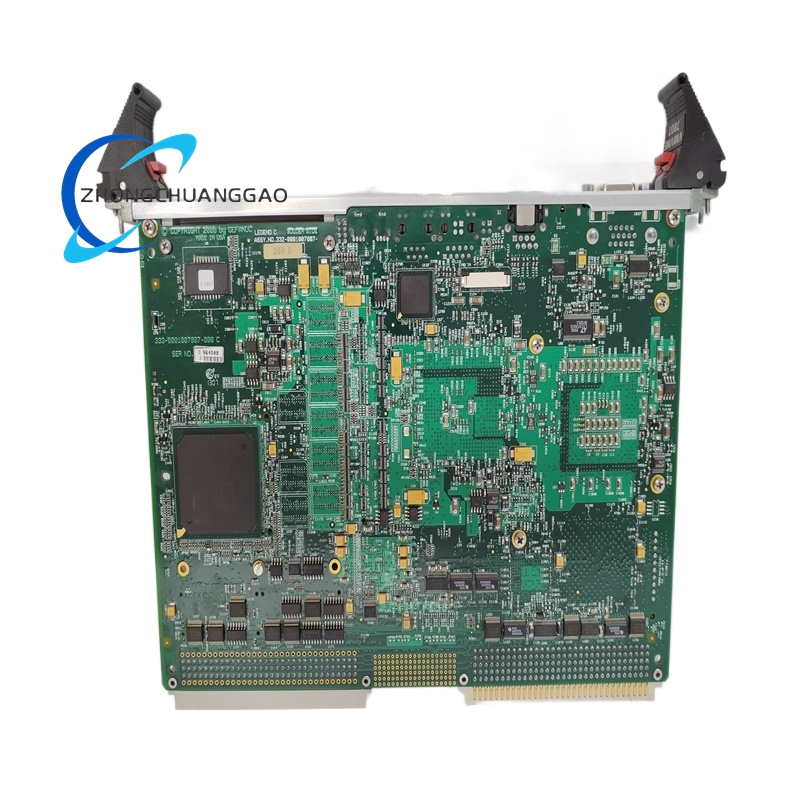

GE VME-7807RC VMEbus Single-Board Computer (SBC) - Image 2

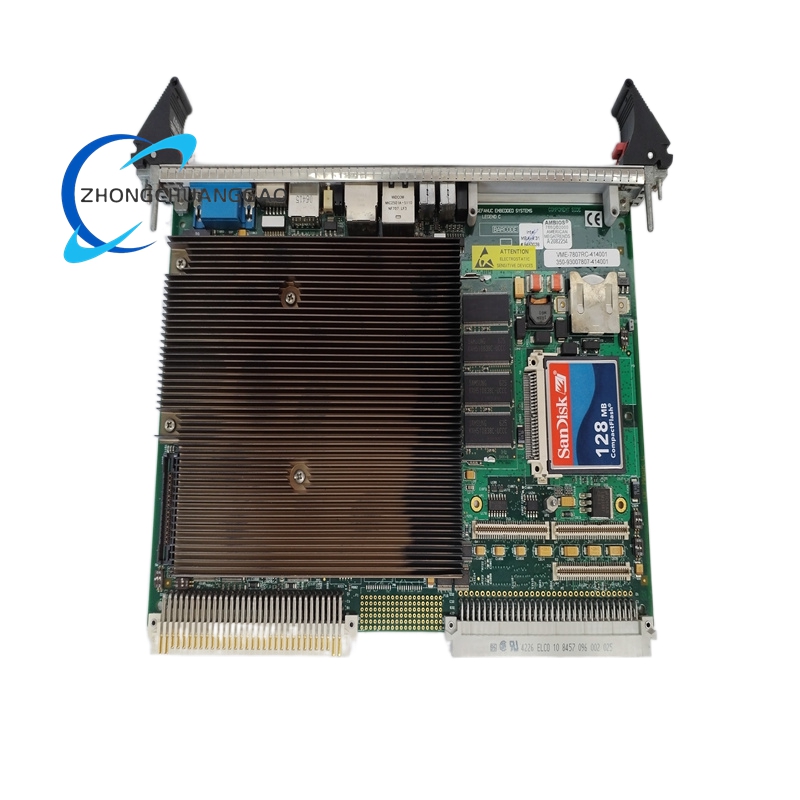

GE VME-7807RC VMEbus Single-Board Computer (SBC) - Image 3
Click to enlarge
GE VME-7807RC VMEbus Single-Board Computer (SBC)
GE VME-7807RC VMEbus Single-Board Computer (SBC) - Image 2
GE VME-7807RC VMEbus Single-Board Computer (SBC) - Image 3
GE V7768-320000 VME Single-Board Computer (SBC)
GE V7768-320000 VME Single-Board Computer (SBC)
Back to products
GE VMIACC-5595-208 Reflective Memory Switch
GE VMIACC-5595-208 Reflective Memory Switch

GE VME-7807RC VMEbus Single-Board Computer (SBC)

Product Introduction
The GE VME-7807RC is a high-performance, ruggedized VMEbus single-board computer designed for industrial automation, aerospace, defense, and embedded applications requiring high reliability and real-time processing. It integrates an Intel Pentium M processor with advanced I/O capabilities to deliver robust performance in harsh environments.

Technical Specifications

  • Processor:
    • Intel Pentium M, 1.1 GHz to 1.8 GHz (configurable)
    • 2 MB L2 cache (for 1.1 GHz model)
Category:
Description
  • Memory:
    • Up to 1.5 GB DDR SDRAM via SODIMM slot
    • Optional 512 MB soldered memory for redundancy
  • Storage:
    • CompactFlash slot (supports up to 2 GB, bootable)
    • Optional IDE drive support
  • Graphics:
    • Intel 855GME chipset with SVGA and DVI-I support for dual-head displays
  • I/O Interfaces:
    • Ethernet: Dual Gigabit Ethernet ports (front/rear configurable)
    • Serial: 4 RS-232 ports (1 front, 3 rear)
    • USB: 4 USB 2.0 ports (2 front, 2 rear)
    • Storage: SATA port (rear)
    • Human Interface: PS/2 keyboard/mouse port (front)
  • Expansion:
    • 1 PCI-X PMC site (66 MHz) for mezzanine card integration
  • Power:
    • 24 V AC/DC input
    • Typical power consumption: 25 W (max 35 W)
  • Environmental:
    • Operating temperature: 0°C to +55°C (standard) / -40°C to +70°C (extended)
    • Humidity: 5% to 95% (non-condensing)
    • Vibration: 5–2,000 Hz, 5 g peak acceleration
  • Form Factor:
    • VME 6U Eurocard (233.4 mm x 160 mm x 20.3 mm)

Functional Characteristics

  • High Performance:
    • Intel Pentium M processor enables efficient multitasking and real-time data processing.
  • Rich I/O Configuration:
    • Dual Gigabit Ethernet supports network redundancy; multiple serial/USB ports facilitate peripherals.
  • Graphics Capability:
    • Dual-head display support via SVGA and DVI-I enhances operator interfaces.
  • Expansion Flexibility:
    • PMC site allows customization with additional functionality (e.g., FPGA, DSP).
  • Rugged Design:
    • Wide temperature range and vibration resistance ensure reliability in harsh conditions.
  • Software Support:
    • Compatible with VxWorks, QNX, and Linux for rapid deployment in embedded systems.

Application Scenarios

  • Industrial Automation:
    • Controls manufacturing processes, robotic arms, and assembly lines with high precision.
  • Aerospace & Defense:
    • Powers avionics, navigation systems, and flight control in military/civilian aircraft.
  • Energy:
    • Monitors power generation and distribution systems in substations and renewable plants.
  • Transportation:
    • Manages traffic signal control, railway signaling, and autonomous vehicle systems.
  • Oil & Gas:
    • Operates in offshore platforms for SCADA, relay logic, and safety-critical applications.
  • Medical:
    • Supports imaging devices and patient monitoring systems with reliable real-time processing.
  • Scientific Research:
    • Enables data acquisition and control in laboratory equipment and experimental setups.

Additional Features

  • Remote Boot:
    • Supports PXE boot over Ethernet for headless operation.
  • Watchdog Timer:
    • Software-configurable timer with reset functionality enhances system reliability.
  • Non-Volatile RAM:
    • 32 KB NVRAM stores critical data during power failures.
  • Global Certifications:
    • Meets IEC 60255 and IEEE C37.90 standards for industrial deployment worldwide.
