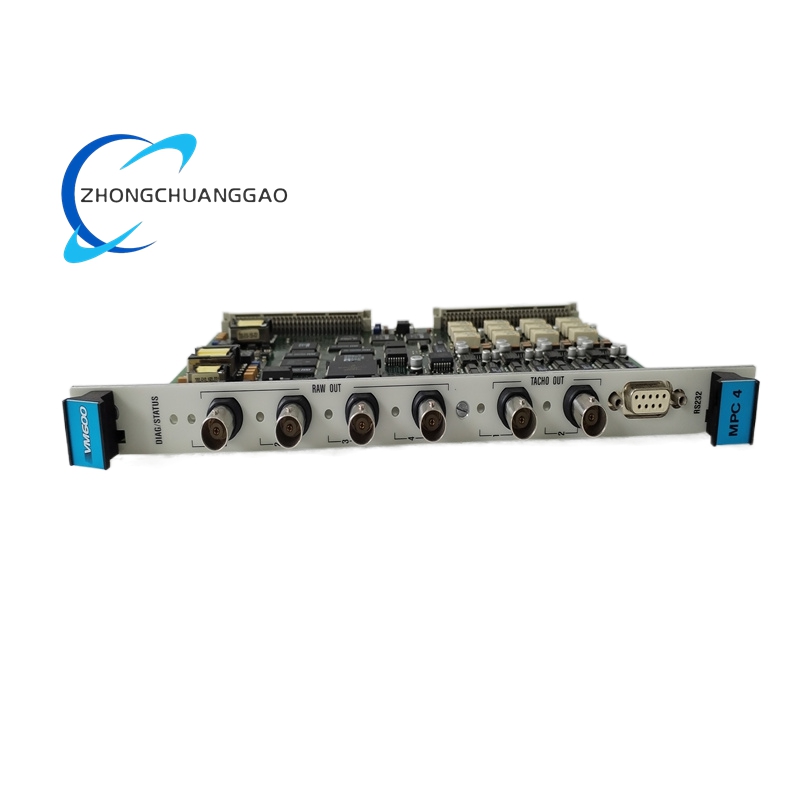

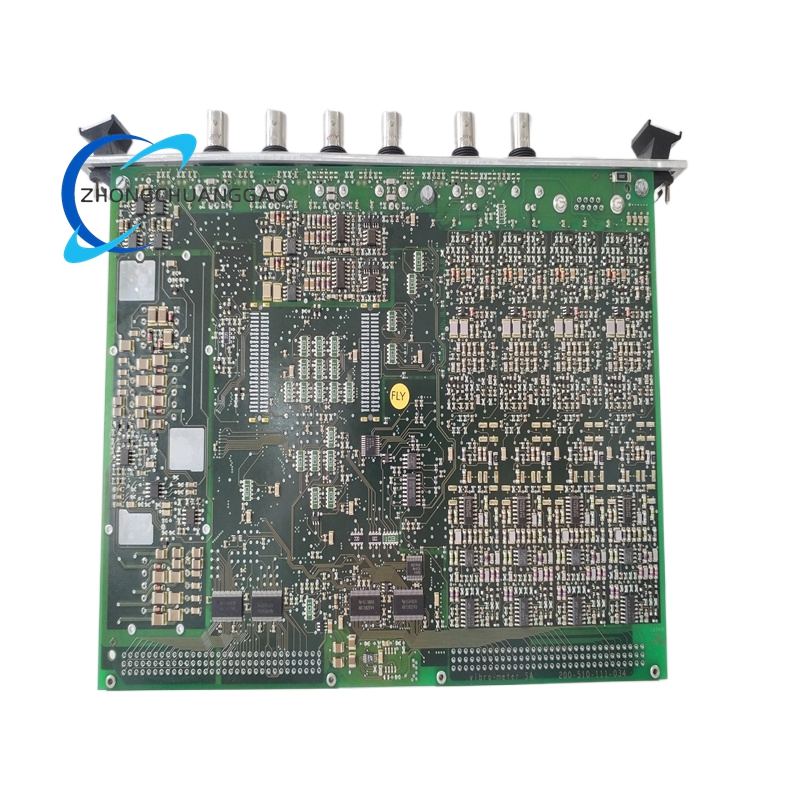

GE VM600 MPC4 Mechanical Protection and Monitoring Module

• Input Range:
  • DC: 0 to ±20V or 0 to ±10V.
  • AC: ±10V peak-to-peak.
• Frequency Range:
  • Vibration: 0.1 Hz to 10 kHz.
  • Gap/position: DC to 1 Hz.
• Accuracy:
  • Full-scale accuracy of ±1%.
  • Linear error < ±1%.
• Power Supply:
  • Dual DC inputs (12–48VDC) for redundancy.
• Environmental Conditions:
  • Operating temperature: -25°C to +55°C (non-condensing).
  • Humidity: 35–85% RH.
• Physical Dimensions:
  • Height: 6U (262 mm).
  • Width: 20 mm.
  • Depth: 187 mm.
  • Weight: Approximately 0.4 kg.

Functional Characteristics

• Multi-Sensor Support:
  • Compatible with acceleration, velocity, and displacement sensors for comprehensive vibration analysis.
• High-Precision Measurement:
  • Wide frequency range and high sampling rate ensure accurate detection of low- and high-frequency vibrations.
• Advanced Diagnostics:
  • Built-in algorithms for fault detection, including imbalance, misalignment, and bearing wear.
• Flexible Configuration:
  • Software-based channel programming supports all IEC 61131-3 languages for customization.
• Hot-Swappable Design:
  • Enables maintenance without system shutdown.
• Self-Diagnostics:
  • Continuous monitoring of hardware health with fault alerts.
• Redundancy:
  • Dual power inputs and optional redundant communication modules enhance reliability.
• Communication Protocols:
  • Supports Ethernet, RS-485, RS-422, and Modbus TCP/IP for seamless integration with SCADA systems.

Application Scenarios

• Power Generation:
  • Monitors turbines and generators to prevent catastrophic failures and ensure safe operation.
• Oil & Gas:
  • Real-time monitoring of pumps, compressors, and drilling equipment for early fault detection.
• Mechanical Manufacturing:
  • Optimizes production line efficiency by detecting vibrations in machinery and reducing downtime.
• Petrochemical Industry:
  • Safeguards critical equipment like high-speed centrifuges and mixers through continuous vibration analysis.
• Transportation:
  • Ensures reliability of drive systems in rail, marine, and automotive applications.
• Data Centers:
  • Protects backup power generators by monitoring vibration levels and preventing unexpected failures.

Additional Features

• Unified Development Environment:
  • Control Generator software simplifies configuration and programming across all channels.
• Global Compliance:
  • Meets international standards such as IEC 60255 and IEEE C37.90 for worldwide deployment.
• Scalability:
  • Supports integration with additional modules (e.g., IOC4T for I/O expansion) for expanded functionality.
• SIL Certification:
  • Available in Safety Integrity Level (SIL) 2-certified versions for critical applications.
