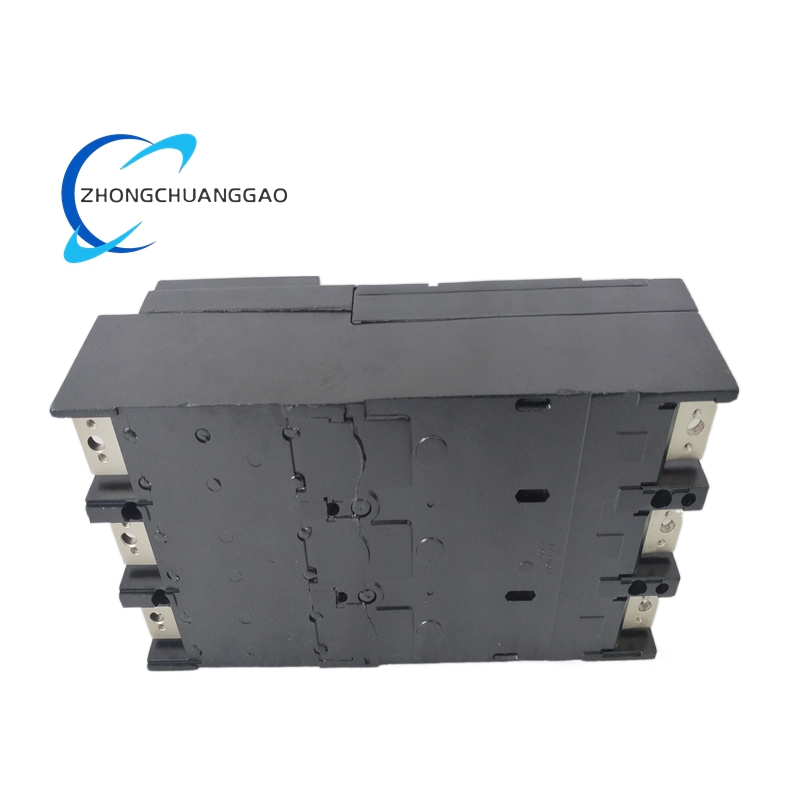

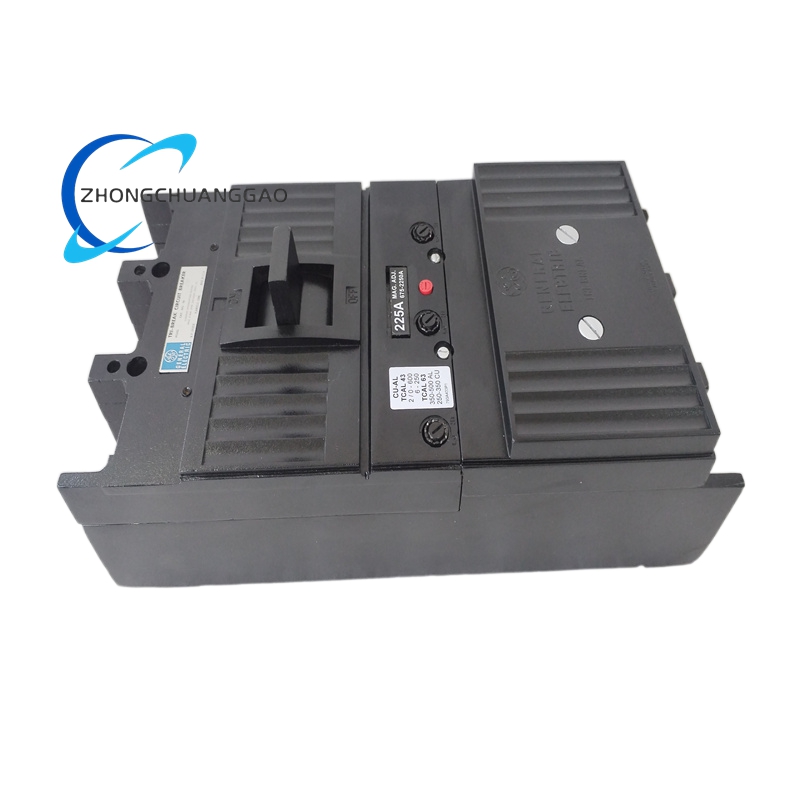

GE TB43225AF14 Circuit Breaker

Product Introduction

The GE TB43225AF14 is a three-pole molded case circuit breaker manufactured by General Electric (GE). It is designed to protect electrical systems from overload, short circuits, and other electrical faults. This circuit breaker is widely used in industrial, commercial, and residential power distribution systems due to its high reliability and robust performance.

Technical Specifications

  • Rated Current: 225 Amperes (A)
  • Number of Poles: Three-pole (3P)
  • Rated Voltage: 600 Volts Alternating Current (VAC)
Category:
Description
  • Short Circuit Breaking Capacity: High, capable of withstanding and interrupting high current short circuits
  • Overload Protection: Adjustable settings for precise protection against overcurrent conditions
  • Material Quality: Utilizes high-quality, heat-resistant, and corrosion-resistant materials for contacts and components
  • Compact Design: Space-saving design suitable for installation in confined spaces
  • Remote Operation Capability: Some versions support remote operation and monitoring via control systems

Functional Characteristics

  • High Breaking Capacity: The circuit breaker can quickly interrupt fault currents, preventing damage to equipment and reducing the risk of fire.
  • Reliable Overload Protection: Automatically monitors current levels and trips the circuit breaker if the current exceeds the preset threshold, protecting connected devices from overheating and damage.
  • Adjustable Settings: Provides flexibility in setting overload and short circuit protection parameters to meet specific application requirements.
  • Durable Construction: Built with high-quality materials to ensure long-term stability and reliability, even in harsh industrial environments.
  • Easy Maintenance: Modular design facilitates easy maintenance, replacement, and repair of components.
  • Environmental Adaptability: Suitable for various industrial and commercial environments, with the ability to cope with challenging working conditions.

Application Scenarios

  • Industrial Power Distribution Systems: Used in large factories and manufacturing facilities to protect critical electrical equipment, such as motors, transformers, and switchgear, from electrical faults.
  • Commercial Buildings: Installed in the power distribution systems of commercial buildings, such as office complexes, shopping malls, and hotels, to prevent electrical overloads and short circuits, ensuring a stable power supply.
  • Data Centers: Provides reliable power protection for servers and network equipment in data centers, ensuring continuous operation and preventing data loss due to electrical faults.
  • Oil and Gas Industry: Protects critical power systems in oil and gas facilities from the impact of faults, ensuring the safe and efficient operation of production processes.
  • High-Load Power Environments: Adapts to the power management and protection needs of various high-load and high-demand industrial and commercial applications, such as power plants and electrical transmission systems.
