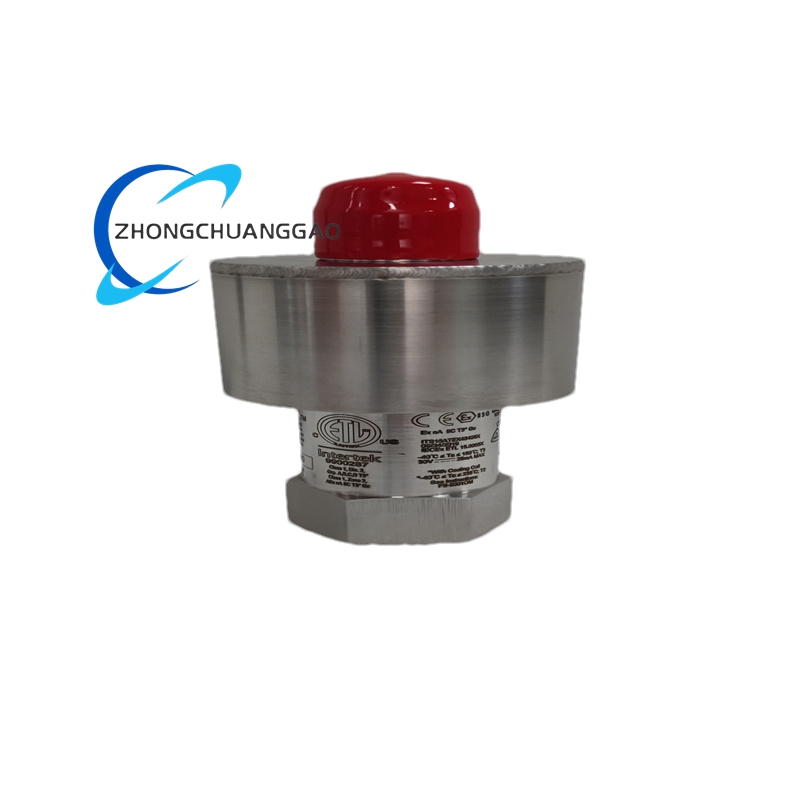

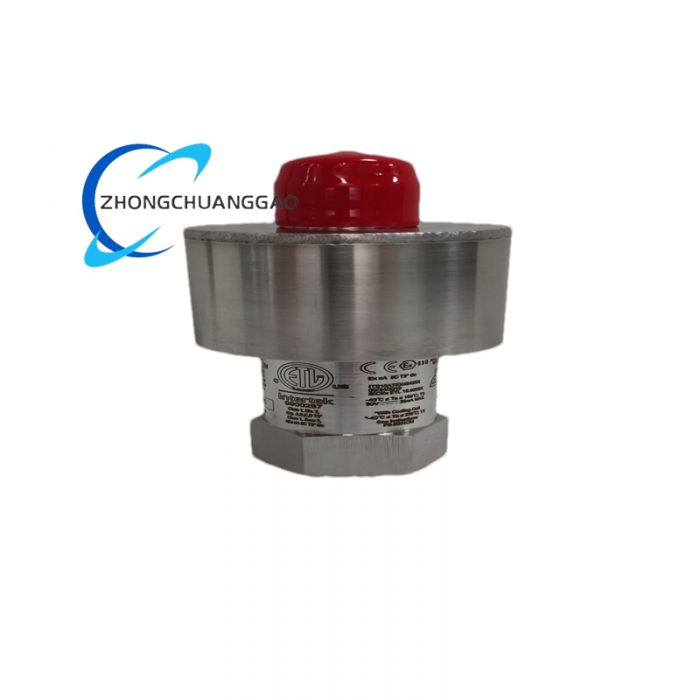

GE RS-FS-9001 362A1052P004 – Complete Technical Profile - Image 1
Click to enlarge
Extreme Networks A4H124-24FX P0973JN
Extreme Networks A4H124-24FX P0973JN
Back to products
HIMA F3DIO20/802–Digital Safety I/O Module
HIMA F3DIO20/802–Digital Safety I/O Module

GE RS-FS-9001 362A1052P004 – Complete Technical Profile

Technical Specifications:

  • Designed as part of the Mark VI or Mark Vie control system family, which are widely recognized for their application in gas and steam turbine controls.
  • Supports various input/output configurations tailored to handle signals from sensors, actuators, and other field devices integral to turbine operations.
  • Capable of operating within specific voltage ranges and environmental conditions suitable for industrial settings.
  • Equipped with robust communication capabilities that facilitate integration with broader plant networks and SCADA systems.
Category:
Description

Features:

  • Provides precise control over turbine parameters such as speed, load, and temperature, ensuring optimal performance and efficiency.
  • Incorporates advanced diagnostic and self-test functions to monitor the health of the turbine and predict maintenance needs, reducing downtime.
  • Offers high reliability through redundancy options, allowing continuous operation even in the event of component failure.
  • Features user-friendly interfaces and programming tools that simplify setup, configuration, and troubleshooting processes.
  • Compatible with a wide array of sensors and actuators, making it versatile across different turbine models and sizes.

Application Contexts:

  • Primarily utilized in power generation plants where gas turbines are employed for electricity production, helping to maintain stable grid supply.
  • Suitable for use in oil and gas applications, including offshore platforms and pipeline compression stations, where turbine-driven compressors are critical.
  • Employed in distributed energy resources (DER) setups, providing localized power generation and enhancing grid resilience.
  • Ideal for combined heat and power (CHP) systems, where efficient utilization of thermal energy alongside electricity generation is required.
  • Applied in marine propulsion systems, controlling gas turbines that drive large vessels, ensuring both performance and safety at sea.
