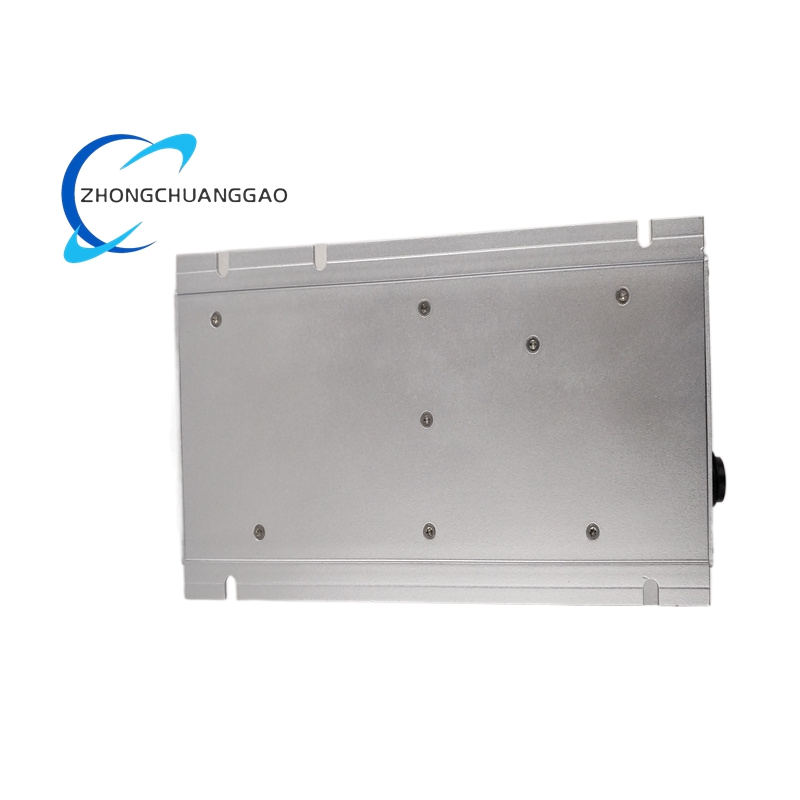

GE PCH1026

Product Overview

The GE PCH1026 is a highly configurable digital structural vibration monitor engineered for low‑frequency (0.05–1000 Hz) monitoring in wind turbines, developed in collaboration with global turbine manufacturers and protecting over 100,000 units worldwide. It integrates a 3‑axis internal accelerometer (X/Y/Z) and up to 4 external sensor inputs to capture acceleration, velocity, and displacement across critical turbine structuresPCH Engineering A/S. The unit uses advanced DSP with 50% overlap FFT, 127 zoom ranges, and programmable filters to isolate structural modes from operational noise, delivering precise RMS/Peak/Peak‑to‑Peak measurements.

Category: GE

Description

Technical Specifications

Parameter	Details
Model Number	PCH1026 (GE Renewables, PN: CHF861040, CHF1126)
Manufacturer	GE (PCH Engineering A/S, a GE Renewable Energy company)
Product Type	Digital Structural Vibration Monitor
Sensing System	Built‑in 3‑axis accelerometer (A/B/C or X/Y/Z); up to 4 external accelerometers
Dynamic Range	±6 g peak (internal); ±10 g peak (external, optional)
Frequency Range	0.05–200 Hz (standard); 0.05–1000 Hz (extended)
Measurement Parameters	Acceleration (m/s², g, mg, μg); Velocity (mm/s); Displacement (μm, mm, mils)
Signal Processing	50% overlap FFT; 127 zoom frequency ranges; 0–2000 average spectrums
Alarm Relays	4 independent relays (Alert/Danger); Latch/non‑latch; 0–60 s delay; 250 VAC/5 A
Analog Outputs	4 isolated 4–20 mA outputs (16‑bit resolution); 0–20 mA/0–10 V selectable
Communication	RS‑485 (Modbus RTU); CANbus/CANopen; Profinet/ProfiSAFE; Ethernet/IP; USB (configuration)
Power Supply	24 VDC (20–30 VDC); 10 W max power consumption
Operating Temperature	-40°C to +70°C
Storage Temperature	-50°C to +85°C
Protection Class	IP54 (sealed enclosure); IK08 impact resistance
Safety Compliance	SIL 2 (IEC 61508); PL‑d (ISO 13849); GL 2010 (wind turbine certification)
Dimensions	210 × 150 × 80 mm (H × W × D)
Weight	1.8 kg
Self‑Test Functions	Internal accelerometer excitation; relay output verification; system fault diagnostics
Event Logging	100+ event buffer (timestamped alarms, faults, configuration changes)
Electrical Isolation	2.5 kV rms (input/output/communication to power)

Function Features

Tri‑Axis Structural Monitoring: Built‑in 3‑axis accelerometer covers tower, nacelle, and blade root; supports 4 external sensors for extended coveragePCH Engineering A/S.
Advanced Signal Processing: 50% overlap FFT and zoom ranges isolate structural modes (0.05–200 Hz) from drivetrain vibration; programmable high/low‑pass filters eliminate noise.
Programmable Alarms: 4 relays with independent Alert/Danger thresholds, latch settings, and delay times; direct integration into turbine safety chains (SIL 2/PL‑d)PCH Engineering A/S.
Isolated Analog Outputs: 4×4–20 mA channels (16‑bit) for vibration amplitude, trend data, or FFT peak values; galvanic isolation prevents ground loopsPCH Engineering A/S.
Multi‑Protocol Communication: Modbus RTU, CANopen, Profinet, and Ethernet/IP for SCADA integration; remote configuration via PCH Vibration Studio softwarePCH Engineering A/S.
Comprehensive Self‑Test: Internal accelerometer excitation, relay contact verification, and system fault monitoring; reports via fault relay and serial port.
Wide Environmental Tolerance: -40°C to +70°C operation, IP54 sealing, and 2.5 kV surge protection for onshore/offshore reliabilityPCH Engineering A/S.
Non‑Volatile Configuration: All settings retained without battery backup; 100+ event log with timestamping for post‑fault analysis.
Safety Chain Integration: GL 2010 certified for wind turbine safety loops; redundant fault paths prevent false tripsPCH Engineering A/S.
Easy Commissioning: USB port for local setup; PCH Vibration Studio provides spectrum analysis, trend plotting, and alarm tuning.

Application Scenarios

Wind Turbine Structural Protection: Tower fore‑aft/side‑side vibration; nacelle yaw bearing monitoring; blade root fatigue detection; drivetrain foundation vibration (onshore/offshore turbines 1.5–8 MW)PCH Engineering A/S.
Safety Chain Integration: Triggers turbine shutdown on excessive vibration (e.g., tower resonance, blade imbalance); SIL 2 compliance meets IEC 61508 for critical safety functionsPCH Engineering A/S.
Predictive Maintenance: Tracks vibration trends to schedule tower bolt retorquing, blade repair, or bearing replacement; reduces unplanned downtime by 30–40%.
Offshore Wind Farms: IP54 enclosure and corrosion‑resistant materials withstand salt spray, humidity, and extreme temperature cycles; remote monitoring cuts service costsPCH Engineering A/S.
Retrofit Projects: Direct replacement for legacy mechanical vibration switches; preserves existing safety chains while adding digital monitoring and SCADA connectivity.
Industrial Structural Monitoring: Extends to bridges, cranes, and power plant structures; low‑frequency capability (0.05 Hz) captures slow structural dynamicsPCH Engineering A/S.
Research & Development: Validates turbine design via FFT analysis of modal frequencies; correlates vibration data with wind speed, load, and operational parameters.

Compatibility and Integration

Turbine Compatibility: GE 1.5sle, 2.5xl, 3.6sle, 4.8–8 MW offshore series; Vestas, Siemens Gamesa, and Nordex (via custom BSPs).
Safety Systems: Interfaces with turbine controllers (GE Mark VIe, Siemens T3000) via safety relay outputs; SIL 2/PL‑d compliant for safety chain integrationPCH Engineering A/S.
Communication Protocols: Modbus RTU (RS‑485, 9.6–115.2 kbps); CANopen (DS 301/302); Profinet IO (IRT); Ethernet/IP; USB 2.0 (configuration)PCH Engineering A/S.
Sensor Compatibility: Supports IEPE accelerometers (10–30 V excitation); proximity probes for displacement (optional); 2.5 kV isolation from turbine power systems.
Software Tools: PCH Vibration Studio (configuration, FFT analysis, trend plotting); GE Digital APM for cloud‑based data aggregation and predictive analytics.
Mounting: DIN rail or panel mount; includes vibration‑isolating bushings to prevent measurement contamination from local vibration.
Standards Compliance: IEC 61010‑1 (electrical safety); IEC 60068‑2‑6 (vibration); IEC 60068‑2‑30 (humidity); GL 2010 (wind turbine certification)PCH Engineering A/S.
