GE MMII-PD-1-2-120

  • Dimensions: Approximately 7.4″ x 5″ x 4.4″ (LxWxH).
  • Weight: 3 lbs (1.36 kg).
  • Operating Temperature Range: 0 °C to 60 °C.
  • Analog Input Range: 4 – 20 mA.
  • Accuracy: ± 2 percentage points.
  • Communication Protocol: RS485 Modbus Plus.
  • Communication Baud Rate: 1200 – 19,200 bps.
  • Software: Enervista MMII.
Category:
Description
Functional Features
  • Motor Control and Protection: Protects against overloads, unbalanced phasing, contactor failures, and rotor lock or stall conditions. It also has an under – voltage auto – restart function, which automatically restarts the motor when the voltage drops below the nominal level.
  • Thermal Monitoring: Equipped with a hot – winding thermistor circuit for overheating prevention.
  • Data Monitoring and Recording: Can record trips and pre – trip values for comparison, ensuring precise monitoring and predictive maintenance. It can display phase and ground current, thermal capacity, and energy levels via an LCD or through the Enervista MMII software.
  • Versatile Inputs and Outputs: Features six fixed and ten programmable inputs, along with two contactors and two programmable outputs, providing versatile operation and customization options for motor management.

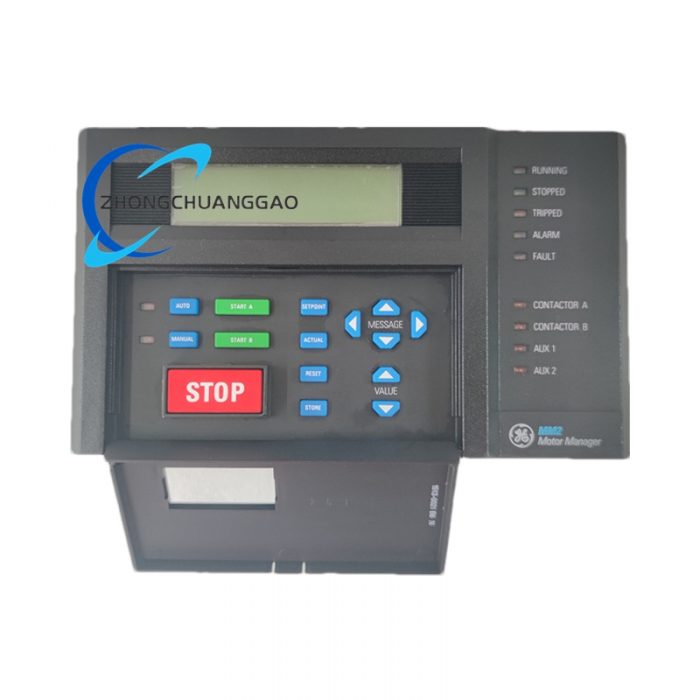

  • User – friendly Interface: Has a full – faceplate high – resolution liquid – crystal display for intuitive user interaction. The front panel also includes nine LED indicators (running, stopped, tripped, alarm, fault, contactor A and B, aux 1 and 2) and input keys.
Application Scenarios
The MMII – PD – 1 – 2 – 120 is suitable for various industrial applications where single – phase motor control and protection are required, such as in manufacturing plants, processing facilities, and other industrial environments where motor safety, reliability, and optimal performance are crucial.
