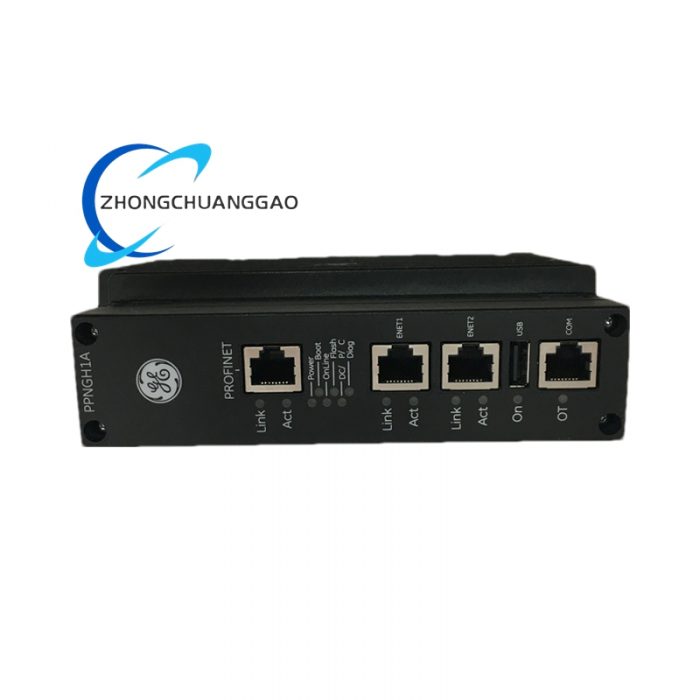

GE IS420PPNGH1A - Image 1

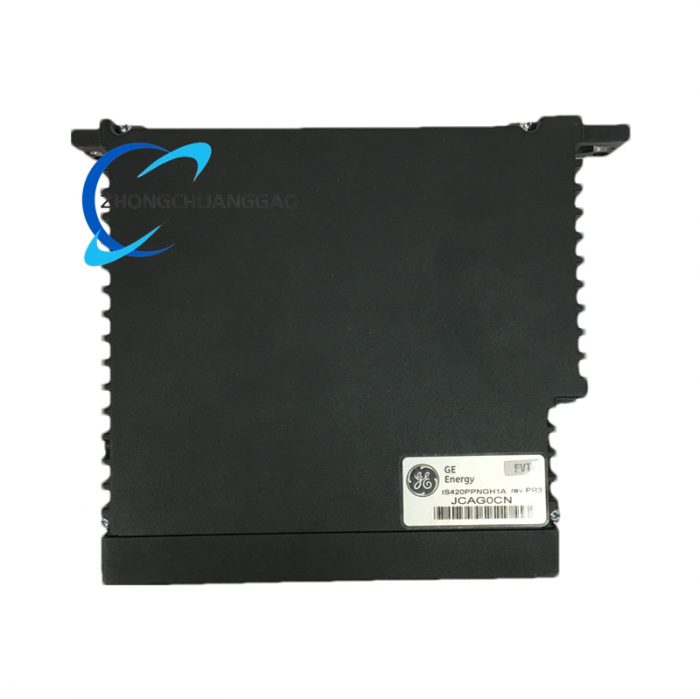

GE IS420PPNGH1A - Image 2
Click to enlarge
GE IS420PPNGH1A
GE IS420PPNGH1A - Image 2
GE IS420UCSCH1A-F-V0.1-A
GE IS420UCSCH1A-F-V0.1-A
Back to products
GE IS200JPDMG1ACC S1AT005-09
GE IS200JPDMG1ACC S1AT005-09

GE IS420PPNGH1A

Technical Specifications

  • Processor: 1066 MHz EP80579 Intel processor
  • Operating System: QNX Neutrino
  • Memory: 256 DDR2 SDRAM
  • Weight: 2.4 lbs
  • Operating Temperature: 22°F to 149°F ( – 5.56°C to 65°C)
  • Power Supply: 24 VDC
  • Maximum Profinet Data Rate: 6 kb per ms
  • Dimensions: 13.0 x 4.0 inches (approx.)
Category:
Description

Functional Features

  • Gateway Function
    • High – Speed Communication: Connects Mark VIe controllers to a Profinet LAN, enabling rapid data exchange between the controller and Profinet I/O devices.
  • Turbine Protection Function
    • Parameter Monitoring: Monitors key parameters such as turbine speed and vibration to prevent the equipment from over – speeding or getting out of control.
    • Emergency Trip System (ETS): Supports the ETS function, which can quickly respond to abnormal situations and implement emergency stops.
  • Reliability and Redundancy
    • SIL3 Compliance: Meets the SIL3 (Safety Integrity Level 3) standard, ensuring safety in critical applications.
    • Redundancy Configuration: Supports dual – channel or triple – redundant configurations to enhance system reliability.
  • Compatibility
    • System Compatibility: Is compatible with the Mark VIeS system and can be integrated into the existing control architecture. It also supports industrial communication protocols such as Profinet and Modbus TCP/IP.
  • Diagnostic Function
    • Advanced Diagnosis: Adopts advanced diagnostic functions that can detect sensor failures, data anomalies, and other problems, improving maintenance efficiency.
  • Installation Feature
    • Single – Module Design: It is a single – module, air – cooled component that needs to be vertically panel – mounted. It has no installed battery or fan and should be installed in a place where the fan is not blocked and the air flow is not obstructed.

Application Scenarios

  • Gas Turbine Systems
  • Hydro Turbine Systems
  • Steam Turbine Systems
