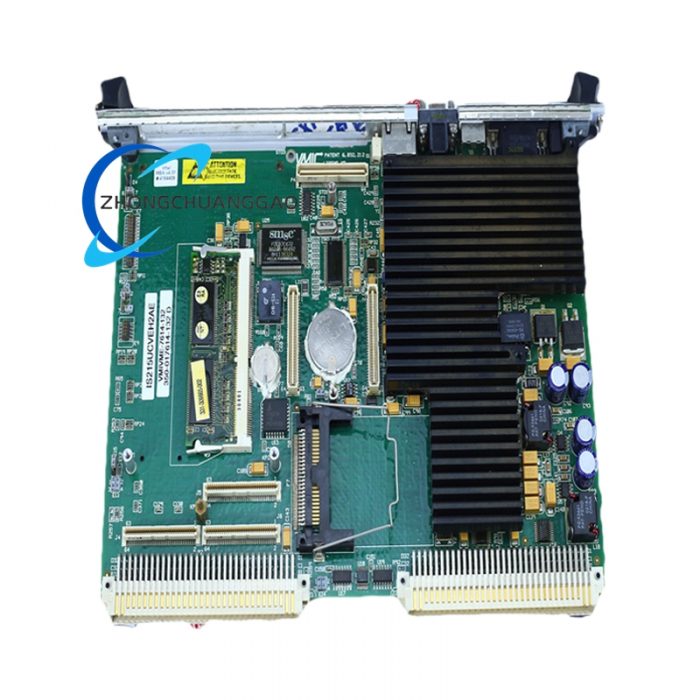

GE IS215UCVEH2AE

Technical Specifications

• Hardware Architecture:
  • Processor: 300 MHz Intel Celeron CPU with μs-level processing for complex control algorithms (e.g., PID, sequence logic) .
  • Memory:
    • 32 MB DRAM: Volatile memory for runtime data processing .
    • 16 MB CompactFlash: Non-volatile storage for firmware and configuration files .
  • Power Supply:
    • +5 V DC: 6 A typical, 8 A maximum .
    • +12 V DC: 180 mA typical, 250 mA maximum .
  • Physical Dimensions:
    • Form Factor: Single-slot VME card (100 mm × 70 mm × 30 mm) .
    • Weight: 0.9 kg (2 lb), designed for 19-inch rack-mount installation .
  • Environmental Ratings:
    • Operating Temperature: -30°C to +65°C (-22°F to +149°F) with 5–95% non-condensing humidity .
    • Vibration Resistance: Compliant with IEC 60068-2-6 (5–500 Hz, 0.5 g) for industrial environments .
    • Certifications: CE, UL 61010-1, and ISA-S71.04 Class G3 (harsh industrial conditions) .
• Networking & Interfaces:
  • Ethernet: 1 × 10/100BASE-TX (RJ-45) supporting Ethernet Global Data (EGD) protocol for high-speed data exchange with supervisory systems .
  • Serial Ports: 3 × RS-232C (COM1, COM2, and a 9-pin D-type connector) for legacy device integration (e.g., HMIs, PLCs) .
  • VMEbus: 32-bit/33 MHz interface for connecting to I/O modules (e.g., IS215UDCXX, IS215UCCXX) .
  • Expansion: Supports VMEbus-based mezzanine cards for additional functionality (e.g., Profibus-DP masters) .

Functional Features

1. Real-Time Control:
   • Deterministic Processing: Executes control loops at sub-millisecond intervals, ensuring stability in turbine speed regulation and load balancing .
   • Safety Logic: Integrates with TMR (Triple Modular Redundancy) systems for critical applications, providing fault detection and automatic failover .
   • Alarm Management: Configurable setpoints for vibration, temperature, and pressure with priority-based annunciations .
2. Communication Capabilities:
   • Protocol Support:
     • Profibus-DP: Connects to distributed I/O and field devices (e.g., valve positioners, sensors) .
     • OPC UA: Enables secure data exchange with enterprise-level SCADA systems .
   • Synchronization: Optional GPS clock synchronization for event logging accuracy across distributed systems .
3. Redundancy & Reliability:
   • Dual Power Inputs: Supports redundant 24 VDC supplies to prevent downtime .
   • Hot-Swap Capability: VMEbus modules can be replaced without powering down the system .
   • Self-Diagnostics: Continuous monitoring of CPU, memory, and communication links with LED status indicators .
4. Software Compatibility:
   • Configuration Tools:
     • GE Cimplicity HMI: Graphical interface for parameter tuning and visualization .
     • Mark VI Workbench: Programming environment for ladder logic and function block diagrams (IEC 61131-3 compliant) .
   • Operating System: QNX Neutrino RTOS for real-time multitasking .

Application Scenarios

1. Power Generation:
   • Gas Turbines:
     • Manages combustion dynamics and fuel injection to optimize efficiency in combined-cycle power plants .
     • Example: In a 7FA gas turbine, the controller adjusts guide vane angles to maintain 3,600 RPM during grid synchronization .
   • Steam Turbines:
     • Regulates steam flow to match electrical load demands in thermal power plants .
     • Example: In a nuclear power plant, it ensures safe shutdown during turbine overspeed events .
2. Oil & Gas:
   • Compressor Stations:
     • Controls centrifugal compressors in natural gas pipelines to maintain pressure stability .
     • Example: Monitors vibration sensors and adjusts anti-surge valves to prevent compressor stall .
   • Offshore Platforms:
     • Manages turbine-driven pumps for seawater injection and crude oil extraction .
3. Industrial Manufacturing:
   • Pulp & Paper:
     • Synchronizes steam turbines with gearboxes to drive paper machines at consistent speeds .
   • Metallurgy:
     • Controls blast furnace gas turbines for energy recovery in steel mills .

Typical System Integration

• VMEbus Rack:
  • IS215UCVEH2AE (CPU) + IS215UDCXX (Digital I/O) + IS215UCCXX (Communication) modules .
• Redundancy:
  • Dual Controllers: Two IS215UCVEH2AE cards operating in parallel with automatic switchover (<50 ms) .
  • RPS (Redundant Power Supply): Provides backup power for the entire rack .
• Human-Machine Interface (HMI):
  • GE Proficy Historian: Stores turbine performance data for predictive maintenance analytics .

Safety & Compliance

• Cybersecurity: Role-based access control (RBAC) and encrypted OPC UA communication prevent unauthorized configuration changes .
• Environmental Sustainability: RoHS-compliant lead-free design reduces ecological impact .
• Fail-Safe Design:
  • Hardwired Trip Circuits: Directly triggers emergency shutdowns (ESD) via discrete outputs .
  • Diagnostic Coverage: >99% self-test coverage for critical components (e.g., CPU, memory) .
