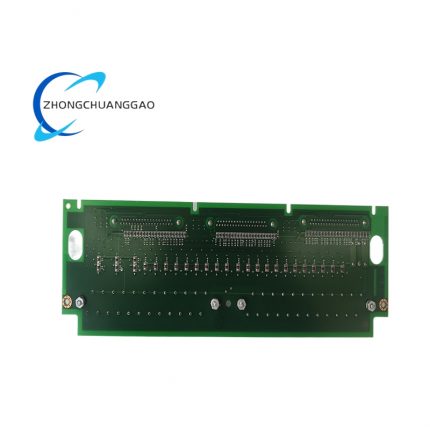

GE IS200TBCIH2BCE
GE IS200TBCIH2BCE
Back to products
GE IS200TSVOH2B Servo Valve Interface Terminal Board (Mark VIe Series)
GE IS200TSVOH2B Servo Valve Interface Terminal Board (Mark VIe Series)

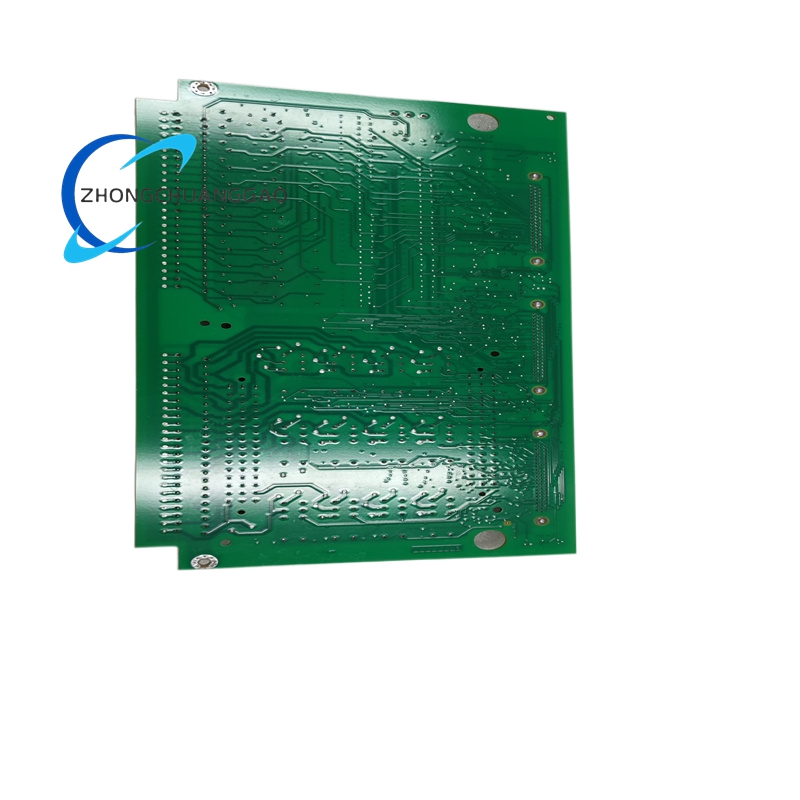

GE IS200TDBTH6ACD Discrete Simplex I/O Board (Mark VIe Series)

Product Overview

The IS200TDBTH6ACD is a discrete simplex I/O board designed by General Electric for the Mark VIe Speedtronic turbine control system. It serves as a key interface for processing discrete input and output signals in industrial control environments, supporting 24 VDC operation to ensure compatibility with standard field devices. The board offers reliable signal handling for discrete signals like alarms, limit switches, and interlocks, and integrates seamlessly with Mark VIe controllers to enhance monitoring and control capabilities in demanding industrial settings. Its simplex configuration is optimized for cost-effective, non-redundant applications where continuous operation is maintained through robust design and quality components.
Category:
Description

Technical Specifications

Parameter Details
Model Number IS200TDBTH6ACD
Manufacturer General Electric (GE)
Module Type Discrete Simplex I/O Board
Signal Type Discrete inputs and outputs (dry contacts)
Number of Channels 16 discrete input channels; 8 discrete output channels
Power Supply 24 VDC (nominal)
Isolation Channel-to-channel isolation (500 VAC, 1 minute)
Output Current Rating 2 A per channel (max)
Operating Temperature -20°C to +55°C
Storage Temperature -40°C to +85°C
Dimensions (L×W×H) 25.4 cm × 12.7 cm × 5.1 cm
Weight 0.45 kg
Mounting Rack-mountable (compatible with Mark VIe chassis)
Compliance IEC 61010, CE, UL 508

Function Features

  • Simplex Configuration: Provides a cost-effective solution for non-redundant control applications, balancing performance and affordability.
  • 16 Discrete Inputs: Supports connection to 16 dry contact inputs, enabling monitoring of field devices such as limit switches, pushbuttons, and safety interlocks.
  • 8 Discrete Outputs: Delivers 8 dry contact outputs for controlling actuators, relays, and alarm systems, with 2 A current rating per channel for versatile device compatibility.
  • Channel-to-Channel Isolation: 500 VAC isolation prevents signal interference and ground loops, ensuring signal integrity in noisy industrial environments.
  • 24 VDC Operation: Operates on standard 24 VDC power supply, aligning with common industrial power systems for easy integration.
  • Mark VIe Compatibility: Seamlessly integrates with Mark VIe controllers and I/O packs, supporting ToolboxST software for configuration and diagnostics.
  • Robust Construction: High-quality materials and manufacturing processes ensure durability, with resistance to vibration, temperature extremes, and electromagnetic interference.
  • Easy Maintenance: Modular design allows for quick replacement and troubleshooting, minimizing downtime during repairs or upgrades.

Application Scenarios

  • Turbine Control Systems: Used in Mark VIe-based gas and steam turbine control systems to monitor and control discrete signals, such as valve positions, start/stop commands, and safety interlocks.
  • Power Generation: Ideal for fossil fuel, nuclear, and renewable energy power plants, where reliable discrete signal processing is critical for operational efficiency and safety.
  • Oil and Gas: Suitable for upstream, midstream, and downstream applications, including wellhead monitoring, pipeline control, and refinery process automation.
  • Manufacturing: Supports discrete control in automotive, chemical, and pharmaceutical industries, enabling automation of assembly lines, material handling, and quality control processes.
  • Marine and Offshore: Used in marine turbine and propulsion systems, where compact design and robust performance are essential for reliable operation at sea.

Compatibility and Integration

  • Mark VIe Systems: Fully compatible with GE Mark VIe controllers, I/O packs, and communication modules, supporting seamless data exchange and system integration.
  • Software Support: Configurable via GE ToolboxST software, which provides tools for programming, diagnostics, and maintenance.
  • Replacement: Direct replacement for IS200TDBTH6A modules, with enhanced isolation and channel density for improved performance.
  • Documentation: Refer to GEH-6721 (Mark VIe System Manual) for detailed installation, wiring, and configuration guidelines.
