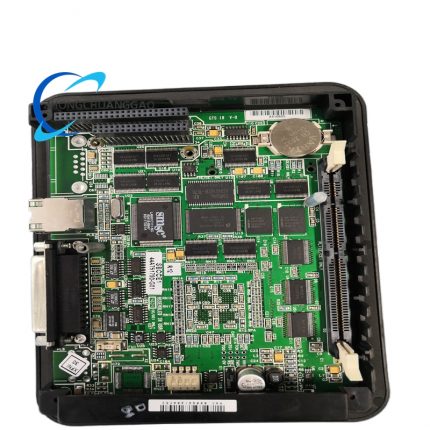

GE IC754VSI06STD-LH
GE IC754VSI06STD-LH

GE IC754VGL06CTD ES0622

  • Product Overview: 6-inch color TFT touchscreen HMI terminal in GE Fanuc QuickPanel View series, part of the ES0622 configuration lineup. Runs Windows CE.NET (Windows Compact Embedded) with Proficy View-Machine Edition preloaded for HMI application development and runtime operation. Features resistive touch input, 32 MB flash, 32 MB DRAM, RS-232/RS-485 serial, and 10/100 Ethernet connectivity. Powers from 12–30 VDC, operates in -20°C–60°C environments, and has an IP65 front panel for industrial use. Serves as a compact, networked HMI for machine and process control, supporting standalone or integrated plant-wide systems.
  • Technical Specifications – Display: 6-inch color TFT; 320×240 pixels; 65,536 colors; resistive touchscreen; LED backlight (50,000-hour MTBF)
Category:
Description
  • Technical Specifications – Processor & OS: 300 MHz Intel XScale PXA255; Windows CE.NET (Windows Compact Embedded) 3.0 32-bit
  • Technical Specifications – Memory: 32 MB flash (OS + applications); 32 MB DRAM (expandable via DIMM); 512 KB battery-backed SRAM
  • Technical Specifications – Communication: 1×10/100Base-T Ethernet; 1×RS-232/RS-485 serial port; Type II PCMCIA slot
  • Technical Specifications – Power: 12–30 VDC input; 24 W maximum power consumption
  • Technical Specifications – Physical: Panel-mount; front 203mm×152mm×95mm; cutout 158mm×126mm×70mm; weight 0.9 kg; IP65 front seal
  • Technical Specifications – Environmental: Operating -20°C–60°C; storage -40°C–85°C; 5%–95% non-condensing humidity; vibration IEC 60068-2-6; shock IEC 60068-2-27
  • Technical Specifications – Certifications: CE, UL 508, IEC 61010-1 compliant
  • Functional Features – Color Graphics: 65,536 colors render process diagrams, trend charts, multistate indicators, and alarm banners for clear visualization
  • Functional Features – Touch Interaction: Resistive touch enables direct data entry, setpoint changes, screen navigation, and virtual pushbuttons
  • Functional Features – Network & Serial Connectivity: Ethernet links to plant networks for SCADA integration; serial connects to PLCs/DCS controllers; PCMCIA supports data logging/modems
  • Functional Features – Memory Expansion: DIMM slot upgrades DRAM to 96 MB; PCMCIA adds flash storage or USB devices for data backup
  • Functional Features – Proficy View Integration: Preloaded with Proficy View-Machine Edition for HMI design, alarm management, and runtime deployment
  • Functional Features – Battery-Backed SRAM: Preserves critical parameters and event logs during power loss without external batteries
  • Functional Features – IP65 Front Panel: Seals against dust, water spray, and washdown in factory and outdoor installations
  • Functional Features – Wide Temperature Operation: Runs in -20°C–60°C for harsh industrial and mobile equipment applications
  • Application Scenarios – Machine Control: PLC-based manufacturing lines; displays status, alarms, and production metrics for packaging, assembly, and robotics
  • Application Scenarios – Process Industries: Chemical, oil/gas, and water treatment; visualizes process variables, batch records, and safety interlocks
  • Application Scenarios – Power Generation: Turbine/generator control rooms; monitors excitation systems, switchgear, and auxiliary equipment
  • Application Scenarios – Material Handling: Conveyor and logistics systems; shows throughput, fault codes, and maintenance schedules
  • Application Scenarios – Building Automation: HVAC, lighting, and security; centralizes monitoring and control of facility systems
  • Application Scenarios – Mobile Equipment: Offshore platforms, rail vehicles, and field instruments; operates on 12–30 VDC power buses
  • Application Scenarios – Retrofit Projects: Upgrades legacy monochrome HMIs to color touchscreens with Windows CE compatibility
