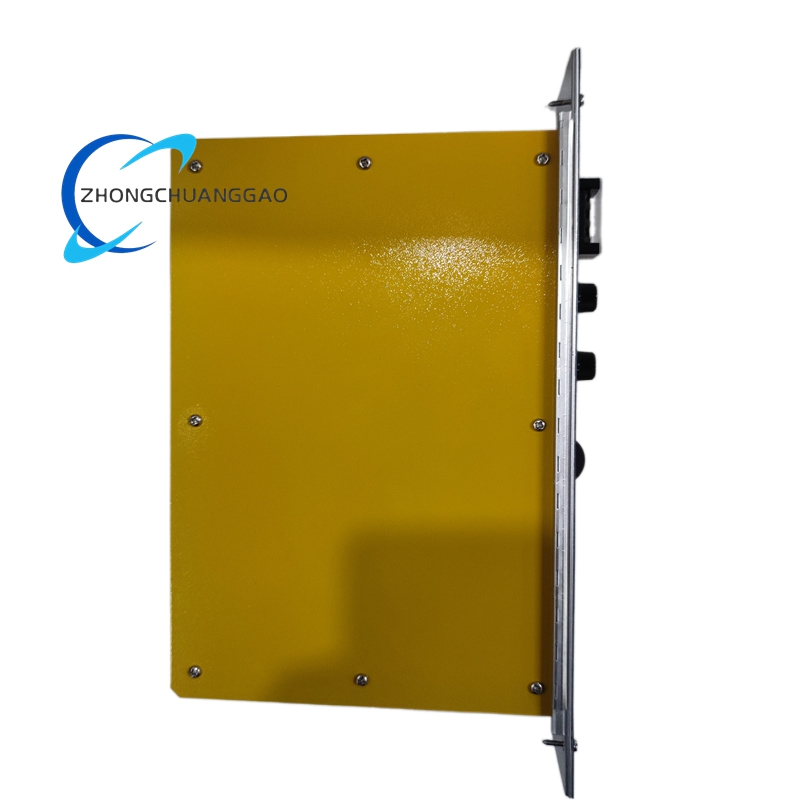

GE IC698PSA350
GE IC698PSA350 - Image 2
GE IC698PSA350 - Image 3

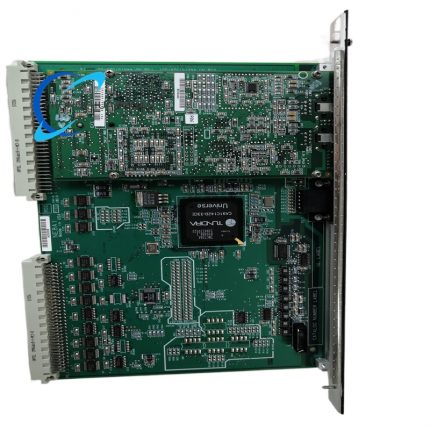

GE IC698ETM001
GE IC698ETM001
Back to products

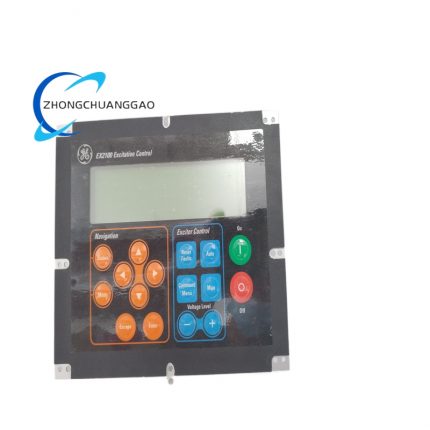

GE IC752SPL013
GE IC752SPL013

GE IC698PSA350

  • Product Introduction: The IC698PSA350 is a 350W high-capacity power supply module designed for GE PACSystems RX7i PAC main racks, manufactured by GE Fanuc (now part of Emerson Automation). It plugs into slot 0 of the RX7i main rack, delivering +5 VDC, +12 VDC, and -12 VDC power to the backplane while providing logic-level sequencing signals for module operation. It supports wide input voltage ranges (85-264 VAC or 100-150 VDC), incorporates power factor correction, and features comprehensive protection mechanisms and status indicators.
  • Manufacturer: GE Fanuc (General Electric Fanuc Intelligent Platforms, now part of Emerson Automation)
  • Input Voltage Range: 85–264 VAC (47–63 Hz); 100–150 VDC
Category:
Description
  • Input Power: Typical 437 W; Maximum 500 W
  • Output Power: Total maximum 350 W
  • Output Voltages & Currents: +5 VDC / 60 A max; +12 VDC / 12 A max; -12 VDC / 4 A max
  • Backplane Compatibility: VME64 backplane (RX7i main rack, slot 0)
  • Power Factor Correction: Active PFC (power factor > 0.95 at full load)
  • Power Sequencing: Generates logic-level signals for module startup/shutdown sequencing
  • Physical Dimensions: 190 mm × 63 mm × 292 mm (7.5 in × 2.5 in × 11.5 in)
  • Weight: 2.0 kg (4.41 lbs)
  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 5% to 95% (non-condensing)
  • Cooling: Forced air (internal fan); airflow sensor detects fan failure
  • Indicators: Power On (green), Fault (red), +5 VDC OK (green), +12 VDC OK (green), -12 VDC OK (green)
  • Protection Features: Overcurrent, overvoltage, electronic short circuit, over-temperature, input undervoltage lockout
  • Certifications: CE, UL 61010-1, CSA C22.2 No. 61010-1, EU RoHS compliant
  • High-Capacity Output: 350W total power with +5 VDC / 60 A to support high-density I/O and CPU loads
  • Wide Input Range: 85–264 VAC / 100–150 VDC ensures global compatibility and stable operation during voltage fluctuations
  • Power Factor Correction: Active PFC reduces harmonic distortion and improves energy efficiency
  • Comprehensive Protection: Overcurrent, overvoltage, short circuit, and over-temperature protection prevent damage to the power supply and connected modules
  • Power Sequencing: Logic-level signals enable controlled module startup/shutdown to prevent inrush current issues
  • Airflow Sensing: Internal sensor triggers fault alert on fan failure to maintain reliable cooling
  • Status Indicators: Front-panel LEDs provide clear visual feedback for power, voltage status, and faults
  • Hot-Swap Capable: Supports hot-swap in redundant power configurations (with compatible rack)
  • Power Factor Correction: Active PFC minimizes input current harmonics and improves efficiency
  • Process Automation: Powers RX7i controllers in oil/gas refineries, chemical plants, power generation, and water/wastewater treatment systems
  • Manufacturing Automation: Supplies power for automotive assembly lines, semiconductor fabs, packaging machinery, and material handling systems
  • Large-Scale Industrial Systems: Supports up to 31 local/remote I/O racks in complex RX7i configurations
  • High-Availability Setups: Works with redundant power supplies for fault-tolerant applications in critical processes
  • Legacy System Upgrades: Compatible with Series 90-70 I/O modules for seamless integration with existing systems
  • Harsh Industrial Environments: Operates reliably in temperatures from 0°C to 60°C and high-humidity conditions
  • Data-Intensive Applications: Powers CPU and communication modules for large-scale data logging, quality control, and process optimization
