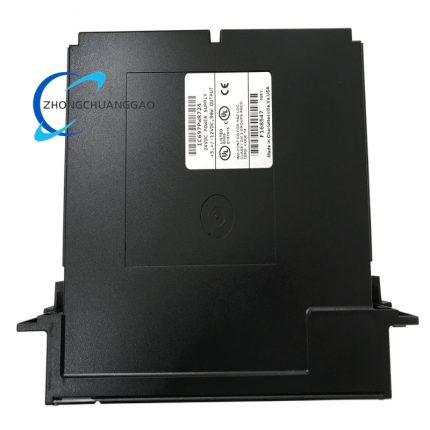

GE IC697PWR724
GE IC697PWR724

GE IC697PWR711

  • Product Overview: 100W rack-mounted power supply for GE Series 90-70 PLC systems, installed in the leftmost slot of standard IC697 racks, providing +5VDC, +12VDC, -12VDC outputs and logic sequencing signals to the backplane. It accepts selectable 120/240 VAC or 125 VDC input, features electronic short-circuit/overcurrent protection, power factor correction, and supports single or dual-rack operation with a prewired interconnection cable. It maintains output through at least one input line cycle during power loss and meets industrial safety standards.
  • Technical Specifications – Input Voltage: AC: 90-264 VAC (47-63 Hz); DC: 100-150 VDC; selectable via external jumper
Category:
Description
  • Technical Specifications – Input Power: 135W typical, 160W maximum at full load
  • Technical Specifications – Output Power: 100W total
  • Technical Specifications – Output Voltages & Currents: +5VDC (4.90-5.25V, 5.07V nominal) / 20A max; +12VDC (11.75-12.6V) / 2A max; -12VDC (-12.6 to -11.75V) / 1A max
  • Technical Specifications – Physical: Single-slot width, 8.83 x 3.58 x 4.7 inches, 1.8 lbs (0.82 kg), shielded metal enclosure, 48-pin backplane connector
  • Technical Specifications – Environmental: Operating 0°C to 60°C (32°F to 140°F); storage -40°C to 85°C (-40°F to 185°F); 5% to 95% non-condensing humidity
  • Technical Specifications – Protection: Electronic short-circuit, overcurrent, overvoltage protection; input half-cycle peak inrush 55A
  • Technical Specifications – Ride-Through: At least one input line cycle at full load during power loss
  • Technical Specifications – Compliance: CE, UL, CSA certified for industrial control applications
  • Functional Features – Multi-Input Compatibility: Works with 120/240 VAC or 125 VDC input, selectable via jumper for global industrial use
  • Functional Features – Multi-Rack Powering: Powers two IC697 racks with a prewired cable for scalable system designs
  • Functional Features – Power Factor Correction: Reduces harmonic distortion and improves energy efficiency for AC operation
  • Functional Features – Comprehensive Protection: Electronic short-circuit, overcurrent, and overvoltage safeguards prevent damage to the power supply and connected modules
  • Functional Features – Power Ride-Through: Maintains output during brief outages to prevent system resets
  • Functional Features – Slide-In Installation: Rack-mount design with 48-pin backplane connector enables easy integration without complex wiring
  • Functional Features – Logic Sequencing: Provides backplane logic level sequencing signals for proper module initialization and operation
  • Application Scenarios – Discrete Manufacturing: Powers Series 90-70 CPUs, I/O, and communication modules in packaging, assembly, and material handling lines
  • Application Scenarios – Process Automation: Supplies stable power to PLC systems in chemical plants, oil refineries, and water treatment facilities
  • Application Scenarios – Power Generation: Supports control systems in fossil fuel, nuclear, and renewable energy plants with reliable power and ride-through capability
  • Application Scenarios – Material Handling: Powers PLCs controlling conveyors, automated storage/retrieval systems, and sorting machines
  • Application Scenarios – Machine Building: Integrates into OEM machinery with dual-rack powering for complex automation designs
  • Application Scenarios – Legacy System Maintenance: Replaces aging power supplies in existing Series 90-70 installations to extend system lifespan
  • Application Scenarios – Redundant Control: Works with IC697 redundancy modules for fault-tolerant operation in critical infrastructure
