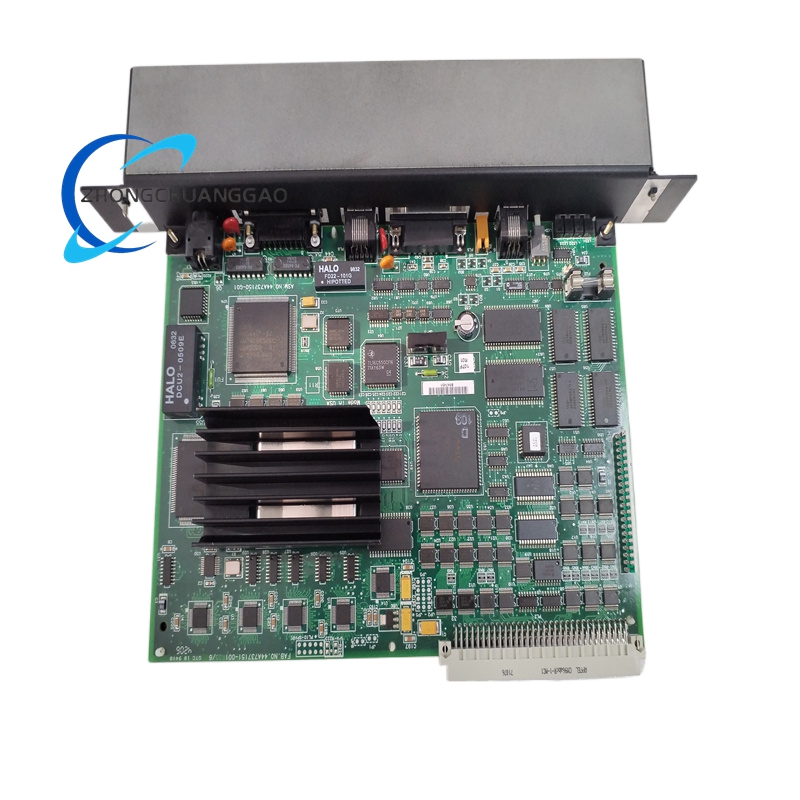

GE IC697CMM742 - Image 2
GE IC697CMM742 - Image 3

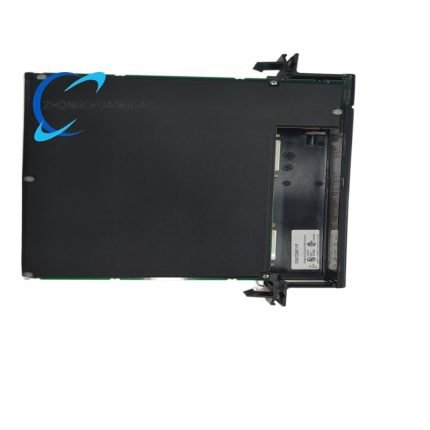

GE IC697CMM711
GE IC697CMM711
Back to products

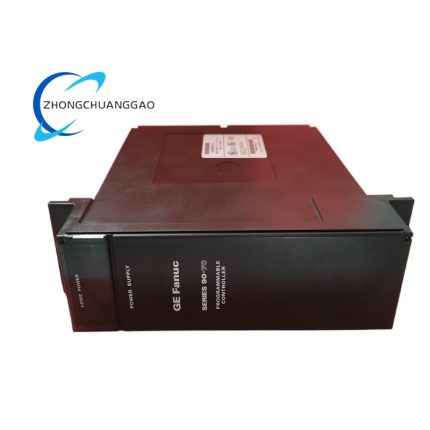

GE IC697PWR711K
GE IC697PWR711K

GE IC697CMM742

  • roduct Introduction: The IC697CMM742 is a single‑slot TCP/IP Ethernet (Type 2) Interface Module for GE Series 90‑70 PLC systems, delivering 10 Mbps Ethernet connectivity compliant with IEEE 802.3 standard. It has three network ports (10BaseT RJ‑45, 10Base2 BNC, AUI 15‑pin D), one RJ‑11 RS‑232 Local Station Manager Port, and one 15‑pin D‑type Serial Software Load Port, supporting TCP/IP, SRTP, EGD, and Modbus TCP/IP protocols for seamless integration with Ethernet LAN, SCADA, HMI, and other industrial devices.
  • Manufacturer: GE Fanuc (General Electric Fanuc Intelligent Platforms, now part of Emerson Automation)
  • Module Type: Single‑slot Ethernet Interface Module (Type 2) for Series 90‑70 PLC baseplates
Category:
Description
  • Ethernet Standard: IEEE 802.3 (10 Mbps CSMA/CD), IEEE 802.2 Logical Link Control Class I
  • Network Ports: 10BaseT (RJ‑45), 10Base2 (BNC), AUI (15‑pin D‑connector); only one port active at a time, auto‑sensing
  • Serial Ports: RJ‑11 RS‑232 Local Station Manager Port; 15‑pin D‑type Serial Software Load Port
  • Supported Protocols: TCP/IP, SRTP (Secure Real‑Time Protocol), EGD (Ethernet Global Data, configuration/logic‑based), Modbus TCP/IP (client/server)
  • Simultaneous Connections: Up to 64 Ethernet connections; up to 4 Modbus TCP/IP connections
  • Backplane Power Requirements: 2 A @ +5 VDC; 0.5 A @ +12 VDC
  • LED Indicators: Power OK, Module Fault, Network Activity, Port Status (4 LEDs total)
  • Reset: Pushbutton for manual module reset and communication re‑initialization
  • Configuration: Software‑based via IC641 PLC programming software; no jumpers/DIP switches
  • Physical Dimensions: 30 mm × 140 mm × 160 mm (1.18 in × 5.51 in × 6.30 in)
  • Weight: 0.5 kg (1.10 lbs)
  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 5% to 95% (non‑condensing)
  • Certifications: CE, UL 61010‑1, CSA C22.2 No. 61010‑1, EU RoHS compliant
  • Multi‑Port Flexibility: Three network ports offer diverse physical layer options (twisted pair, coaxial, fiber via AUI transceiver) for flexible network topology design
  • High‑Speed Data Exchange: 10 Mbps Ethernet connectivity ensures rapid data transfer for time‑critical industrial control applications
  • Secure Communication: SRTP support provides encrypted real‑time data transmission for critical process data
  • EGD Protocol Support: Enables configuration/logic‑based peer‑to‑peer data exchange between PLCs without a master controller
  • Modbus Compatibility: Seamless integration with Modbus TCP/IP master/slave devices in SCADA and HMI systems
  • Remote Management: Local Station Manager Port allows on‑site module configuration and troubleshooting without PLC programming software
  • Industrial Networking: Connects Series 90‑70 PLCs to Ethernet LAN for data sharing with SCADA, HMI, and MES in oil/gas, chemical, and power generation plants
  • Manufacturing Automation: Facilitates data exchange between PLCs, HMIs, and variable speed drives in automotive, packaging, and material handling lines
  • Remote Monitoring & Control: Supports Modbus TCP/IP for data collection and control by remote master devices in distributed industrial sites
  • Peer‑to‑Peer Data Sharing: EGD protocol enables direct PLC‑to‑PLC communication for coordinated control in complex manufacturing cells
  • Legacy System Integration: Bridges Series 90‑70 PLCs with existing Ethernet/Modbus TCP/IP devices during plant modernization projects
  • Redundant Network Design: AUI port with external transceiver enables fiber optic connection for long‑distance and noise‑immune communication in harsh industrial environments
