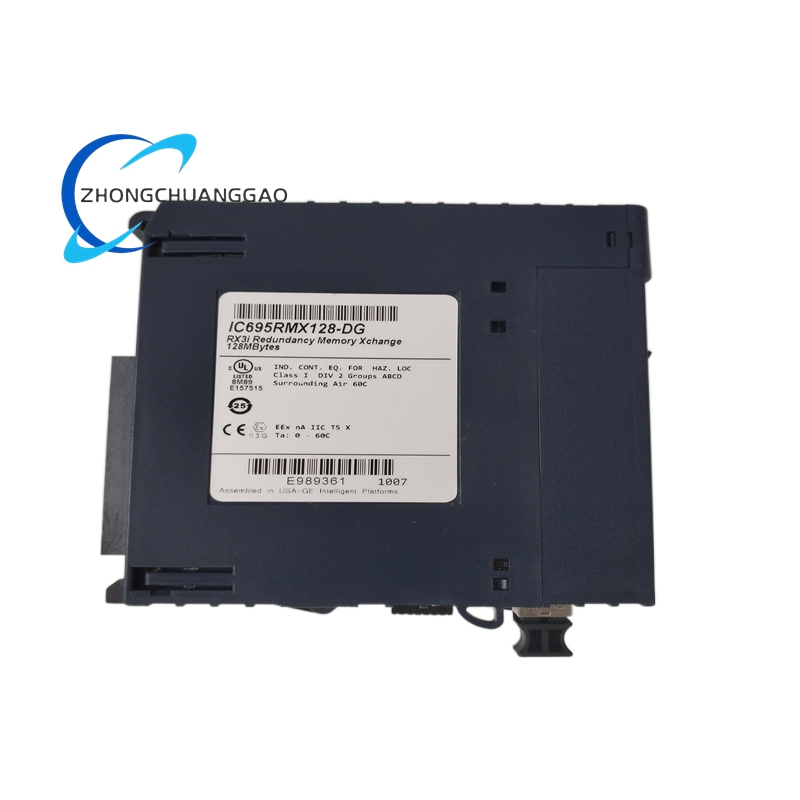

GE IC695RMX128

  • Product Introduction: The IC695RMX128 is a single-slot reflective memory module for GE PACSystems RX3i universal backplanes, delivering 128 MB user memory for real-time data sharing across redundant CPU pairs and reflective memory networks. It uses 2.12 Gbaud fiber-optic links (LC connectors) for 2.1 GB/s deterministic data transfer, supports hot insertion/removal, dynamic packet sizing, and network error detection, enabling seamless failover and data synchronization in mission-critical industrial control systems.
  • Manufacturer: GE Fanuc (General Electric Fanuc Intelligent Platforms, now part of Emerson Automation)
  • Module Type: Single-slot reflective memory module for RX3i redundant CPU systems and reflective memory networks
Category:
Description
  • User Memory Capacity: 128 MB SDRAM for data sharing and redundancy operations
  • Optic Network Speed: 2.12 Gbaud (LC-type fiber-optic connectors)
  • Data Transfer Rate: 2.1 GB per second
  • Network Topology: Supports ring, star, or daisy-chain configurations; up to 256 nodes per network
  • Packet Size: Dynamic, automatically controlled by RMX128/RMX228 modules
  • Power Requirements: 580 mA @ +3.3 VDC, 220 mA @ +5 VDC (supplied by RX3i backplane)
  • Backplane Compatibility: PACSystems RX3i universal backplane (IC695 catalog number)
  • Hot Insertion/Removal: Supported for online maintenance without system shutdown
  • Network Error Detection: Integrated cyclic redundancy check (CRC) and link status monitoring
  • LED Indicators: Power OK, Network Active, Network Fault, Data Transfer, Module Status
  • Physical Dimensions: 34 mm × 140 mm × 141 mm (1.34 in × 5.51 in × 5.55 in)
  • Weight: 0.25 kg (0.55 lbs)
  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 5% to 95% (non-condensing)
  • Certifications: CE, UL 61010-1, CSA C22.2 No. 61010-1, EU RoHS compliant
  • Key Functions: Real-time data mirroring between redundant RX3i CPUs, deterministic reflective memory networking, automatic data synchronization on node addition/removal, hot swap support for zero-downtime maintenance
  • Redundancy Support: Enables seamless failover between primary and standby RX3i CPUs with sub-millisecond data consistency
  • Data Integrity: CRC-based error checking and automatic retransmission ensure data accuracy across the network
  • Dynamic Packet Sizing: Optimizes bandwidth usage and reduces latency for varying data loads
  • Industrial Automation Redundancy: Powers redundant RX3i CPU pairs in automotive assembly, packaging, and material handling lines requiring zero unplanned downtime
  • Process Control Systems: Supports data synchronization in oil/gas, chemical, and water treatment plants with critical process loops
  • Power Generation & Distribution: Enables reflective memory networks for generator control, substation automation, and grid management systems
  • Reflective Memory Networks: Acts as a node for data sharing between PLCs, HMIs, and SCADA systems in distributed industrial networks
  • Mission-Critical Infrastructure: Used in wastewater treatment, pharmaceutical manufacturing, and aerospace test facilities needing continuous operation and data integrity
