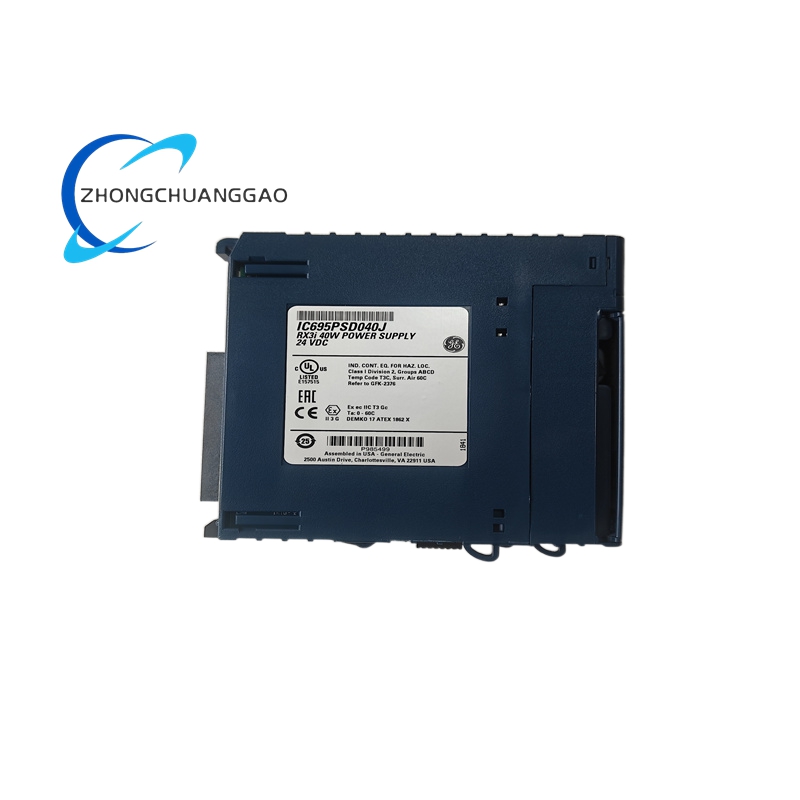

GE IC695PSD040

  • Product Introduction: The IC695PSD040 is a 40-Watt DC-input power supply module designed for GE PACSystems RX3i universal backplanes, operating from a nominal 24 VDC input to deliver regulated +5.1 VDC and +3.3 VDC outputs for powering RX3i CPU, I/O modules, and internal circuits. It features LED status indicators, on/off switch with protective cover, and supports daisy-chaining up to two units for expanded capacity, ideal for industrial environments with DC power infrastructure.
  • Manufacturer: GE Fanuc (General Electric Fanuc Intelligent Platforms, now part of Emerson Automation)
  • Module Type: Single-slot 24 VDC input power supply module for RX3i universal backplane
Category:
Description
  • Input Voltage (Nominal): 24 VDC
  • Input Voltage Range: Start mode 18-30 VDC; run mode 12-30 VDC
  • Max Input Power: 60 Watts at full load
  • Inrush Current: 4 Amps for 100 milliseconds maximum
  • Output Voltage 1: +5.1 VDC (nominal 5.0-5.25 VDC), max current 6 A, max power 30 W
  • Output Voltage 2: +3.3 VDC (nominal 3.2-3.465 VDC), max current 9 A, max power 30 W
  • Total Output Power: 40 Watts maximum combined across outputs
  • Ripple and Noise: ≤50 mV (both outputs)
  • Backplane Compatibility: RX3i universal backplane (IC695 catalog number), one module per backplane; supports daisy-chaining up to two units
  • Power Switch: Front-panel on/off switch with protective cover
  • LED Indicators: Power OK, P/S Fault, Overtemperature, Overload
  • Protection Features: Overload (110%-150% rated current, auto-recovery), overvoltage (+5.1 VDC: 5.61 VDC; +3.3 VDC: 3.63 VDC), overtemperature (85°C auto-shutdown), short-circuit protection
  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 5% to 95% (non-condensing)
  • Dimensions: 34 mm×140 mm×141 mm (1.34 in×5.51 in×5.55 in)
  • Weight: 0.34 kg (0.75 lbs)
  • Certifications: CE, UL 61010-1, CSA C22.2 No. 61010-1, EU RoHS compliant
  • Firmware: Non-upgradable (fixed version)
  • Discrete Manufacturing: Powers RX3i controllers in automotive assembly, packaging, and material handling lines with DC power sources
  • Mobile/Remote Automation: Supplies power to RX3i systems in battery-backed or vehicle-mounted equipment (e.g., mobile robotics, off-grid machinery)
  • Process Automation: Supports DC-powered RX3i setups in oil/gas, chemical, and water treatment plants
  • Marine/Offshore: Ideal for DC-dominated power systems in marine automation and offshore platforms
  • Small-Scale Control Panels: Powers compact RX3i configurations (3-5 modules) with limited space and DC power availability
