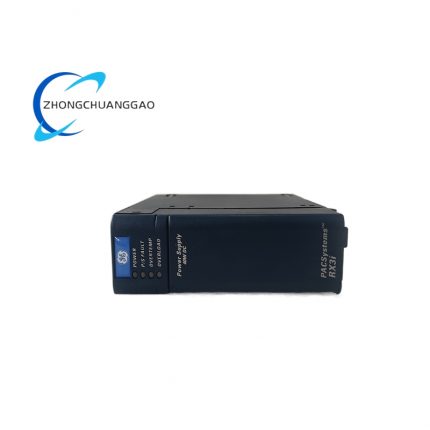

GE IC695PSD040
GE IC695PSD040

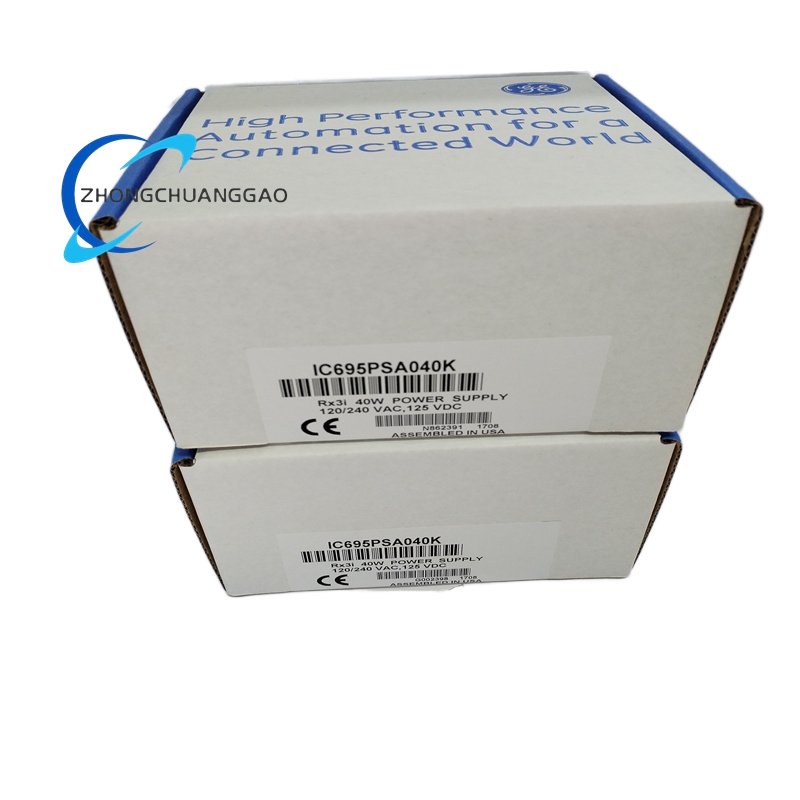

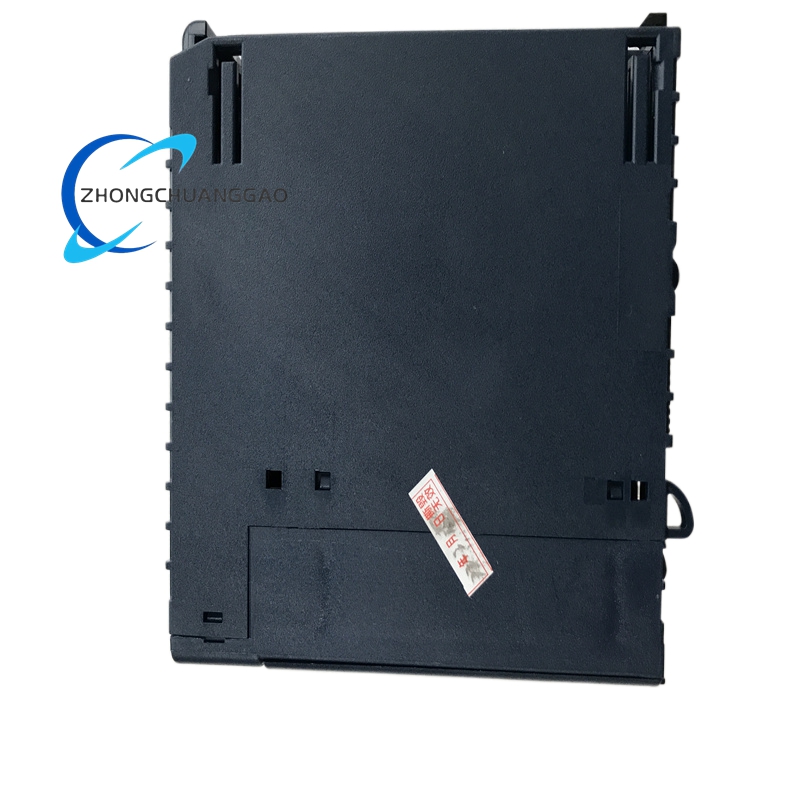

GE IC695PSA040

  • Product Introduction: The IC695PSA040 is a 40-Watt universal power supply module for GE PACSystems RX3i controllers, converting 85-264 VAC or 100-300 VDC input into regulated +3.3 VDC, +5.1 VDC, and +24 VDC outputs. It powers RX3i backplane modules, CPU, I/O, and relay circuits, with front-panel LEDs for status monitoring, and works exclusively in RX3i universal backplanes (one module per backplane, no redundancy).
  • Manufacturer: GE Fanuc (General Electric Fanuc Intelligent Platforms, now part of Emerson Automation)
  • Module Type: 40-Watt power supply module for RX3i PACSystem universal backplane
Category:
Description
  • Input Voltage Range: 85-264 VAC (50/60 Hz), 100-300 VDC
  • Input Frequency: 47-63 Hz (for AC input)
  • Max Input Power: 70 Watts (full load)
  • Output Voltage 1: +3.3 VDC (for IC695-series RX3i modules), max current 1.2 A, max power 3.96 W
  • Output Voltage 2: +5.1 VDC (for logic/CPU), max current 6.0 A, max power 30.6 W
  • Output Voltage 3: +24 VDC (for relay output modules), max current 1.6 A, max power 38.4 W
  • Total Output Power: 40 Watts (maximum)
  • Efficiency: >85% (typical at full load)
  • Overload Protection: 110%-150% of rated output current; auto-recovery after fault removal
  • Overvoltage Protection: +3.3 VDC: 3.63 VDC; +5.1 VDC: 5.61 VDC; +24 VDC: 27.6 VDC
  • Overtemperature Protection: Activates at 85°C; auto-shutdown to prevent damage
  • Backplane Compatibility: RX3i universal backplane (IC695 catalog number), one module per backplane only
  • Redundancy Support: Not compatible with other RX3i power supplies for redundancy/increased capacity
  • LED Indicators: Front-panel LEDs for Power OK, +3.3 VDC OK, +5.1 VDC OK, +24 VDC OK, Fault, Overtemperature
  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 5% to 95% (non-condensing)
  • Dimensions: 34 mm×140 mm×141 mm (1.34 in×5.51 in×5.55 in)
  • Weight: 0.68 kg (1.50 lbs)
  • Certifications: CE, UL 61010-1, CSA C22.2 No. 61010-1, EU RoHS compliant
  • Wiring Terminals: Accepts 14-22 AWG wire; each terminal max current 6 A
  • Front-Panel Connectors: Screw terminals for input power and +24 VDC output; backplane connection for +3.3 VDC/+5.1 VDC
  • Firmware Version: Field-upgradable via WinLoader utility (compatible with Machine Edition v5.0+)
  • Fault Monitoring: CPU-detectable power loss/fault codes for remote diagnostics
  • Discrete Manufacturing: Powers RX3i controllers in automotive assembly, packaging, and material handling lines
  • Process Automation: Supplies stable power to RX3i systems in oil/gas, chemical, and water treatment plants
  • Machine Control: Powers CPU, I/O, and relay modules in standalone RX3i-based machines
  • Small-Scale Automation: Ideal for compact RX3i setups with low power demands (e.g., 3-5 modules)
  • Test/Development: Provides regulated power for RX3i prototype systems in lab environments
