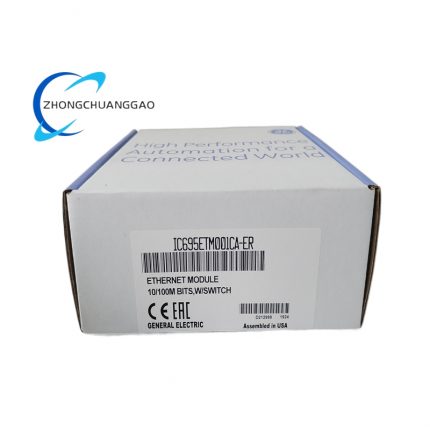

GE IC695ETM001CA-ER
GE IC695ETM001CA-ER
Back to products
GE IC695PBM300
GE IC695PBM300

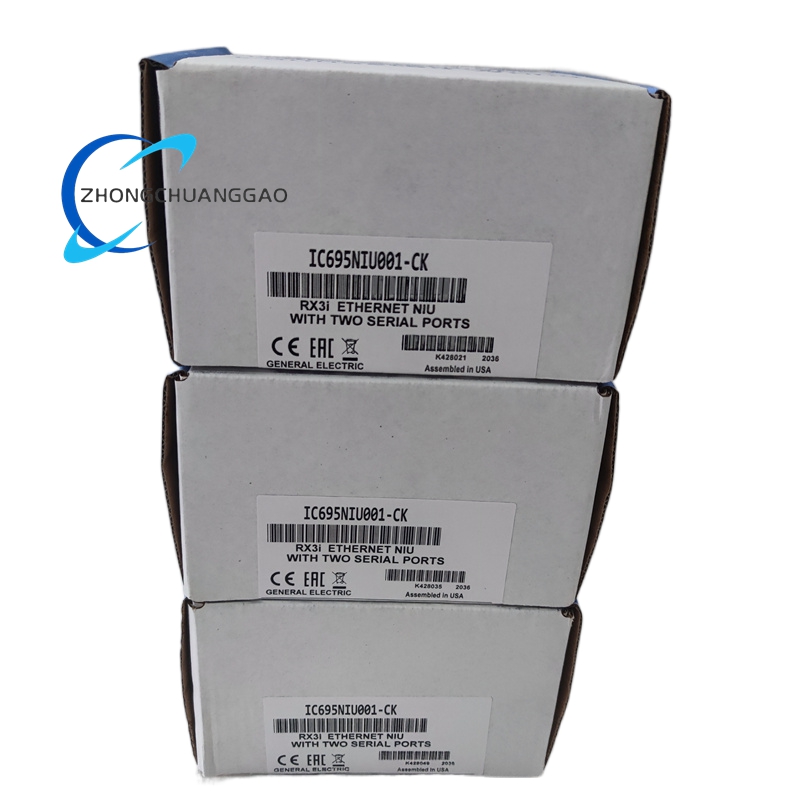

GE IC695NIU001

  • Product Introduction: The IC695NIU001 is a single – slot Ethernet Network Interface Unit for GE PACSystems RX3i controllers, enabling remote use of RX3i and Series 90 – 30 I/O on Ethernet networks. It works with the backplane – based Ethernet interface module IC695ETM001 for Ethernet communication, features two configurable serial ports (RS – 232/RS – 485), supports automatic data exchange via EGD, and offers local logic execution, data storage, and redundant controller compatibility.
  • Manufacturer: GE Fanuc (General Electric Fanuc Intelligent Platforms, now part of Emerson Automation)
  • Module Type: Single – slot Ethernet Network Interface Unit (ENIU) for RX3i PACSystem
Category:
Description
  • Backplane Compatibility: Dual backplane bus support (RX3i PCI and Series 90 – 30 serial backplane)
  • Serial Communication Ports: 2 configurable serial ports (COM1 and COM2) for RS – 232 or RS – 485 communication
  • Ethernet Connection: Relies on backplane – connected IC695ETM001 Ethernet module for Ethernet access
  • Supported Serial Protocols: Modbus RTU Slave, SNP (Slave Node Protocol), Serial I/O, Modbus RTU Master (via application “C” block)
  • Ethernet Protocols: EGD (Ethernet Global Data), SRTP (Service Request Transport Protocol), TCP/IP, UDP
  • Local Logic Capacity: 20 KB of optional local logic storage for independent control tasks
  • Built – in Memory: 10 MB of built – in flash memory for local user data storage
  • Battery – Backed RTC: Battery – backed Real – Time Clock (RTC) with an estimated 5 – year battery life for time – sensitive applications
  • Power Requirements: +3.3 VDC at 0.52 A, +5.0 VDC at 0.95 A; typical power consumption 6.31 W
  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: – 40°C to 85°C
  • Relative Humidity: 5% to 95% (non – condensing)
  • Dimensions: 34 mm×140 mm×141 mm (1.34 in×5.51 in×5.55 in)
  • Weight: 0.45 kg (1.00 lbs)
  • Firmware Upgrade: In – system upgradable firmware via backplane from RX3i CPU
  • Boolean Execution Speed: 0.072 ms per 1000 Boolean instructions (typical)
  • Data Exchange: Automatic data exchange via EGD; controller application logic monitors status data and issues commands to the NIU
  • Station Management: Comprehensive station management and diagnostic tools for configuration and monitoring
  • Redundancy Support: Operates with redundant RX3i controllers for continuous data exchange in mission – critical systems
  • PCI Compliance: Electrically compliant with PCI 2.2 standard
  • RTC Battery: User – replaceable battery; recommended replacement every 5 years
  • LED Indicators: Front – panel LEDs for power, serial port activity, Ethernet status, and module health
  • Certifications: CE, UL 61010 – 1, CSA C22.2 No. 61010 – 1; EU RoHS compliant
  • Remote I/O Networking: Enables remote deployment of RX3i and Series 90 – 30 I/O racks over Ethernet in large – scale industrial plants
  • Legacy System Integration: Connects Series 90 – 30 legacy I/O to modern RX3i controllers for seamless migration
  • Distributed Control Systems: Facilitates distributed I/O data collection and control in manufacturing, oil and gas, and water treatment facilities
  • Local Data Processing: Uses local logic and flash memory for edge computing and data logging in remote sites
  • Redundant System Deployment: Works with redundant RX3i controllers to ensure data availability during network or controller failures
  • Serial Device Connectivity: Links RS – 232/RS – 485 serial devices (sensors, meters, actuators) to Ethernet networks via Modbus RTU/SNP protocols
