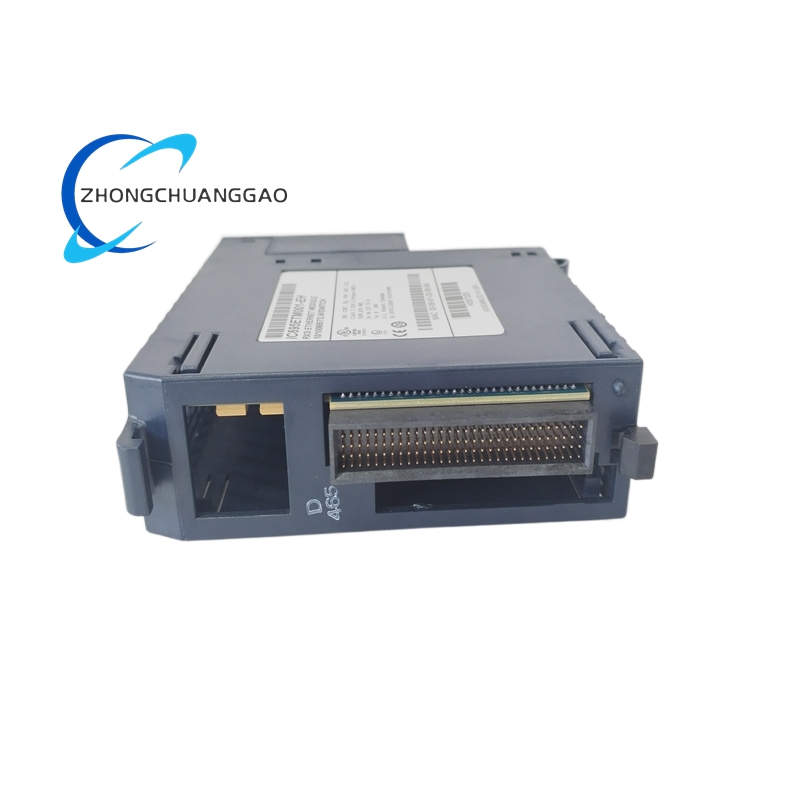

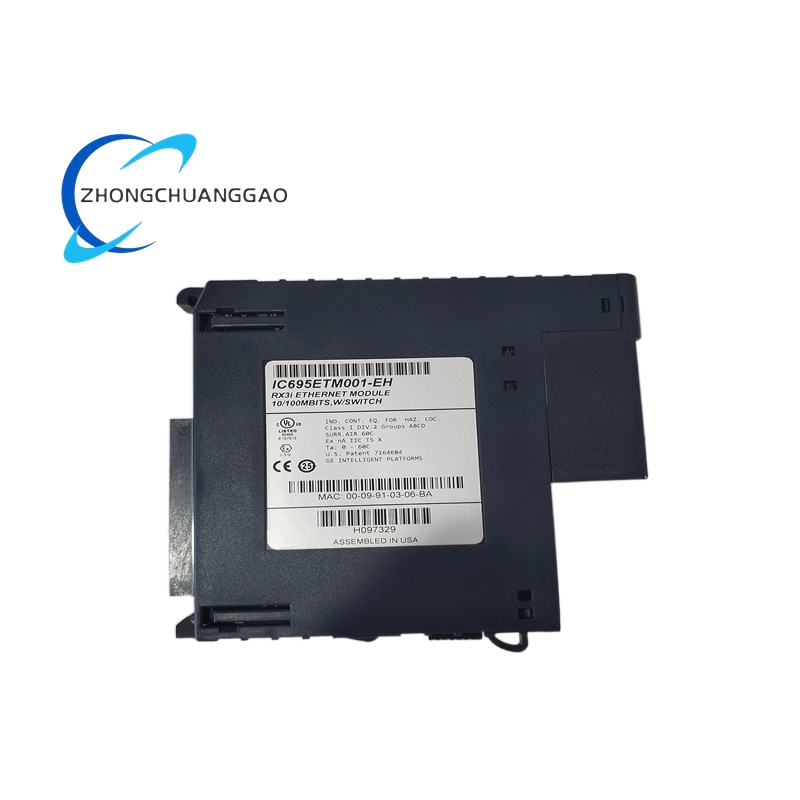

GE IC695ETM001

  • Product Introduction: The IC695ETM001 is a single – slot, dual – port Ethernet interface module for GE PACSystems RX3i controllers, connecting the controller to 10/100 Mbps Ethernet networks, supporting TCP/IP, SRTP, Modbus TCP, and EGD protocols, and featuring an embedded switch with auto – negotiation, crossover detection, and a Station Manager port for online configuration and monitoring.
  • Manufacturer: GE Fanuc (General Electric Fanuc Intelligent Platforms, now part of Emerson Automation)
  • Module Type: Single – slot Ethernet interface module for RX3i backplane
Category:
Description
  • Processor: 200 MHz Ethernet processor
  • Ethernet Ports: 2×shielded RJ – 45 10BaseT/100BaseTX ports; one MAC address and one IP address for network interface
  • Transmission Rate: 10/100 Mbps, auto – negotiation, auto – sensing speed and crossover detection
  • Embedded Switch: Internal switch for port connection; supports auto – negotiate, speed sense, and crossover detection
  • Supported Protocols: TCP/IP, UDP, SRTP (Service Request Transport Protocol), Modbus TCP (server/client), EGD (Ethernet Global Data); SNTP for time synchronization
  • Station Manager Port: 9 – pin female D – connector (RS – 232) for local configuration and monitoring
  • Power Requirements: +5.0 VDC from backplane, nominal current 0.4 A; typical power consumption 2.0 W
  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: – 40°C to 85°C
  • Relative Humidity: 5% to 95% (non – condensing)
  • Dimensions: 34 mm×140 mm×141 mm (1.34 in×5.51 in×5.55 in)
  • Weight: 0.35 kg (0.77 lbs)
  • Firmware Upgrade: Field – upgradable via WinLoader utility from RX3i CPU
  • Station Manager: Built – in Station Manager for online access and configuration
  • EGD Functionality: Supports periodic data exchange; EGD commands for reading/writing controller and EGD exchange memory
  • Modbus TCP Support: Acts as Modbus TCP server and client for flexible device communication
  • SRTP Support: Provides TCP/IP services via SRTP channels for programming and data transfer
  • Redundancy Compatibility: Works with RX3i redundancy systems (IC695RMX128) for network redundancy
  • LED Indicators: Front – panel LEDs for power, network link, activity, and module status
  • Restart Button: Recessed Ethernet Restart pushbutton for manual module restart
  • Certifications: CE, UL 61010 – 1, CSA C22.2 No. 61010 – 1; EU RoHS compliant
  • Industrial Automation Networking: Connects RX3i controllers to SCADA, HMI, and MES systems for data collection and remote monitoring
  • Process Control Integration: Enables Modbus TCP communication with field devices and EGD for real – time data exchange in oil, gas, chemical industries
  • Manufacturing Systems: Facilitates machine – to – machine communication between RX3i, Series 90 – 30, and VersaMax controllers
  • Redundant Network Design: Used in mission – critical systems with dual – port redundancy for uninterrupted network connectivity
  • Programming and Maintenance: Supports remote programming, firmware upgrades, and online diagnostics via Ethernet
