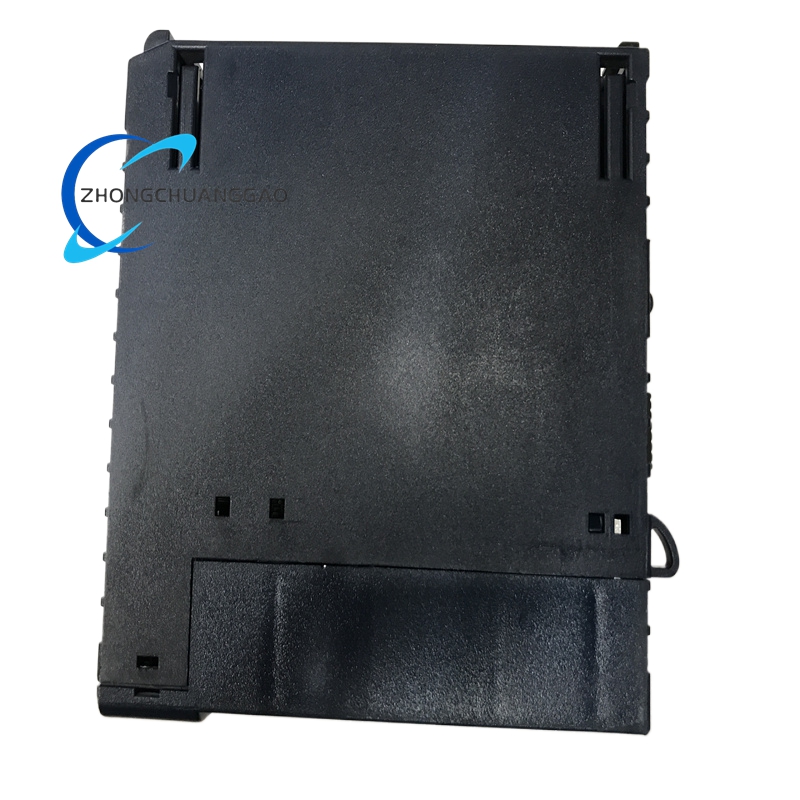

GE IC695CRU320-EN

  • Product Introduction: The IC695CRU320-EN is a high-performance hot standby redundant CPU module in GE PACSystems RX3i platform, built with 1 GHz Intel Celeron-M processor, supporting dual-slot installation, seamless switchover between master and standby CPUs within 3.133 ms to 1 logic scan, and providing 64 MB battery-backed RAM and 64 MB non-volatile flash memory, ideal for mission-critical industrial automation systems requiring uninterrupted operation.
  • Manufacturer: GE Fanuc (General Electric Fanuc Intelligent Platforms, now part of Emerson Automation)
  • Processor: 1 GHz Intel Celeron-M 32-bit microprocessor
Category:
Description
  • User Memory: 64 MB battery-backed RAM (user data), 64 MB non-volatile flash memory (user program)
  • Program Capacity: Up to 512 program blocks, maximum 128 KB per program block
  • Redundancy Switchover Time: Minimum 3.133 milliseconds, maximum 1 logic scan cycle
  • Execution Speed: 1000 Boolean instructions executed in 0.047 milliseconds; typical Boolean instruction execution time less than 0.06 µs
  • Reference Table Sizes: 32 Kbits for discrete %I and %Q; up to 32 K words each for analog %AI and %AQ
  • Communication Interfaces: 1×RS-232 serial port (DB9), 1×RS-485 serial port; Ethernet via rack-based IC695ETM001 module
  • Supported Protocols: SNP, Serial I/O, Modbus RTU/TCP, SRTP, EGD, SNPX; Profibus DP (with adapter); SNTP for time synchronization
  • Physical Specifications: Occupies 2 slots on RX3i backplane; weight 2.06 lbs (0.94 kg)
  • Power Requirements: +3.3 VDC at 1.0 A nominal, +5.0 VDC at 1.2 A nominal; typical power consumption 5.5 W
  • Operating Temperature: 0°C to 60°C
  • Memory Protection: Battery-backed RAM (supports IC695ACC302 Lithium Smart Battery); super capacitor for RAM backup during power loss
  • Programming Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), C
  • I/O Compatibility: Works with most Series 90-30 modules and RX3i I/O; supports up to 32,000 local and remote I/O points
  • Redundancy Features: Hot standby redundancy with IC695RMX128 module; automatic synchronization of program and data between master and standby CPUs
  • Error Handling: Comprehensive error detection and correction; front-panel LEDs for CPU status, running, redundancy mode, switchover, battery, system failure, etc.
  • Certifications: CE, UL 61010-1, CSA C22.2 No. 61010-1; EU RoHS compliant
  • Power Generation: Used in thermal, hydro, and nuclear power plants for turbine control, generator protection, and grid connection systems, ensuring continuous power supply
  • Oil and Gas: Deployed in refineries, pipelines, and offshore platforms for process control, safety instrumented systems, and pipeline monitoring, minimizing production downtime
  • Chemical Processing: Controls batch and continuous processes, reactor systems, and material handling in chemical plants, maintaining consistent product quality and safety
  • Water and Wastewater: Manages water treatment plants, pumping stations, and distribution networks, ensuring reliable operation and compliance with environmental regulations
  • Manufacturing Automation: Applied in automotive assembly lines, semiconductor fabrication, and consumer goods production for high availability and minimal production interruption
