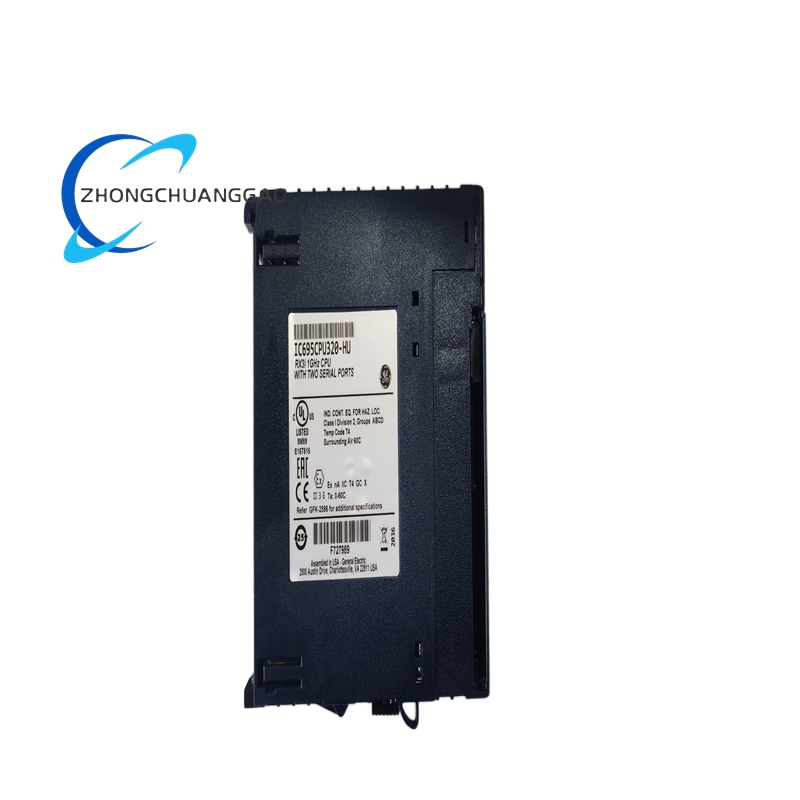

GE IC695CPU320HU

  • Product Introduction: The IC695CPU320HU is a high-performance 32-bit PAC CPU module from GE Fanuc (now part of Emerson Automation) belonging to the PACSystems RX3i platform, designed for real-time control of industrial machines, processes, and material handling systems, supporting dual backplane for PCI and Series 90-30 serial bus compatibility, and enabling easy migration of existing Series 90-30 I/O while integrating advanced RX3i I/O.
  • Manufacturer: GE Fanuc (General Electric Fanuc Intelligent Platforms, now under Emerson Automation)
  • Processor: 1 GHz Intel Celeron-M 32-bit microprocessor
Category:
Description
  • User Memory: 64 MB battery-backed RAM (user data memory), 64 MB non-volatile flash memory (user program storage)
  • Program Capacity: 512 program blocks maximum, 128 KB maximum program block size
  • Execution Speed: 1000 Boolean instructions executed in 0.047 milliseconds; typical Boolean instruction execution time less than 0.06 µs
  • Reference Table Sizes: 32 Kbits for discrete %I and %Q; up to 32 K words each for analog %AI and %AQ
  • Power Requirements: +3.3 VDC at 1.0 A nominal, +5.0 VDC at 1.2 A nominal, supplied via backplane; typical power consumption 5.5 W
  • Operating Temperature: 0°C to 60°C
  • Communication Interfaces: 1×RS-232 serial port (DB9), 1×RS-485 serial port; Ethernet via rack-based IC695ETM001 module
  • Supported Protocols: SNP, Serial I/O, Modbus RTU/TCP, SRTP, EGD, SNPX; Profibus DP (with adapter); SNTP for time synchronization (Ethernet Release 5.0+)
  • Redundancy Support: Compatible with hot – standby redundancy when paired with IC695RMX128 module
  • Memory Protection: Battery – backed RAM (supports IC695ACC302 Lithium Smart Battery); flash memory non – volatile; super capacitor for RAM power backup during power loss
  • Programming Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), C
  • Firmware Upgrade: Field – upgradable CPU firmware; supports firmware upgrades of backplane modules
  • I/O Compatibility: Works with most Series 90-30 modules and expansion racks; supports up to 32,000 local and remote I/O points
  • Error Handling: Automatic error checking and correction; eight front – panel indicator LEDs for status monitoring (CPU health, running, output enable, I/O force, battery, system failure, etc.)
  • Battery Support: IC695ACC302 Lithium Smart Battery, IC693ACC302 Series 90-30 Auxiliary Battery Module
  • Certifications: CE, UL 61010-1, CSA C22.2 No. 61010-1; compliant with EU RoHS Directive
  • Control Flexibility: Configurable data and program memory; access to bulk memory via reference table %W
  • Timekeeping: Real – time clock with maximum drift of 2 seconds per day; Ethernet time synchronization with SNTP servers
  • Industrial Process Control: Suitable for continuous and batch process control in oil and gas, chemical, and pharmaceutical industries, ensuring precise parameter regulation and consistent production quality
  • Manufacturing Automation: Controls assembly lines, material handling systems, and machine tools in automotive, electronics, and consumer goods manufacturing, optimizing throughput and reducing downtime
  • Infrastructure Management: Used in water/wastewater treatment, power distribution, and building automation for reliable monitoring and control of critical infrastructure systems
  • Hybrid System Migration: Ideal for upgrading from Series 90-30 systems, supporting both legacy serial I/O and new high – speed PCI – based RX3i I/O for seamless transition
  • Redundant Control Applications: Deployed in mission – critical systems like power generation and refineries when paired with redundancy modules for high availability
