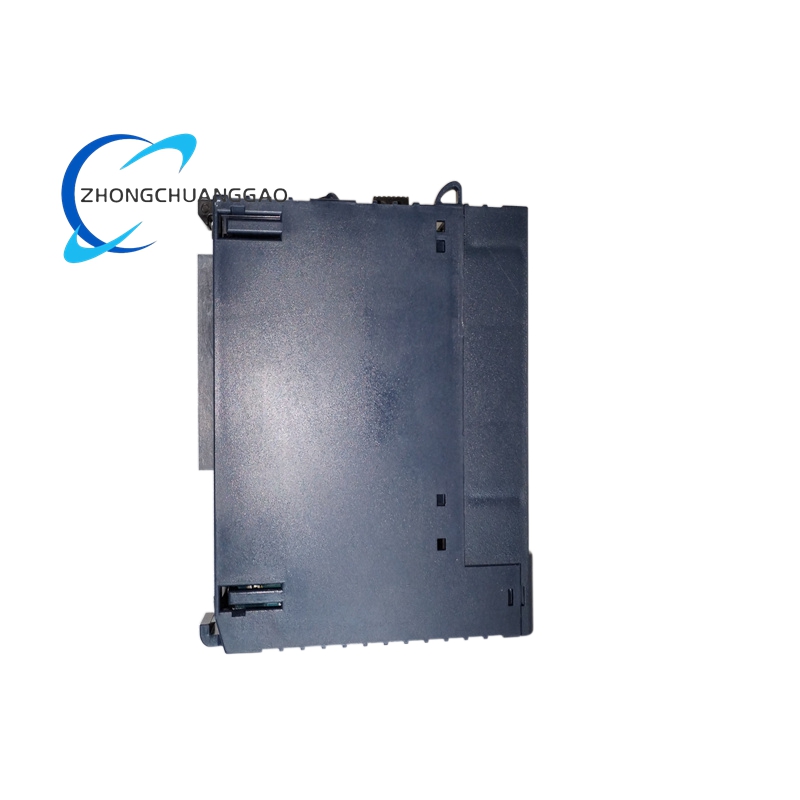

GE IC695CPU320 - Image 1
GE IC695CPU320 - Image 2
GE IC695CPU320 - Image 3
Click to enlarge
GE IC695CPU320
GE IC695CPU320 - Image 2
GE IC695CPU320 - Image 3
GE IC695CPU315 PACSystems RX3i 1.0 GHz CPU Module
GE IC695CPU315 PACSystems RX3i 1.0 GHz CPU Module
Back to products

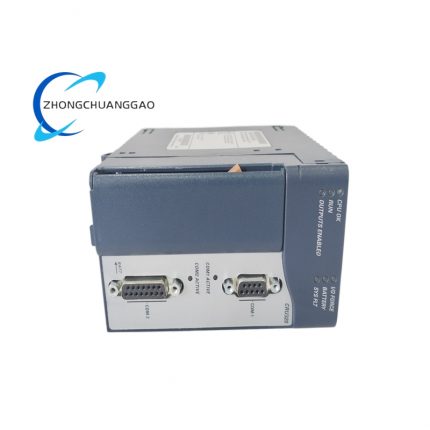

GE IC695CRU320
GE IC695CRU320

GE IC695CPU320

  • Product Overview: A high – end central processing unit module of GE’s PACSystems RX3i series, equipped with an Intel Celeron – M 1.0 GHz microprocessor, 64 MB battery – backed user RAM and 64 MB non – volatile flash memory. It is designed for complex industrial automation control tasks, supporting multiple programming languages and communication protocols, and is compatible with Series 90 – 30 modules and RX3i expansion racks.
  • Technical Specifications – Microprocessor: Intel Celeron – M microprocessor, 1.0 GHz clock speed
  • Technical Specifications – Memory: 64 MB battery – backed user RAM, 64 MB non – volatile flash memory
Category:
Description
  • Technical Specifications – Program Capacity: Up to 512 program blocks, 128 KB maximum per program block
  • Technical Specifications – I/O References: Discrete %I and %Q each 32K bits, analog %AI and %AQ each 32K words
  • Technical Specifications – Processing Speed: Executes 1000 Boolean instructions in 0.047 ms, with 32 – bit floating – point arithmetic capability
  • Technical Specifications – Serial Ports: 2 embedded front – facing ports (RS – 232 (9 – pin) and RS – 485 (15 – pin))
  • Technical Specifications – Serial Protocols: Modbus RTU Slave, SNP, Serial I/O, SNP Slave for HMI/programmer communication
  • Technical Specifications – Programming Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), C language
  • Technical Specifications – Power Requirements: 1.0 A @ 3.3 VDC, 1.2 A @ 5.0 VDC
  • Technical Specifications – Backplane Compatibility: Dual backplane (RX3i PCI and Series 90 – 30 serial bus), compatible with most Series 90 – 30 modules and RX3i expansion racks
  • Technical Specifications – Battery Backup: Compatible with IC695ACC302 Lithium Smart Battery, IC693ACC302 Series 90 – 30 Auxiliary Battery Module; integrated real – time clock with battery backup
  • Technical Specifications – Operating Temperature: 0°C to 60°C (32°F to 140°F)
  • Technical Specifications – I/O Expansion: Supports up to 8 local racks, compatible with local and remote expansion racks
  • Technical Specifications – LED Indicators: 8 front – panel LEDs (CPU OK, Run, Outputs Enabled, I/O Force, Battery, Sys Flt, COM 1, COM 2) for troubleshooting
  • Functional Features – High – capacity Memory: 64 MB RAM and 64 MB flash memory provide sufficient space for complex programs and large – volume process data
  • Functional Features – Fast Processing: 1.0 GHz processor and 0.047 ms Boolean instruction speed enable rapid execution of complex control algorithms
  • Functional Features – Flexible Programming: Multiple IEC – compliant languages and auto – located symbolic variables that can fully utilize the 64 MB user memory
  • Functional Features – Memory Management: Configurable data and program memory, reference table %W for bulk memory access, bit – in – word referencing for precise Boolean operations
  • Functional Features – Communication Versatility: Two serial ports support multiple protocols for seamless connection with HMIs, I/O devices and Modbus networks
  • Functional Features – System Compatibility: Works with most Series 90 – 30 modules and RX3i expansion racks, facilitating system migration and expansion
  • Functional Features – Firmware Upgradability: Supports in – system firmware upgrades and logic – driven flash read/write operations
  • Functional Features – Error Handling: Automatic error checking and correction to ensure system stability and data integrity
  • Functional Features – Battery – backed Data: Battery – backed RAM and flash memory ensure reliable retention of critical program and process data during power outages
  • Application Scenarios – Complex Machine Automation: Controls high – speed and multi – axis systems such as automotive assembly lines, semiconductor manufacturing equipment and packaging machinery
  • Application Scenarios – Process Control: Manages continuous industrial processes including chemical production, petrochemical refining and power generation
  • Application Scenarios – Motion Control: Coordinates multi – axis motion systems like robotic arms and CNC machining centers in manufacturing
  • Application Scenarios – HMI Integration: Communicates with HMI devices via SNP protocol for real – time data visualization and operator control
  • Application Scenarios – Legacy System Upgrades: Compatible with Series 90 – 30 modules, suitable for upgrading existing industrial control systems
  • Application Scenarios – Modbus Networks: Acts as Modbus RTU Slave for integration with Modbus – based industrial networks
  • Application Scenarios – High – reliability Systems: Used in redundant configurations (with IC695RMX128 module) to ensure uninterrupted operation of critical processes
