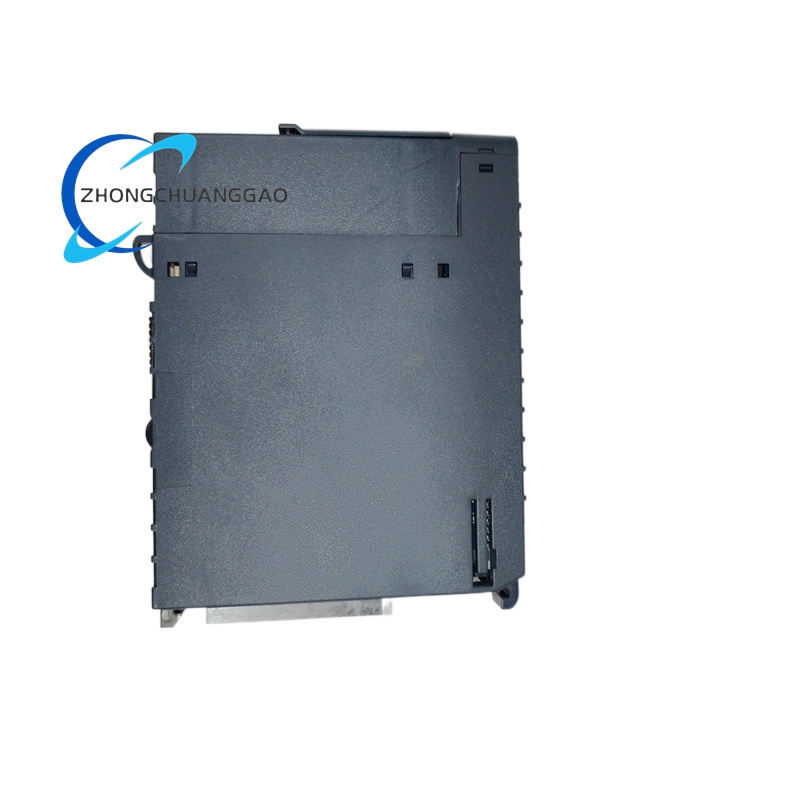

GE IC695CPU310-ACAT

Product Introduction

The IC695CPU310-ACAT is a single-slot VME CPU module of the PACSystems RX3i family, built for real-time control of industrial machines, processes, and material handling systems. It features a 300 MHz Intel Celeron (Pentium III) processor, 10 MB RAM, and 10 MB non-volatile flash user memory, with battery-backed data retention via IC695ACC302 lithium smart battery. It has 2 front-facing serial ports (RS-232 and RS-485) and works with RX3i universal backplanes, supporting up to 512 program blocks and Series 90-30 I/O for seamless migration. Programming is via Proficy Machine Edition using Ladder Diagram, Structured Text, Function Block Diagram, and C, delivering reliable processing and flexible integration for industrial automation applications.
Category:
Description

Technical Specifications

Parameter Details
Module Type PACSystems RX3i VME CPU Module
Processor 300 MHz Intel Celeron (Pentium III) processor
User Memory 10 MB RAM + 10 MB non-volatile flash (configurable data/program allocation)
Data Retention Battery-backed with IC695ACC302 Lithium Smart Battery
Communication Interfaces 1 × RS-232 serial port, 1 × RS-485 serial port (front – facing)
I/O Capacity 32K bits discrete %I/%Q each; 32K words analog %AI/%AQ
Program Blocks Up to 512 program blocks (max 128 KB per block)
Programming Languages Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), C
Supported Protocols Serial: Modbus RTU Slave, SNP Slave, Serial I/O; Ethernet via IC695ETM001 module (Modbus TCP/IP, EGD)
Backplane Compatibility RX3i Universal Backplane (3 – slot to 16 – slot)
Power Consumption 3.3 VDC backplane: 1.25 A max; 5 VDC backplane: 1.0 A max
Operating Temperature Standard range: 0°C to +60°C (storage: -40°C to +85°C)
Humidity 5% – 95% (non – condensing)
Mounting Single slot in RX3i Universal Backplane
Indicators Multiple status LEDs (MODULE OK, CPU RUN, MEM, COM, etc.)
Certifications UL, CE, CSA, IEC 61010 – 1
Weight 0.45 kg
Firmware Requirement In – system upgradeable firmware for enhanced functionality
Legacy Compatibility Supports Series 90-30 I/O modules and expansion racks

Function Features

  1. High – Speed Logic Execution: 300 MHz Intel Celeron processor executes 1000 Boolean instructions in 0.195 ms, ensuring rapid response for real – time control.
  2. Battery – Backed Data Retention: IC695ACC302 battery maintains program and data integrity during power outages, suitable for applications demanding continuous data preservation.
  3. Dual Serial Ports: Front – facing RS – 232/485 ports enable easy connection to HMIs, legacy devices, and serial networks, supporting Modbus RTU and SNP protocols.
  4. Flexible Programming: 4 industry – standard languages and up to 512 program blocks simplify complex code development and maintenance.
  5. Dual Backplane Bus: PCI backplane for high – speed advanced I/O and serial backplane for Series 90-30 I/O migration, maximizing existing hardware value.
  6. In – System Firmware Upgrade: Allows firmware updates without removing the module, minimizing downtime.
  7. High I/O Scalability: Manages 32K bits discrete I/O and 32K words analog I/O, supporting diverse module types for comprehensive system integration.
  8. Reliable Fault Diagnostics: Detailed error reporting and status LEDs facilitate quick troubleshooting and reduce system downtime.
  9. Legacy I/O Compatibility: Works with Series 90-30 I/O modules, enabling cost – effective system expansion and migration.
  10. Modular Design: Single – slot form factor simplifies installation and maintenance in RX3i universal backplanes.

Application Scenarios

  • Industrial Process Control: Controls water treatment plants, food processing lines, and small – scale chemical processes, using reliable logic execution and legacy I/O compatibility for stable operation.
  • Material Handling Systems: Manages conveyor belts, packaging machines, and sorting systems, with dual serial ports for HMI connectivity and fast Boolean instruction execution for precise control.
  • Building Automation: Controls HVAC, lighting, and access control systems in commercial buildings, leveraging flexible programming and battery – backed data retention for continuous operation.
  • Machine Automation: Powers small to medium – sized manufacturing machines like textile looms and plastic injection molders, supporting diverse I/O and easy integration with existing control systems.
  • Legacy System Migration: Serves as a replacement for outdated PLCs, supporting Series 90-30 I/O and reducing migration costs and complexity.
  • Remote Monitoring & Control: Connects to remote terminal units (RTUs) via serial ports, enabling data collection and control in distributed industrial sites with limited Ethernet access.
