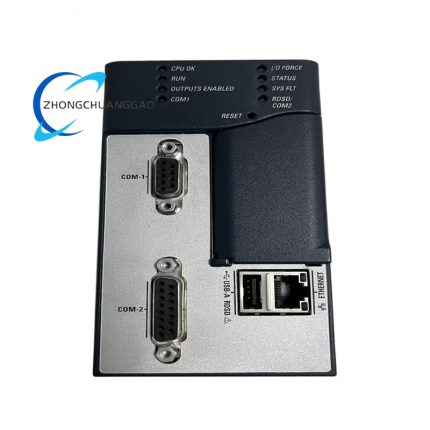

GE IC695CPE310-ACAT
GE IC695CPE310-ACAT
Back to products
GE IC695CPU310-GV
GE IC695CPU310-GV

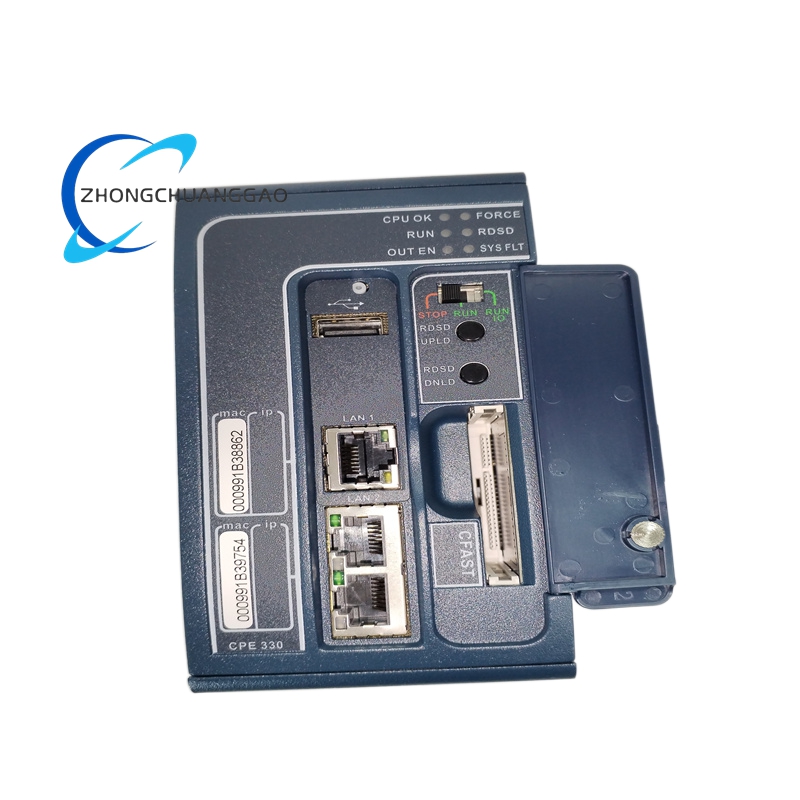

GE IC695CPE330

Product Overview

The IC695CPE330 is a dual‑width hot standby redundancy CPU module from GE Fanuc (Emerson Automation) for PACSystems RX3i PLCs, powered by a 1.6GHz dual‑core industrial processor. It provides 64MB user RAM, 64MB non‑volatile flash, and a CFast slot for removable storage, plus 3‑port 10/100/1000 Ethernet (2 switched + 1 uplink), USB 2.0, and dual independent LANs for redundancy. The module supports Hot Standby Redundancy (PROFINET/EGD/Genius I/O), 32Kbits discrete %I/%Q and 32Kwords analog %AI/%AQ, and runs on 3.3V (2.0A)/5V (2.5A)/24V (0.6A startup/0.2A run, Energy Pack) backplane power. It uses ladder/ST/FBD/C programming, handles up to 512 program blocks (128KB max/block), and offers optional IC695ACC400 Energy Pack for power‑loss data protection, with UL/CE/ATEX/DNV GL certifications for industrial/hazardous/marine use.
Category:
Description

Technical Specifications

Parameter Details
Manufacturer GE Fanuc (Emerson Automation)
Model Number IC695CPE330
Platform Compatibility PACSystems RX3i PLC (universal backplane, CPU firmware ≥9.5)
Module Type Dual‑width CPU module (2 slots required)
Processor 1.6GHz dual‑core industrial‑grade processor
User Memory 64MB RAM; 64MB non‑volatile flash storage
Reference Tables 32Kbits discrete %I/%Q; 32Kwords each analog %AI/%AQ
Programming Languages Ladder Diagram, Structured Text, Function Block Diagram, C
Program Capacity 512 blocks max; 128KB max per block
Ethernet Ports 3‑port 10/100/1000 switch (2× switched, 1× uplink); PROFINET/MRP/PNSR/Modbus TCP/SRTP/OPC UA/DNP3/IEC‑61850/IEC‑104/HART passthrough
Serial Ports None (use IC695ALG/IC695CMM serial modules for RS‑232/RS‑485)
USB Port USB 2.0 Type‑A (0.5A max current for program/data transfer)
Removable Storage 1× CFast slot (supports up to 64GB CFast cards)
Power Requirements 3.3VDC: 2.0A; 5VDC: 2.5A; 24VDC: 0.6A startup/0.2A run (Energy Pack)
Indicators Power OK, Run, Fault, Redundancy (RDSD), Ethernet Activity (×3), CFast Activity (×3), USB Activity
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5%–95% non‑condensing
Dimensions 127mm × 152.4mm × 152.4mm (5.0in × 6.0in × 6.0in)
Weight 1.3kg (2.87lbs)
Mounting Dual‑slot in RX3i universal backplane (slots 0–5)
Protection Class IP20
Energy Pack Optional IC695ACC400 (writes memory to NVS on power loss)
Agency Approvals UL Listed, CE Marked, ATEX Zone 2, DNV GL/ABS/BV/LR marine certifications

Functional Features

  • 1.6GHz Dual‑Core Processing: Delivers fast execution for complex control and motion tasks with deterministic performance.
  • 64MB RAM/Flash: 64MB non‑volatile flash retains programs/data; 64MB RAM for real‑time execution and large data sets.
  • 3‑Port Gigabit Ethernet: 10/100/1000 switch with MRP/PNSR for media/system redundancy and PROFINET/OPC UA for IIoT integration.
  • Hot Standby Redundancy: Supports PROFINET/EGD/Genius I/O redundancy for high availability in critical systems.
  • CFast & USB Storage: CFast slot for large recipe/data logs; USB 2.0 for quick program upload/download.
  • Dual Independent LANs: Two 10/100/1000 Ethernet LANs for separate control and monitoring networks.
  • Power‑Loss Data Protection: Optional Energy Pack writes memory to NVS during outages to ensure data integrity.
  • High I/O Scalability: Handles 32Kbits discrete and 32Kwords analog I/O for large‑scale control systems.
  • LED Diagnostics: Dedicated LEDs for power, redundancy, faults, and communication for quick troubleshooting.
  • Marine & Hazardous Certifications: ATEX Zone 2 and DNV GL approvals for marine and hazardous area deployments.

Functional Features

  • 1.6GHz Dual‑Core Processing: Enables fast execution of complex control logic and motion tasks with deterministic performance.
  • 64MB RAM/Flash: 64MB non‑volatile flash preserves programs and data; 64MB RAM supports real‑time execution and large data sets.
  • 3‑Port Gigabit Ethernet: 10/100/1000 switch with MRP/PNSR for redundancy and PROFINET/OPC UA/DNP3 for IIoT and SCADA integration.
  • Hot Standby Redundancy: Supports PROFINET/EGD/Genius I/O redundancy to minimize downtime in critical applications.
  • CFast & USB Connectivity: CFast slot for removable storage; USB 2.0 for quick program transfer and data backup.
  • Dual Independent LANs: Two 10/100/1000 Ethernet LANs for separate control and monitoring networks, enhancing security and reliability.
  • Power‑Loss Data Protection: Optional Energy Pack ensures data integrity by writing memory to NVS during power outages.
  • High I/O Capacity: 32Kbits discrete and 32Kwords analog I/O support for large‑scale industrial systems.
  • LED Status Indicators: Dedicated LEDs for power, redundancy, faults, and communication allow for rapid diagnostics.
  • Global Certifications: UL/CE/ATEX/DNV GL approvals for industrial, hazardous, and marine environments.

Application Scenarios

  • Critical Process Automation: Controls chemical, oil/gas, and power generation processes with Hot Standby Redundancy for uninterrupted operation and Modbus TCP/OPC UA for asset monitoring.
  • High‑Availability Manufacturing: Drives automotive assembly and semiconductor fabs with PROFINET redundancy and 1.6GHz processing for precise motion control.
  • Marine Automation: Manages shipboard power, propulsion, and navigation systems with DNV GL certification and dual LANs for redundant communication.
  • Power Grid & Utilities: Connects to DCS via IEC‑61850/IEC‑104 for substation automation and grid monitoring with HART passthrough for smart sensor data.
  • Water/Wastewater Treatment: Controls pumping stations and treatment processes with redundancy to prevent service disruptions and OPC UA for remote monitoring.
  • Pharmaceutical Batch Control: Stores large recipes in CFast and uses 32K I/O for precise batch sequencing and compliance logging.
  • Oil & Gas Pipeline Monitoring: Uses DNP3 for SCADA integration and redundancy to ensure continuous data collection and control in remote locations.

Ordering & Compatibility

Standard model: IC695CPE330. Compatible with RX3i universal backplanes (dual slot required), CPU firmware ≥9.5, and Proficy Machine Edition ≥9.5. Optional IC695ACC400 Energy Pack for power‑loss data protection; IC695PNC001 for PROFINET redundancy. Use shielded Ethernet cables; 24VDC only for Energy Pack (0.6A startup/0.2A run). Supports up to 8 local racks and legacy Series 90‑30 I/O modules.
