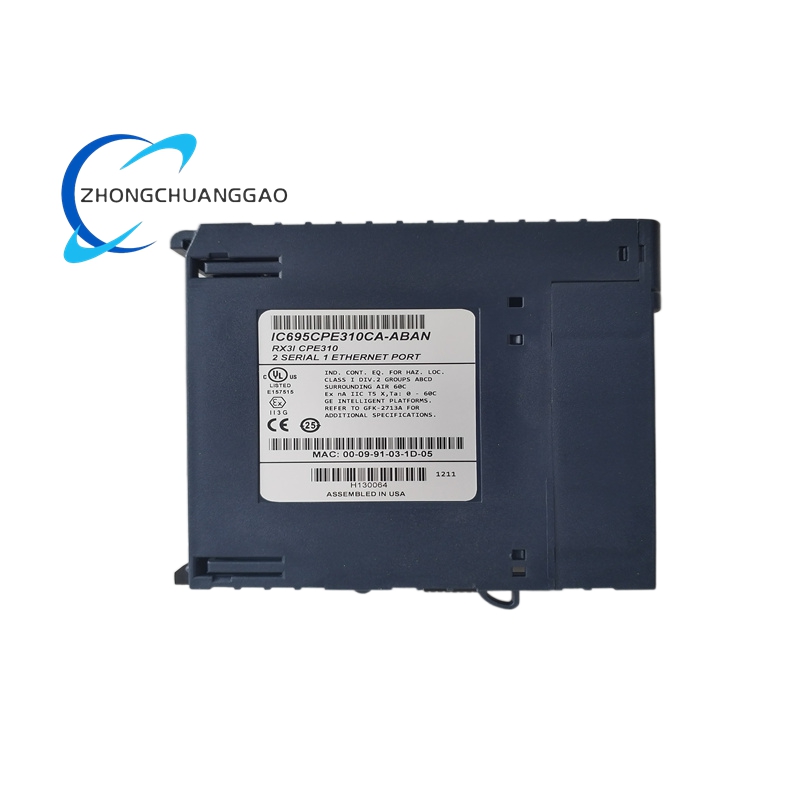

GE IC695CPE310CA-ABAN

Product Introduction

The IC695CPE310CA-ABAN is a 2-slot, high-performance multicore CPU module in the PACSystems RX3i family, designed for real-time control of complex machines, industrial processes, and distributed automation systems. It integrates a 1.1 GHz dual-core Intel Atom processor, 10 MB RAM, and 10 MB non-volatile flash user memory, with battery-less data retention via the IC695ACC400 Energy Pack. It comes with 2 switched gigabit Ethernet ports, 1 isolated RS-232/485 serial port, and 1 USB 2.0 Type-A port, supporting protocols like SRTP, Modbus TCP/IP, OPC UA, PROFINET, and Modbus RTU. It works on RX3i Universal Backplanes, supports up to 512 program blocks, and is compatible with Series 90-30 I/O for seamless migration. Programming is done via Proficy Machine Edition using Ladder Diagram, Structured Text, Function Block Diagram, and C, providing robust processing, secure communication, and flexible scalability for industrial applications requiring high I/O capacity and reliable connectivity.
Category:
Description

Technical Specifications

Parameter Details
Module Type PACSystems RX3i 2-Slot High-Performance Multicore CPU Module
Processor 1.1 GHz dual-core Intel Atom processor
User Memory 10 MB RAM + 10 MB non-volatile flash (configurable data/program allocation)
Data Retention Battery-less, via IC695ACC400 Energy Pack (included)
Communication Interfaces 2 × 10/100/1000 Mbps switched Ethernet ports; 1 × isolated RS-232/485 serial port; 1 × USB-A 2.0 port
I/O Capacity 32K bits discrete %I/%Q each; 32K words analog %AI/%AQ
Program Blocks Up to 512 program blocks (max 128 KB per block)
Programming Languages Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), C
Supported Protocols Ethernet: SRTP Client/Server, Modbus TCP/IP, OPC UA, EGD, PROFINET, DNP3 Outstation, IEC-61850 Client, IEC-104 Server, HART passthrough; Serial: ASCII, Modbus RTU, SNP Slave
Remote I/O Support Up to 255 simplex devices with PNC001 module
Backplane Compatibility RX3i Universal Backplane (3 slot to 16 slot)
Power Consumption 3.3 VDC backplane: 1.0 A max; 5 VDC backplane: 1.0 A max; 24 VDC: 0.5 A max
Operating Temperature Standard range: 0°C to +60°C (storage: -40°C to +85°C)
Humidity 5% – 95% (non-condensing)
Mounting 2 slots in RX3i Universal Backplane
Indicators 8 status LEDs (MODULE OK, CPU RUN, MEM, COM, etc.)
Certifications ATEX Zone 2, IECEx, UL Class I Div 2, IEC 61508 SIL 2, ABS, BV, DNV, GL, KRS, LR
Weight 1.68 kg
Firmware Requirement Version 10.60 or later for optimal performance
Legacy Compatibility Supports Series 90-30 I/O modules and expansion racks

Function Features

  1. Dual-Core High-Speed Processing: 1.1 GHz Intel Atom processor enables fast execution of complex control algorithms and large-scale data processing for high-speed automation.
  2. Battery-less Data Retention: IC695ACC400 Energy Pack prevents data loss during power outages and eliminates battery replacement costs and maintenance.
  3. Dual Gigabit Ethernet: 2 switched ports enable high-speed data sharing, remote monitoring, PROFINET I/O connectivity, and media redundancy (MRP) with PNC001.
  4. Isolated Serial Port: The isolated RS-232/485 port ensures reliable communication with legacy devices, resisting electrical noise and ground loops.
  5. Flexible Programming: Supports 4 industry-standard languages and auto-located symbolic variables for efficient code development and maintenance.
  6. Advanced Cybersecurity: Features TPM, digitally signed firmware, OPC UA encryption, and Achilles Level 2 Certification to protect against cyber threats.
  7. Hazardous Area Compliance: ATEX/IECEx/UL C1D2 certifications allow deployment in Zone 2/Class I Div 2 explosive environments.
  8. Standard Temperature Range: Operates from 0°C to +60°C, suitable for general industrial settings like factories and processing plants.
  9. High I/O Scalability: Manages 32K bits discrete I/O and 32K words analog I/O, supporting diverse module types for comprehensive system integration.
  10. Advanced Diagnostics: Provides detailed fault reporting and OPC UA server logs for proactive troubleshooting and maximum system uptime.

Application Scenarios

  • Industrial Process Control: Controls chemical plants, water treatment facilities, and food processing lines, using ATEX/IECEx/UL C1D2 compliance for safe operation in potentially explosive environments.
  • Marine & Offshore Automation: Manages shipboard systems like valve actuators, pumps, and power distribution, with marine certifications (ABS, BV, DNV) ensuring reliability in harsh sea conditions.
  • Power Generation & Distribution: Controls generators, transformers, and grid equipment, using IEC-61850/DNP3 protocols and gigabit Ethernet for real-time grid management and compliance.
  • Manufacturing Automation: Operates in automotive assembly lines, electronics production, and packaging systems, leveraging dual-core processing for precise control and high-speed data handling.
  • Material Handling Systems: Controls conveyor belts, automated storage and retrieval systems (AS/RS), and sorting machines, using high I/O capacity and fast communication for efficient material flow.
  • Building Automation: Manages HVAC, lighting, and security systems in large commercial buildings, using flexible communication protocols and reliable data retention for seamless operation.
