GE IC695CPE310-ACAT

Product Overview

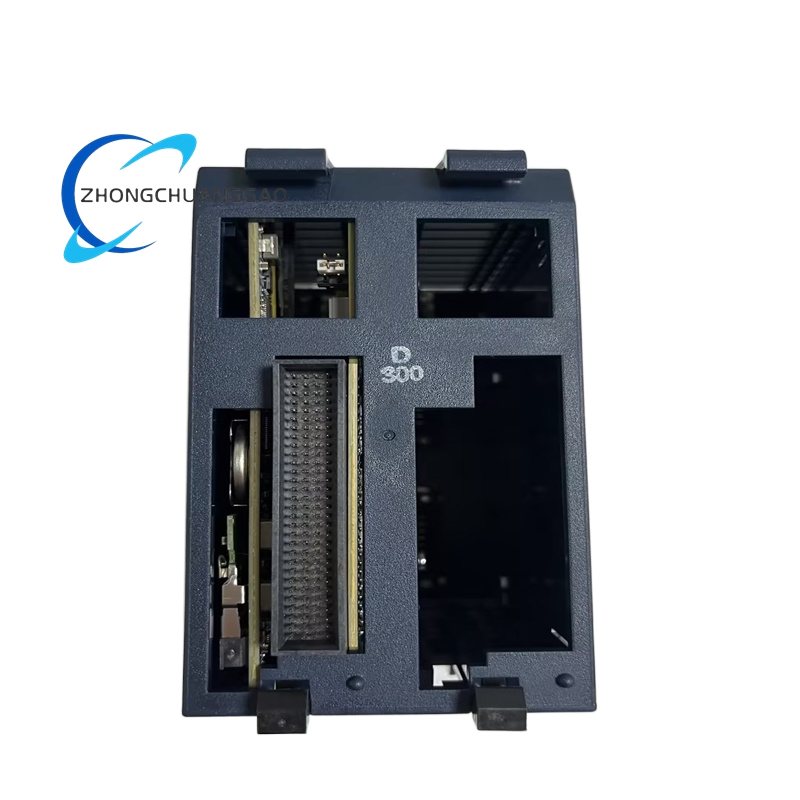

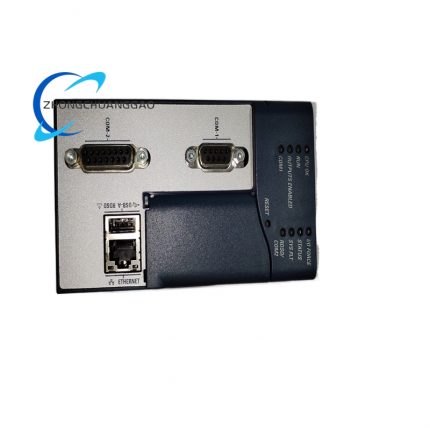

The IC695CPE310 – ACAT is a high – performance dual – width CPU module belonging to GE Fanuc (Emerson Automation)’s PACSystems RX3i PLC series, with a 1.1GHz Intel Atom industrial processor at its core. It is equipped with 10MB user RAM and 10MB non – volatile flash storage, and integrates a 3 – port 10/100/1000 Ethernet switch (2 switch ports and 1 uplink port), isolated RS – 232/RS – 485 serial ports, and a USB 2.0 Type – A port. This module supports dual – purpose PCI and serial backplanes, which enables seamless compatibility with RX3i and Series 90 – 30 I/O modules. It has a Boolean logic execution speed of 0.72ms per 1000 instructions, can handle 32Kbits of discrete %I/%Q and 32Kwords of analog %AI/%AQ, and supports 4 programming languages, namely Ladder Diagram, Structured Text, Function Block Diagram, and C, along with a maximum of 512 program blocks (128KB per block). It holds UL, CE, ATEX Zone 2, and DNV GL marine certifications, and its optional IC695ACC400 Energy Pack can protect data when power is lost.

Category: GE

Description

Technical Specifications

Parameter	Details
Manufacturer	GE Fanuc (Emerson Automation)
Model Number	IC695CPE310 – ACAT
Platform Compatibility	PACSystems RX3i PLC (universal backplane, CPU firmware 9.50)
Module Type	Dual – width CPU module (occupies 2 slots)
Processor	1.1GHz industrial – grade Intel Atom
User Memory	10MB RAM; 10MB non – volatile flash storage
Reference Tables	32Kbits discrete %I/%Q; 32Kwords each for analog %AI/%AQ
Programming Languages	Ladder Diagram, Structured Text, Function Block Diagram, C
Program Capacity	512 blocks max; 128KB max per block
Ethernet Ports	3 – port 10/100/1000 switch; supports PROFINET, Modbus TCP, SRTP, OPC UA, DNP3, IEC – 61850, IEC – 104, HART passthrough
Serial Ports	RS – 232 (COM1: Modbus RTU Slave, SNP Slave, Serial I/O); RS – 485 (COM2: isolated, Modbus RTU Master/Slave, SNP)
USB Port	USB 2.0 Type – A (0.5A max current)
Power Requirements	3.3VDC: 1.2A; 5VDC: 1.5A; 24VDC: 0.5A (startup)/0.1A (run, for Energy Pack)
Indicators	Power OK, Run, Fault, Ethernet Activity (×3), Serial Activity (×2), USB Activity
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	– 40°C to 85°C (- 40°F to 185°F)
Humidity	5% – 95% non – condensing
Dimensions	127mm × 152.4mm × 152.4mm (5.0in × 6.0in × 6.0in)
Weight	1.1kg (2.43lbs)
Mounting	Dual – slot in RX3i universal backplane (slots 0 – 5)
Protection Class	IP20
Energy Pack	Optional IC695ACC400
Agency Approvals	UL Listed, CE Marked, ATEX Zone 2, DNV GL/ABS/BV/LR marine certifications

Functional Features

1.1GHz Atom Processor: It has a Boolean logic execution speed of 0.72ms per 1000 instructions, ensuring high – speed and deterministic control.
10MB RAM/Flash: The 10MB non – volatile flash preserves programs and data, and the 10MB RAM supports real – time execution.
3 – Port Gigabit Ethernet: The 10/100/1000 switch is compatible with multiple protocols such as PROFINET, OPC UA, and DNP3, facilitating IIoT and SCADA integration.
Isolated Serial Connectivity: The RS – 232/RS – 485 ports support Modbus RTU and SNP, enabling seamless connection with legacy devices.
Dual Backplane Support: It works with RX3i PCI and Series 90 – 30 serial backplanes, allowing the reuse of existing I/O modules.
Power – Loss Data Protection: The optional Energy Pack writes memory data to NVS during power outages to ensure data integrity.
High I/O Scalability: It can handle 32Kbits of discrete and 32Kwords of analog I/O, which is suitable for large – scale control systems.
LED Status Indicators: Dedicated LEDs for power, operation, faults, and communication allow for quick troubleshooting.
Marine & Hazardous Certifications: It has ATEX Zone 2 and DNV GL approvals, making it applicable to marine and hazardous area deployments.
Media Redundancy: It supports MRP with PNC001, ensuring the reliability of Ethernet networks.

Application Scenarios

Process Automation: It controls chemical, oil and gas, and water treatment processes. It integrates sensors, valves, and actuators via Modbus TCP/OPC UA, and transmits HART data through HART passthrough for asset monitoring.
High – Speed Manufacturing: It drives automotive assembly, packaging, and semiconductor production lines. Its 0.72ms scan time ensures precise motion control and synchronous operation of equipment.
Marine Automation: It manages shipboard power, propulsion, and navigation systems. It leverages DNV GL certification and 3 – port Ethernet to establish redundant communication networks.
Legacy System Retrofits: It replaces Series 90 – 30 CPUs and reuses the original I/O, minimizing downtime and reducing upgrade costs.
Test & Measurement: It collects data from 32K analog channels, which is suitable for aerospace component testing and power grid monitoring applications.
Remote SCADA Connectivity: It links to DCS via IEC – 61850/IEC – 104, realizing data collection for pipelines, solar farms, and wind farms.
Food & Beverage Batch Control: It stores 10MB of recipes in flash memory and uses 32K discrete I/O to control filling, capping, and labeling machines.

Ordering & Compatibility

The standard model is IC695CPE310 – ACAT. It is compatible with RX3i universal backplanes (requiring 2 slots), CPU firmware 9.50, and Proficy Machine Edition 9.50. The optional IC695ACC400 Energy Pack is used for power – loss data protection. Shielded cables should be used for Ethernet and serial connections, and the Energy Pack only uses 24VDC (0.5A for startup and 0.1A for running). It can support up to 8 local racks and legacy Series 90 – 30 I/O modules.
