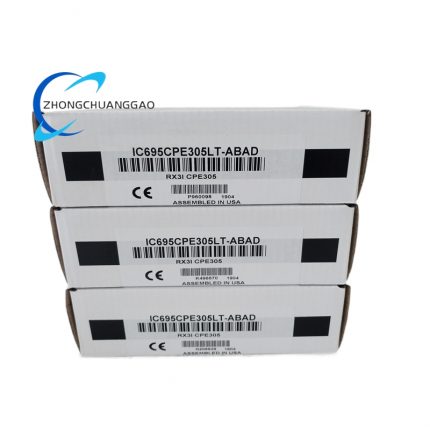

GE IC695CPE305LT-ABAD
GE IC695CPE305LT-ABAD
Back to products

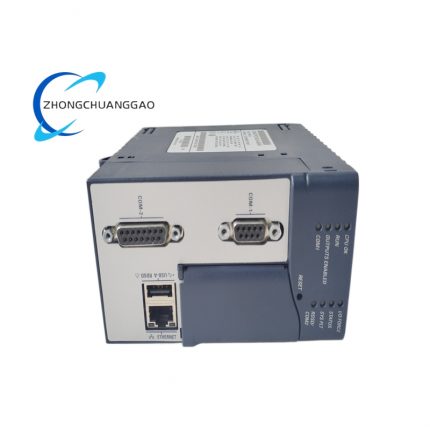

GE IC695CPE310CA-ABAN
GE IC695CPE310CA-ABAN

GE IC695CPE310-ABAD

Product Introduction

The IC695CPE310-ABAD is a high-performance multicore CPU module within the PACSystems RX3i family, engineered for real-time control of complex machines, industrial processes, and distributed automation systems in harsh and hazardous environments. It incorporates a 1.1 GHz dual-core Intel Atom processor, 10 MB RAM, and 10 MB non-volatile flash user memory, with battery-less data retention via the IC695ACC400 Energy Pack. It is outfitted with 2 switched gigabit Ethernet ports, 1 isolated RS-232/485 serial port, and 1 USB 2.0 Type-A port, supporting protocols including SRTP, Modbus TCP/IP, OPC UA, PROFINET, and Modbus RTU. The module operates on RX3i Universal Backplanes, supports up to 512 program blocks, and maintains compatibility with Series 90-30 I/O for seamless migration. Programming is done via Proficy Machine Edition using Ladder Diagram, Structured Text, Function Block Diagram, and C, delivering robust processing, secure communication, and flexible scalability for mission-critical industrial applications in extreme settings.
Category:
Description

Technical Specifications

Parameter Details
Module Type PACSystems RX3i High-Performance Multicore CPU Module
Processor 1.1 GHz dual-core Intel Atom processor
User Memory 10 MB RAM + 10 MB non-volatile flash (configurable data/program allocation)
Data Retention Battery-less, via IC695ACC400 Energy Pack (included)
Communication Interfaces 2 × 10/100/1000 Mbps switched Ethernet ports; 1 × isolated RS-232/485 serial port; 1 × USB-A 2.0 port
I/O Capacity 32K bits discrete %I/%Q each; 32K words analog %AI/%AQ
Program Blocks Up to 512 program blocks (max 128 KB per block)
Programming Languages Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), C
Supported Protocols Ethernet: SRTP Client/Server, Modbus TCP/IP, OPC UA, EGD, PROFINET, DNP3 Outstation, IEC-61850 Client, IEC-104 Server, HART passthrough; Serial: ASCII, Modbus RTU, SNP Slave
Remote I/O Support Up to 255 simplex devices with PNC001 module
Backplane Compatibility RX3i Universal Backplane (3 slot to 16 slot)
Power Consumption 3.3 VDC backplane: 1.0 A max; 5 VDC backplane: 1.0 A max; 24 VDC: 0.5 A max
Operating Temperature Extended range: -40°C to +85°C (storage: -40°C to +85°C)
Humidity 5% – 95% (non-condensing)
Mounting Single slot in RX3i Universal Backplane
Indicators 8 status LEDs (MODULE OK, CPU RUN, MEM, COM, etc.)
Certifications ATEX Zone 2, IECEx, UL Class I Div 2, IEC 61508 SIL 2, ABS, BV, DNV, GL, KRS, LR
Weight 0.45 kg
Firmware Requirement Version 10.60 or later for optimal performance
Legacy Compatibility Supports Series 90-30 I/O modules and expansion racks

Function Features

  1. Dual-Core High-Speed Processing: 1.1 GHz Intel Atom processor enables fast execution of complex control algorithms and large-scale data processing for high-speed automation.
  2. Battery-less Data Retention: IC695ACC400 Energy Pack prevents data loss during power outages and eliminates battery replacement costs and maintenance.
  3. Dual Gigabit Ethernet: 2 switched ports enable high-speed data sharing, remote monitoring, PROFINET I/O connectivity, and media redundancy (MRP) with PNC001.
  4. Isolated Serial Port: The isolated RS-232/485 port ensures reliable communication with legacy devices, resisting electrical noise and ground loops.
  5. Flexible Programming: Supports 4 industry-standard languages and auto-located symbolic variables for efficient code development and maintenance.
  6. Advanced Cybersecurity: Features TPM, digitally signed firmware, OPC UA encryption, and Achilles Level 2 Certification to protect against cyber threats.
  7. Hazardous Area Compliance: ATEX/IECEx/UL C1D2 certifications allow deployment in Zone 2/Class I Div 2 explosive environments.
  8. Extended Temperature Range: Operates from -40°C to +85°C, suitable for outdoor, offshore, and extreme industrial settings.
  9. High I/O Scalability: Manages 32K bits discrete I/O and 32K words analog I/O, supporting diverse module types for comprehensive system integration.
  10. Advanced Diagnostics: Provides detailed fault reporting and OPC UA server logs for proactive troubleshooting and maximum system uptime.

Application Scenarios

  • Hazardous Area Process Control: Controls oil/gas refineries, chemical plants, and mining operations, using ATEX/IECEx/UL C1D2 compliance and extended temperature tolerance for safe operation in Zone 2/Class I Div 2 areas.
  • Marine & Offshore Automation: Manages shipboard systems like valve actuators, pumps, and power distribution, with marine certifications (ABS, BV, DNV) ensuring reliability in harsh sea conditions.
  • Power Generation & Distribution: Controls generators, transformers, and grid equipment, using IEC-61850/DNP3 protocols and gigabit Ethernet for real-time grid management and compliance.
  • Extreme Environment Manufacturing: Operates in foundries, steel mills, and cold storage facilities, leveraging dual-core processing for precise control of furnaces, rolling mills, and refrigeration systems.
  • Mining & Mineral Processing: Controls conveyor belts, crushers, and ore separation equipment, with robust communication and extended temperature range handling dust, vibration, and extreme temperatures.
  • Transportation Infrastructure: Manages railway signaling, tunnel ventilation, and highway traffic systems, using isolated serial ports for legacy device integration and extended temperature resilience for outdoor/underground sites.
