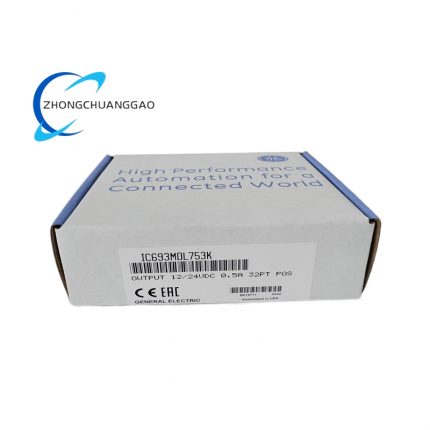

GE IC693MDL753K
GE IC693MDL753K
Back to products
GE IC693MDR390C
GE IC693MDR390C

GE IC693MDL940H

Product Overview

The IC693MDL940H is a single‑slot 16‑channel relay output module from GE Fanuc (now Emerson Automation) for the Series 90‑30 PLC platform, configured as 4 groups of 4 channels with independent commons. It provides 1500VAC field‑to‑logic and 500V group‑to‑group isolation, handling 5–30VDC/5–250VAC loads at 2A per channel. The module draws 7 mA from the 5V backplane and 135 mA from the 24V backplane (all outputs ON), with green LEDs per channel for output status. It integrates with all Series 90‑30 CPUs, baseplates, and power supplies, serving as a robust, isolated interface for industrial motor starters, solenoids, and indicators.
Category:
Description

Technical Specifications

Parameter Details
Manufacturer GE Fanuc (Emerson Automation)
Model Number IC693MDL940H
Platform Compatibility Series 90‑30 PLC Systems
Module Type Single‑slot 16‑channel relay output (NO contacts, 4 isolated groups)
Output Configuration 16 channels (4 groups × 4 channels), independent commons
Output Type Normally Open (NO) relay contacts
Output Voltage Range 5–30VDC; 5–250VAC (50/60 Hz)
Output Current 2A max per channel (resistive); 0.5A max per channel (inductive, 1 second)
Isolation Ratings 1500VAC (field‑to‑logic, 1 minute); 500V (group‑to‑group)
Backplane Power 7 mA from +5V bus; 135 mA from +24V relay bus (all outputs ON)
Response Time 10 ms max ON/OFF
Connectors Two 24‑pin male (Fujitsu FCN‑365P024‑AU)
Indicators Green LED per channel (ON status)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5%–95% non‑condensing
Dimensions 101.6 mm × 127 mm × 27.94 mm (4.0 in × 5.0 in × 1.1 in)
Weight 0.5 kg (1.1 lbs)
Mounting DIN rail via Series 90‑30 baseplate
Protection Class IP20

Functional Features

  • 4 Isolated Groups: 4 groups × 4 channels with independent commons and 500V isolation for mixed‑voltage field wiring.
  • 1500V Isolation: Blocks noise and transients between field and logic circuits for reliable operation in harsh environments.
  • Dual Voltage Compatibility: Controls both DC and AC loads (5–30VDC/5–250VAC) for flexible industrial use.
  • 2A Channel Rating: Drives resistive loads up to 2A per channel and inductive loads up to 0.5A per channel.
  • Channel‑Level Status: Green LED per channel for immediate output state visibility.
  • Industrial‑Grade Durability: Operates in -40°C to 85°C storage and 0°C to 60°C operating temps.
  • Tool‑Less Wiring: Secure 24‑pin terminal blocks for field connections.
  • No Internal Fuses: Simplifies maintenance with external protection recommended.

Application Scenarios

  • Motor Starter Control: Triggers motor contactors and starters in manufacturing lines.
  • Solenoid & Valve Control: Drives solenoid valves, pneumatic actuators, and hydraulic valves.
  • Process Automation: Controls pumps, mixers, and dosing systems in water treatment, chemical, and food processing plants.
  • Material Handling: Triggers conveyors, sorters, and packaging machines with isolated group protection.
  • Building Automation: Manages HVAC dampers, lighting circuits, and access control locks with independent power zones.
  • Retrofit Projects: Replaces legacy output modules in Series 90‑30 upgrades with minimal rewiring.
  • Harsh Environment Control: Performs reliably in oil refineries, mining, and outdoor industrial sites.

Ordering & Compatibility

Standard model: IC693MDL940H. Compatible accessories include Series 90‑30 power supplies (e.g., IC693PWR321), baseplates, pre‑wired cables, and terminal blocks. Pair with IC693CPU351‑HT/363 CPUs for full integration; program via VersaPro/Logicmaster 90‑30 software.
