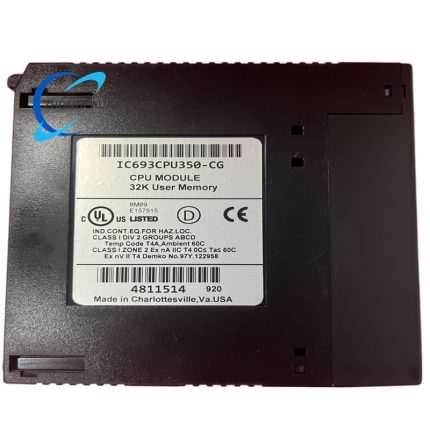

GE IC693CPU350‑BC Single‑Slot Modular CPU Module for Series 90‑30 PLC Systems
GE IC693CPU350‑BC Single‑Slot Modular CPU Module for Series 90‑30 PLC Systems

GE IC693CPU313 5‑Slot Embedded Turbo CPU Baseplate for Series 90‑30 PLC Systems

Product Overview

The IC693CPU313 is a compact, all‑in‑one embedded CPU baseplate designed by GE Fanuc (now part of Schneider Electric) for the Series 90‑30 PLC platform, integrating a turbo CPU directly into a 5‑slot baseplate. It features an 80188 16‑bit processor running at 10 MHz, a 12 KB user program memory, and a built‑in serial port, serving as a cost‑effective, non‑expandable solution for small‑to‑medium industrial control applications. The module delivers a fast scan rate of 0.6 ms per 1K Boolean logic, supports up to 160 discrete I/O points each for inputs and outputs, and enables communication via SNP/SNP‑X slave protocols, making it ideal for standalone automation systems requiring reliable, real‑time control.
Category:
Description

Technical Specifications

Parameter Details
Manufacturer GE Fanuc (Schneider Electric)
Model Number IC693CPU313
Platform Compatibility Series 90‑30 PLC Systems
Product Type 5‑Slot Embedded CPU Baseplate (non‑expandable)
Processor 80188 16‑bit Turbo CPU, 10 MHz clock speed
User Program Memory 12 KB (6 KB before firmware release 7)
Scan Rate 0.6 ms per 1K Boolean logic contacts
Discrete I/O Capacity 160 %I input points, 160 %Q output points
Analog I/O Capacity 64 words %AI, 32 words %AO
Internal Memory Discrete Global Memory: 1280 bits; Data Registers: 1024 words; Internal Coils: 1024 bits; Temporary Output Coils: 264 bits; System Status Reference: 128 bits
Timers/Counters 170 total (timers + counters)
Communication Port 1× RS‑232 serial port (SNP slave, SNP‑X slave protocols)
Power Supply 5 VDC from baseplate power supply, 430 mA typical current draw
Baseplate Slots 5 I/O slots (non‑CPU), 1 dedicated power supply slot
Supported Instructions Timer, counter, shift register; no PCM/CCM module support
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5%–95% non‑condensing
Dimensions 101.6 mm × 228.6 mm × 27.94 mm (4.0 in × 9.0 in × 1.1 in)
Weight 0.7 kg (1.54 lbs)
Mounting DIN rail (standard Series 90‑30 baseplate)

Functional Features

  • Integrated Baseplate & CPU: Combines 5‑slot baseplate with embedded turbo CPU for space‑saving, single‑baseplate installations.
  • High‑Speed Processing: 10 MHz 80188 CPU and 0.6 ms/1K scan rate ensure responsive real‑time control.
  • Native Serial Communication: RS‑232 port with SNP/SNP‑X slave protocols for programming, diagnostics, and HMIs.
  • Rich Memory Allocation: 12 KB user memory, 1024 data registers, and 1280‑bit discrete global memory for diverse control tasks.
  • Flexible I/O Support: Handles 160 discrete I/O points each, 64/32 analog I/O words, and 170 timers/counters for process control.
  • Programming Compatibility: Supports ladder logic, instruction list, shift register, timer, and counter instructions.
  • Reliable Power Backup: RAM backed by baseplate power supply battery for data retention during power loss.

Application Scenarios

  • Standalone Machine Control: Controls packaging machines, small conveyors, and material handling equipment with limited I/O needs.
  • OEM Equipment Integration: Embedded in original equipment for dedicated control (e.g., pumps, compressors, batch mixers).
  • Data Acquisition Systems: Gathers discrete/analog data from sensors, meters, and actuators for monitoring and reporting.
  • Small‑Scale Process Automation: Manages water treatment, HVAC, and light industrial processes with centralized control and simple I/O architectures.
  • Legacy System Retrofits: Upgrades aging PLCs with a cost‑effective, non‑expandable Series 90‑30 solution.
  • Panel‑Mounted Control: Fits compact control panels requiring minimal footprint and integrated CPU‑baseplate design.

Ordering & Notes

The standard model is IC693CPU313; compatible accessories include Series 90‑30 power supplies (e.g., IC693PWR321), I/O modules (discrete/analog), and communication modules (GCM, Ethernet) for LAN connectivity. The module does not support PCM/CCM modules and uses a single baseplate per system.
